Product Description

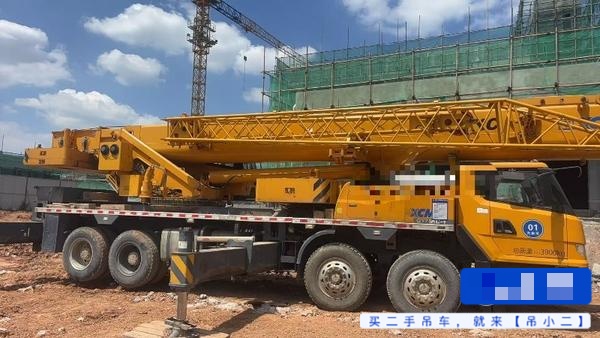

This 2021 XCMG QY55KC truck crane offers reliable lifting capacity for construction and industrial operations. Manufactured in June 2021, this 55-ton mobile crane features a 5-section telescopic boom extending to 46.5 meters, with auxiliary jib included for enhanced reach and versatility.
Key specifications:
- Lifting capacity: 55 tons
- 5-section boom, maximum length 46.5m
- Auxiliary jib available
- 12-ton counterweight configuration
- Euro V emission standard
- Hydraulic pilot control system
Currently located in Henan, China. This unit has been corporate-owned with documented maintenance records. The crane shows no structural modifications, welding reinforcements, or accident history. Annual inspection and insurance valid through 2027. Suitable for contractors seeking proven XCMG reliability in the mid-range mobile crane segment.
| Specifications | Value |
|---|---|
| No. | 1164002 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
