Product Description

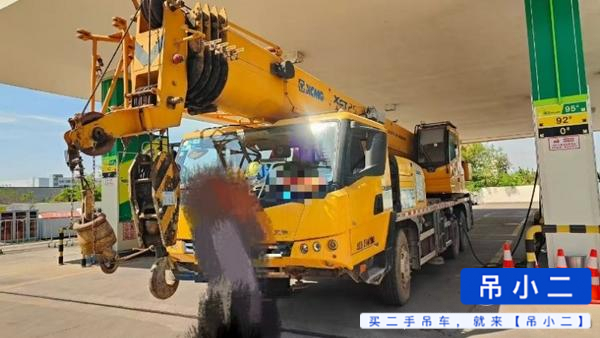

Proven in demanding jobsites since 2018, this XCMG XCT20L5 truck crane demonstrates the durability that defines China's leading heavy equipment manufacturer. With five years of operational history, this 20-ton mobile crane has established itself as a reliable workhorse for construction, infrastructure, and industrial lifting applications. Built on XCMG's robust engineering platform, the XCT20L5 combines a compact footprint with impressive reach and lifting capacity, making it ideal for urban construction sites and confined work areas. Currently located in Guangzhou, Guangdong, this unit has been maintained to deliver consistent performance day after day. Its track record speaks volumes—machines like this don't survive years of heavy use without exceptional build quality. Hydraulic systems, boom mechanisms, and chassis components have proven their resilience through continuous operation. For contractors seeking dependable lifting power without the premium cost of new equipment, this crane offers proven capability backed by XCMG's reputation for manufacturing equipment built to last.
| Specifications | Value |
|---|---|
| No. | 1014680 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
