2019 XCMG XCT20L5

1/4

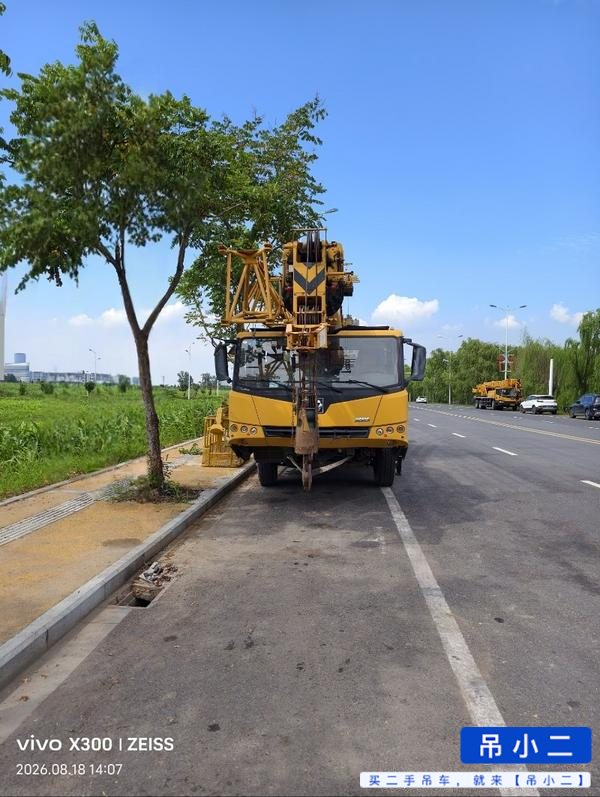

Buy XCMG XCT20L5 Used Crane / 1
Buy XCMG XCT20L5 Used Crane / 2

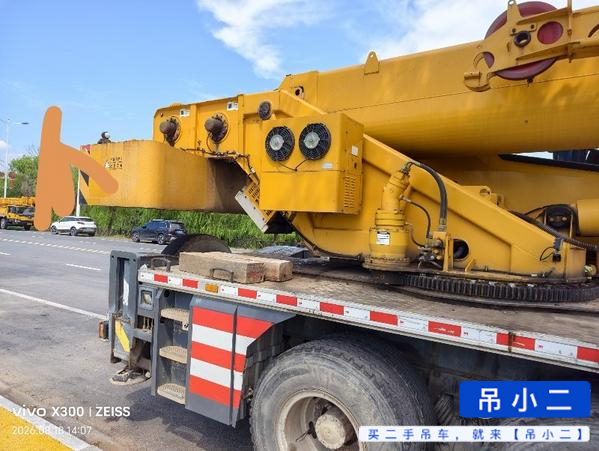

Buy XCMG XCT20L5 Used Crane / 3
Buy XCMG XCT20L5 Used Crane / 4

Product Description

Discover the 2019 XCMG XCT20L5, a robust and reliable crane available for inspection in Jiangsu, China. This unit, with its original Nanjing license plate, has been meticulously maintained by a single owner since December 2018, ensuring its excellent condition. Notably, this crane has had no accidents, and all components are original, with no replacements made. The low mileage adds to its appeal, making it an ideal choice for your construction projects. Ready for immediate use, this XCT20L5 comes with synchronized insurance, offering you peace of mind. Arrange a viewing in Nanjing to see firsthand the quality and performance of this well-preserved machine.

  • Year: 2019
  • Brand: XCMG
  • Model: XCT20L5
  • Location: Jiangsu, China (Viewing in Nanjing)
  • Condition: Single owner, accident-free, all parts original
  • Mileage: Low
  • Licensed: Nanjing
SpecificationsValue
No.1129491
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)1.0-1.2
Boom length (mm)5680
Rod length (mm)2910
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSB7
Rated power (kw/rpm)135/2050
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)6.7
Working formDirect injection, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)47.5
Rotation speed (rpm)12
Climbing ability (%)35
Bucket digging force (kN)157
Rod digging force (kN)116
Maximum tractive force (kN)184
Travel speed (km/h)5.7/3.1
Fuel Tank (L)400
Hydraulic Tank (L)220
Engine Oil changes (L)24
Total transport length (mm)9630
Total transport width (mm)2910
Total transport height (mm)3100
Counterweight ground clearance (mm)1050
Minimum ground clearance (mm)486
Minimum turning radius of front working device (mm)3530
Back end turning radius (mm)2890
Total track length (mm)4155
Track gauge (mm)2290
Total track width (mm)600
Maximum digging radius (mm)9760
Maximum digging depth (mm)6660
Maximum excavation height (mm)9540
Maximum unloading height (mm)6780
Maximum vertical digging depth (mm)6480
see more

Overview

No.1129491

Brand Name:

XCMG

Model Number:

XCT20L5

Year:

2019

Location:

Jiangsu China
