2020 XCMG XCT8

Buy XCMG XCT8 Used Crane / 21/1
Buy XCMG XCT8 Used Crane / 1

Product Description

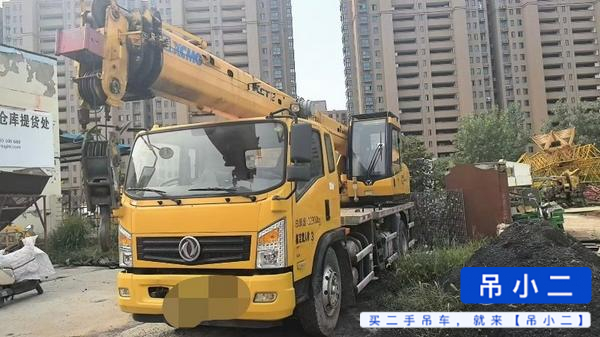

Discover the 2020 XCMG XCT8, a robust and reliable crane available in Jiangsu, China. This used machine has been meticulously maintained, boasting its original paint and an accident-free history. With less than 5000 operational hours, it comes equipped with stabilizers, ensuring stability and safety on any job site. The current annual inspection and insurance are valid until next year, including commercial coverage. Priced at 185,000 RMB, this XCT8 is ready for immediate deployment, offering excellent value for your investment.

  • Year: 2020
  • Brand: XCMG
  • Model: XCT8
  • Operational Hours: Less than 5000
  • Location: Jiangsu, China
  • Included: Stabilizers, Annual Inspection, Commercial Insurance
SpecificationsValue
No.1131349
Tonnage (tons)2
Working weight (kg)1780
Bucket capacity (m³)0.044
Boom length (mm)1690
Rod length (mm)1100
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar Yanmar 3TNV82A
Rated power (kw/rpm)16.5/2200
Cooling modewater-cooling
Number of cylinders (PCS)3
Displacement (L)1.33
Ground specific pressure (Kpa)25.3
Rotation speed (rpm)11
Climbing ability (%)30 °
Bucket digging force (kN)13.9
Rod digging force (kN)8.8
Travel speed (km/h)4.4/2.4
Main overflow set pressure (Mpa)24
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)2*19.8+14.1
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)18
Hydraulic crushing pipeline is standardis
Main pump typeJapan non Fukoshi variable pump ×2+ gear pump ×1
Pilot Oil Circuit (MPa)3.3
Fuel Tank (L)20
Hydraulic Tank (L)29
Engine Oil changes (L)5.5
Total transport length (mm)3760
Total transport width (mm)1300
Total transport height (mm)2405
Counterweight ground clearance (mm)509
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1675
Back end turning radius (mm)1190
Track gauge (mm)1070
Track plate width (mm)230
Track ground length (mm)1217
Maximum digging radius (mm)3915
Maximum digging depth (mm)2285
Maximum excavation height (mm)2655
Maximum unloading height (mm)2515
Maximum vertical digging depth (mm)1485
Dodging plate width × height (mm)1300 x 235
