Product Description
Strengthen your contractor fleet with this 2013 XCMG XE135B excavator, currently located in Guangxi. Operating at 13 tons with a robust 13,800 kg working weight, this mid-size crawler delivers reliable performance for earthmoving, trenching, and utility projects. Powered by an ISUZU BB-4BG1TRP engine producing 69.6 kW at 2200 rpm, this machine combines proven durability with efficient fuel consumption from its 250-liter tank.
Built for versatility, the XE135B features a 4,600 mm boom and 2,510 mm arm configuration, achieving an impressive 8,296 mm maximum dig radius and 5,538 mm dig depth. Bucket capacity ranges from 0.4 to 0.52 m³, while hydraulic forces of 85 kN (bucket) and 65 kN (arm) handle demanding soil conditions. Dual plunger pumps deliver 2×123 L/min flow for responsive cycle times.
Key specifications include:
- Water-cooled 4-cylinder turbocharged diesel engine (4.329 L displacement)
- 12.3 rpm rotation speed with 35° grading capability
- Compact transport dimensions: 7,770 mm × 2,512 mm × 2,880 mm
- 500 mm track plates on 2,910 mm ground contact length
- Travel speeds: 5.16/3.03 km/h for efficient site mobility
Perfect as a backup unit or fleet expansi
| Specifications | Value |
|---|---|
| No. | 1027217 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

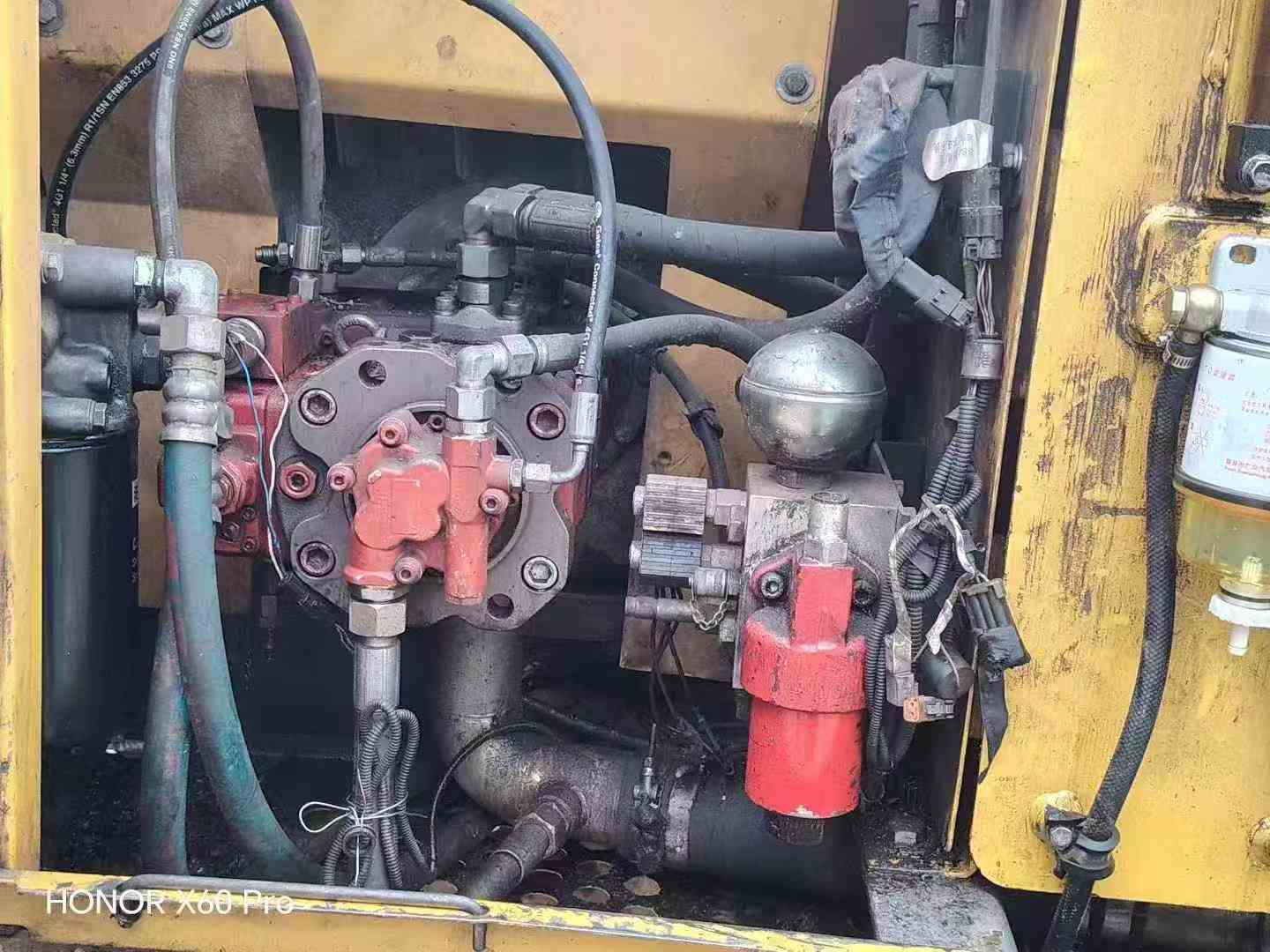

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
