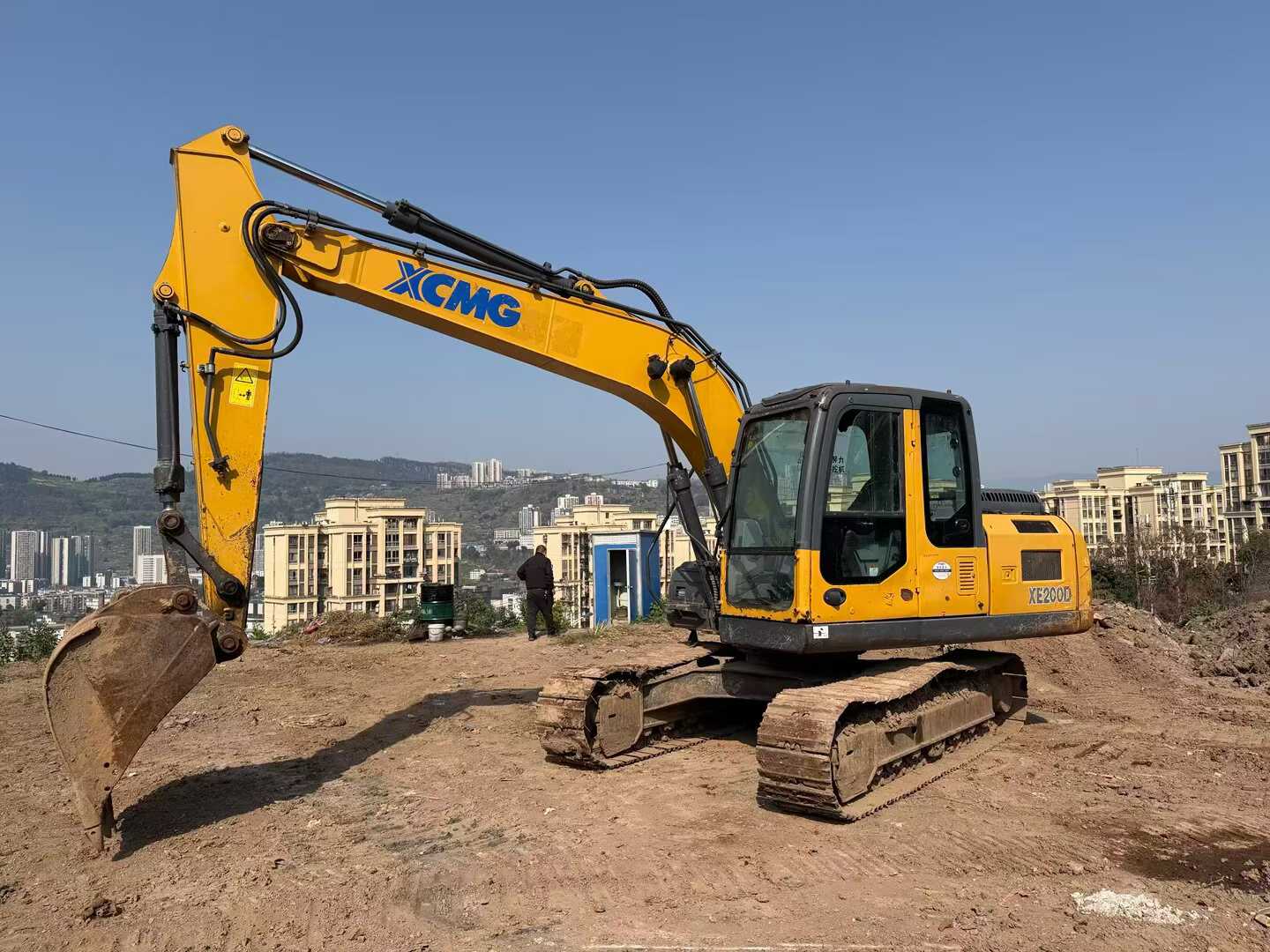

2016 XCMG XE135B

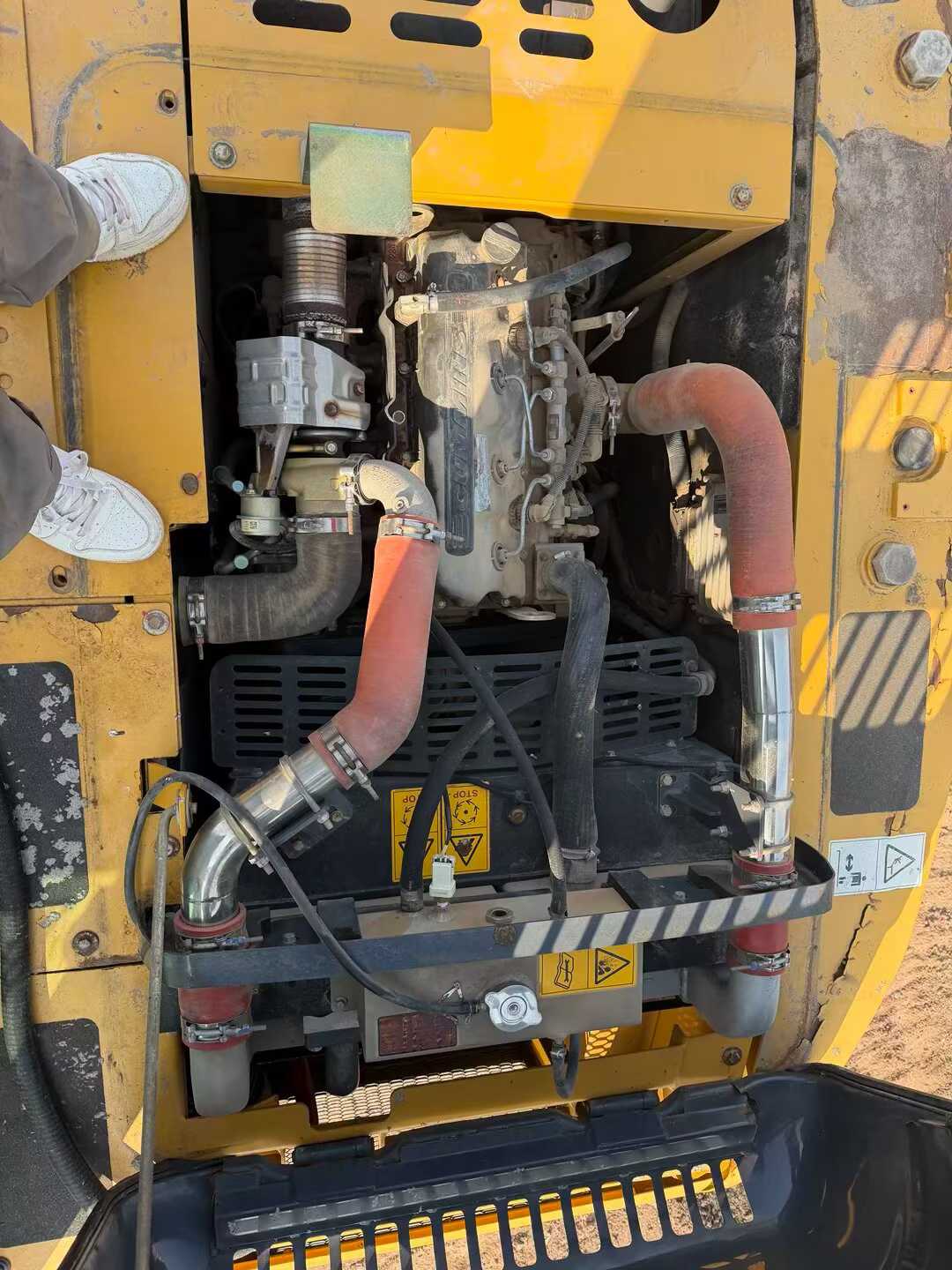

Engineered with precision in Xuzhou, this 13-ton excavator delivers robust performance through its ISUZU BB-4BG1TRP turbocharged engine, generating 69.6 kW at 2200 rpm across four water-cooled cylinders. Dual plunger pumps supply 2×123 L/min hydraulic flow at 31.4/34.3 MPa, powering an 85 kN bucket digging force and 65 kN arm digging force that handle demanding excavation tasks with authority. Operational reach extends to 8,296 mm maximum radius and 5,538 mm digging depth, while the 4,600 mm boom and 2,510 mm arm provide versatile positioning across jobsites.

Built on a 13,800 kg chassis with 500 mm track plates and 2,910 mm ground contact length, this machine maintains 42 kPa ground pressure for stable operation on varied terrain. The hydraulic system features dedicated circuits—34.3 MPa for travel, 25 MPa for rotation—ensuring responsive control through a 3.9 MPa pilot system. With 250 L fuel capacity, 130 L hydraulic reservoir, and proven reliability from XCMG's manufacturing standards, this Chongqing-based unit offers dependable performance for contractors requiring precision excavation capabilities in the 13-ton class.
