2018 XCMG XE135B

1/6

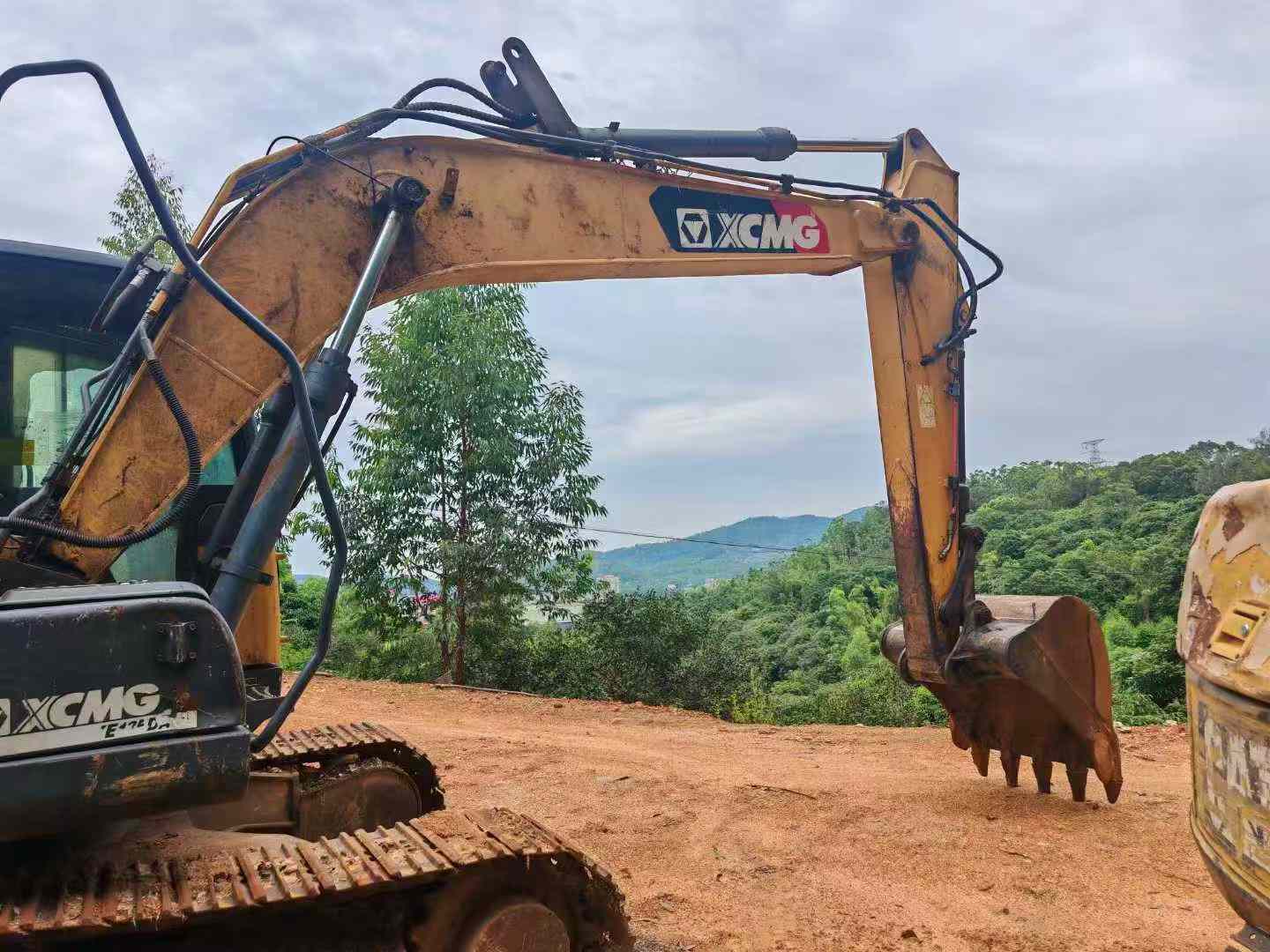

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2

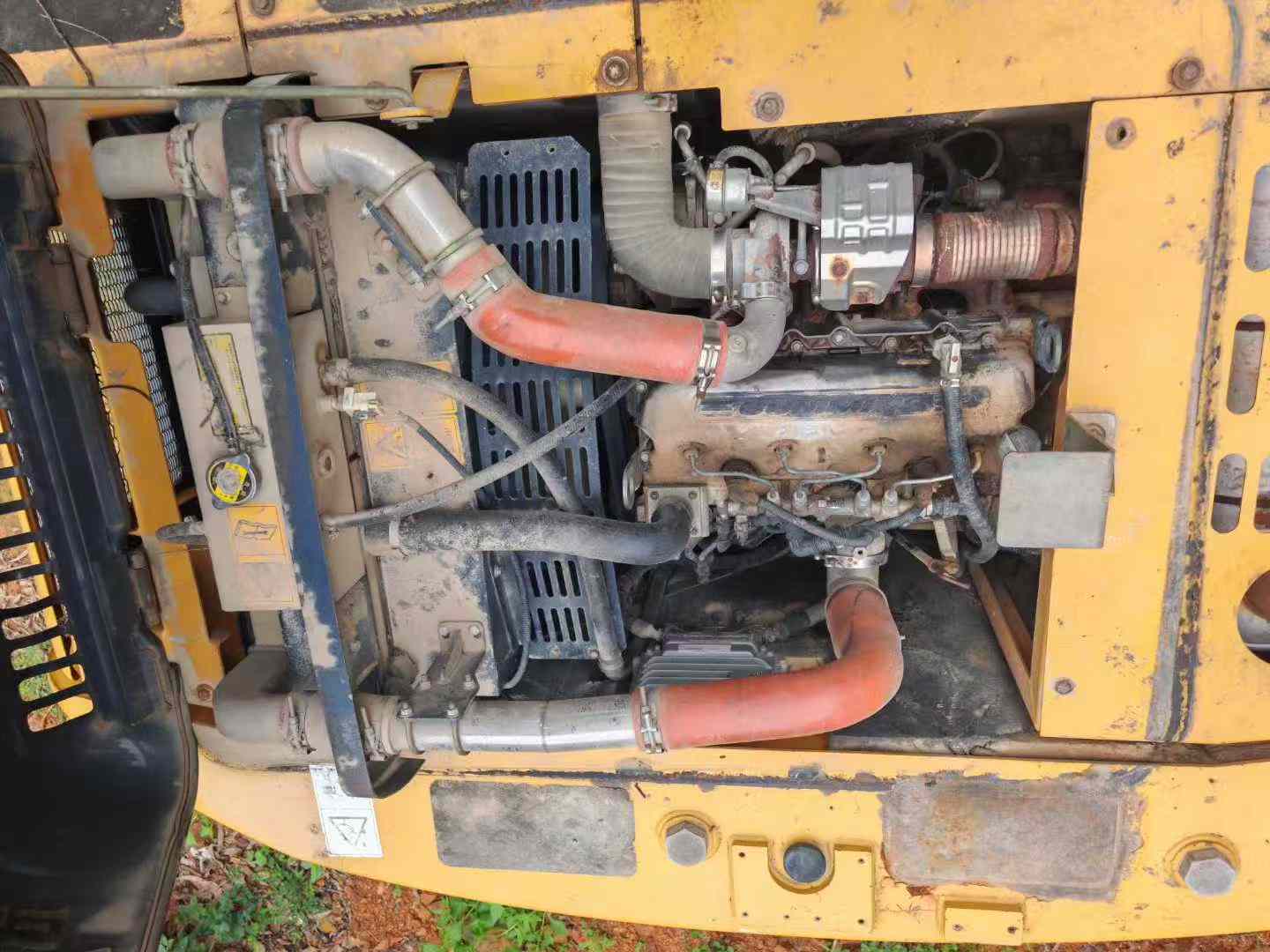

Buy XCMG XE135B Used Excavator / 3

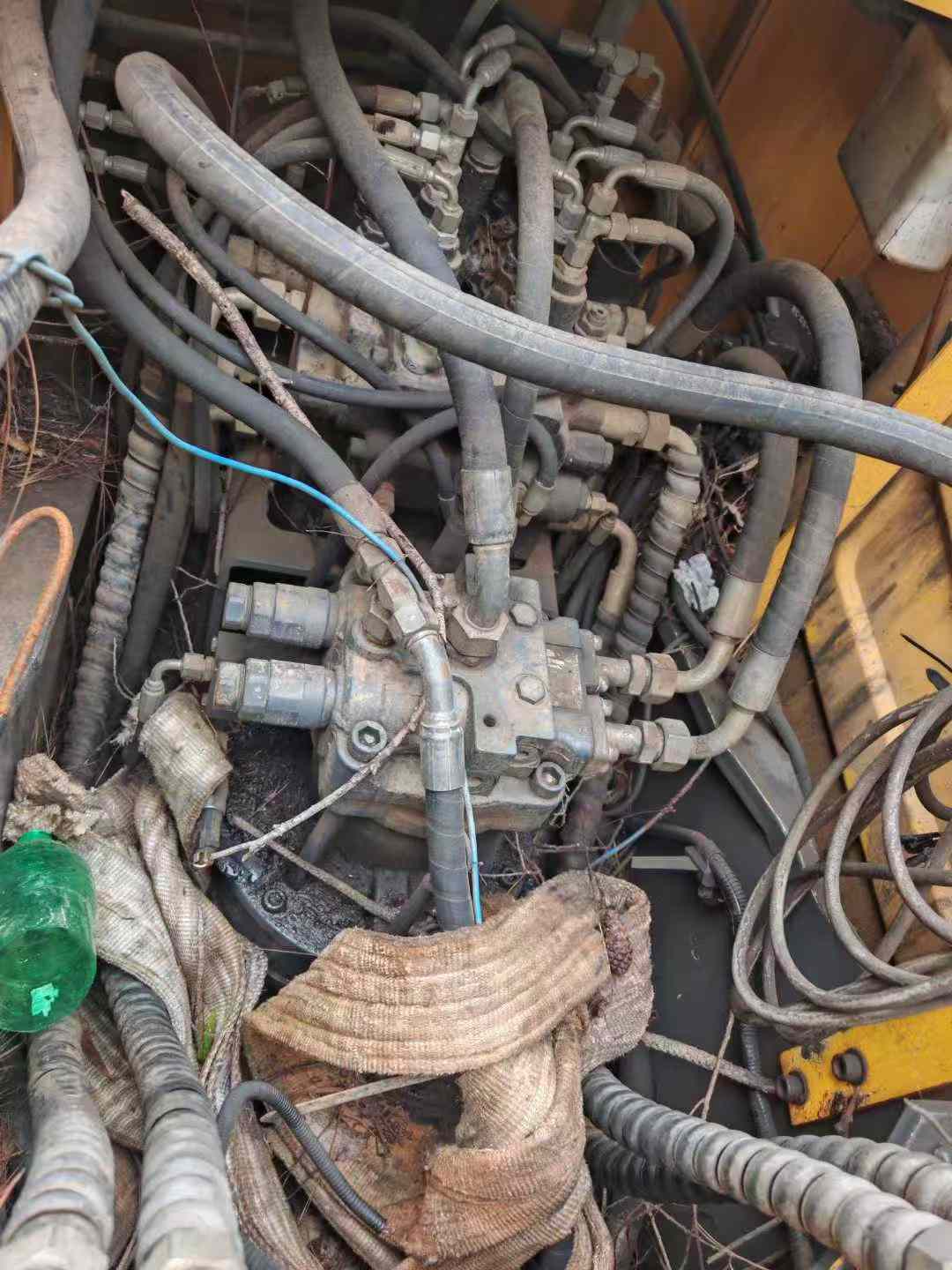

Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5

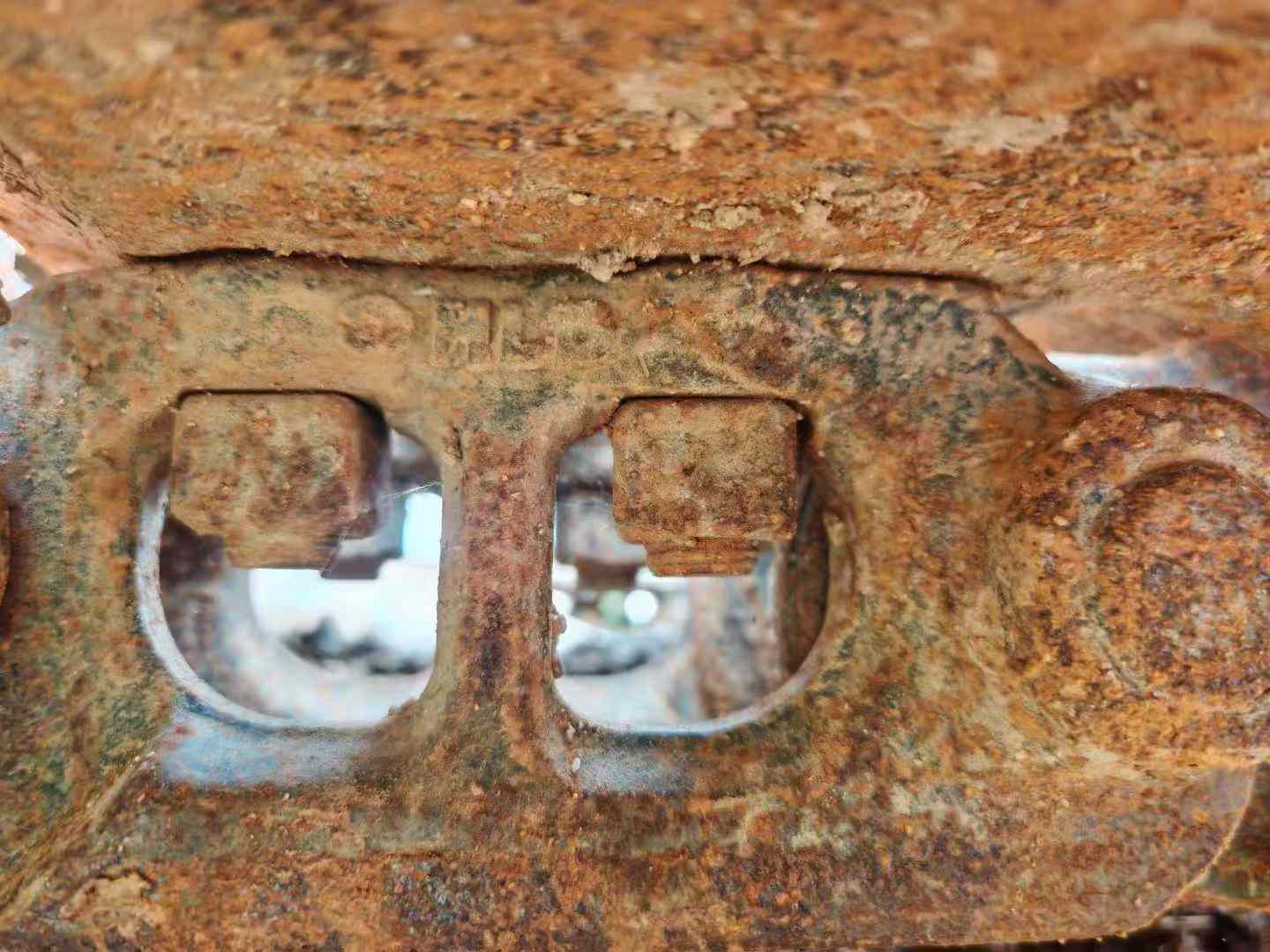

Buy XCMG XE135B Used Excavator / 6

Product Description

This 2018 XCMG XE135B excavator represents a reliable mid-size solution for construction and earthmoving operations. With over 9,000 operating hours, this machine has been consistently maintained and is ready for immediate deployment. The unit is currently located in Fujian, China, and is available for inspection.

The XE135B is part of XCMG's proven crawler excavator lineup, designed for versatility across various jobsite conditions. This model offers a balanced combination of digging force, reach, and fuel efficiency suitable for contractors and rental fleets.

  • Year of Manufacture: 2018
  • Operating Hours: 9,000+
  • Current Location: Fujian Province, China
  • Condition: Well-maintained, inspection-ready
  • Machine Class: 13-ton excavator

Ideal for buyers seeking dependable used equipment with documented service history. Contact us for detailed specifications, current photos, and export documentation assistance.

SpecificationsValue
No.1122034
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1122034

Brand Name:

XCMG

Model Number:

XE135B

Year:

2018

Location:

Fujian China

Pub Date
