HOME>>XCMG>>XCMG XE135B

2018 XCMG XE135B

1/7

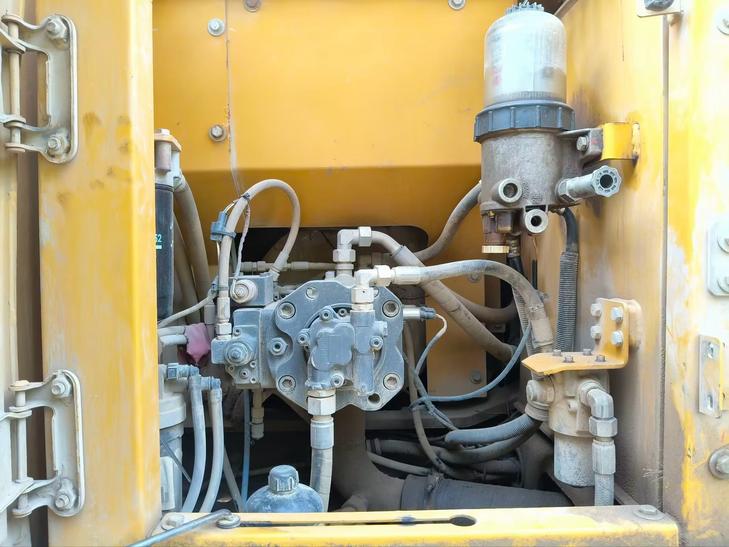

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7

Product Description

This 2018 XCMG XE135B excavator is available from Chongqing, China. With approximately 100,000 operating hours recorded, this machine represents a high-utilization unit from XCMG's popular mid-size excavator line. The XE135B series is known for reliable hydraulic performance and fuel efficiency in demanding earthmoving applications.

Key details:

  • Year: 2018
  • Model: XCMG XE135B
  • Location: Chongqing, China
  • Operating hours: ~100,000
  • Documentation: Detailed photos and video available upon request

This unit is suited for buyers seeking proven XCMG equipment for construction, mining, or land development projects. Inspection reports and additional operational history can be provided to qualified buyers. Contact us for complete documentation and export arrangements.

SpecificationsValue
No.1143218
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1143218

Brand Name:

XCMG

Model Number:

XE135B

Year:

2018

Location:

Chongqing China

Pub Date
