2018 XCMG XE135B

1/9

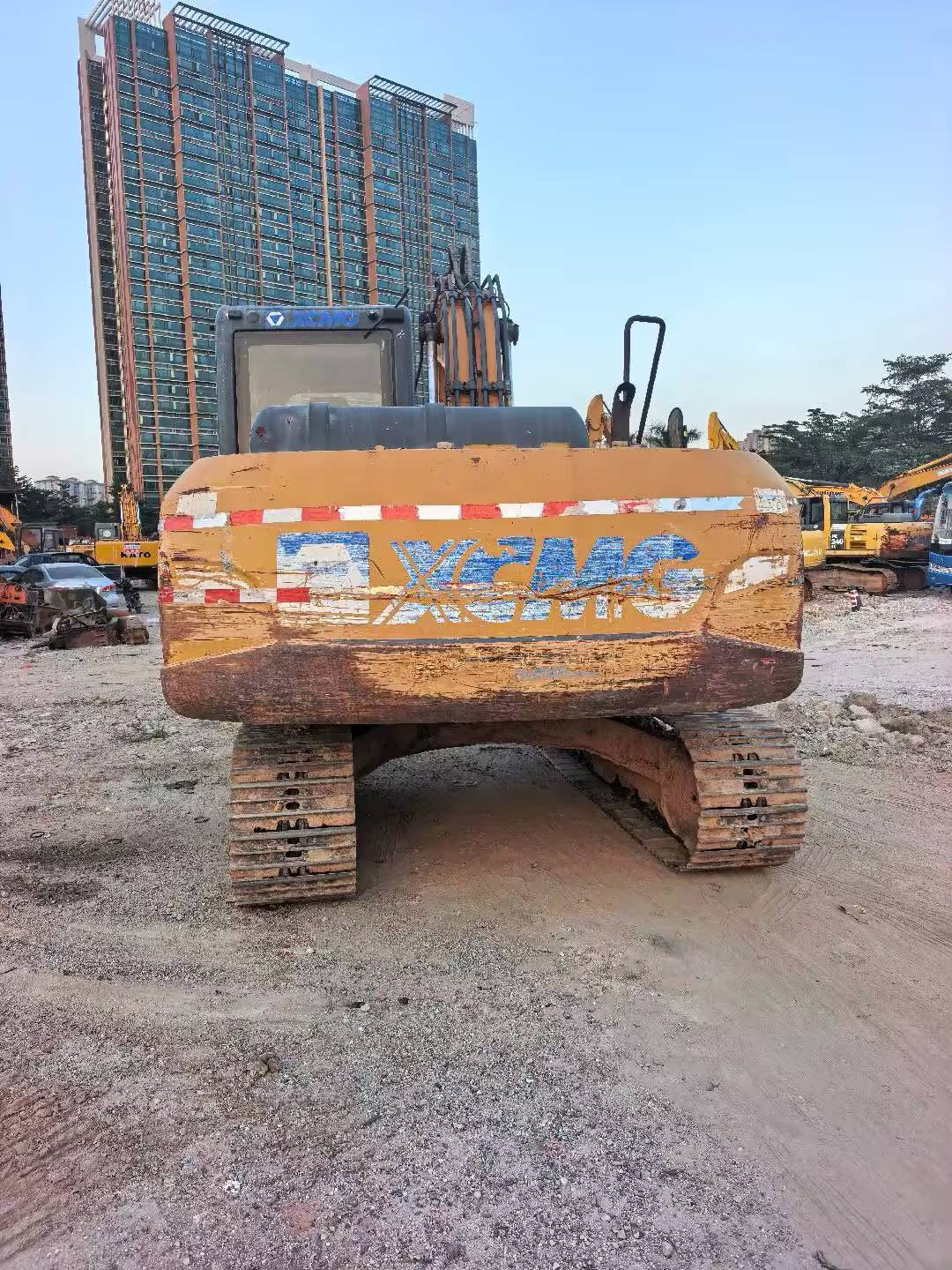

Buy XCMG XE135B Used Excavator / 1

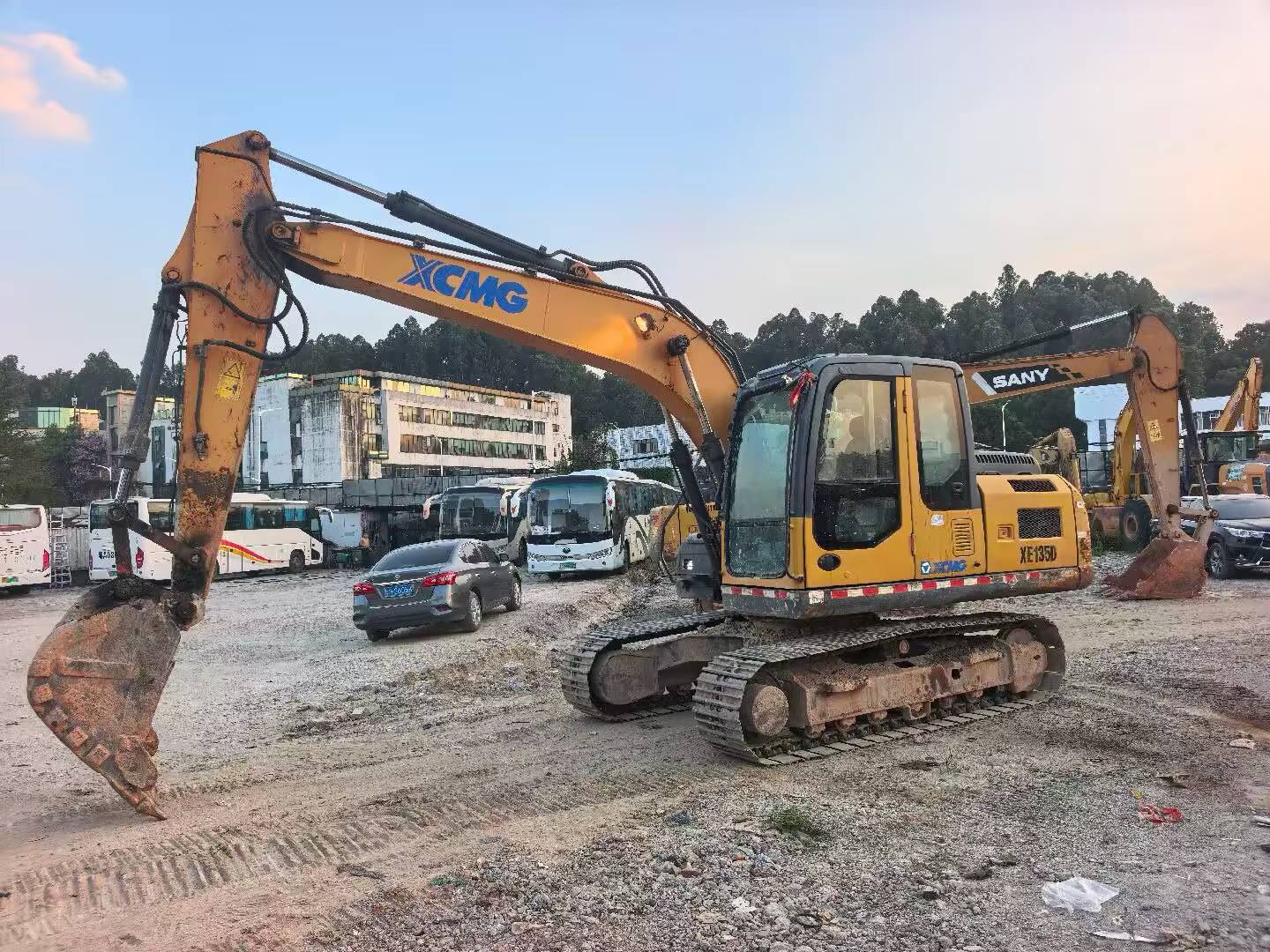

Buy XCMG XE135B Used Excavator / 2

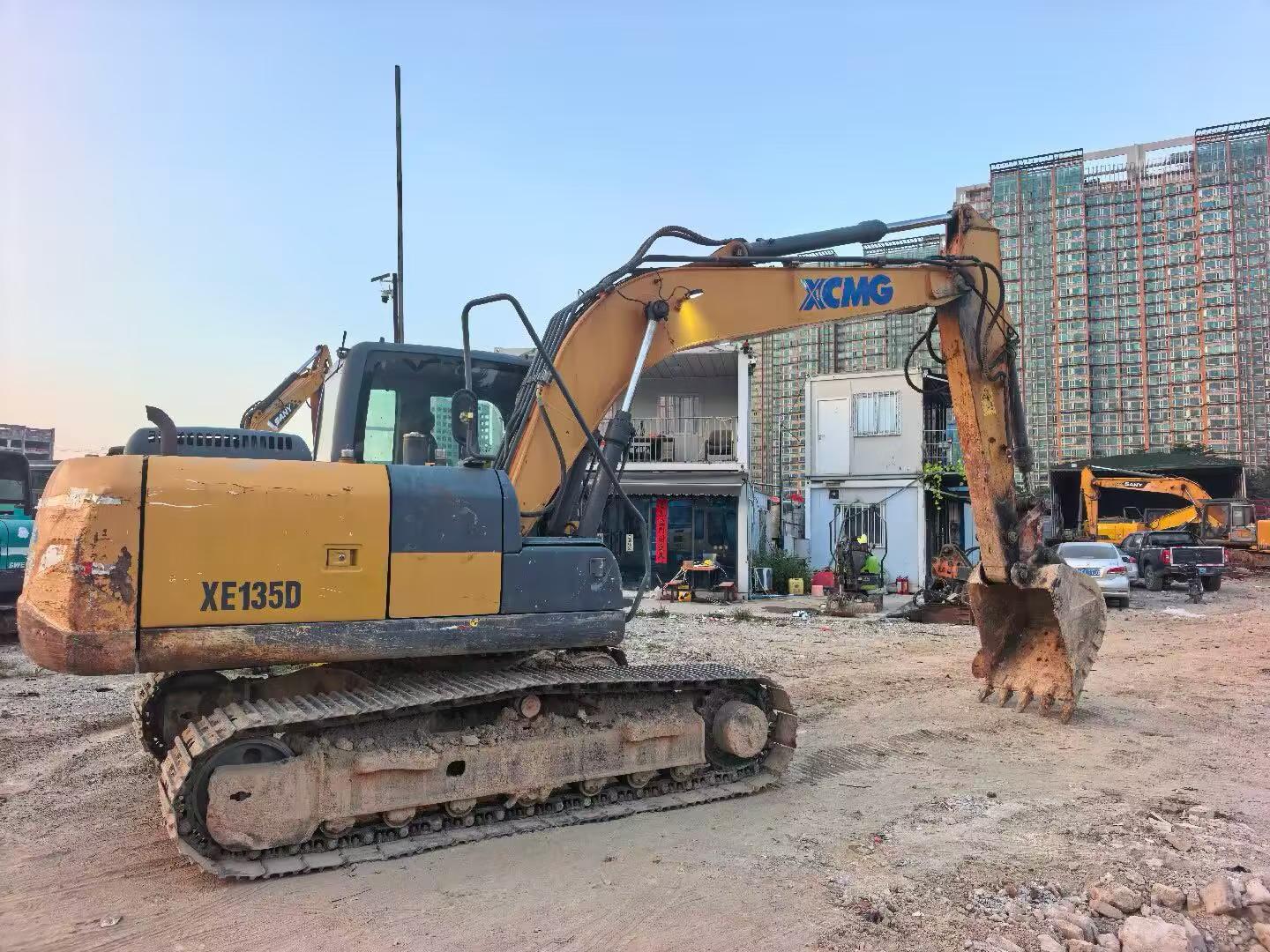

Buy XCMG XE135B Used Excavator / 3

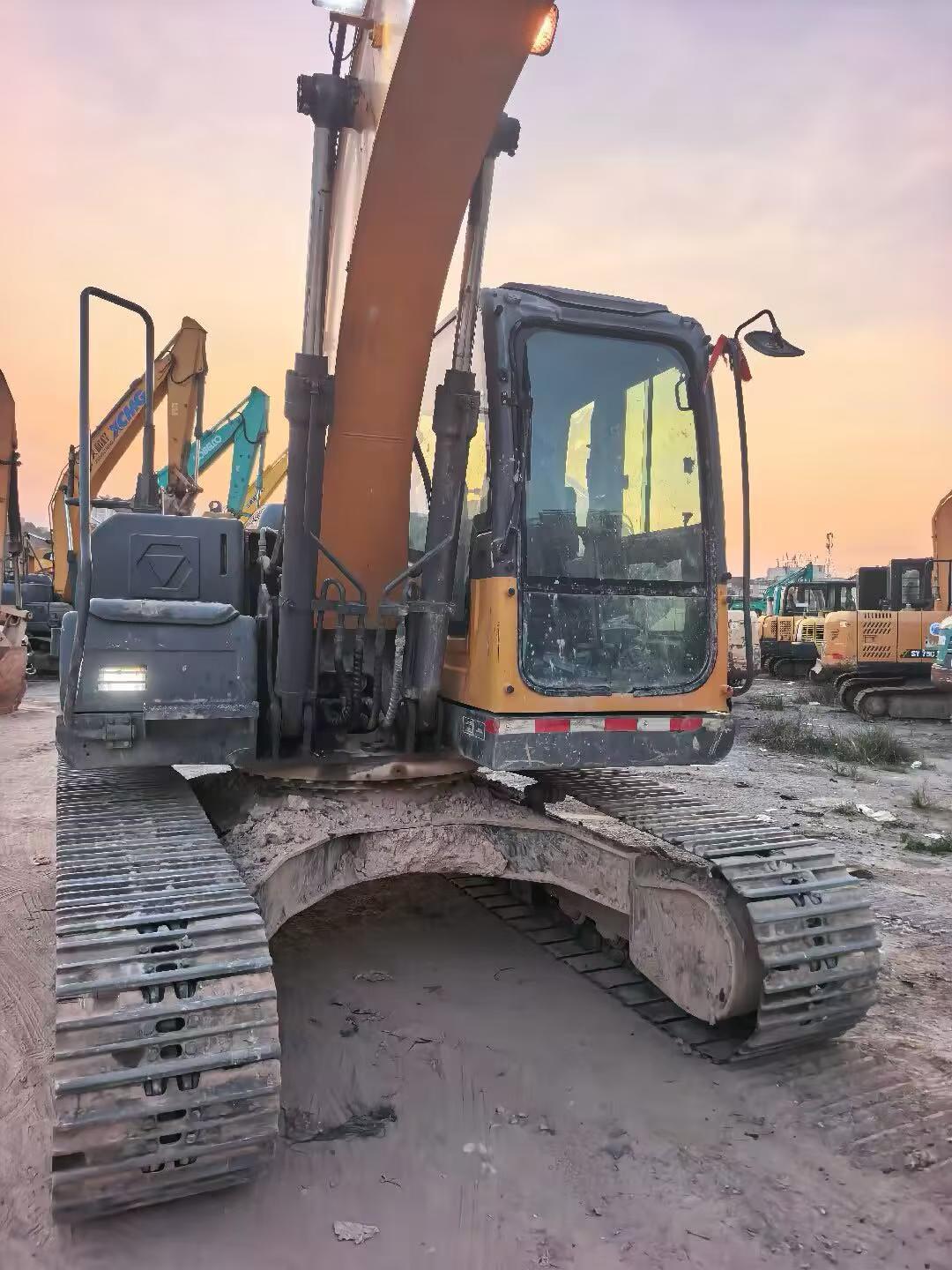

Buy XCMG XE135B Used Excavator / 4

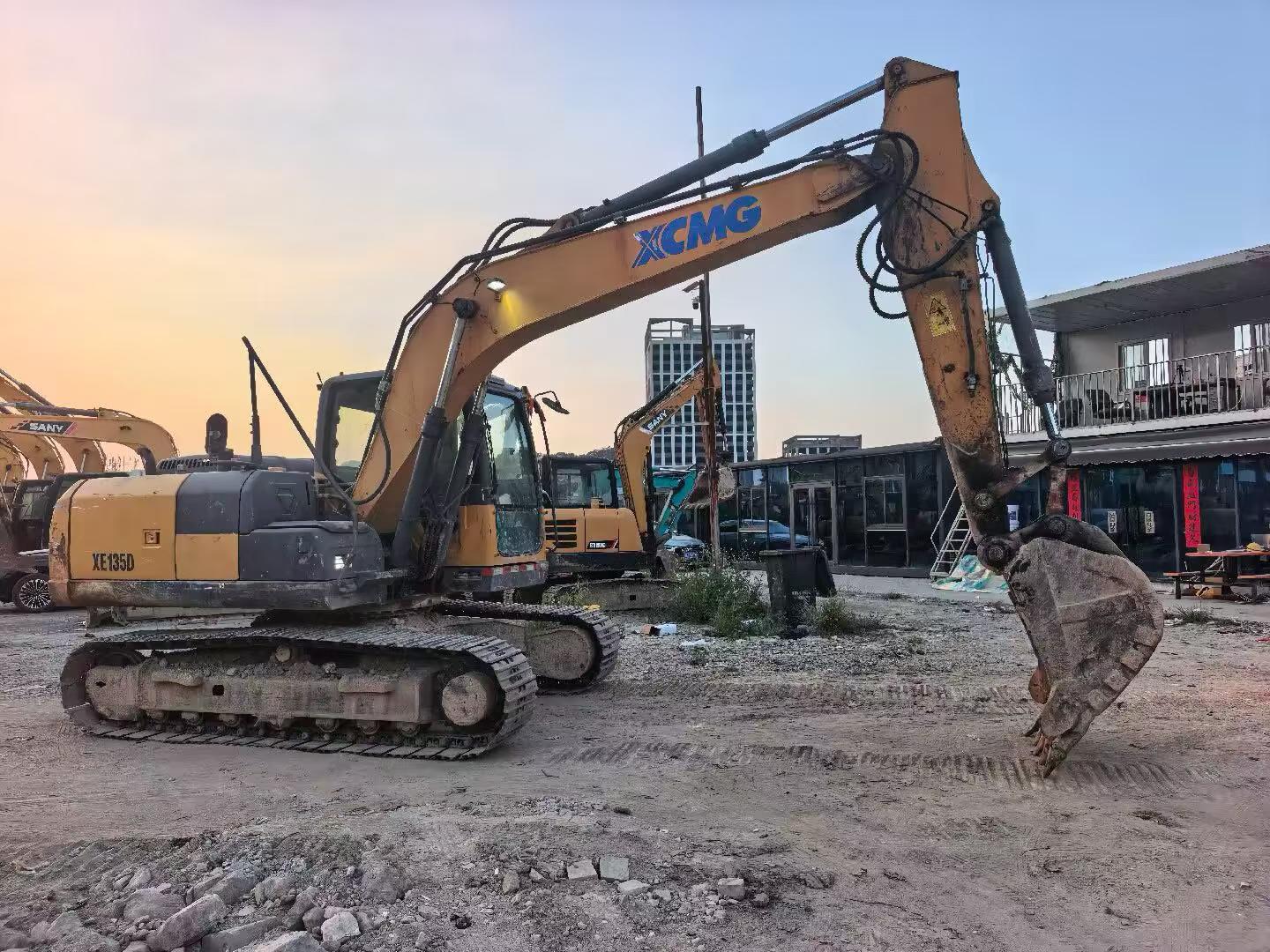

Buy XCMG XE135B Used Excavator / 5

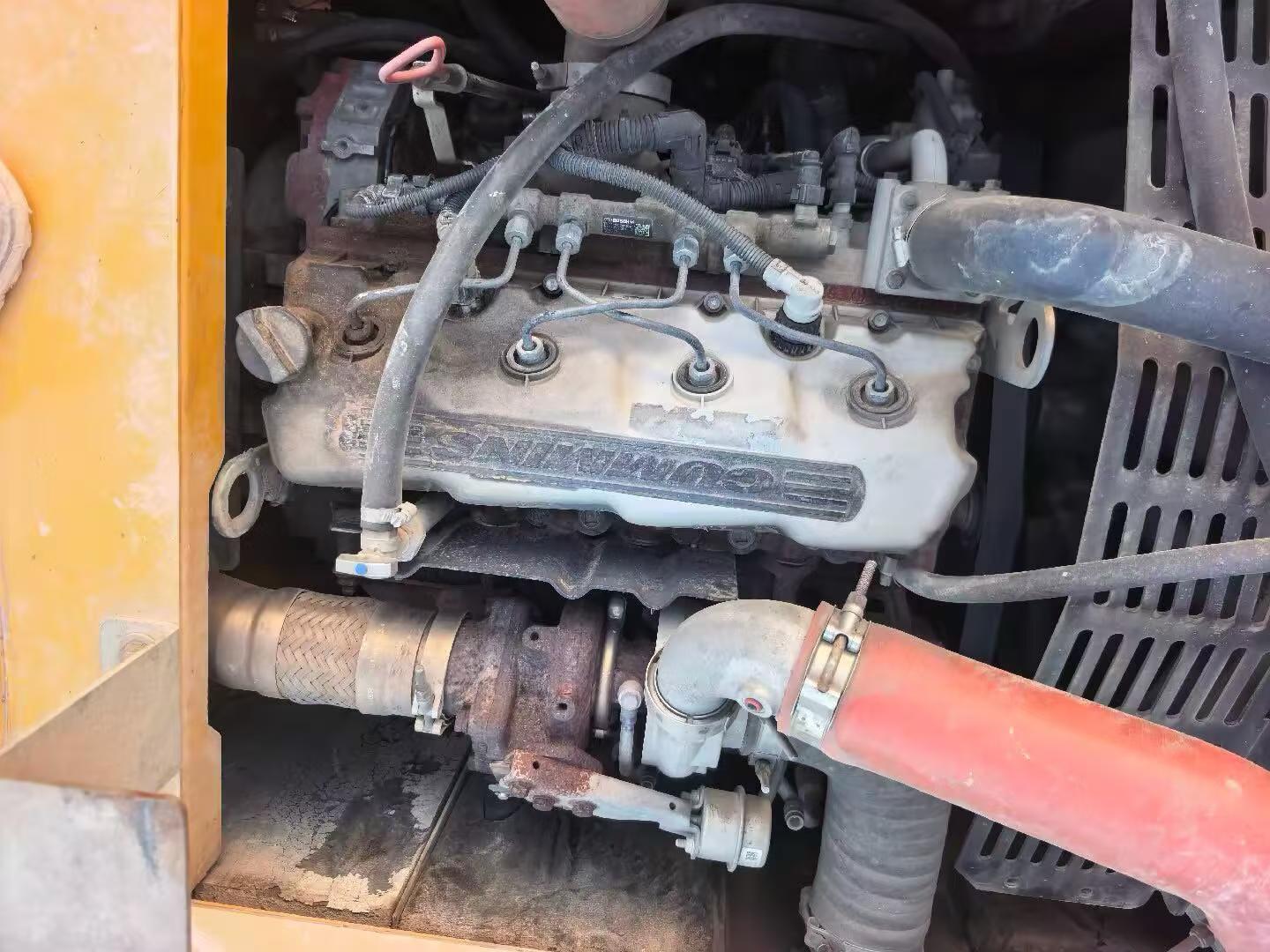

Buy XCMG XE135B Used Excavator / 6

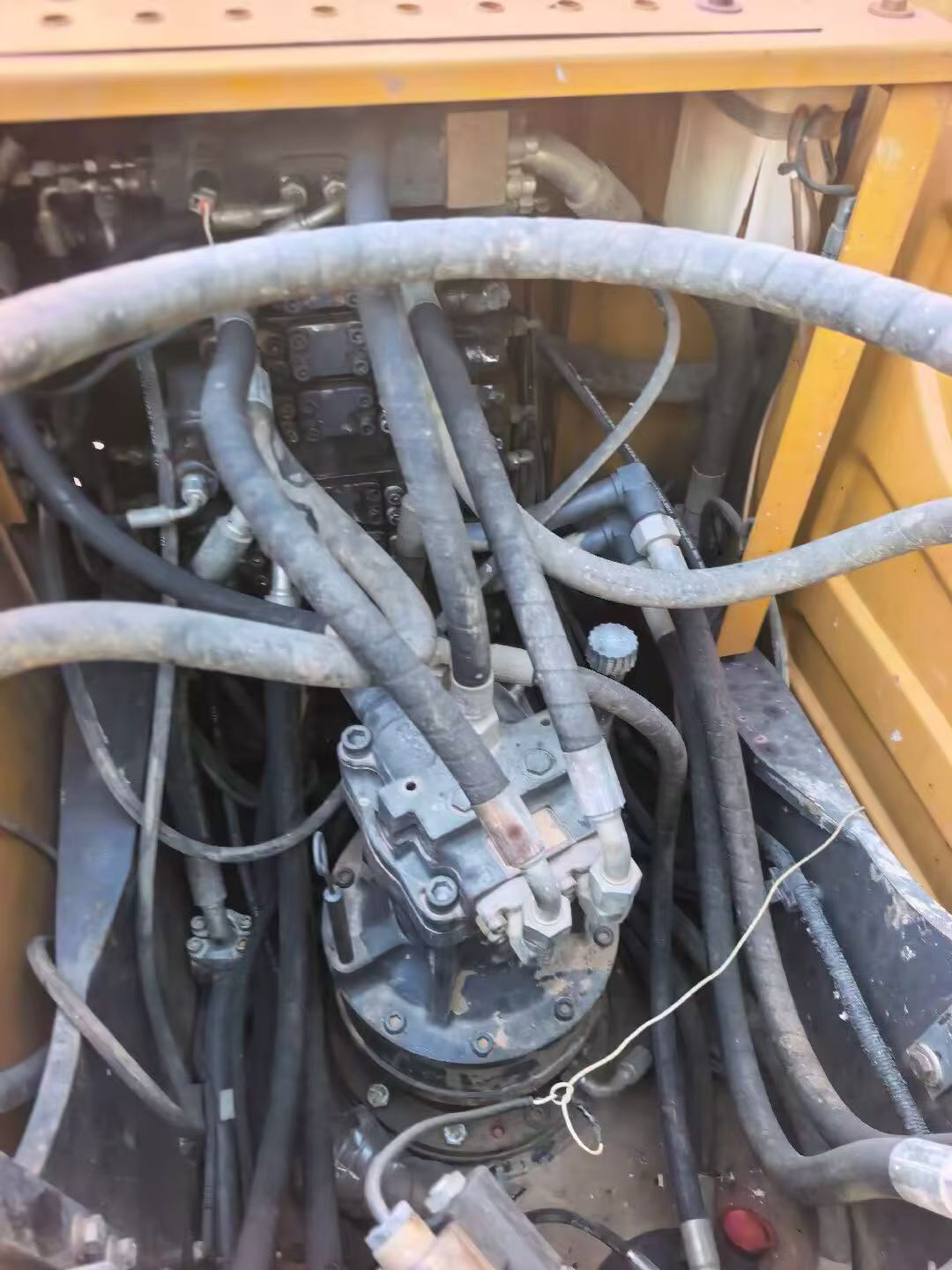

Buy XCMG XE135B Used Excavator / 7

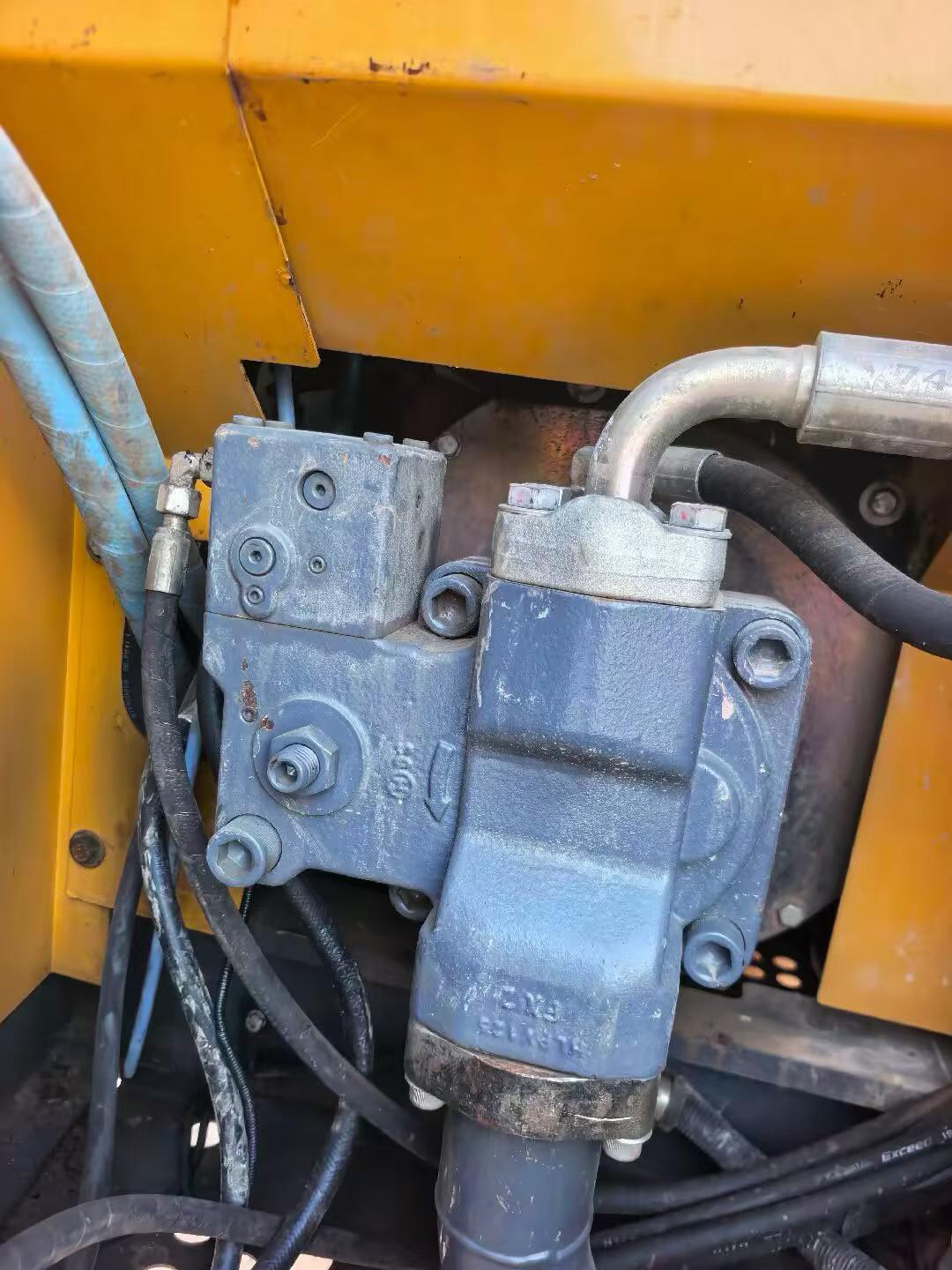

Buy XCMG XE135B Used Excavator / 8

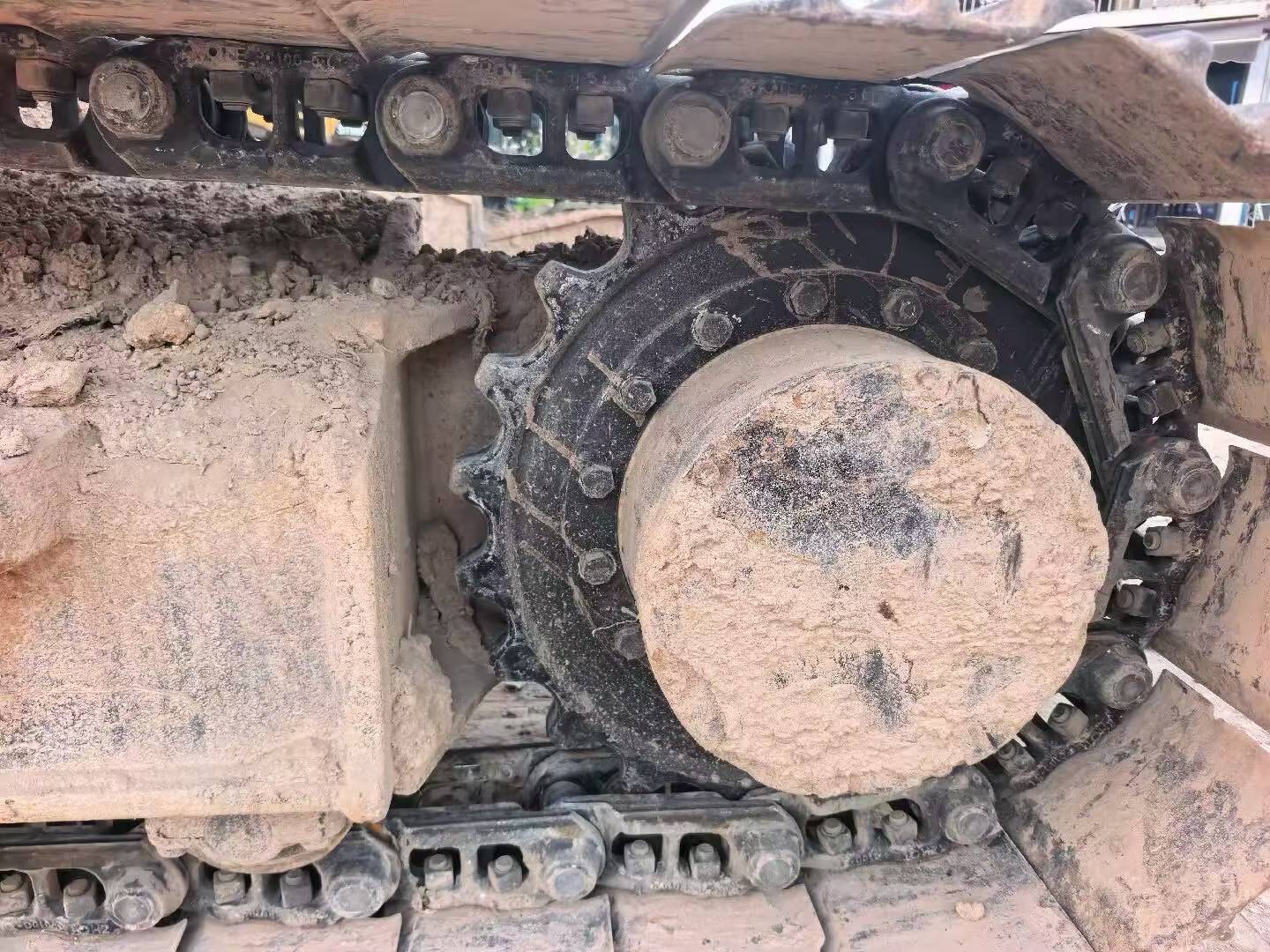

Buy XCMG XE135B Used Excavator / 9

Product Description

This 2018 XCMG XE135B hydraulic excavator offers proven performance for mid-range earthmoving and construction applications. The 13.5-ton class machine combines XCMG's established engineering with practical functionality for contractors and fleet operators seeking reliable used equipment.

Key features include:

  • Robust undercarriage designed for varied site conditions
  • Efficient hydraulic system for responsive digging and lifting operations
  • Spacious operator cabin with good visibility
  • Suitable for trenching, grading, loading, and general excavation work
  • Well-maintained condition from Guangdong province

The XE135B provides a practical balance of power, reach, and fuel efficiency for medium-duty projects. This unit represents a cost-effective solution for businesses requiring dependable excavation equipment without the premium of new machinery. Currently located in Guangdong, China, and available for inspection.

SpecificationsValue
No.1163262
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1163262

Brand Name:

XCMG

Model Number:

XE135B

Year:

2018

Location:

Guangdong China

Pub Date:
