2018 XCMG XE135B

1/5

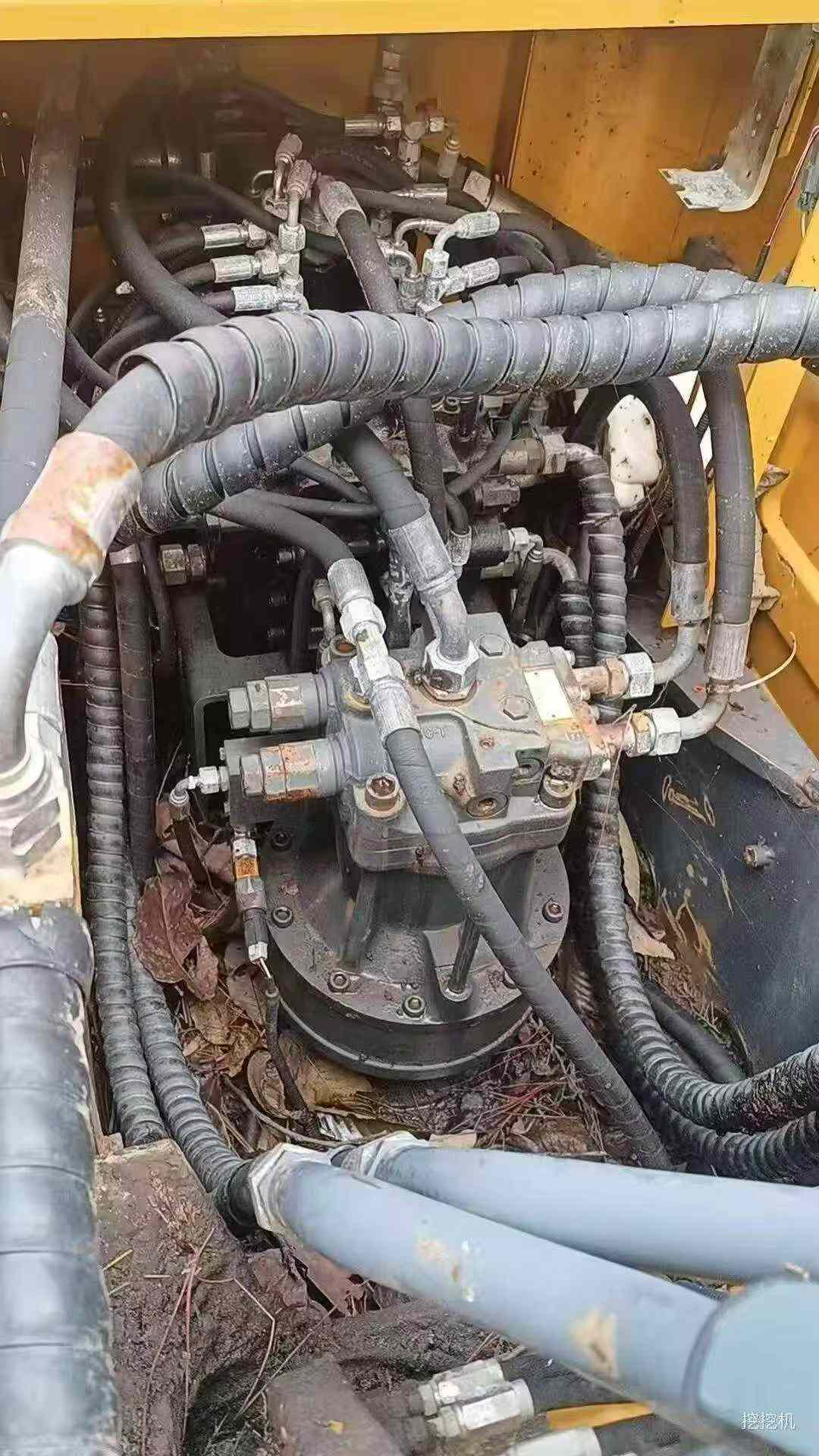

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3

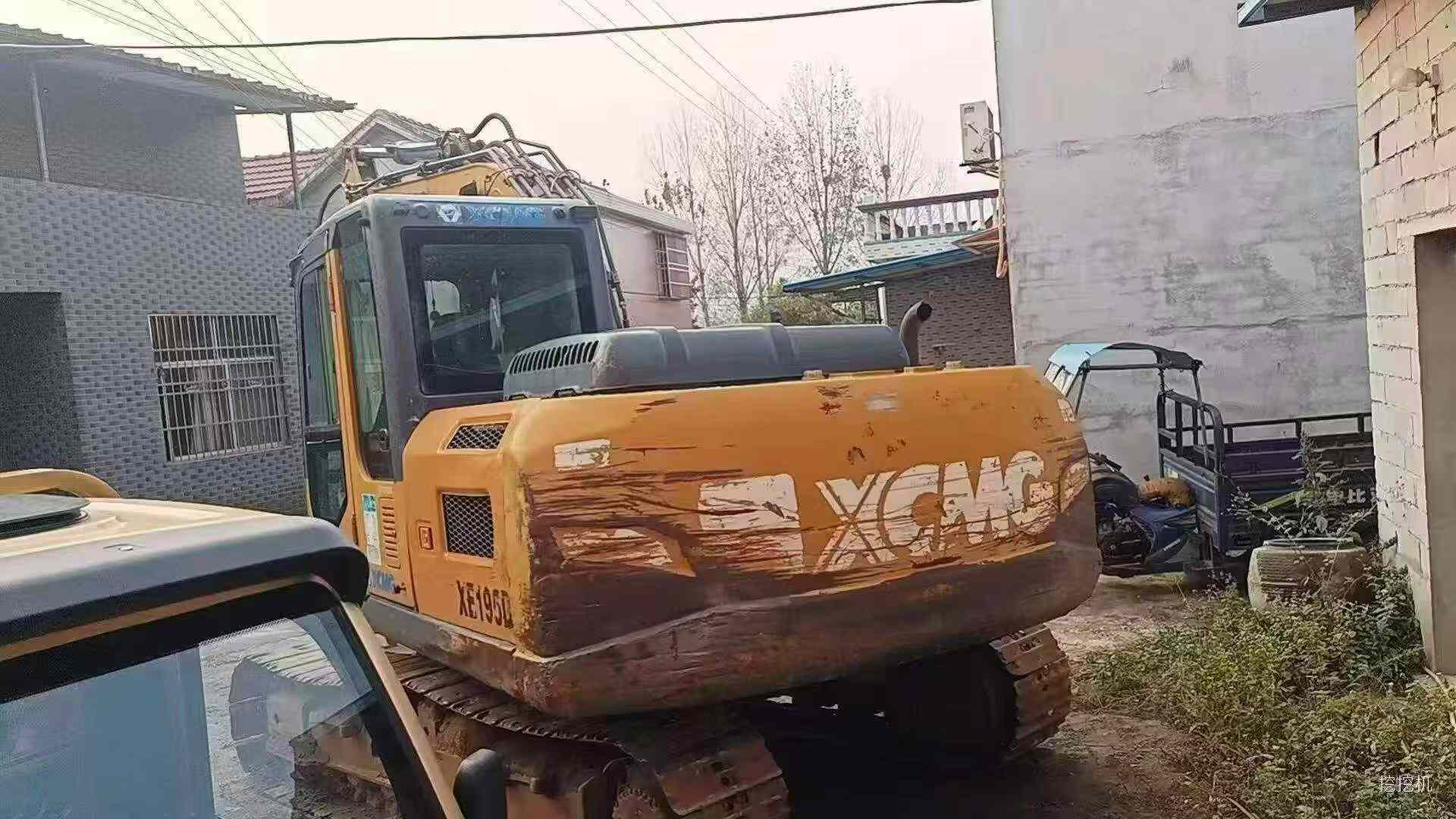

Buy XCMG XE135B Used Excavator / 4

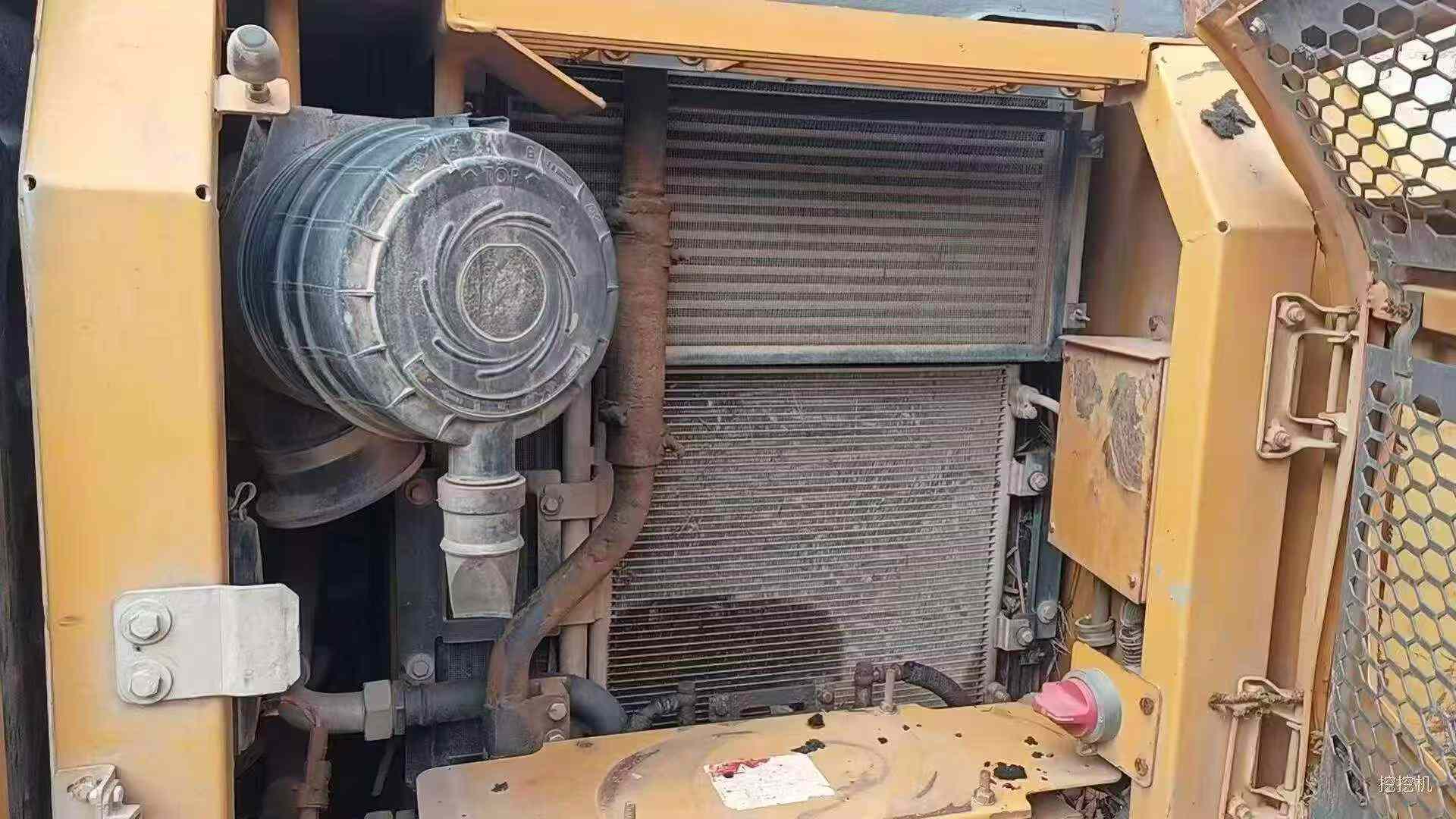

Buy XCMG XE135B Used Excavator / 5

Product Description

This 2018 XCMG XE135B excavator offers reliable performance for mid-sized earthmoving operations. Originally manufactured by one of China's leading construction equipment brands, this 13.5-ton class machine features proven hydraulic systems and a robust undercarriage designed for demanding jobsite conditions. Currently located in Sichuan, China, the unit comes equipped with a hydraulic breaker attachment, expanding its capability beyond standard digging applications to include demolition and rock breaking tasks.

  • Operating weight approximately 13,500 kg
  • Equipped with hydraulic breaker attachment
  • Suitable for excavation, trenching, and demolition work
  • Standard boom and arm configuration
  • Available for inspection in Sichuan Province

XCMG's XE135B series is recognized for straightforward maintenance and parts availability across Asian markets. This pre-owned unit represents a cost-effective solution for contractors requiring versatile excavation equipment with demolition capability.

SpecificationsValue
No.1169573
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1169573

Brand Name:

XCMG

Model Number:

XE135B

Year:

2018

Location:

Sichuan China

Pub Date:
