Product Description
Available now from our Sichuan facility, this 2019 XCMG XE135B medium excavator delivers 13-ton performance without factory wait times. Powered by an ISUZU BB-4BG1TRP engine producing 69.6kW, this machine combines proven reliability with the fast deployment your project demands. Skip the months-long lead times—this unit is inspection-ready and prepared for immediate site delivery across China and international markets.
- Operating weight: 13,800 kg with 0.4-0.52 m³ bucket capacity
- Maximum digging reach: 8,296 mm / Maximum depth: 5,538 mm

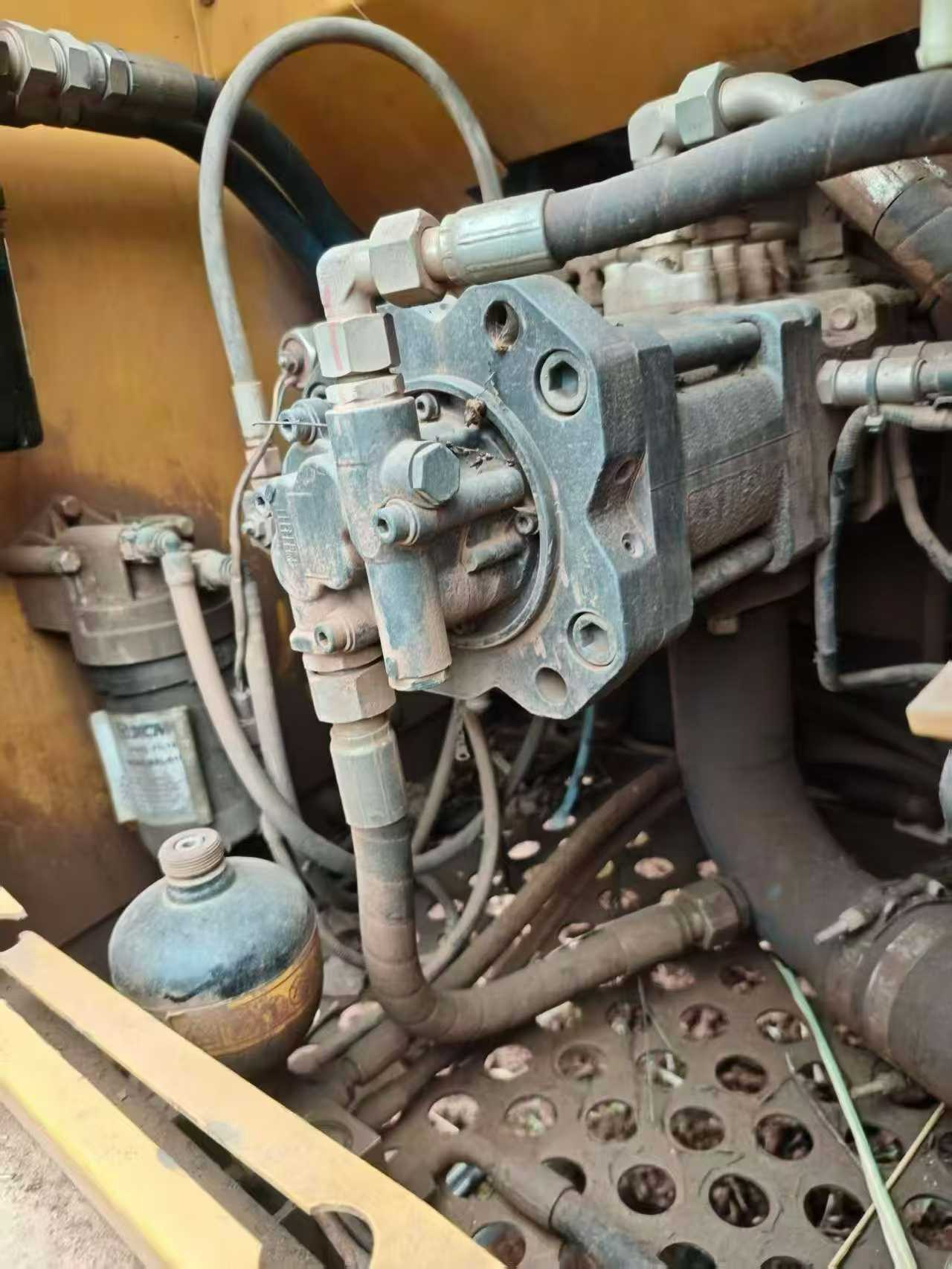

- Dual plunger pumps: 2×123 L/min hydraulic flow for responsive control

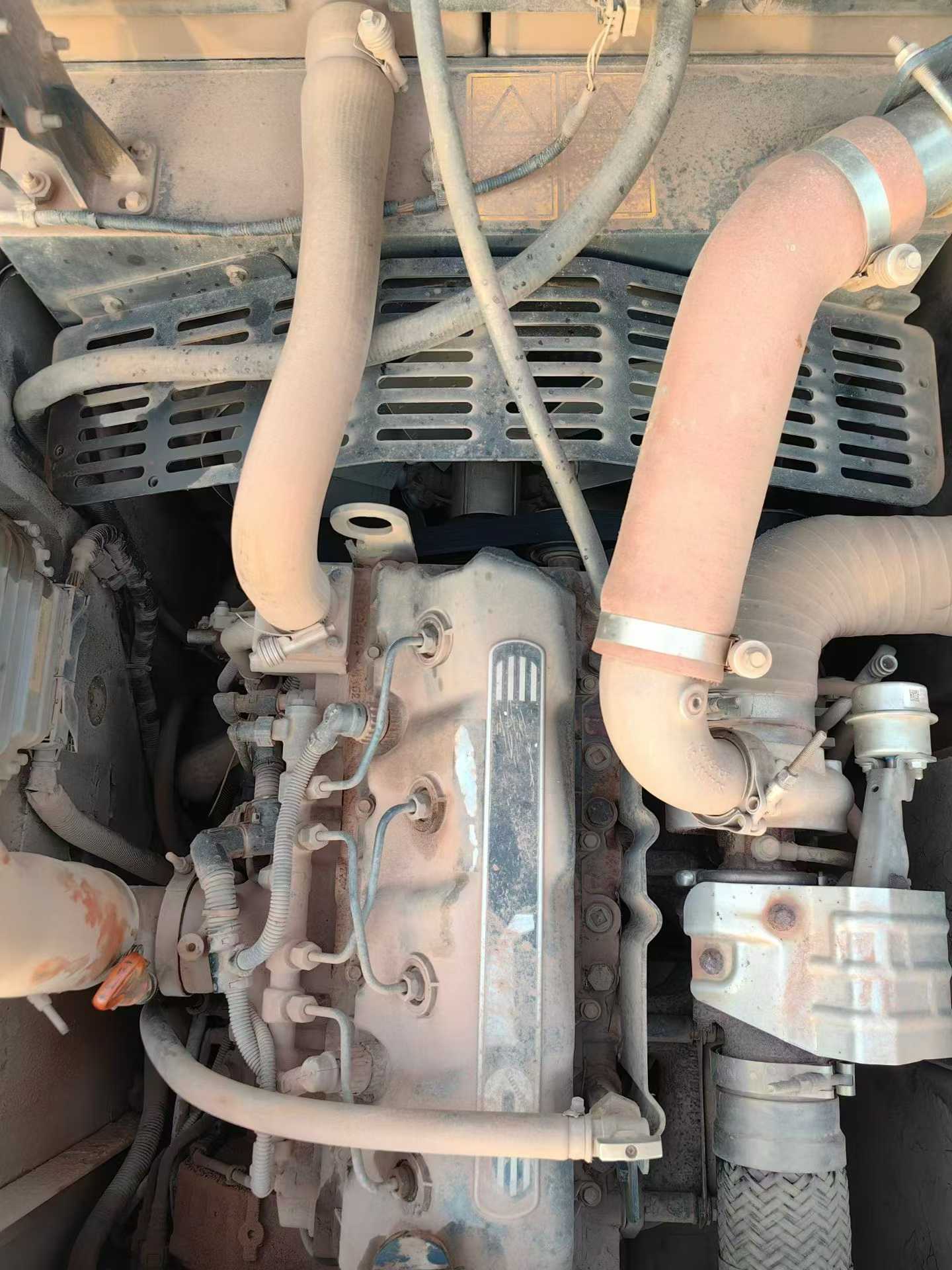

- ISUZU 4-cylinder turbocharged engine: Water-cooled, 4.329L displacement
- Bucket digging force: 85 kN / Stick force: 65 kN
- Travel speed: 5.16/3.03 km/h with 35° climbing capability
- Compact transport dimensions: 7,770×2,512×2,880 mm
Positioned in Sichuan for rapid logistics throughout Southwest China, this Xuzhou-manufactured excavator offers the quality XCMG is known for with none of the procurement delays. Secure your equipment today and maintain project momentum.
| Specifications | Value |
|---|---|
| No. | 1024069 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
