2019 XCMG XE135B

1/6

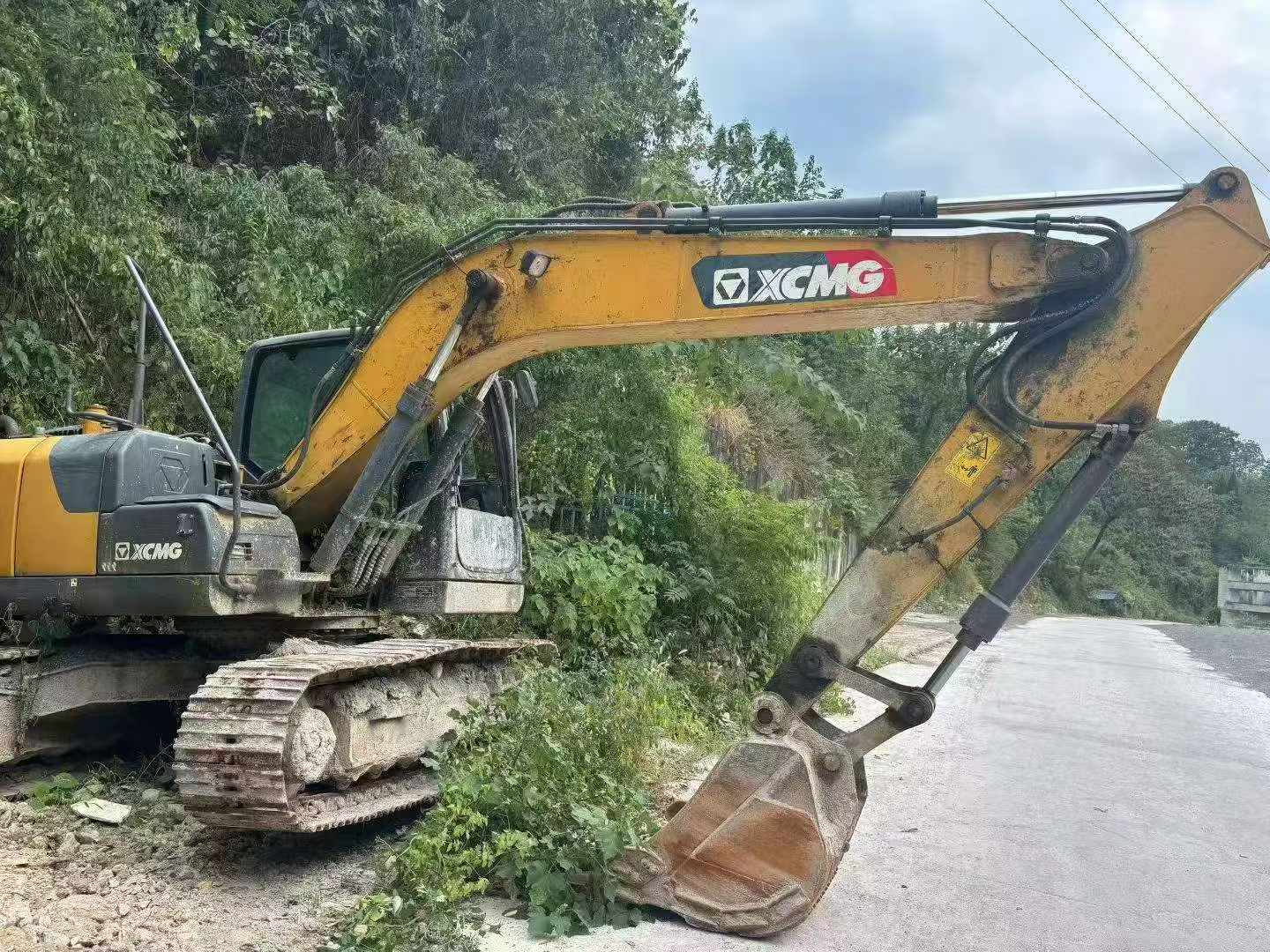

Buy XCMG XE135B Used Excavator / 1

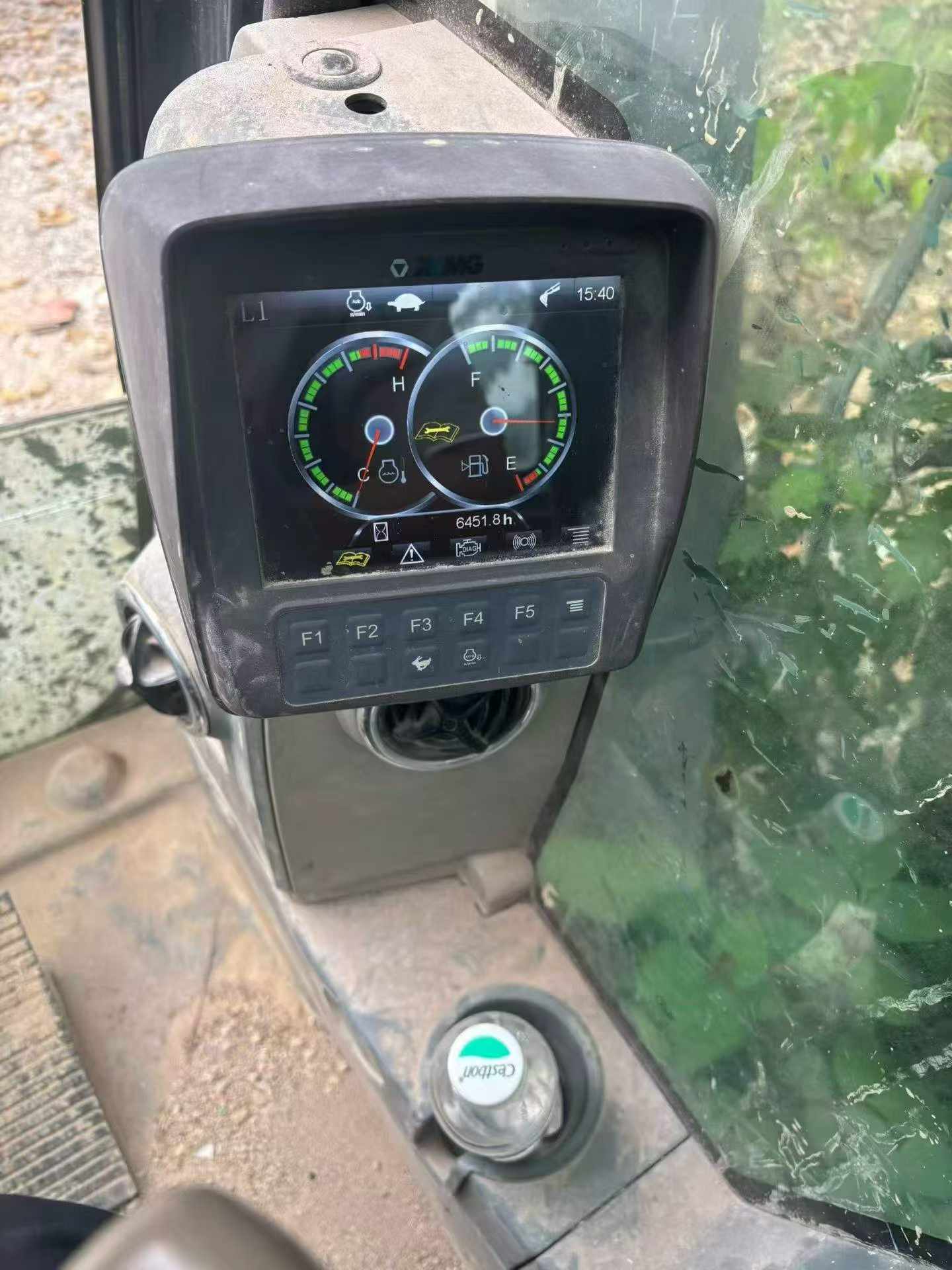

Buy XCMG XE135B Used Excavator / 2

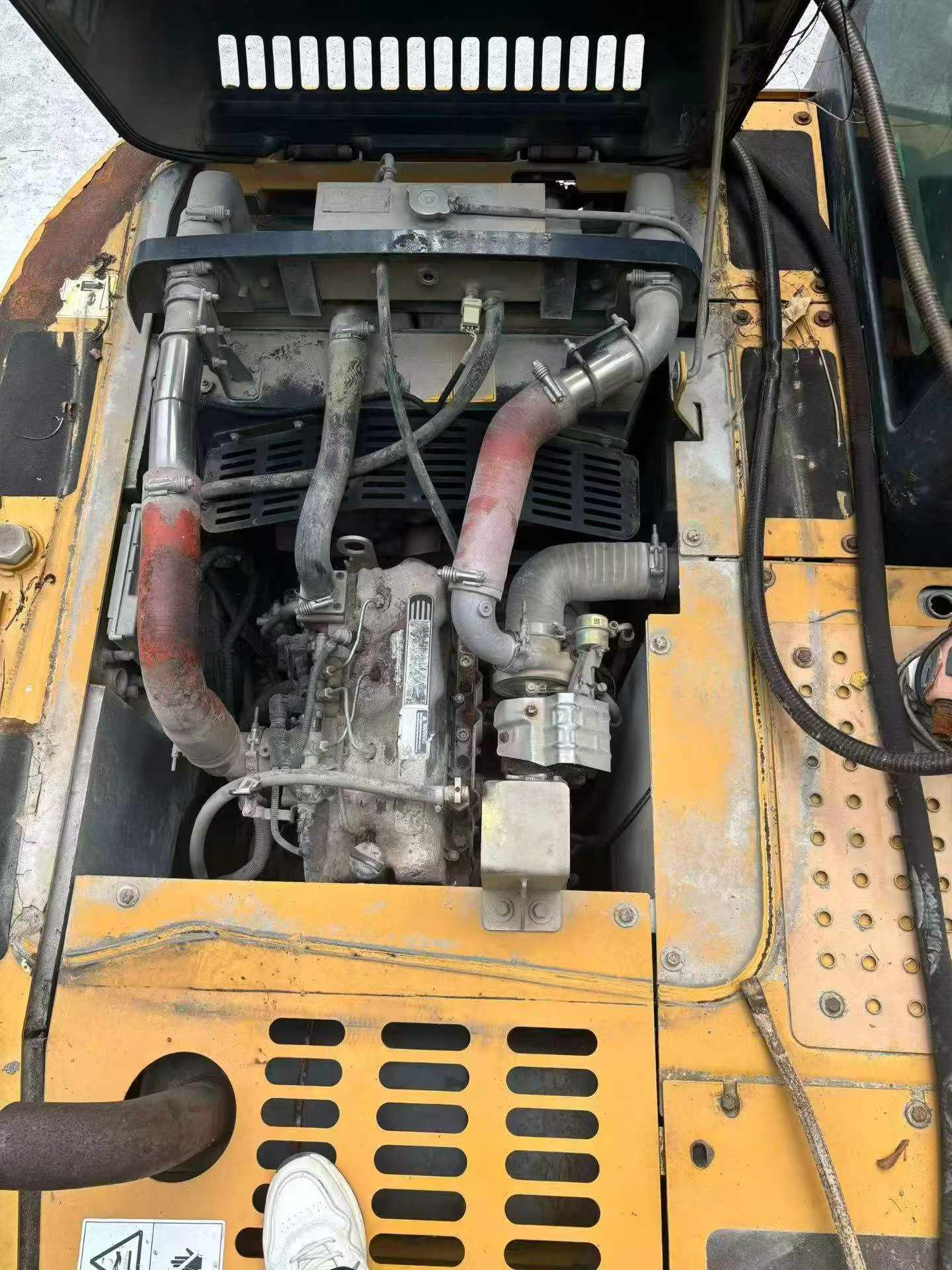

Buy XCMG XE135B Used Excavator / 3

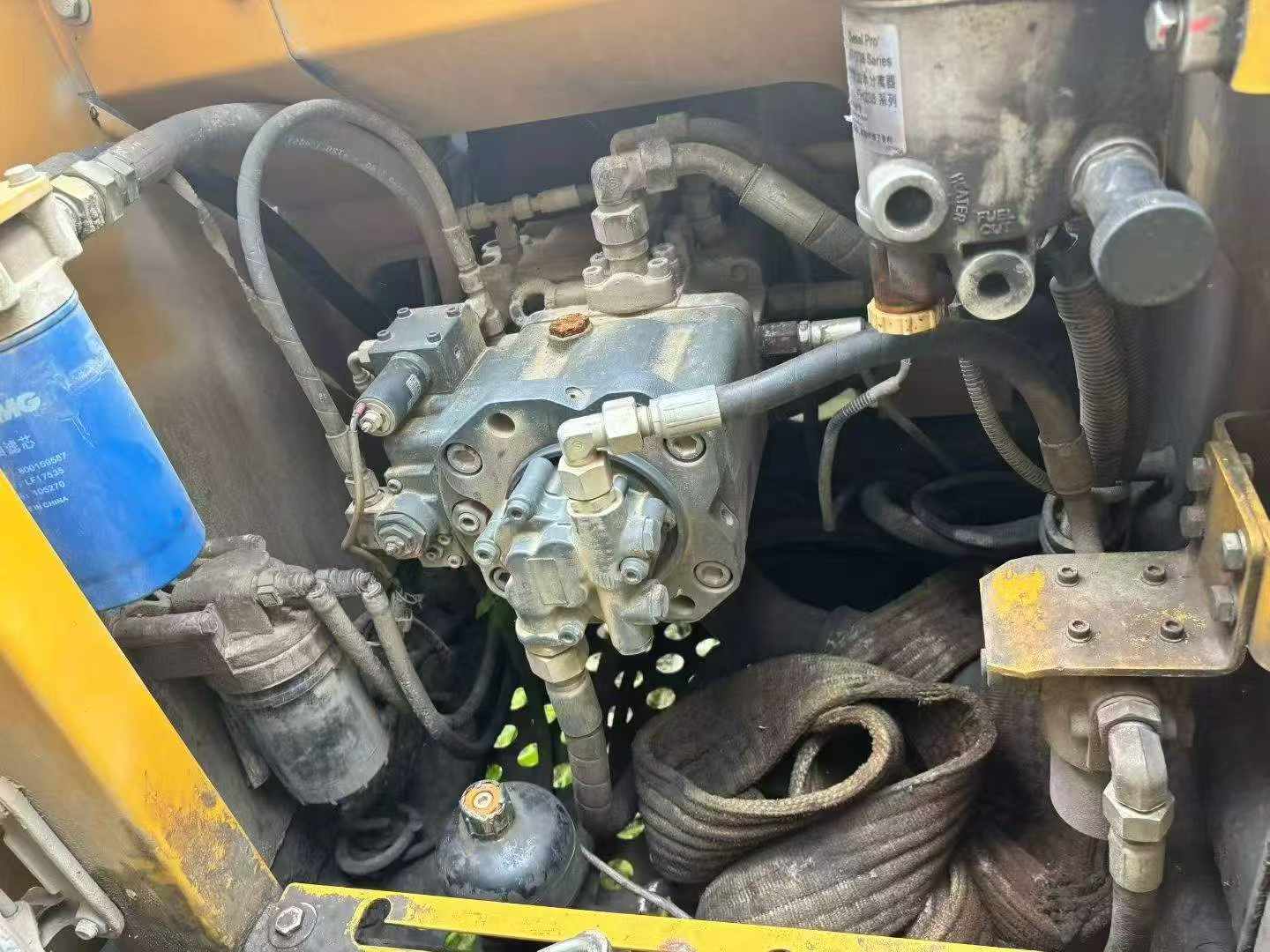

Buy XCMG XE135B Used Excavator / 4

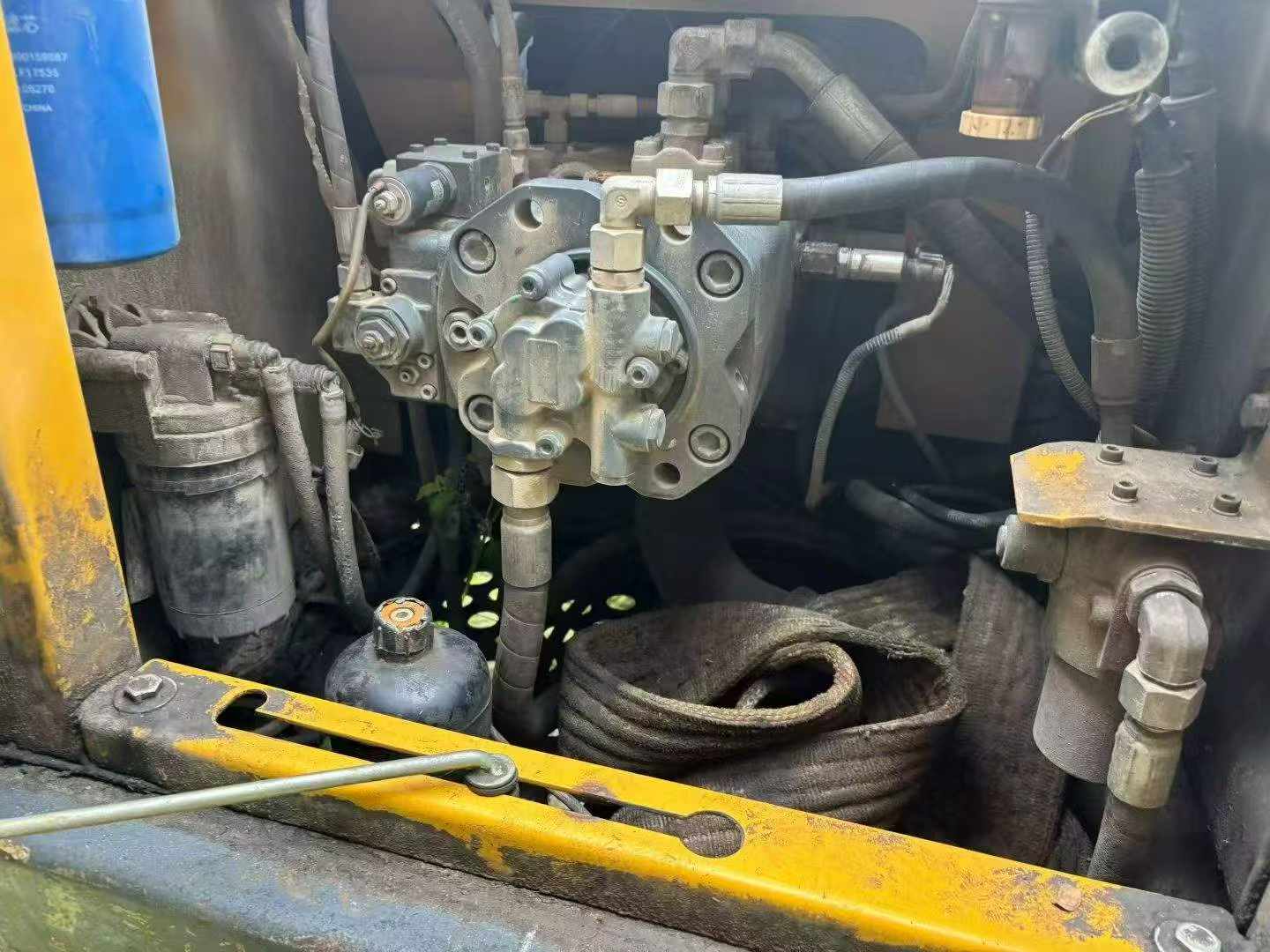

Buy XCMG XE135B Used Excavator / 5

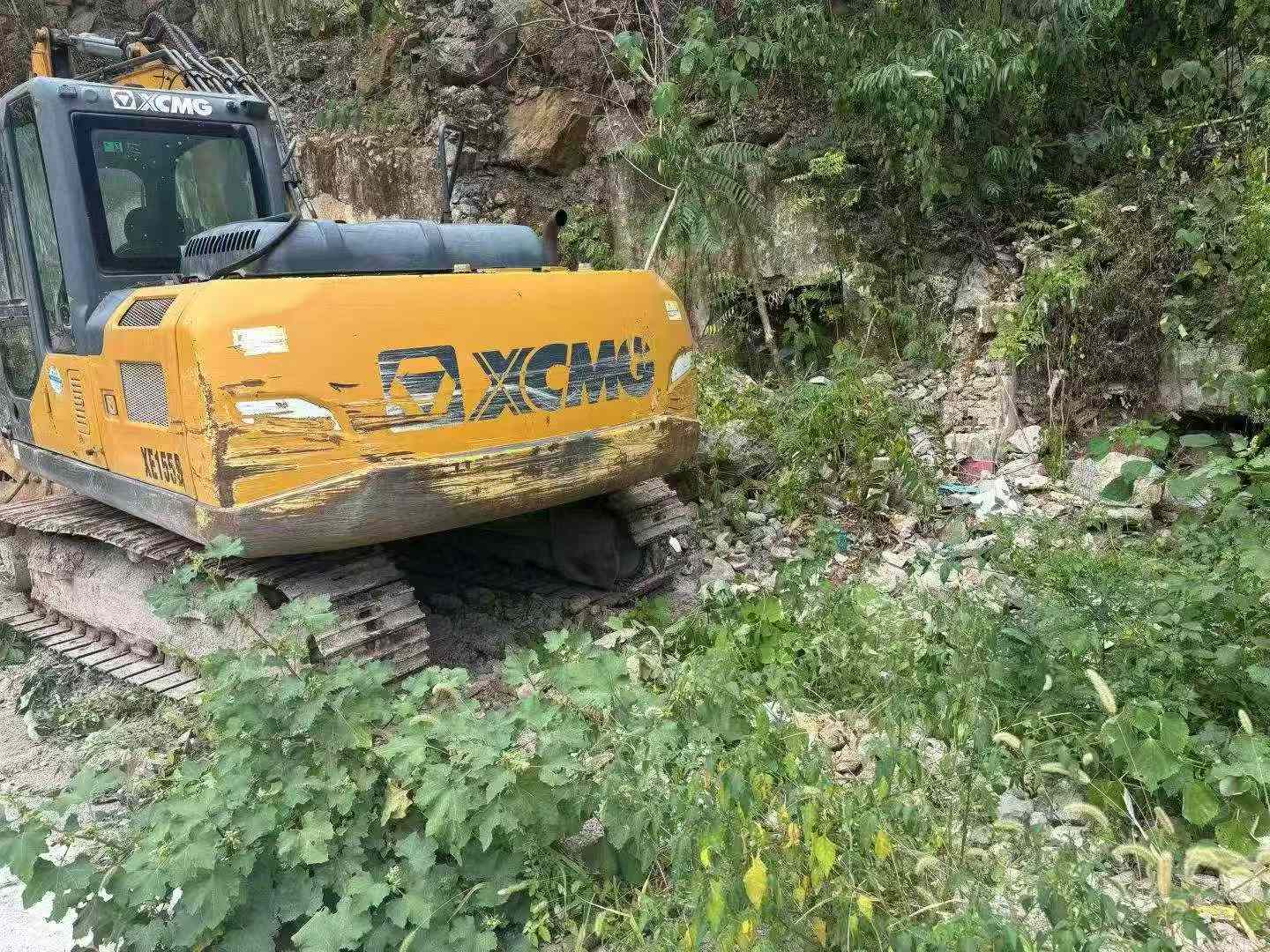

Buy XCMG XE135B Used Excavator / 6

Product Description

2019 XCMG XE135B hydraulic excavator available from Fujian, China. This 13.5-ton class machine comes from its first owner with documented low hours at 12,880, verified by original meter readings. The XE135B represents XCMG's mid-range excavator line, offering reliable performance for general construction, earthmoving, and infrastructure projects.

Key attributes:

  • Single-owner history with maintained service records
  • Operating weight approximately 13,500 kg
  • Suitable for urban construction and medium-duty applications
  • Standard bucket and hydraulic attachments included
  • Current location: Fujian Province, China

This unit has been properly maintained throughout its operational life. Inspection available upon request. Ideal for contractors seeking a cost-effective solution with proven Chinese engineering. Export documentation and logistics support can be arranged.

SpecificationsValue
No.1145424
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1145424

Brand Name:

XCMG

Model Number:

XE135B

Year:

2019

Location:

Fujian China

Pub Date
