Product Description

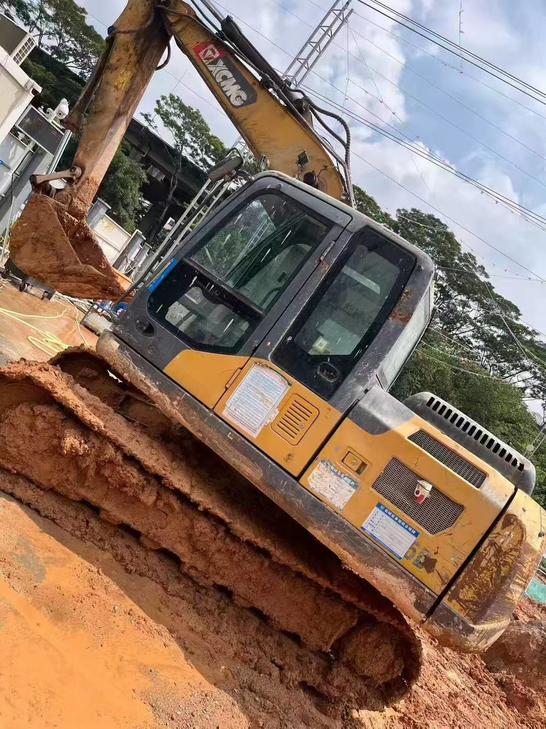

Available from stock in Hunan, China: a 2019 XCMG XE135B hydraulic excavator, a 13.5-tonne class machine built for general earthmoving, trenching, utility installation and site preparation. This unit is specified with the Kawasaki hydraulic configuration, the setup most buyers in this weight class ask for when they want predictable cycle times and easy access to serviceable components.
- Year: 2019
- Make and model: XCMG XE135B
- Hydraulic configuration: Kawasaki
- Operating weight class: approximately 13.5 tonnes
- Location: Hunan, China
- Indicative asking price: from the low RMB 120,000s
The machine has been in working service and is offered as a used unit rather than a rebuilt one, so condition reflects normal site hours. Prospective buyers are welcome to arrange inspection in Hunan or request additional photographs, walkaround video and meter readings before committing. Export documentation and loading assistance can be arranged for overseas purchasers.
Contact us for full availability, current pricing and shipping options.
| Specifications | Value |
|---|---|
| No. | 1145607 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
