Product Description

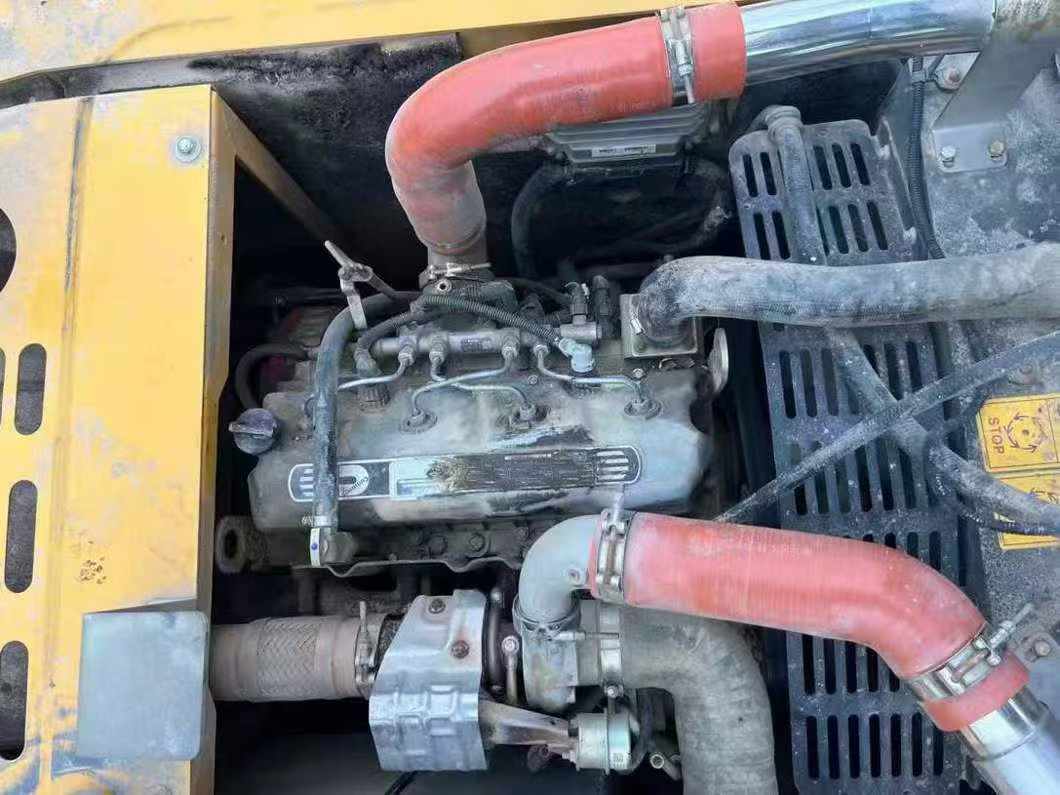

Powered by a reliable ISUZU BB-4BG1TRP engine delivering 69.6 kW at 2200 rpm, this 13-ton excavator combines proven hydraulic performance with operator-centered design. Currently located in Lishui, Zhejiang, the XE135B offers exceptional control precision through dual plunger pumps providing 2×123 L/min flow capacity and a responsive 3.9 MPa pilot oil circuit.
Operators benefit from outstanding jobsite versatility with an 8,296 mm maximum digging radius and 5,538 mm digging depth. Stability remains consistent across terrain thanks to 42 kPa ground pressure distribution and a 2,910 mm track contact length. The machine handles 35° slopes confidently while maintaining 12.3 rpm rotation speed for smooth positioning.
- Bucket digging force: 85 kN; rod digging force: 65 kN
- Working weight: 13,800 kg with 0.4-0.52 m³ bucket capacity
- Dual-speed travel: 5.16/3.03 km/h for precise maneuvering
- Compact transport dimensions: 7,770 × 2,512 × 2,880 mm
- Water-cooled 4-cylinder turbocharged diesel engine
| Specifications | Value |
|---|---|
| No. | 1019411 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

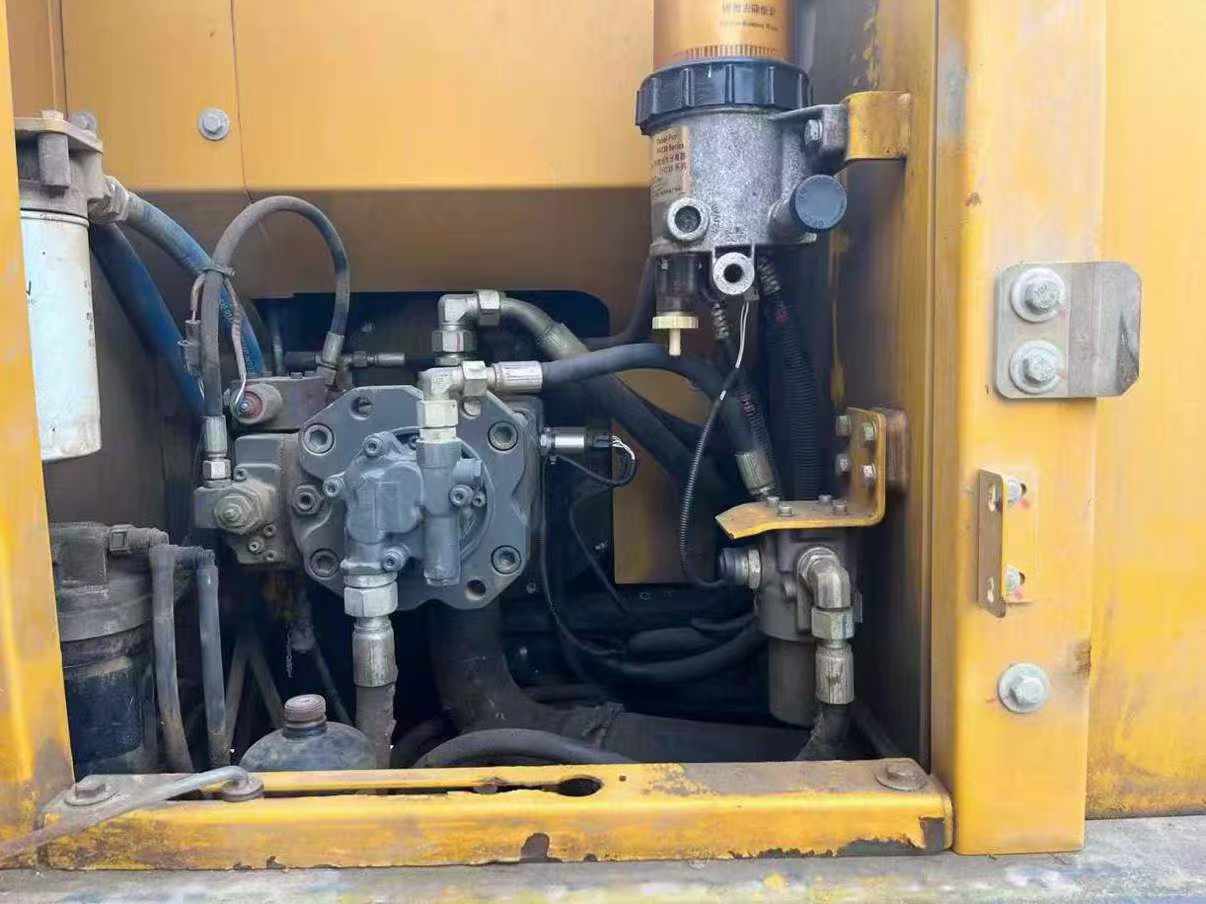

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
