2020 XCMG XE135B

1/9
Buy XCMG XE135B Used Excavator / 1

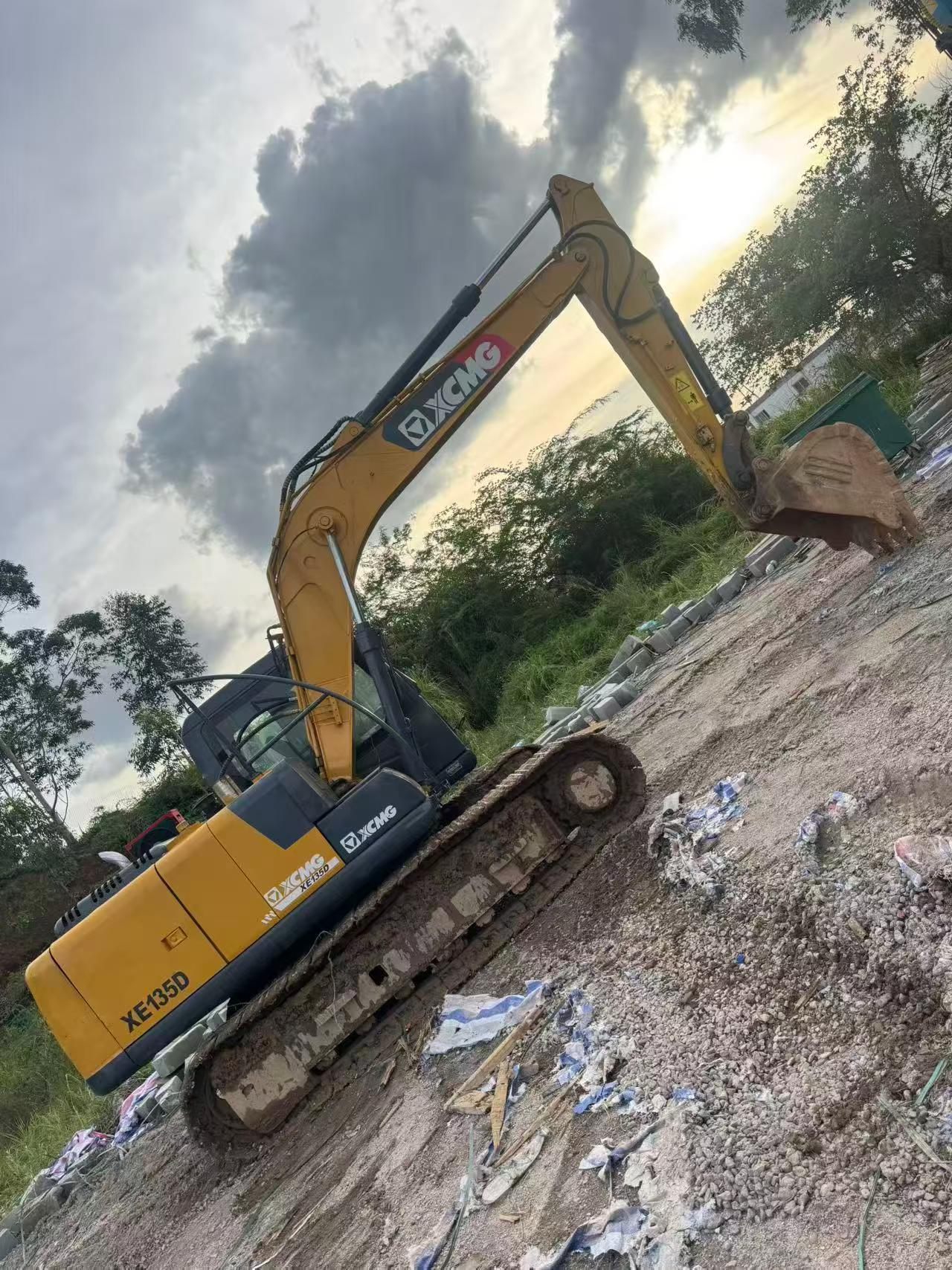

Buy XCMG XE135B Used Excavator / 2

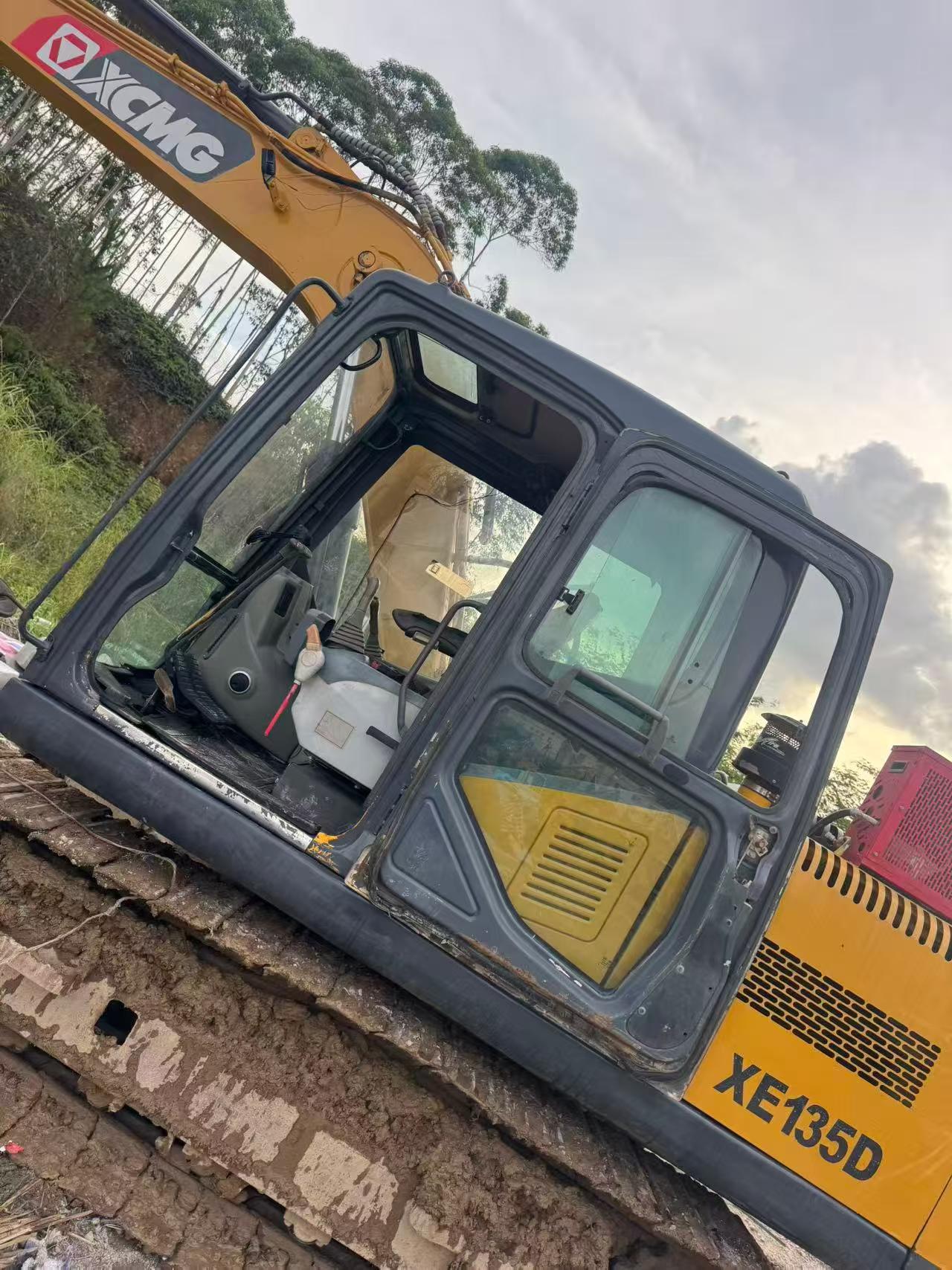

Buy XCMG XE135B Used Excavator / 3

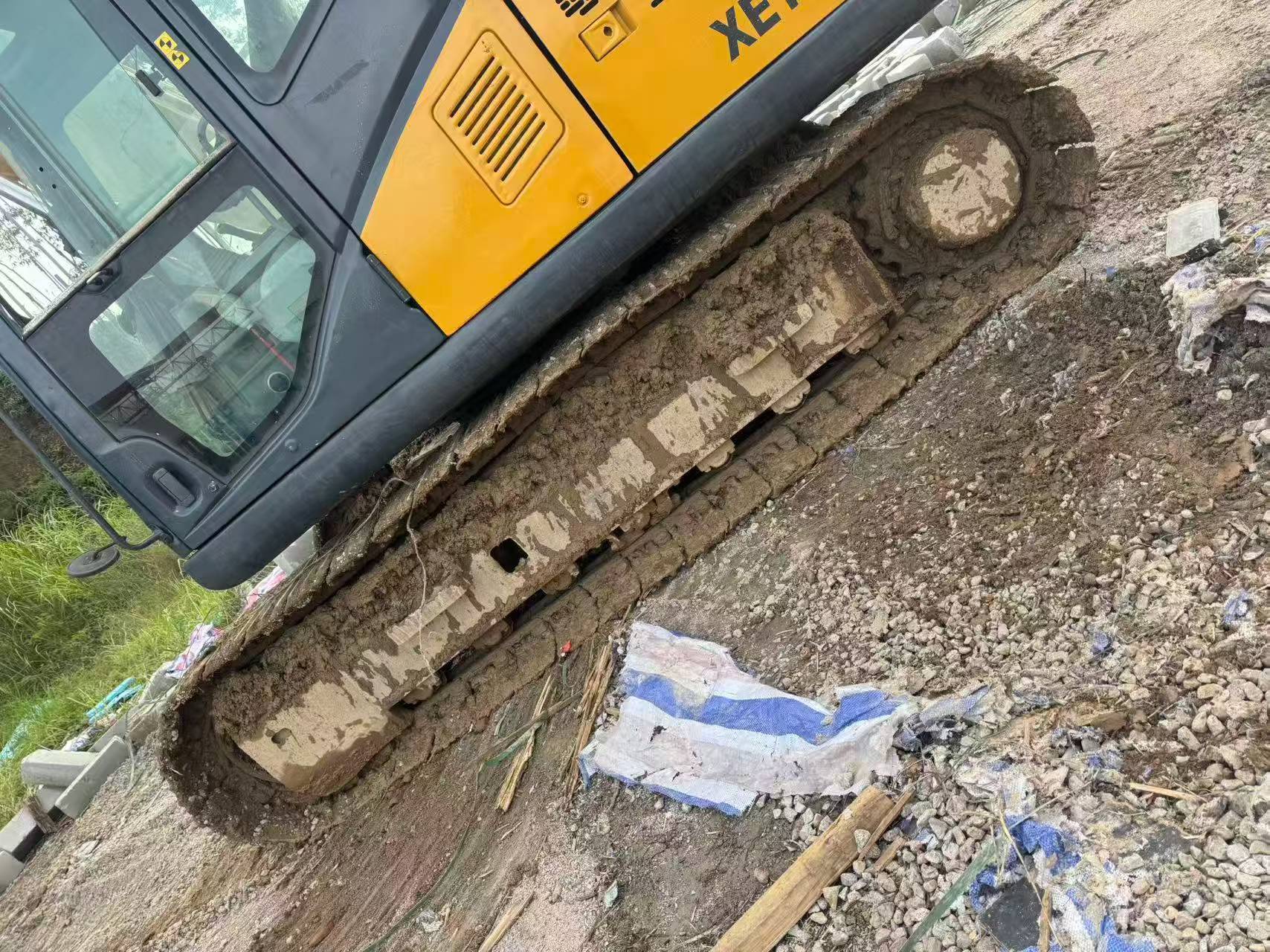

Buy XCMG XE135B Used Excavator / 4

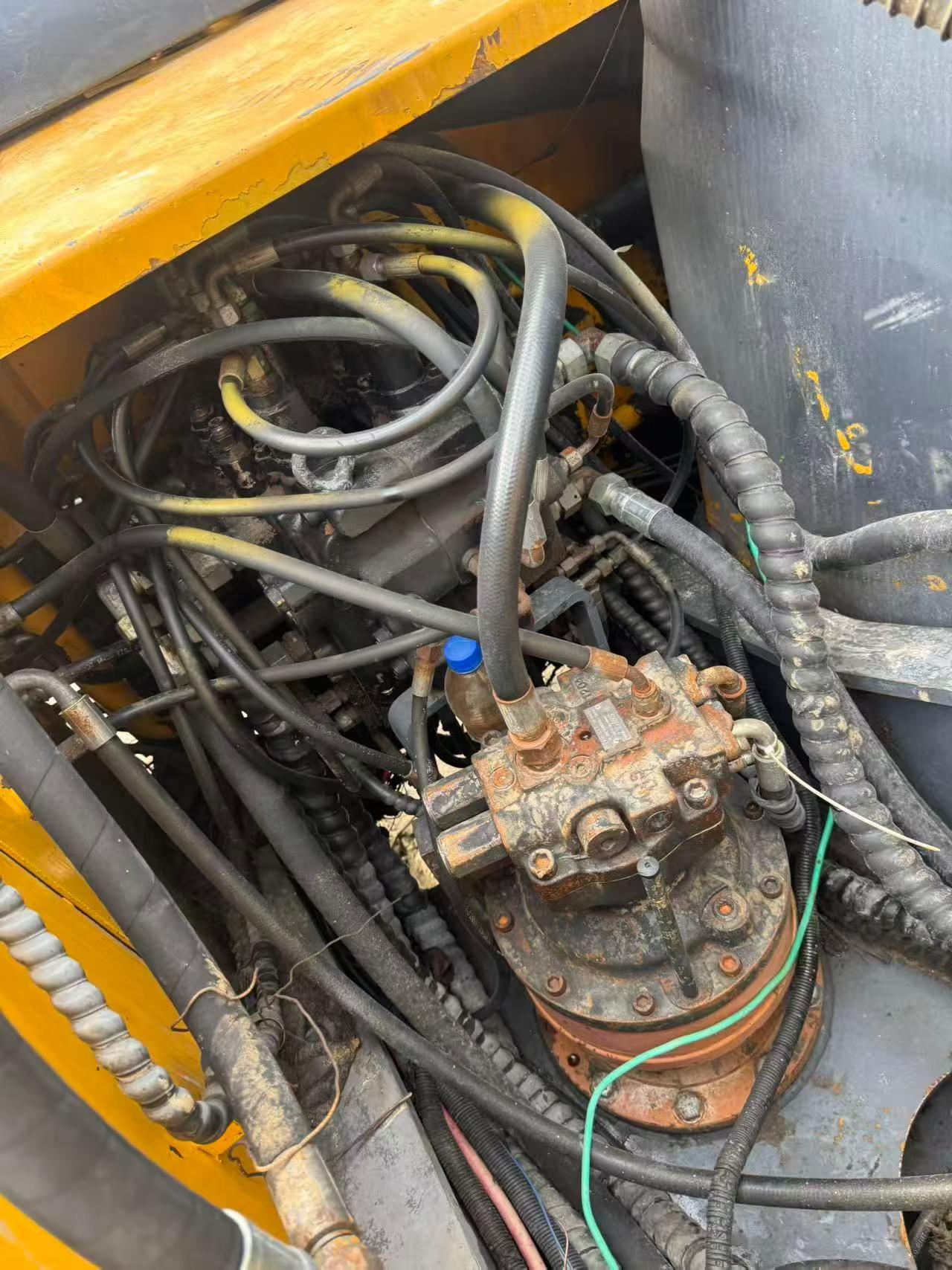

Buy XCMG XE135B Used Excavator / 5

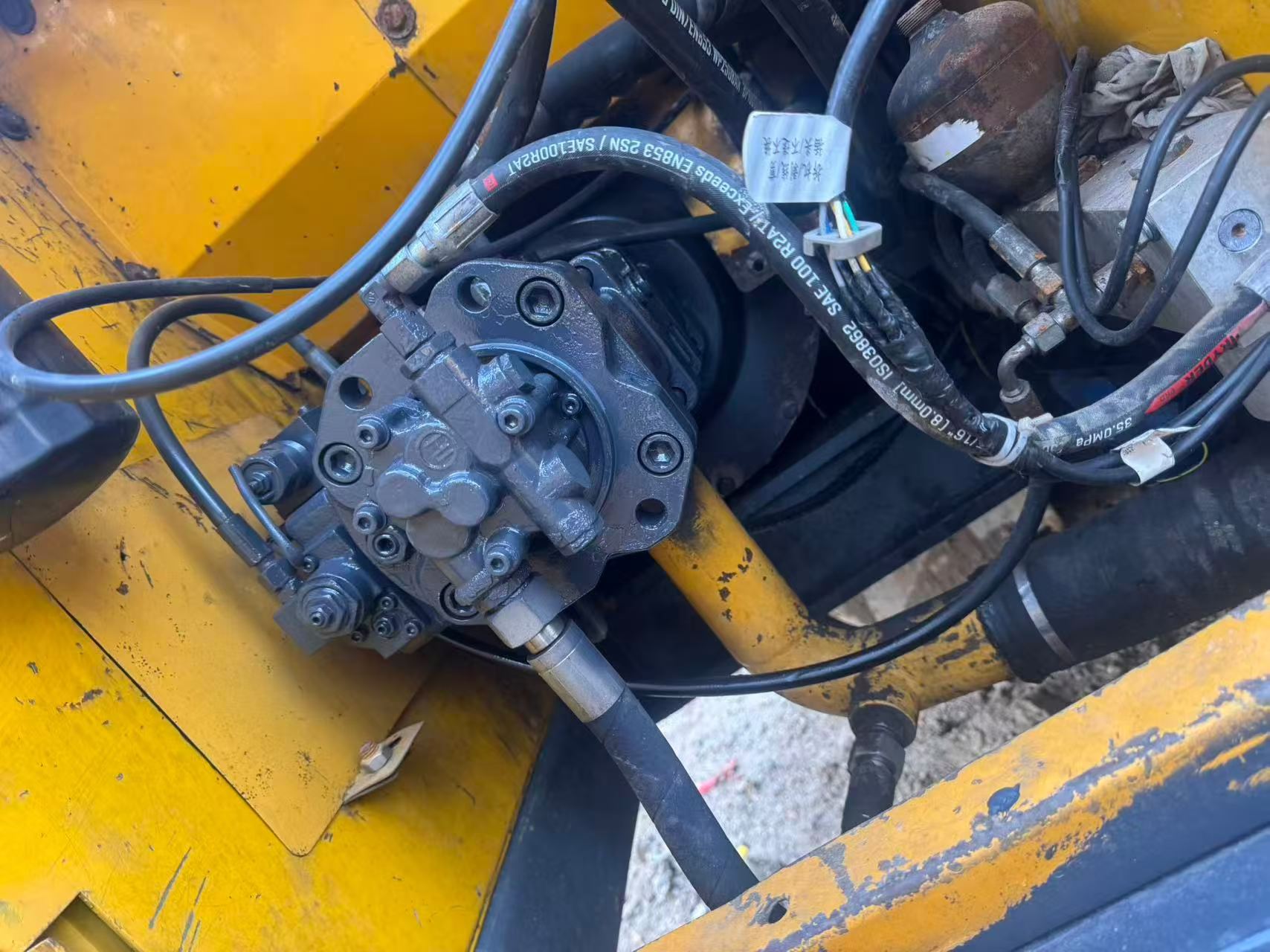

Buy XCMG XE135B Used Excavator / 6

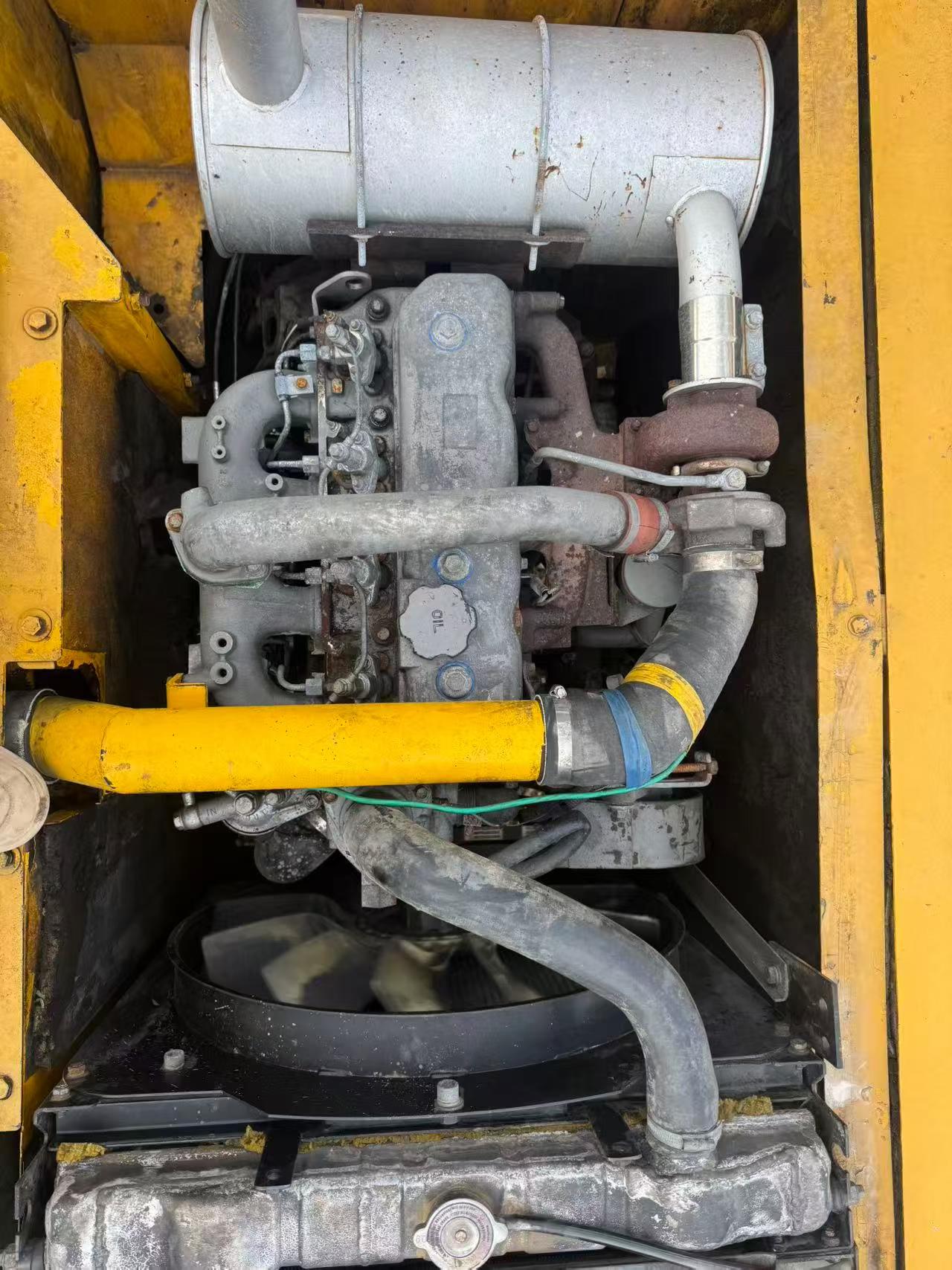

Buy XCMG XE135B Used Excavator / 7

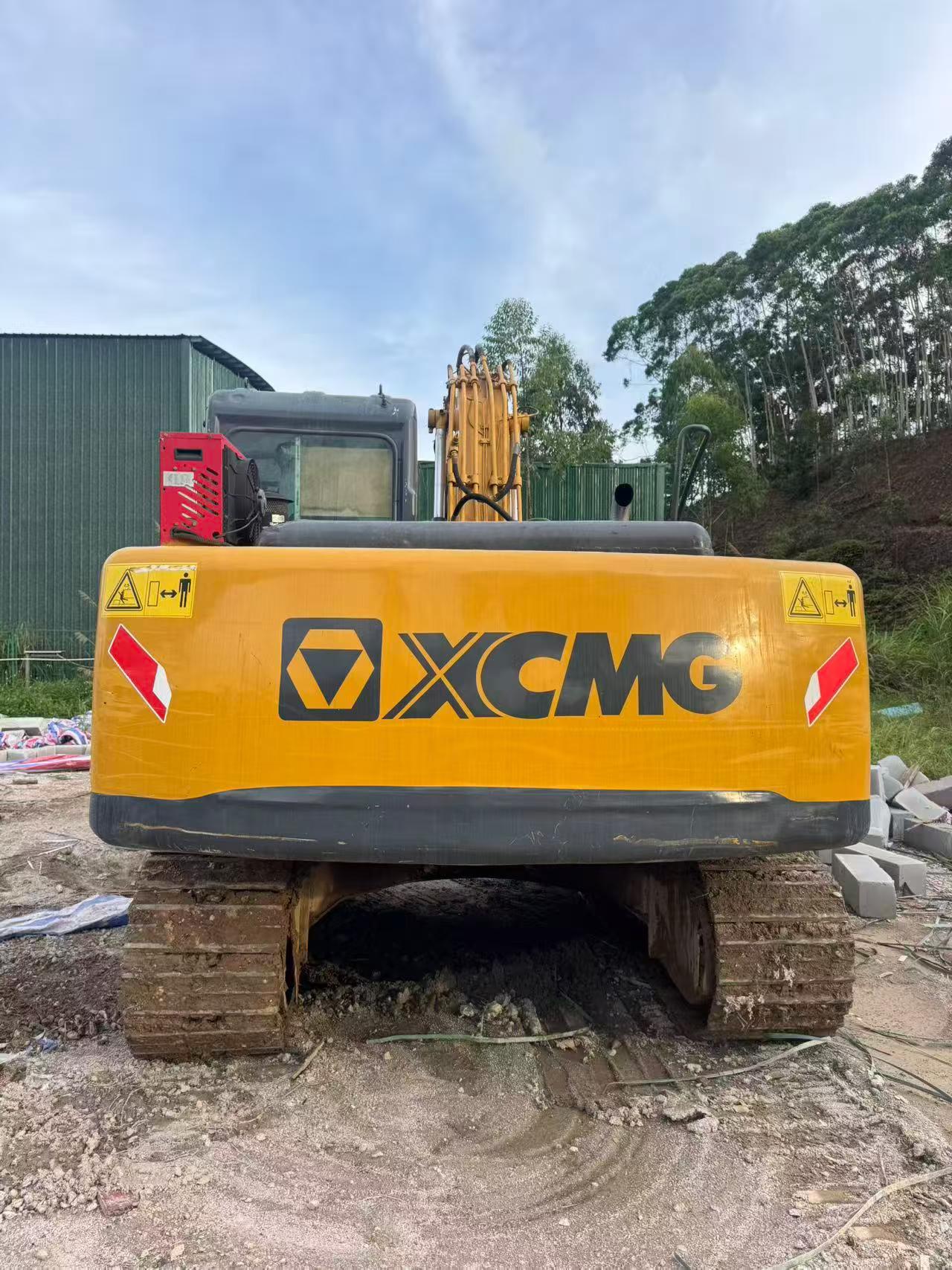

Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

This 2020 XCMG XE135B excavator, currently located in Guangdong, China, represents excellent value in the mid-size excavator segment. The machine features original factory wiring harness and electrical systems, ensuring reliable operation and straightforward maintenance. Complete documentation is available, facilitating smooth transfer and registration processes.

Operating condition is rated at approximately 90% of new, indicating light operational hours and careful maintenance. The unit demonstrates strong hydraulic performance with robust undercarriage components designed for demanding jobsite conditions. All systems are smoke-free and meet operational standards without requiring immediate inspection certifications.

  • Year of Manufacture: 2020
  • Model: XCMG XE135B
  • Operating Class: 13.5-ton excavator
  • Original electrical systems retained
  • Complete ownership documentation
  • Current Location: Guangdong, China

Suitable for construction, earthmoving, and general excavation applications. Contact us for detailed specifications and export arrangements.

SpecificationsValue
No.1095943
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1095943

Brand Name:

XCMG

Model Number:

XE135B

Year:

2020

Location:

Guangdong China

Pub Date
