Product Description

This 2020 XCMG XE135B hydraulic excavator offers reliable performance for medium-duty construction and earthmoving operations. Manufactured by XCMG, one of China's leading heavy equipment producers, this 13.5-ton class machine combines proven engineering with practical functionality. The XE135B features a fuel-efficient engine, reinforced undercarriage components, and a spacious operator cabin designed for extended work cycles.

Currently located in Sichuan, China, this unit is available for inspection and suitable for contractors seeking dependable equipment at competitive value. Key attributes include:

  • Operating weight: approximately 13,500 kg
  • Bucket capacity range suitable for general excavation
  • Hydraulic system engineered for responsive control
  • Standard boom and arm configuration
  • Low-hour operation since 2020 production

Ideal for infrastructure projects, site development, and utility installation. Contact us for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1162972
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

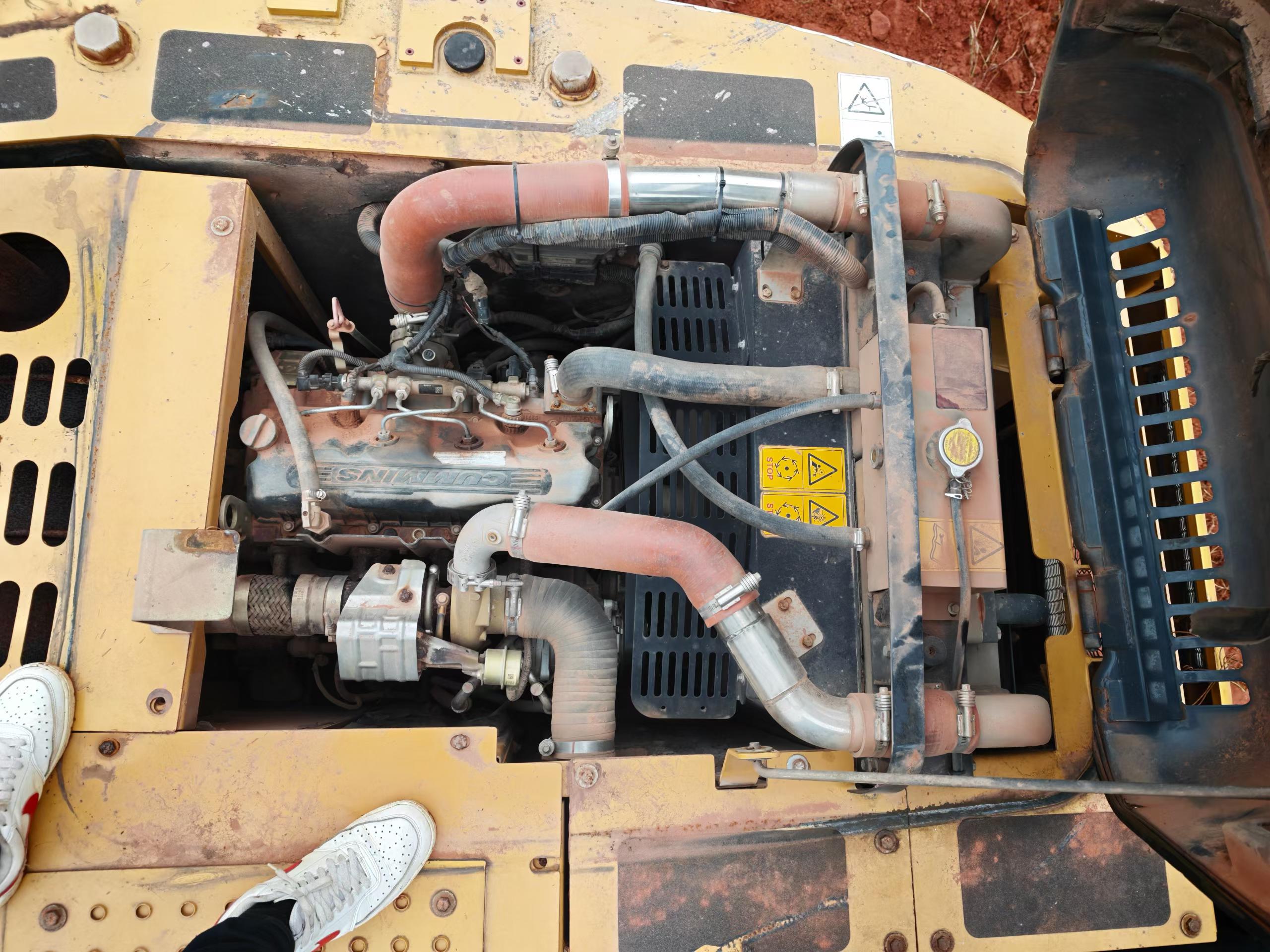

Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1162972

Brand Name:

XCMG

Model Number:

XE135B

Year:

2020

Location:

Sichuan China

Pub Date:
