Product Description
Proven performance meets exceptional durability in this 2021 XCMG XE135B excavator, a 13-ton workhorse engineered for demanding job sites. Powered by a reliable ISUZU BB-4BG1TRP engine delivering 69.6kW at 2200rpm, this machine combines robust construction with efficient operation. With just three years of field service, it demonstrates XCMG's commitment to build quality—a testament to components designed for longevity rather than obsolescence.
Key specifications include:
- Operating weight: 13,800kg with superior stability
- Maximum digging reach: 8,296mm for extensive coverage
- Maximum digging depth: 5,538mm
- Bucket capacity: 0.4-0.52m³ for versatile material handling
- Powerful digging forces: 85kN bucket, 65kN arm
- Dual plunger pumps: 2×123 L/min hydraulic flow
Currently located in Nanning, Guangxi, this proven excavator continues to deliver the reliability contractors demand. Built to withstand years of intensive use, it represents smart investment in equipment that works as hard as your crew.
| Specifications | Value |
|---|---|
| No. | 1022393 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

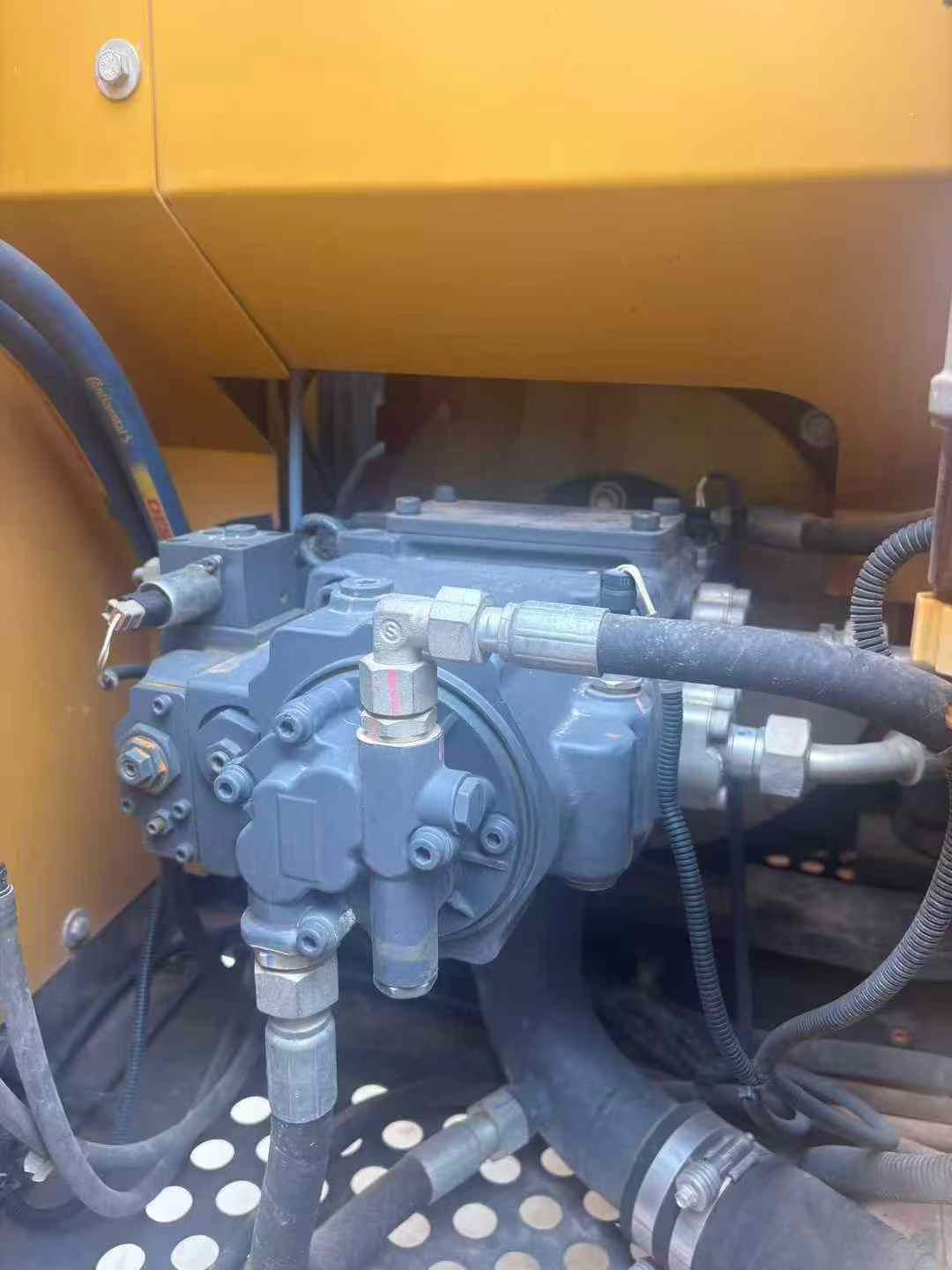

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
