Product Description
Engineered for demanding excavation work, this 13-ton crawler excavator delivers proven performance through precision hydraulics and robust construction. Powered by an ISUZU BB-4BG1TRP turbocharged engine generating 69.6kW at 2200rpm, the XE135B combines reliable water-cooled operation with efficient fuel management via its 250L tank. Dual plunger pumps supply 2×123 L/min flow at 31.4/34.3 MPa, driving exceptional bucket digging force of 85kN and rod force of 65kN—critical metrics for productive trenching and loading cycles.
Manufactured in Xuzhou with XCMG's established quality standards, this unit features a 4600mm boom and 2510mm arm configuration, achieving 8296mm maximum reach and 5538mm digging depth. The 0.4-0.52m³ bucket capacity suits diverse material handling, while the 13,800kg working weight maintains 42kPa ground pressure for stable operation across soft terrain. Track dimensions of 2910mm ground contact length and 500mm plate width ensure balanced load distribution. Currently located in Wenzhou, Zhejiang, this 2021 model represents field-tested engineering from one of China's leading heavy equipment manufacturers.
| Specifications | Value |
|---|---|
| No. | 1030137 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

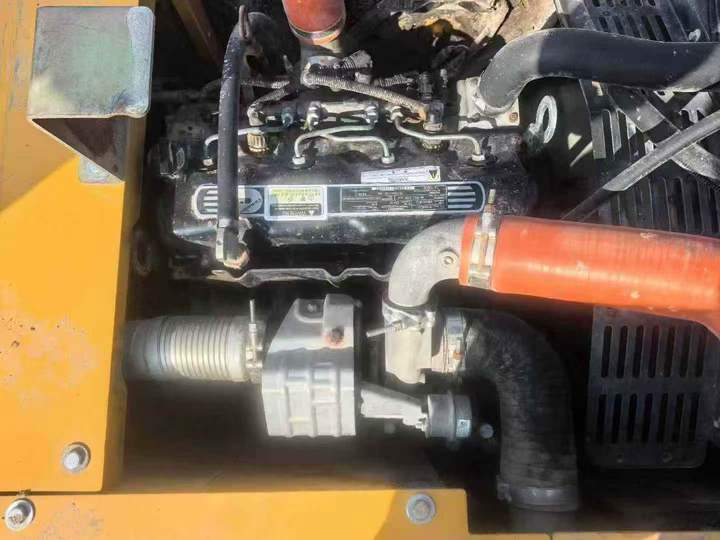

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

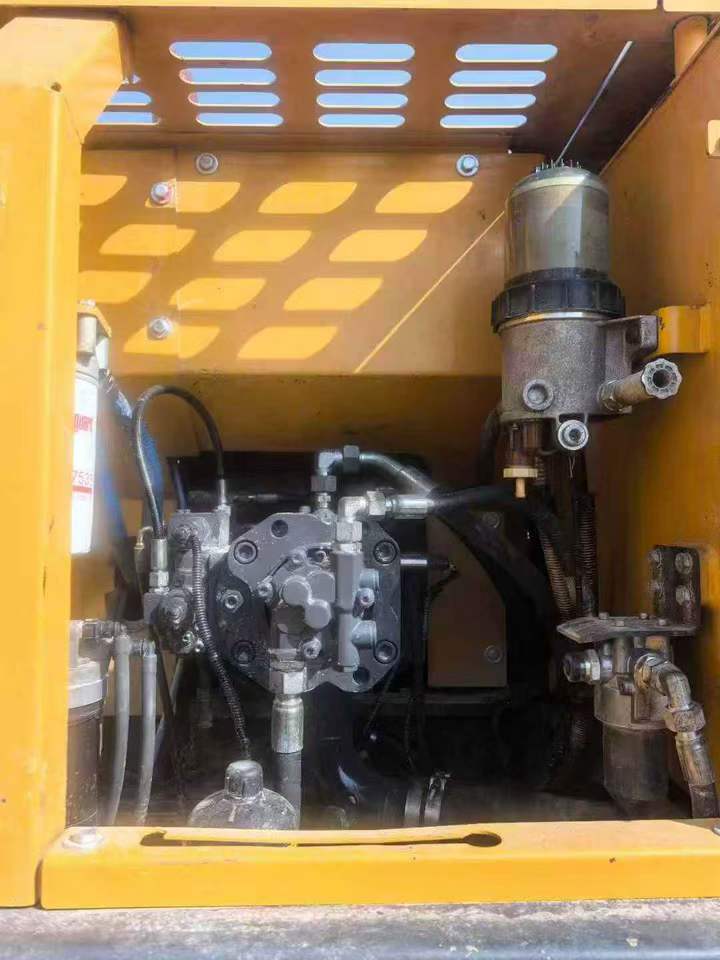

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
