Product Description

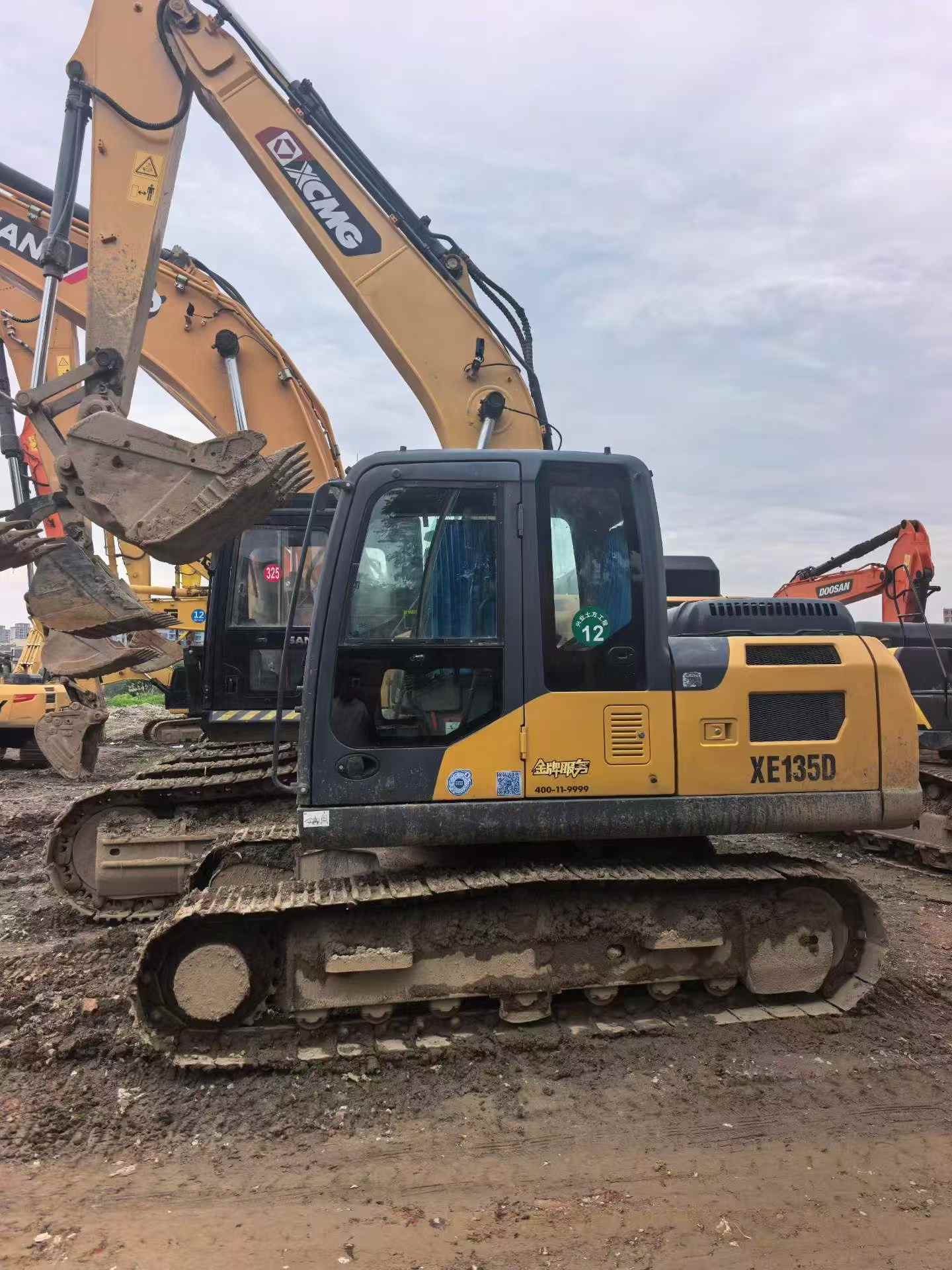

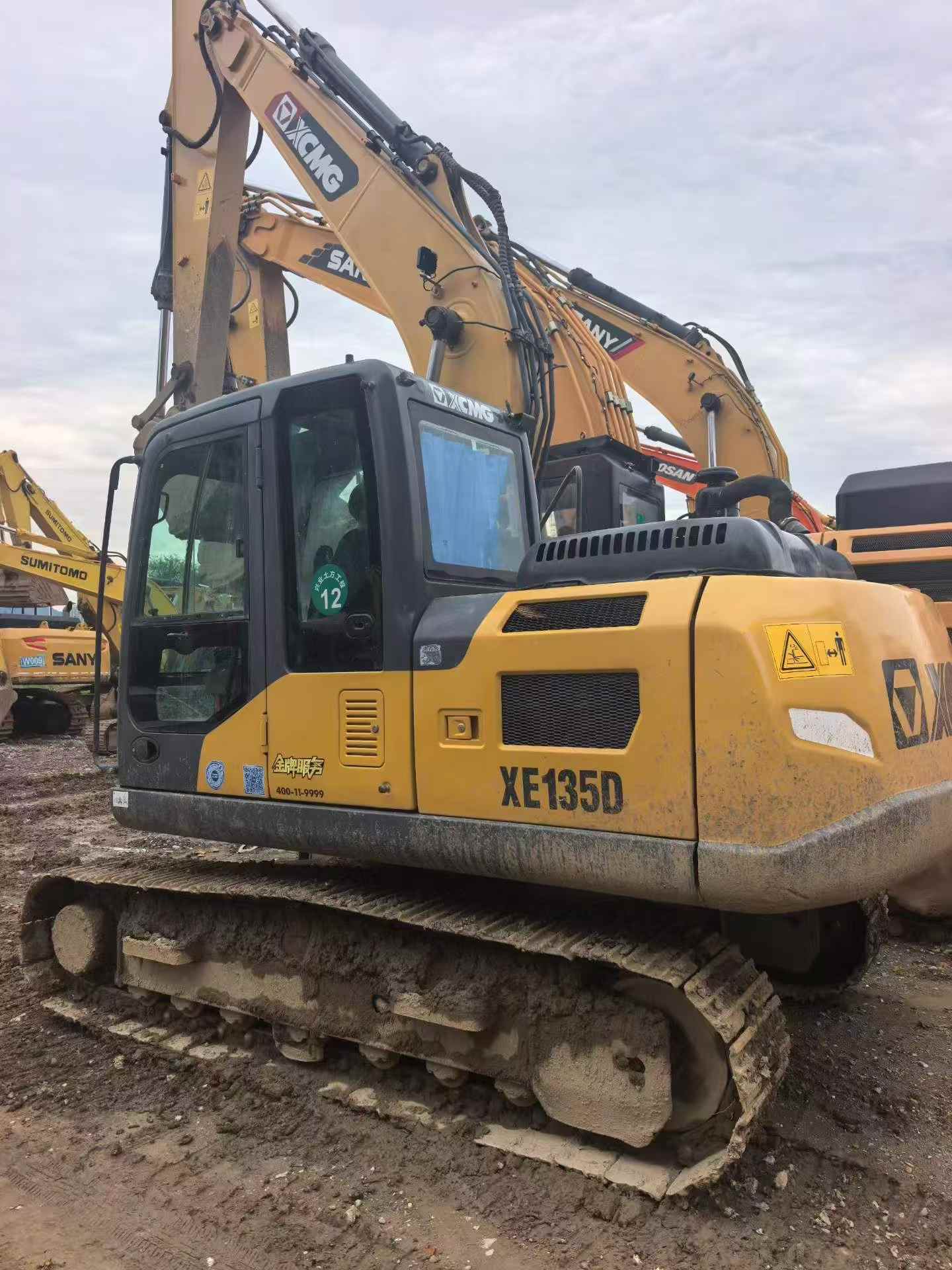

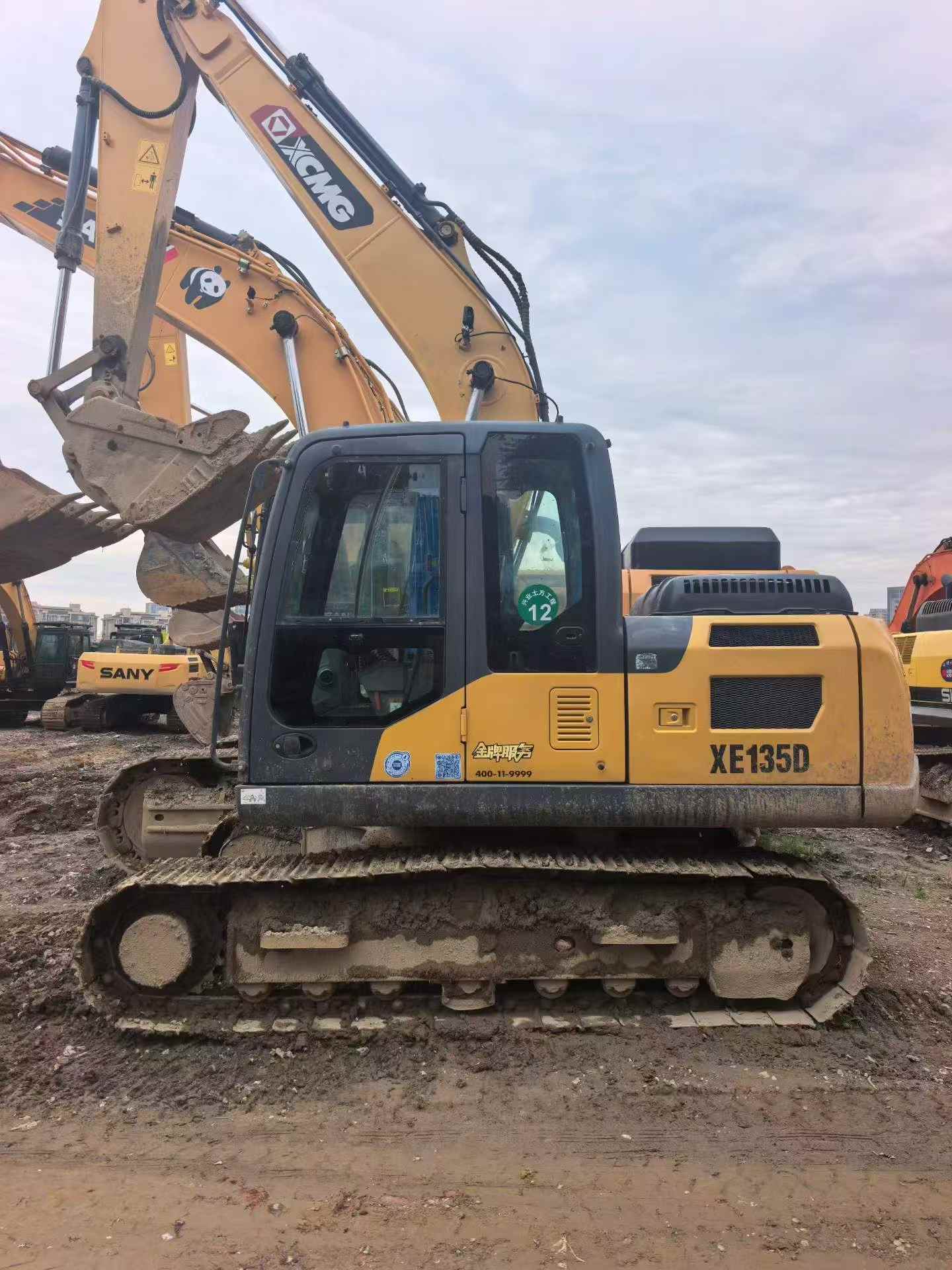

Built for demanding excavation work, this 13-ton hydraulic excavator delivers reliable performance on construction and earthmoving sites. Powered by an ISUZU 4-cylinder turbocharged engine producing 69.6 kW at 2200 rpm, it handles continuous digging, trenching, and loading operations with consistent hydraulic power. The dual plunger pump system supplies 2×123 L/min flow to support simultaneous boom, arm, and bucket movements.
- Digging reach: 8296 mm maximum radius, 5538 mm depth
- Bucket force: 85 kN digging force with 0.4-0.52 m³ capacity
- Mobility: 35° climbing ability, 2335 mm front turning radius
- Operating weight: 13,800 kg for stable grading and slope work
- Hydraulics: 31.4/34.3 MPa main pressure, water-cooled system
Currently located in Zhejiang, China, this machine is inspection-ready with standard backhoe configuration. Compact 7770 mm transport length allows trailer mobility between job sites. Suitable for foundation excavation, utility trenching, site preparation, and material handling tasks requiring precision and reach.
| Specifications | Value |
|---|---|
| No. | 1097418 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

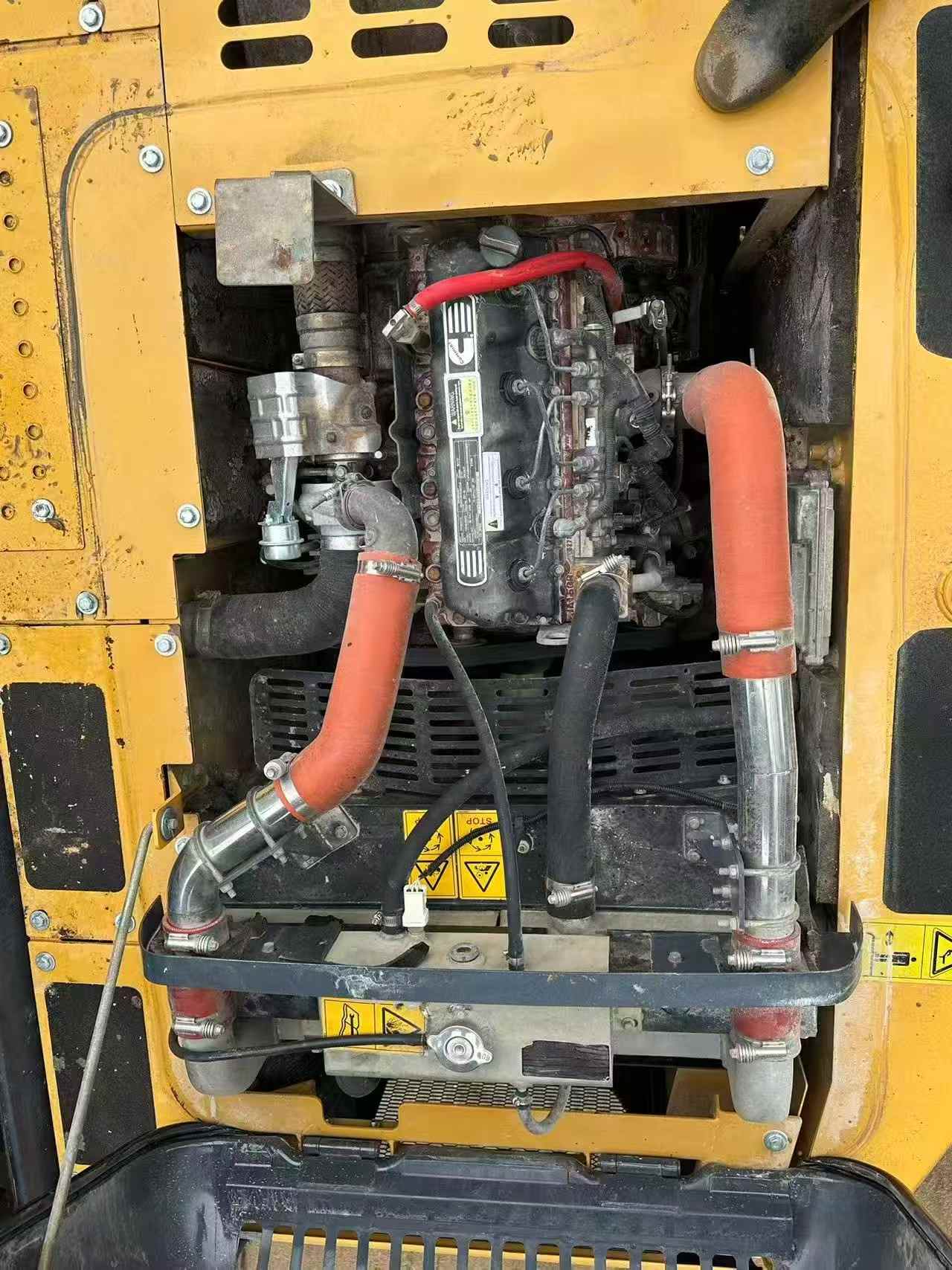

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

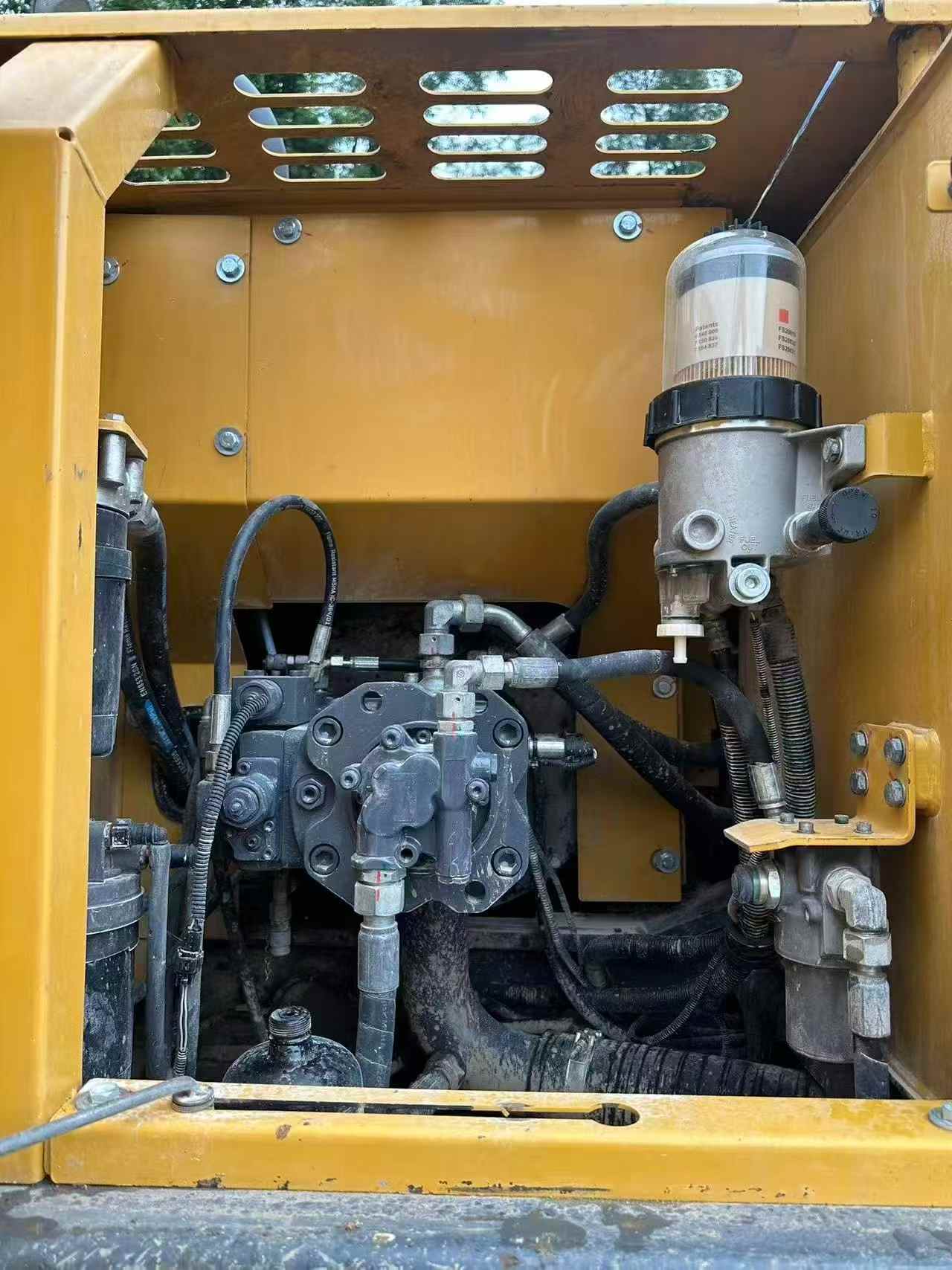

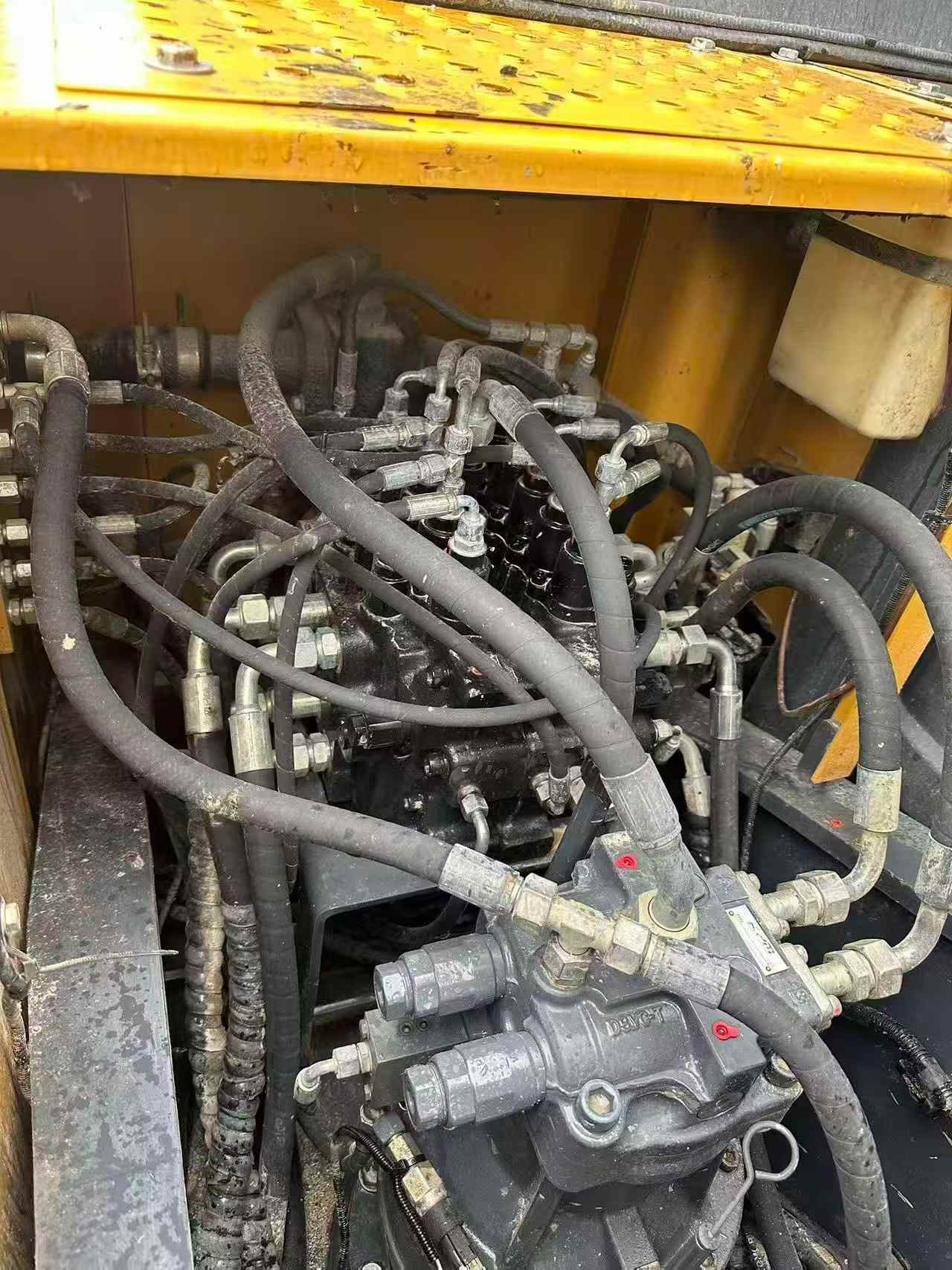

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
