HOME>>XCMG>>XCMG XE135B

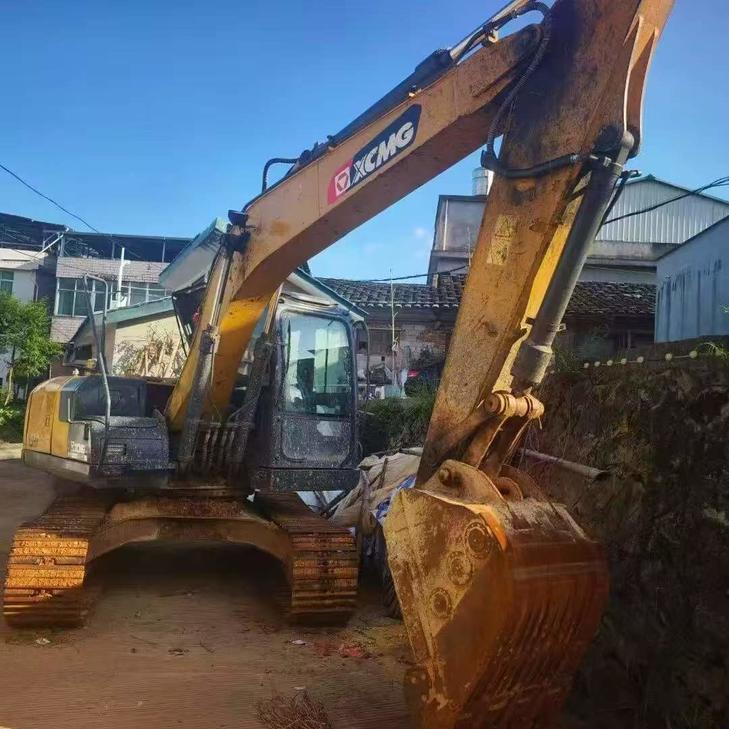

2021 XCMG XE135B

1/8
Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7
Buy XCMG XE135B Used Excavator / 8

Product Description

This 2021 XCMG XE135B hydraulic excavator represents a reliable single-owner machine with verified operational performance. Located in Jiangxi, China, this mid-sized crawler excavator has accumulated over 130,000 RMB in documented service value while maintaining normal operating parameters across all systems.

The XE135B is engineered for versatility in construction, earthmoving, and material handling applications. Its proven track record and recent manufacturing year ensure access to parts support and technical documentation through XCMG's established network.

  • Manufacturing Year: 2021
  • Operating Weight Class: 13.5 metric tons
  • Single Previous Owner
  • All Systems Functional
  • Current Location: Jiangxi Province, China

Available for inspection and suitable for export or domestic deployment. Contact us for detailed service records and shipping arrangements.

SpecificationsValue
No.1143546
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1143546

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Jiangxi China

Pub Date
