HOME>>XCMG>>XCMG XE135B

2021 XCMG XE135B

1/4

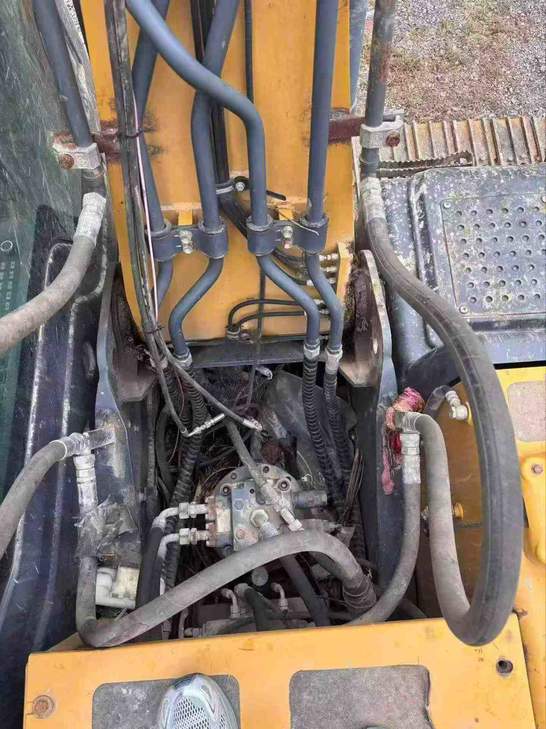

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4

Product Description

This 2021 XCMG XE135B hydraulic excavator offers reliable performance for mid-scale earthmoving and construction projects. Located in Sichuan, China, this used machine represents solid value in the 13-ton class excavator segment. The XE135B is known for its robust build quality and straightforward maintenance requirements, making it suitable for contractors seeking dependable equipment without premium pricing.

Key features of the XCMG XE135B include:

  • Proven hydraulic system for consistent digging performance
  • Operator cabin designed for extended work shifts
  • Fuel-efficient engine suitable for daily operation
  • Standard undercarriage appropriate for varied terrain
  • Established parts availability through XCMG service network

This unit is available for inspection in Sichuan. Interested buyers should arrange on-site evaluation to verify current operating condition and service history.

SpecificationsValue
No.1145534
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1145534

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Sichuan China

Pub Date
