2021 XCMG XE135B

1/9
Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7
Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

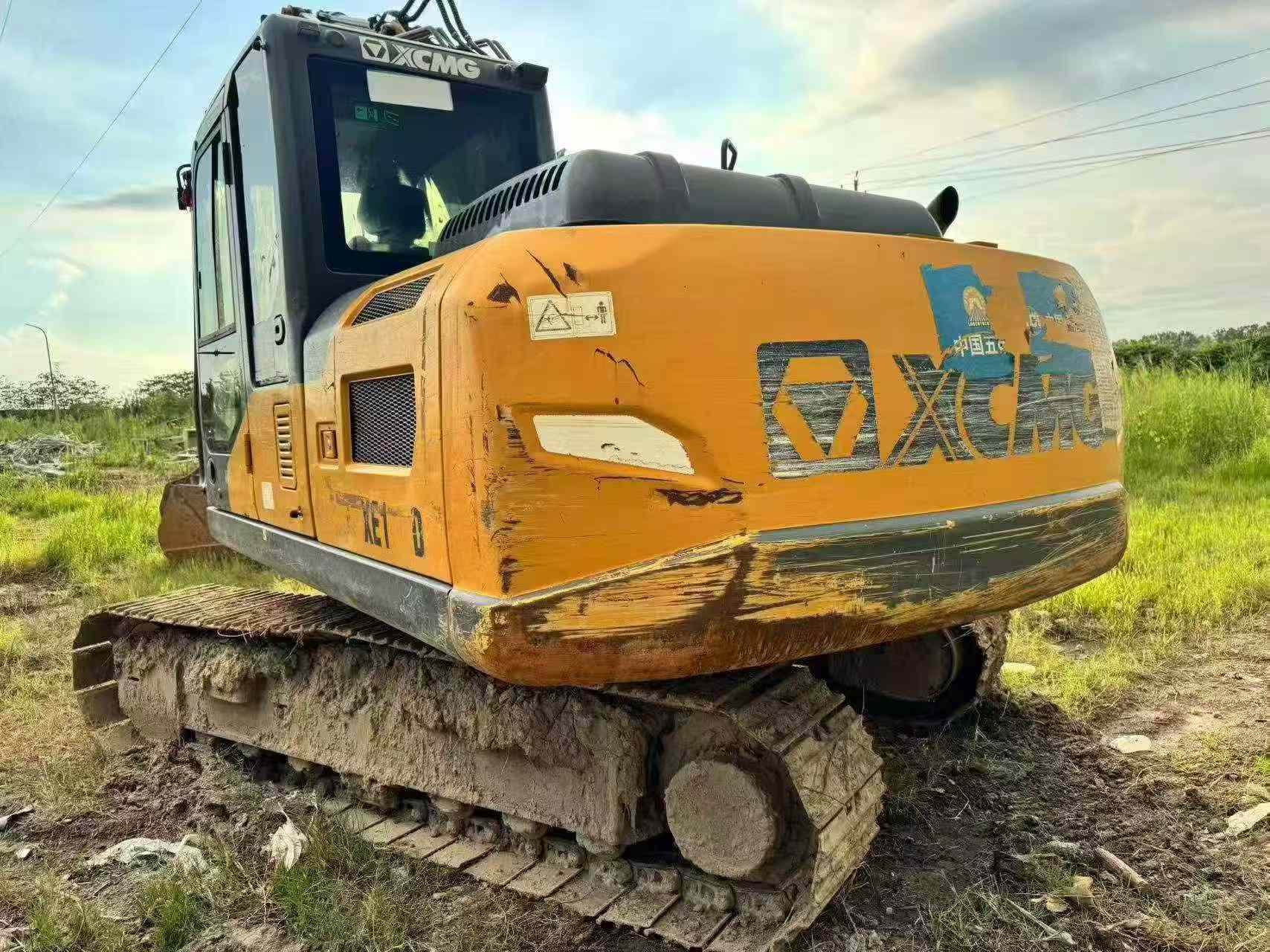

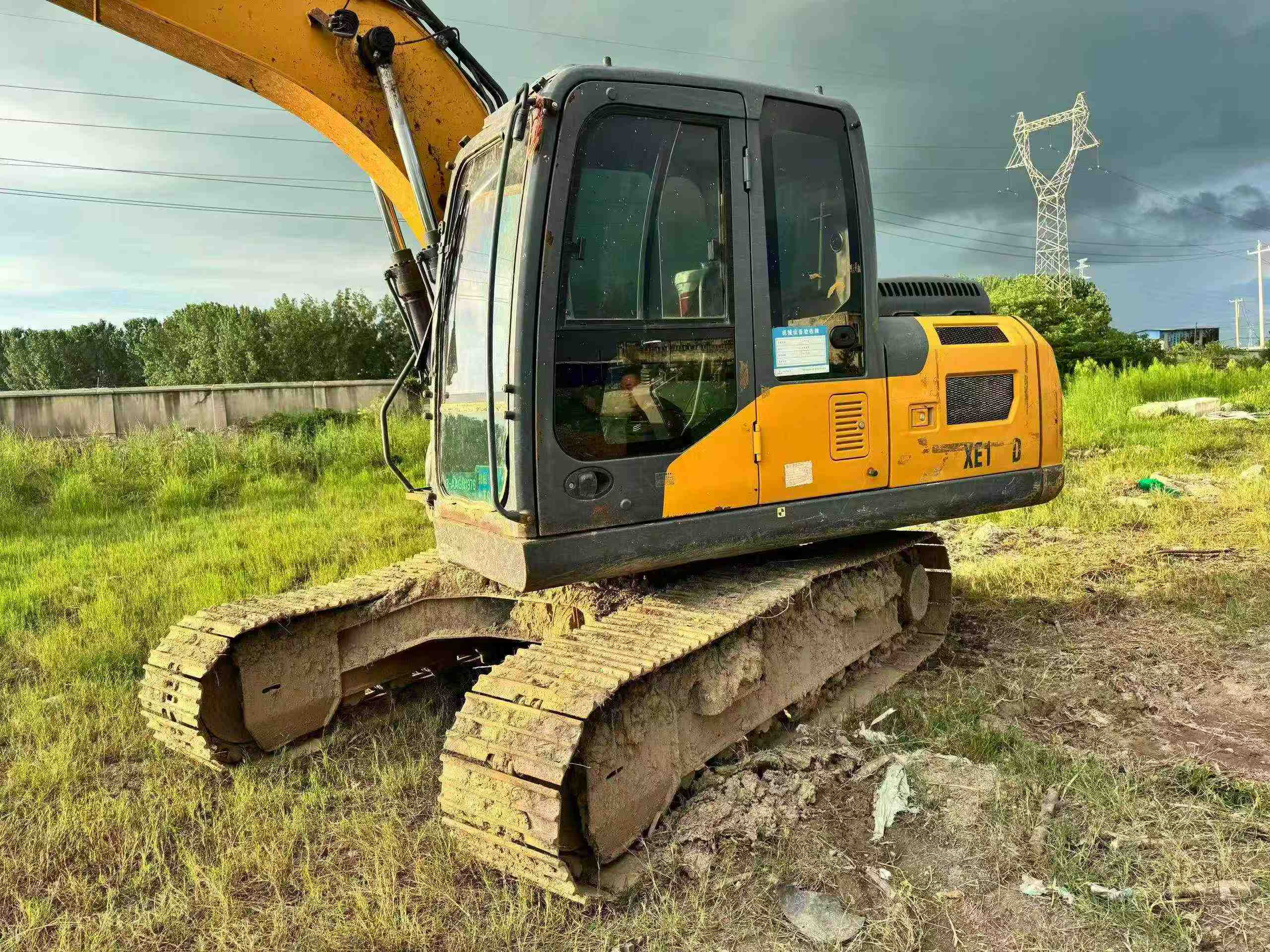

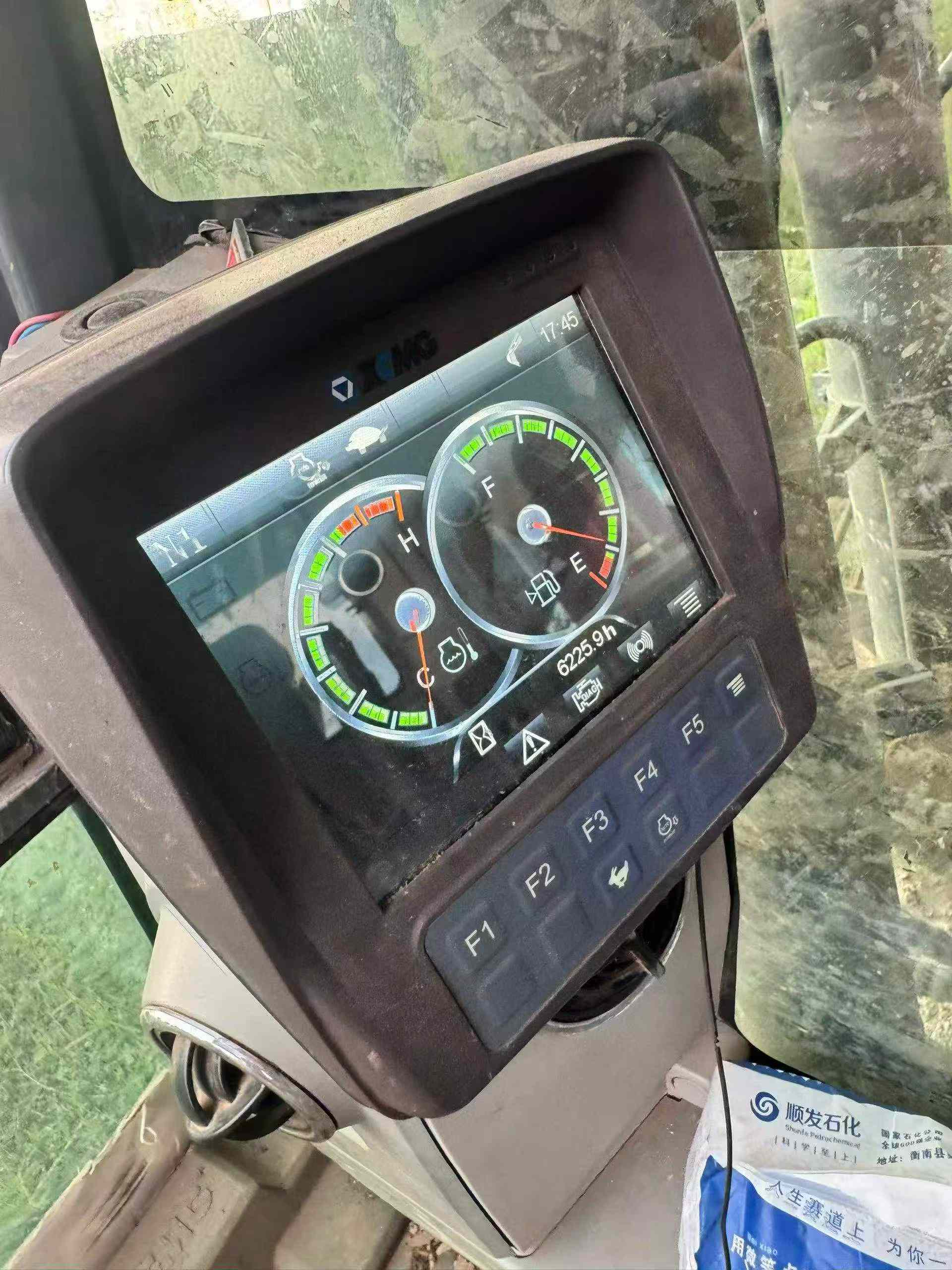

Available for sale: 2021 XCMG XE135B hydraulic excavator, currently located in Jiangsu, China. This 13.5-ton class machine comes equipped with a hydraulic breaker attachment (100-class hammer), expanding its capability beyond standard excavation to include demolition and rock-breaking applications. The unit shows actual operating hours as displayed on the meter and represents a single-owner machine from private use.

Key features of the XE135B include:

  • XCMG manufacture with reliable hydraulic systems
  • Mid-size excavator suitable for construction, demolition, and quarry work
  • Includes hydraulic hammer attachment for breaking applications
  • Verifiable operating hours from original owner
  • Available for inspection in Jiangsu province

This machine offers a practical solution for contractors requiring a versatile excavator with auxiliary breaking capability. Suitable for both domestic and international buyers seeking dependable used construction equipment from a traceable ownership history.

SpecificationsValue
No.1149380
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

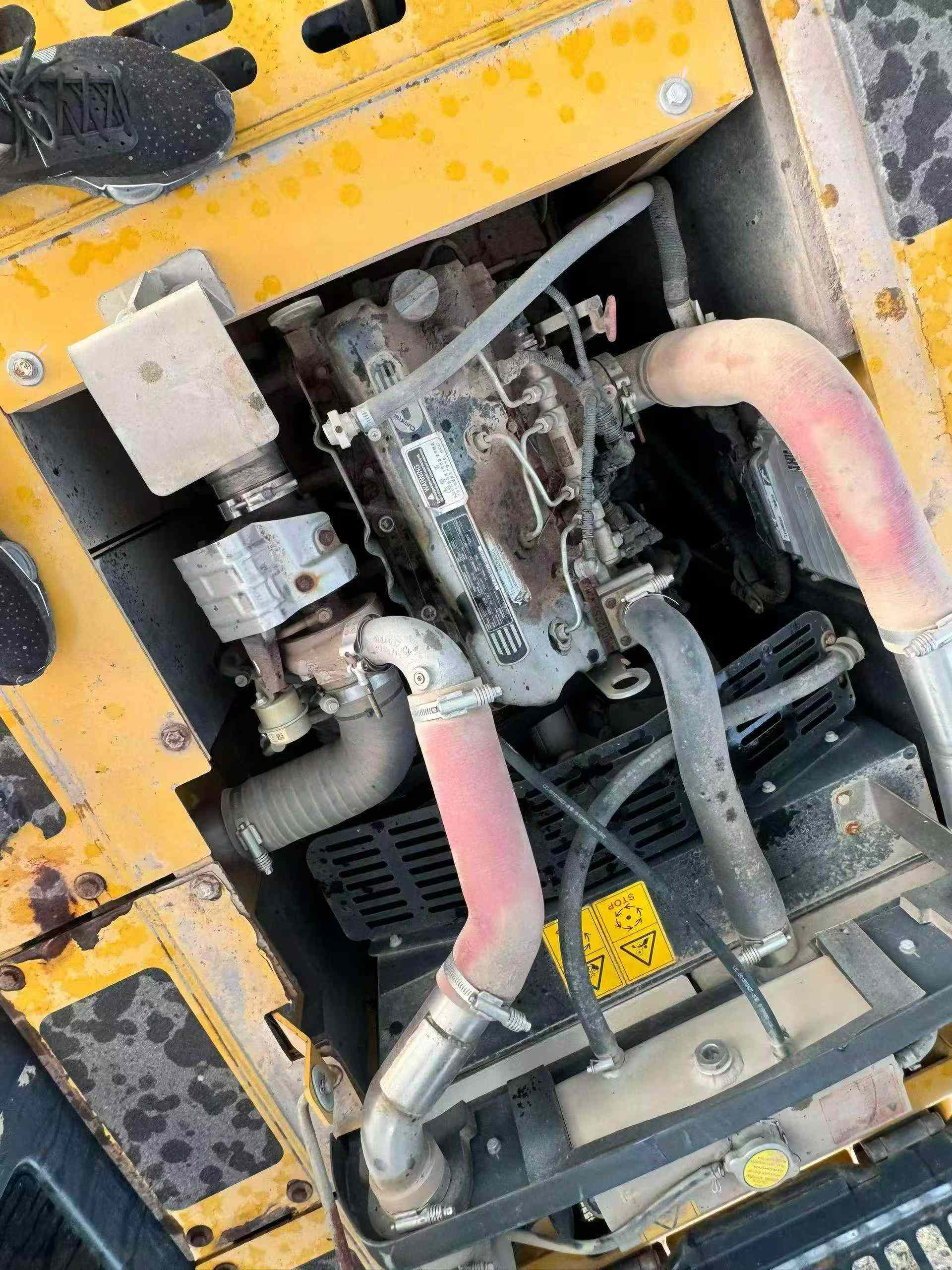

Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno

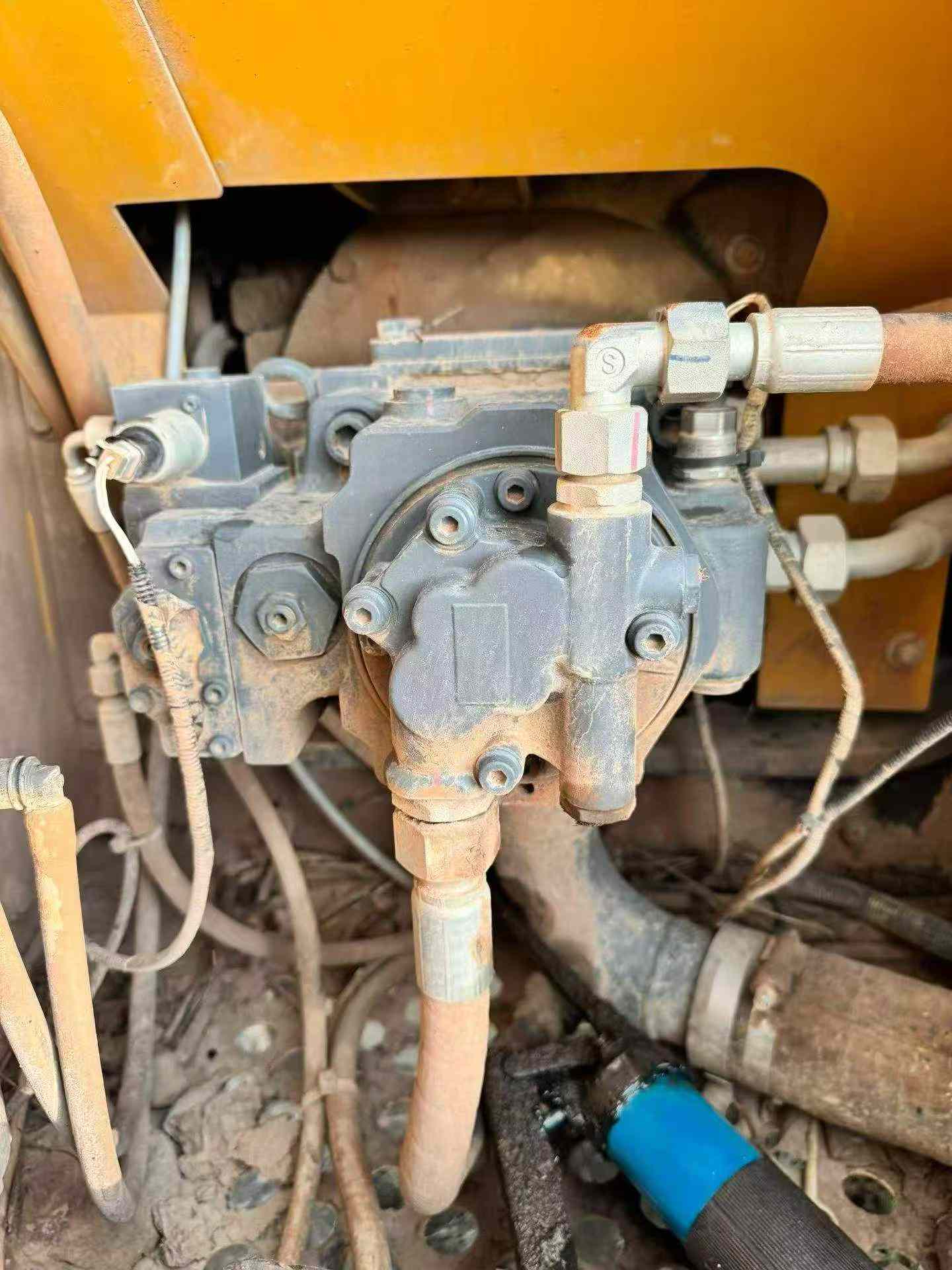

Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1149380

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Jiangsu China

Pub Date:
