Product Description
Engineered with precision in Xuzhou, this 13-ton excavator delivers robust performance through its ISUZU BB-4BG1TRP turbocharged engine, producing 69.6kW at 2200rpm with water-cooled efficiency across 4.329L displacement. Dual plunger pumps provide 2×123 l/min maximum flow, while main overflow pressures reach 34.3 MPa, ensuring responsive hydraulic power for demanding applications. Bucket digging force peaks at 85kN, with rod force at 65kN—sufficient for challenging ground conditions.
Operational capabilities include:
- Maximum digging reach of 8,296mm and depth to 5,538mm
- 0.4-0.52m³ bucket capacity with 4,600mm boom and 2,510mm arm
- 35° climbing ability with 42 KPa ground pressure for stable terrain navigation
- 12.3 rpm rotation speed and 5.16 km/h travel speed for efficient positioning
- 250L fuel tank and 130L hydraulic reservoir for extended operation
Currently located in Sichuan, this 2022 model combines XCMG's proven engineering standards with practical work dimensions: 7,770mm transport length, 2,512mm width, and 13,800kg working weight. Built for contractors requiring reliable mid-range excavation capacity with comprehensive technical specifications.
| Specifications | Value |
|---|---|
| No. | 1025231 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

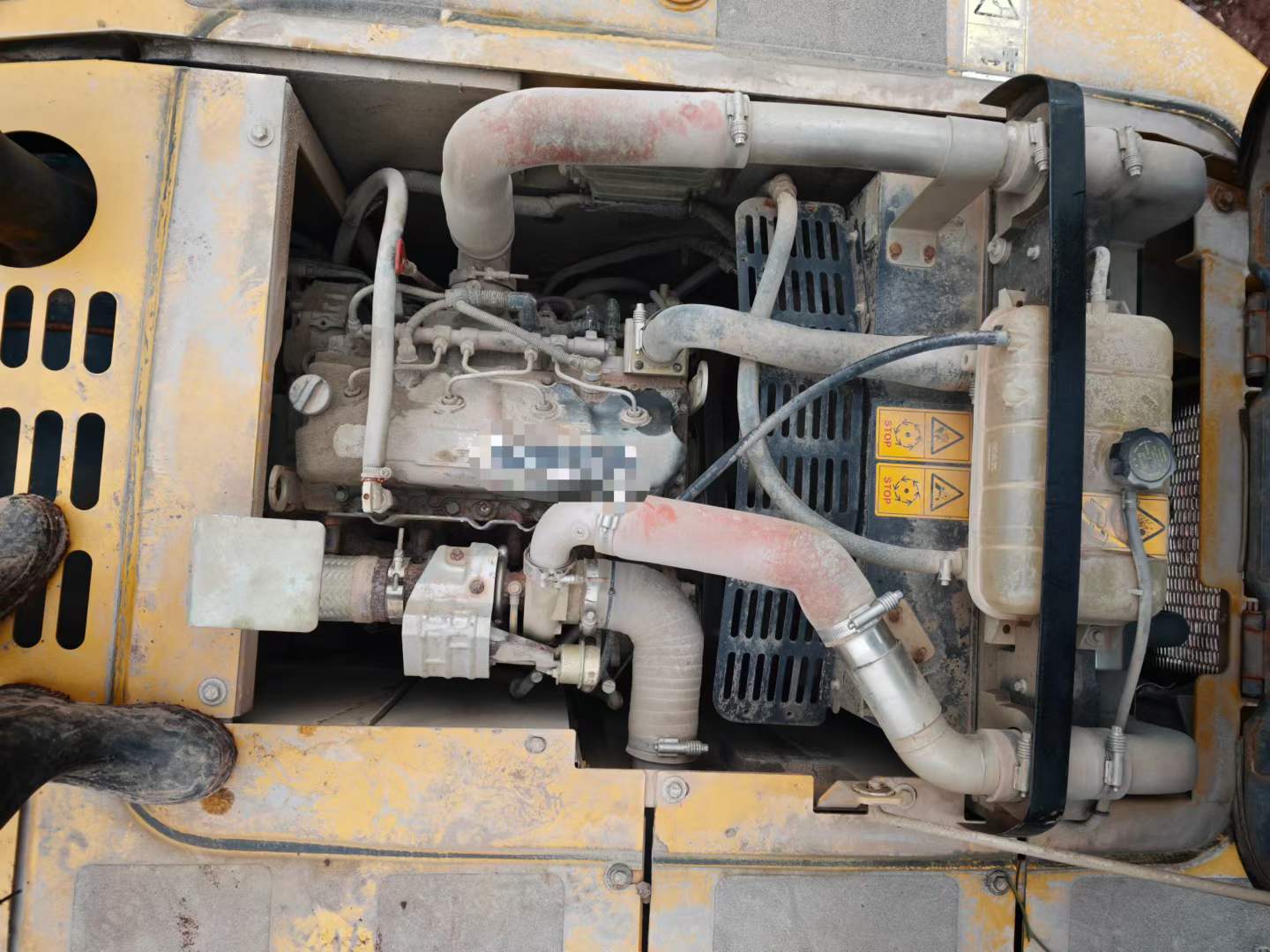

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

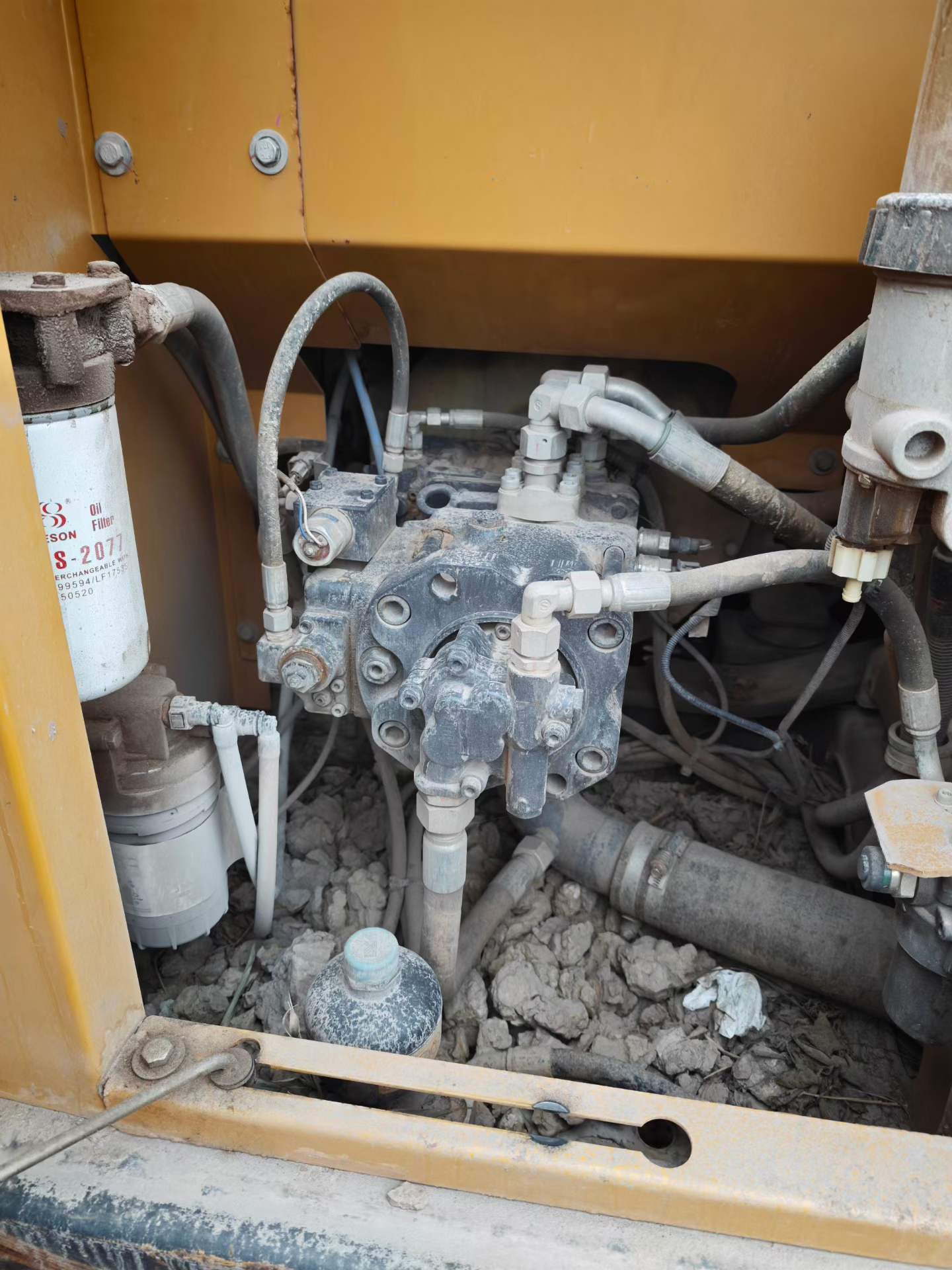

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
