Product Description

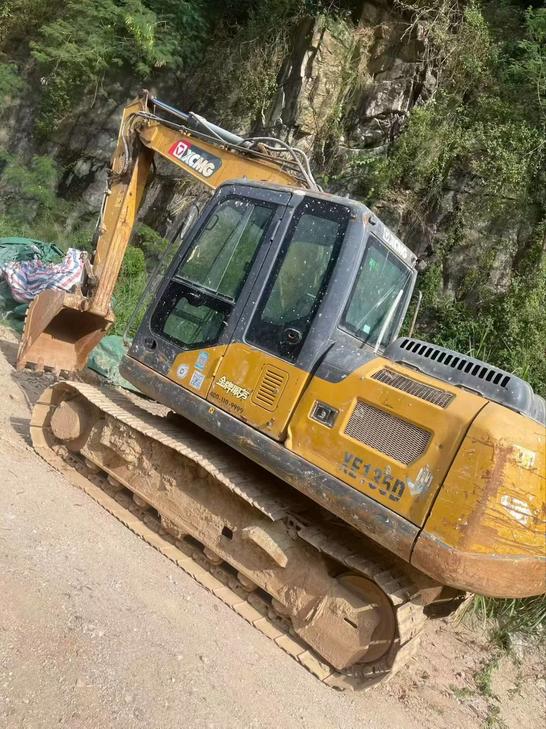

This 2022 XCMG XE135B crawler excavator offers reliable performance for mid-scale earthmoving and construction projects. Manufactured by XCMG, one of China's leading heavy equipment producers, this 13.5-ton class machine combines proven hydraulic technology with fuel-efficient operation. The XE135B features a robust undercarriage, powerful digging force, and a spacious operator cabin designed for extended work cycles.
Currently located in Guangdong, China, this unit comes with complete documentation and maintenance records. The machine has been professionally maintained and is ready for immediate deployment across excavation, trenching, and material handling applications.
- Year of Manufacture: 2022
- Operating Weight Class: 13.5 tons
- Location: Guangdong Province, China
- Condition: Used, documented service history
- Documentation: Complete records available
Ideal for contractors seeking dependable excavation equipment with low operating hours and transparent provenance. Contact us for detailed specifications, inspection arrangements, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1173887 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
