HOME>>XCMG>>XCMG XE135B

2023 XCMG XE135B

1/6
Buy XCMG XE135B Used Excavator / 1

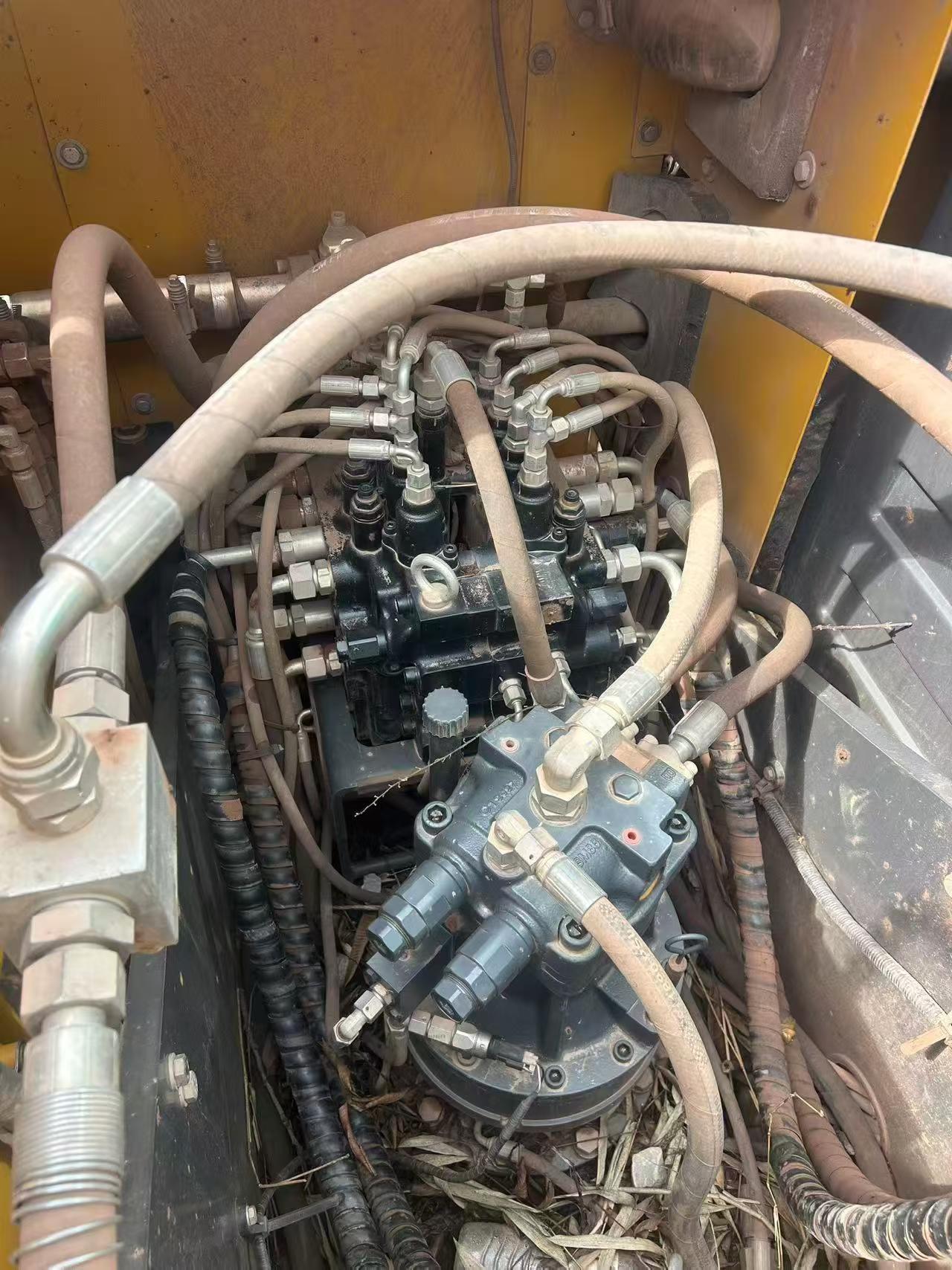

Buy XCMG XE135B Used Excavator / 2

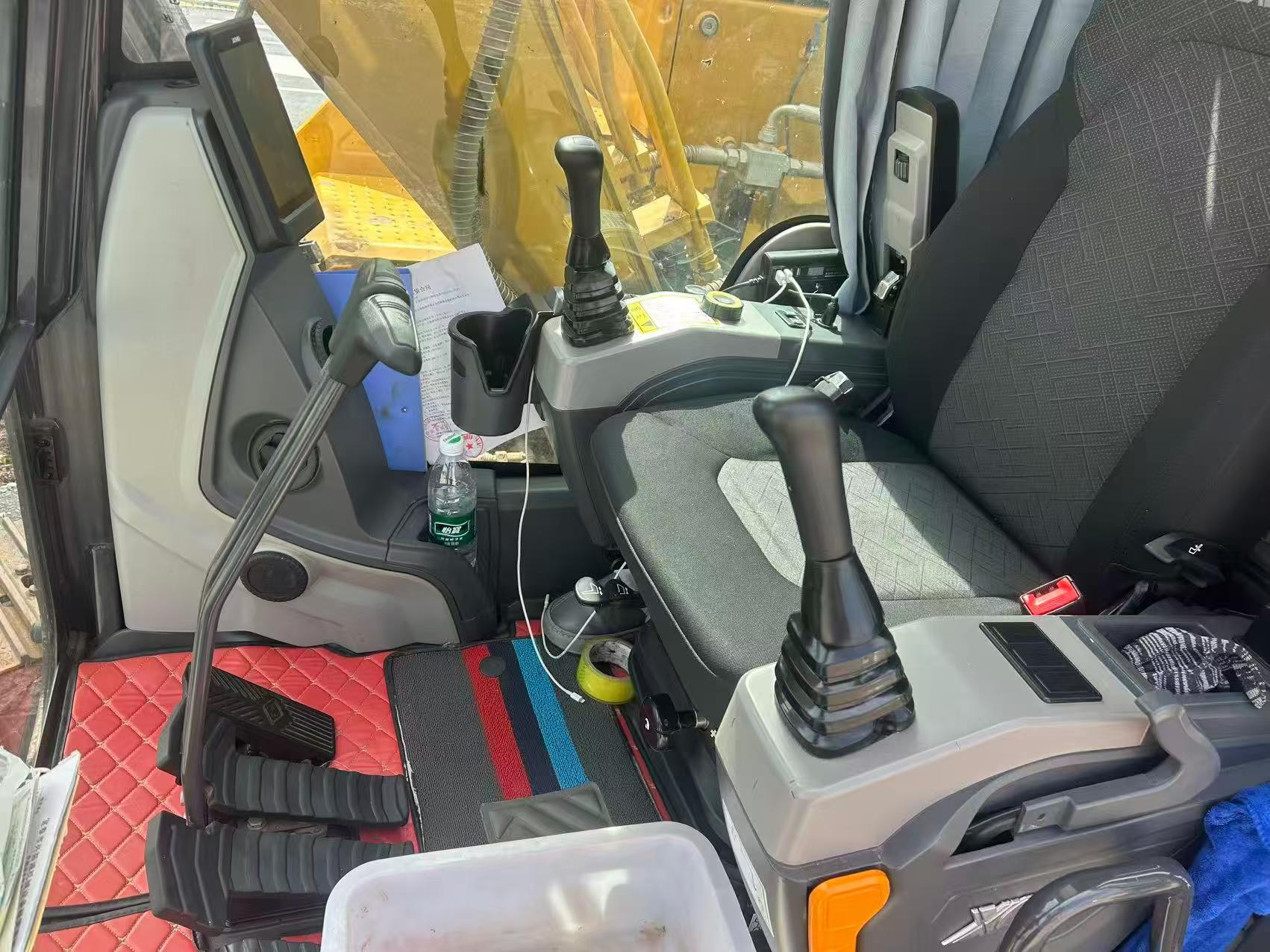

Buy XCMG XE135B Used Excavator / 3

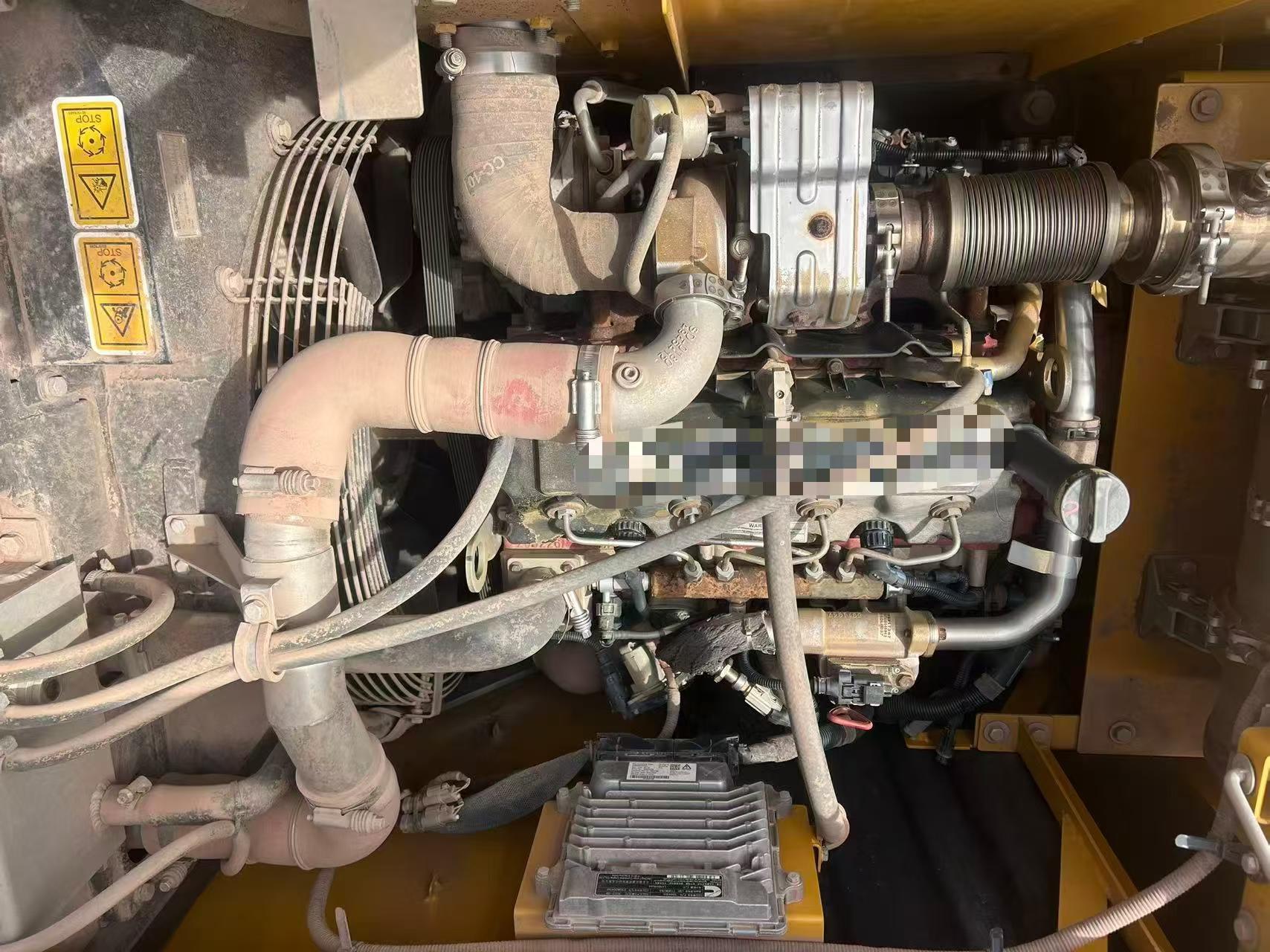

Buy XCMG XE135B Used Excavator / 4

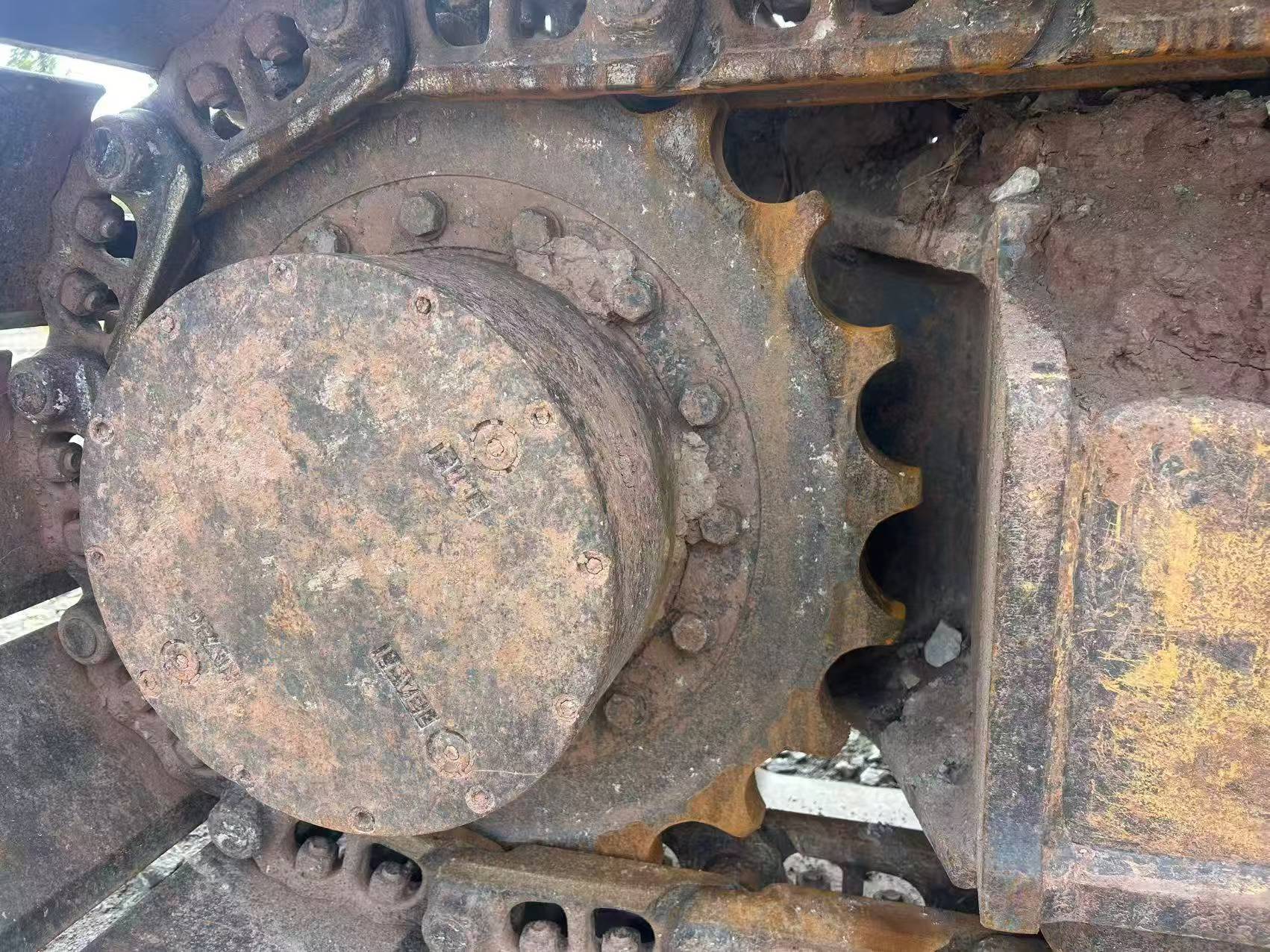

Buy XCMG XE135B Used Excavator / 5

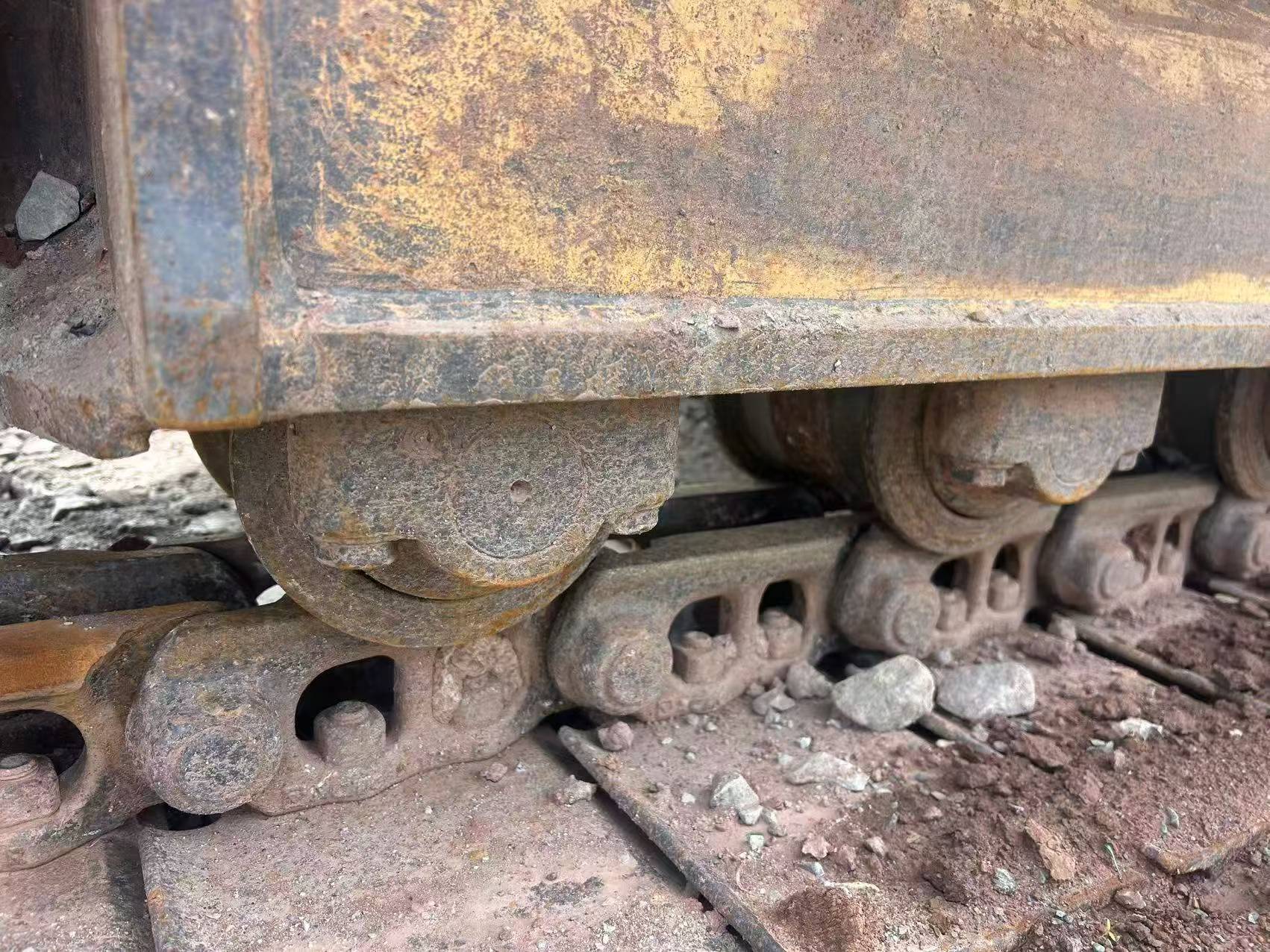

Buy XCMG XE135B Used Excavator / 6

Product Description

2023 XCMG XE135B crawler excavator, produced at the end of 2023 and currently located in Sichuan, China. This unit is offered from local first-hand ownership — the machine has stayed in the region under its original operator, with no dealer turnover or auction history in its chain of custody.

Positioned in the 13-tonne class, the XE135B is a standard earthmoving configuration widely used for trenching, general civil works and site preparation. It is the kind of machine that holds resale value locally and is easy to service through XCMG's existing dealer and parts network across the province.

Key points for buyers:

  • Late-2023 production — one of the final units of that model year
  • Local first-hand ownership, verifiable with the seller
  • Standard earthmoving setup, no unusual or undocumented modifications
  • Available for physical inspection in Sichuan by appointment

Hour meter readings, undercarriage wear and attachment condition should be confirmed during inspection rather than taken on listing description alone. Documentation and ownership papers can be reviewed on site. Serious B2B enquiries welcome; inspection is encouraged before any offer is made.

SpecificationsValue
No.1157090
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1157090

Brand Name:

XCMG

Model Number:

XE135B

Year:

2023

Location:

Sichuan China

Pub Date:
