Product Description

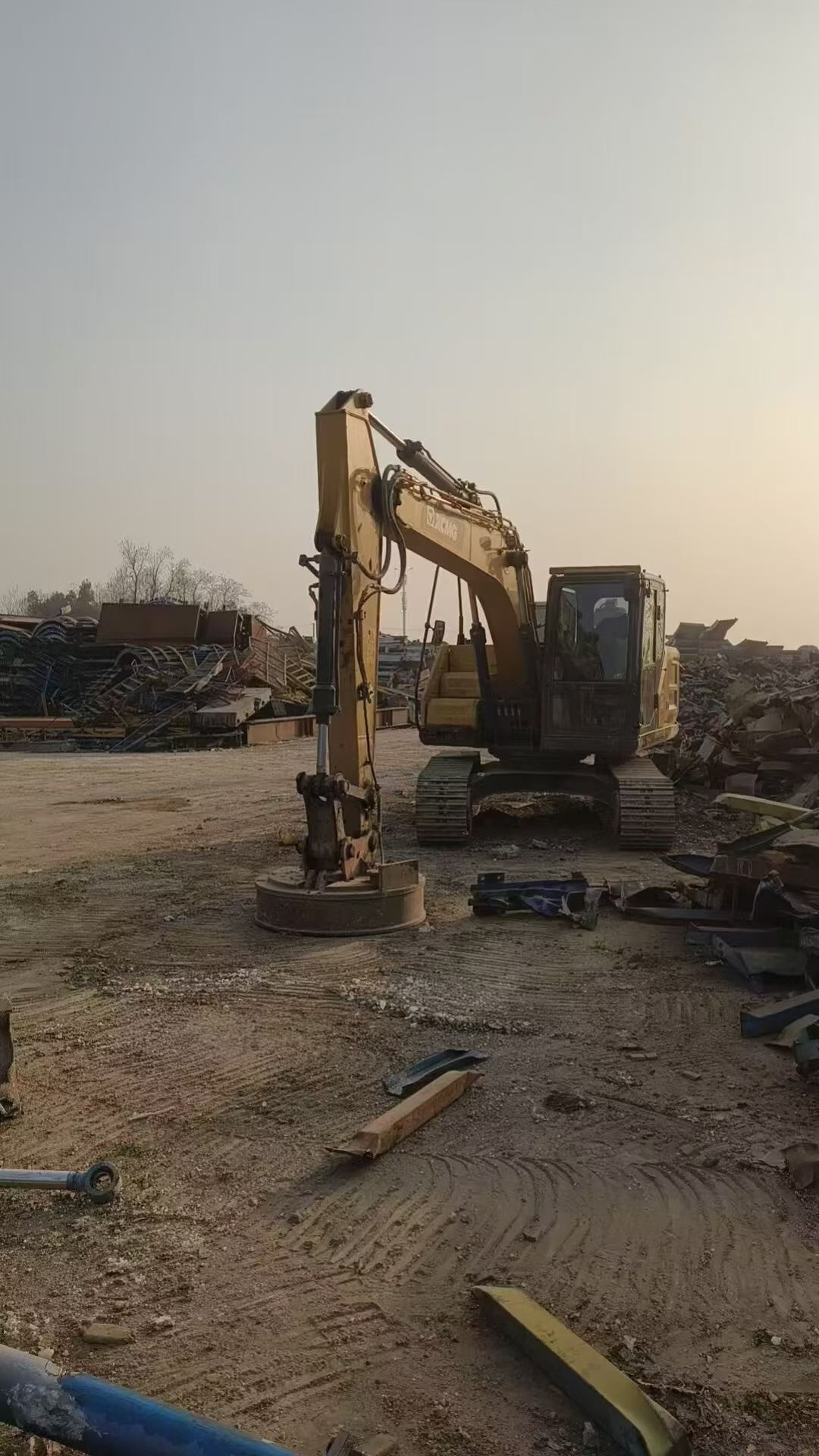

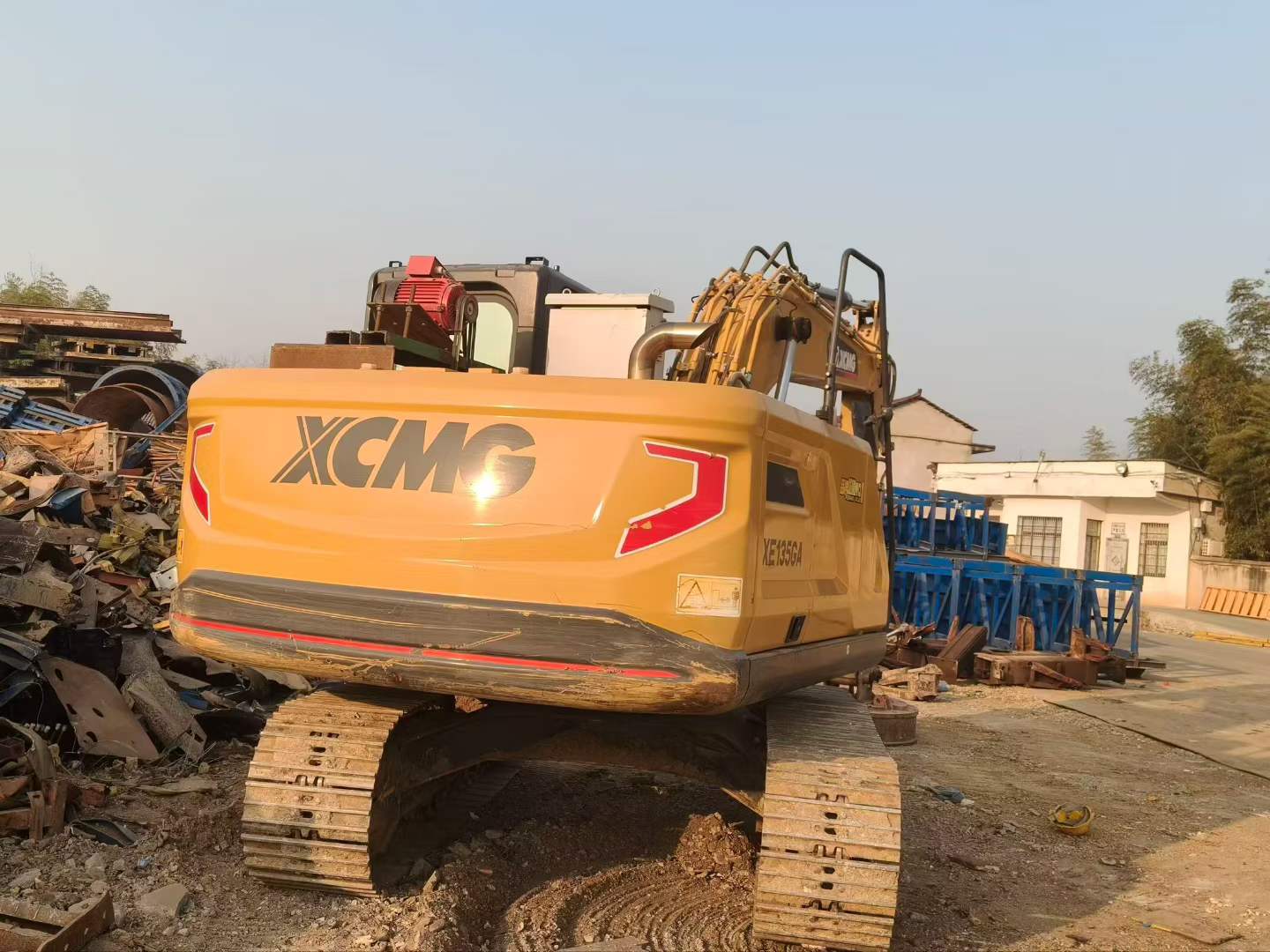

Built for productivity in 2024, this XCMG XE135B excavator arrives from Fujian Putian ready to tackle your toughest jobsite demands. Operating at 13 tons with a proven ISUZU BB-4BG1TRP engine delivering 69.6kW, this machine combines reliable traditional power with exceptional digging performance. Reach 8,296mm maximum digging radius and achieve 5,538mm excavation depth—specifications that translate directly into faster cycle times and reduced repositioning on grading, trenching, and foundation work.
- Bucket capacity: 0.4-0.52m³ for optimal material handling
- Dual plunger pumps (2×123 L/min) ensure responsive hydraulic performance
- 85kN bucket digging force cuts through compacted soil and clay
- 4,600mm boom and 2,510mm arm provide versatile working range
- Water-cooled turbocharged engine maintains power in demanding conditions
- 35° climbing ability navigates uneven terrain with confidence
- 250L fuel tank extends operating hours between refills
Manufactured in Xuzhou, China, this excavator delivers proven XCMG engineering at a competitive price point. Transport dimensions of 7,770×2,512×2,880mm allow straightforward logistics. Available now in Pu
| Specifications | Value |
|---|---|
| No. | 1016976 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

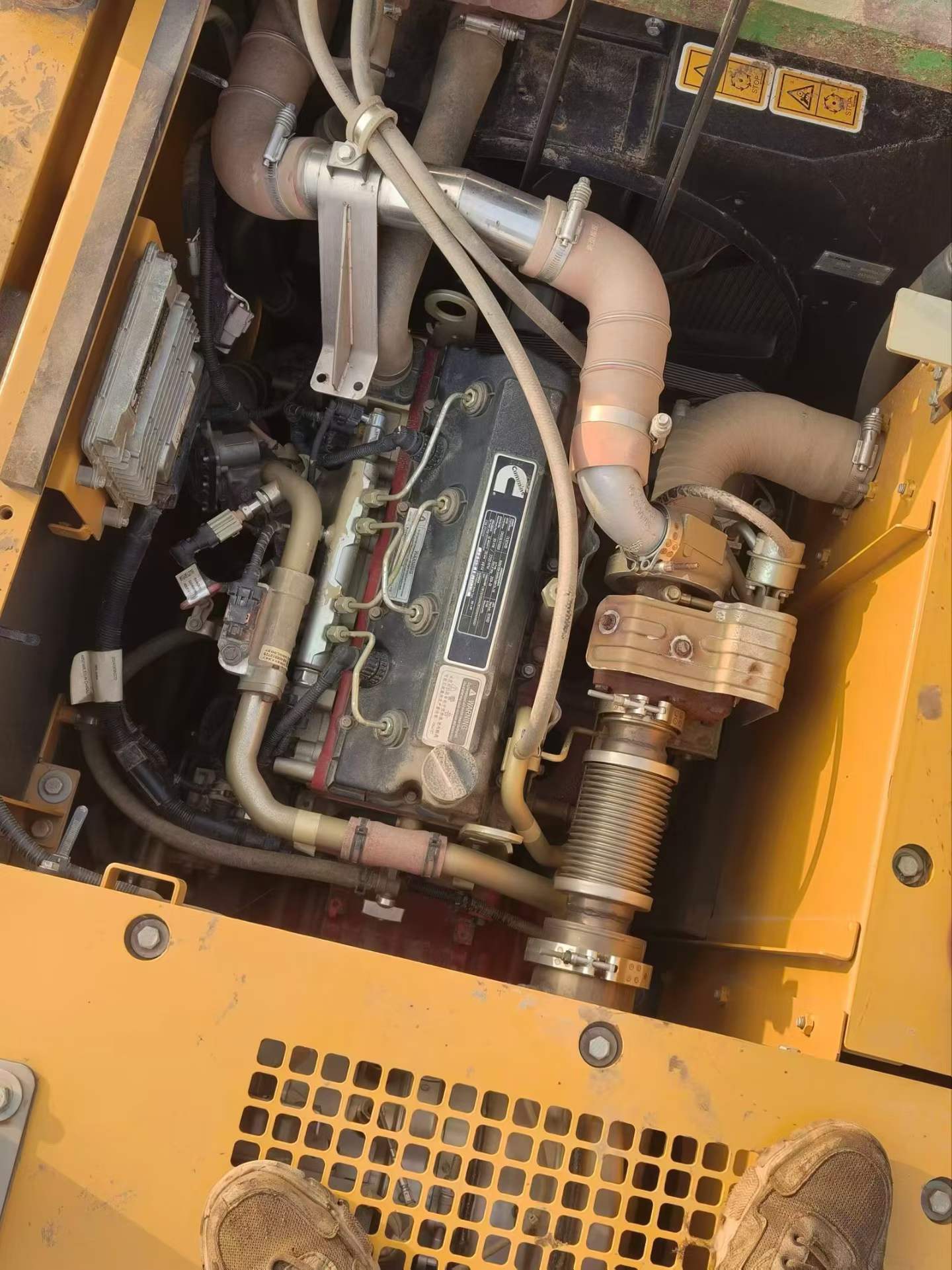

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

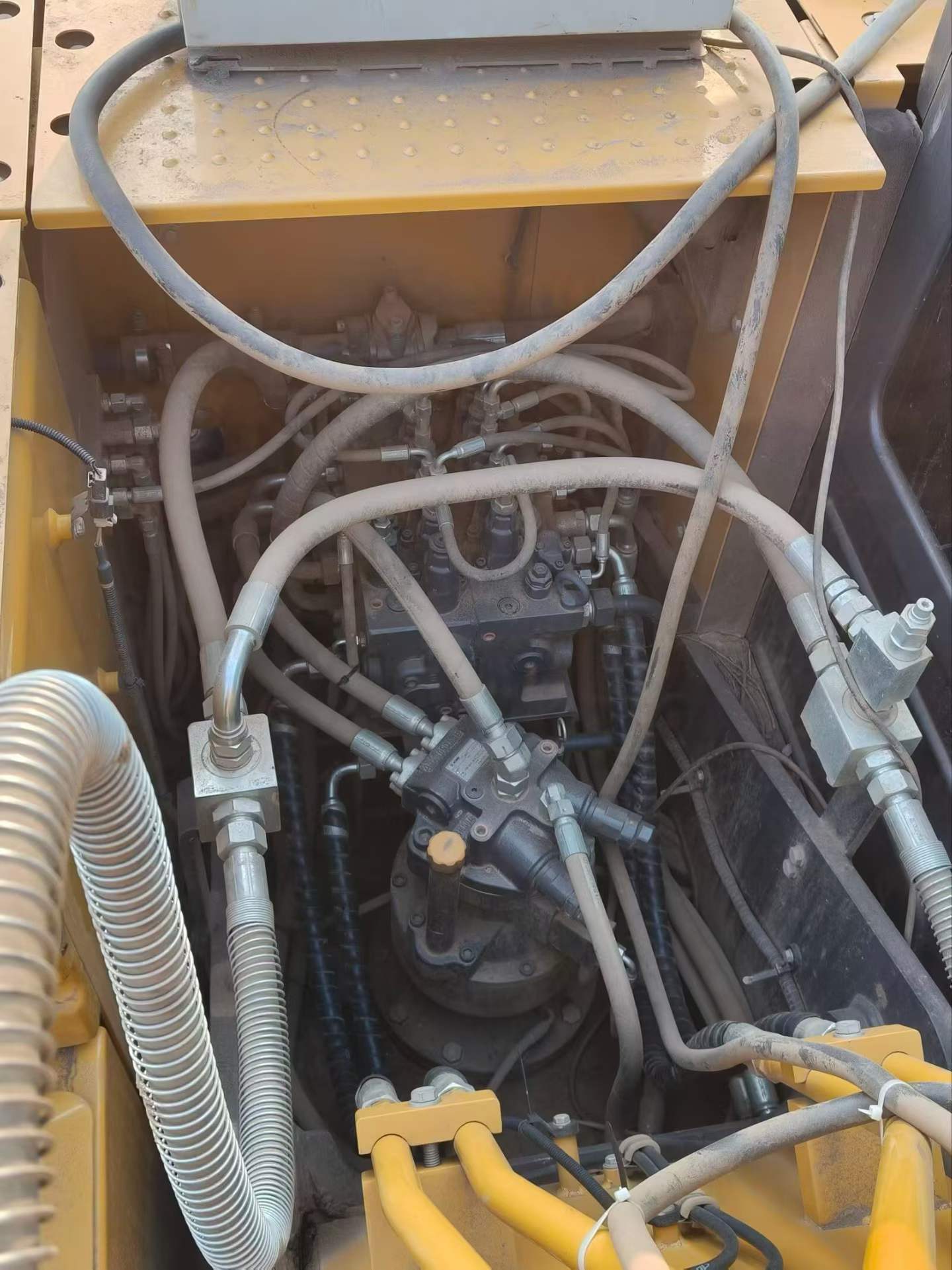

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
