Product Description

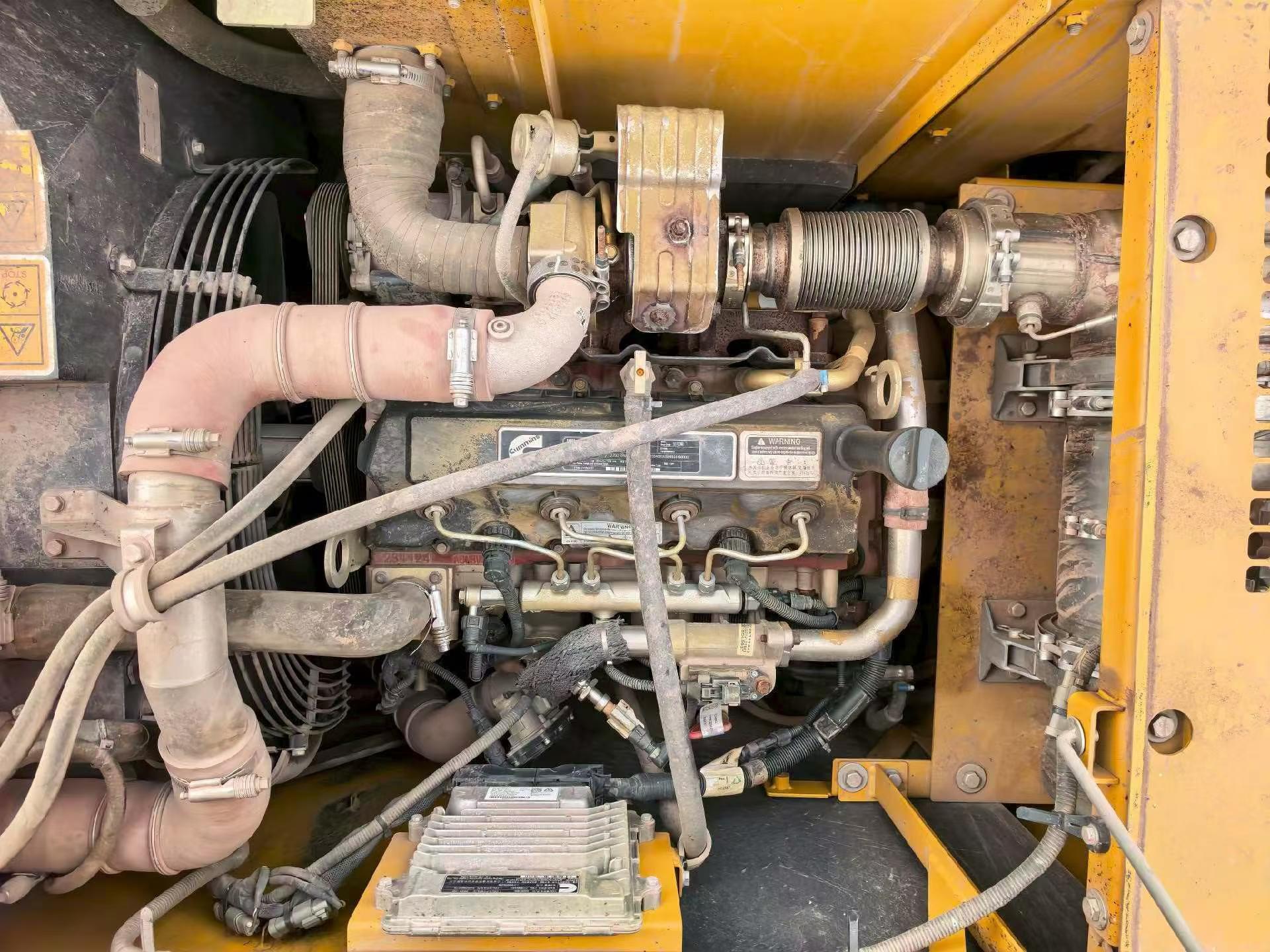

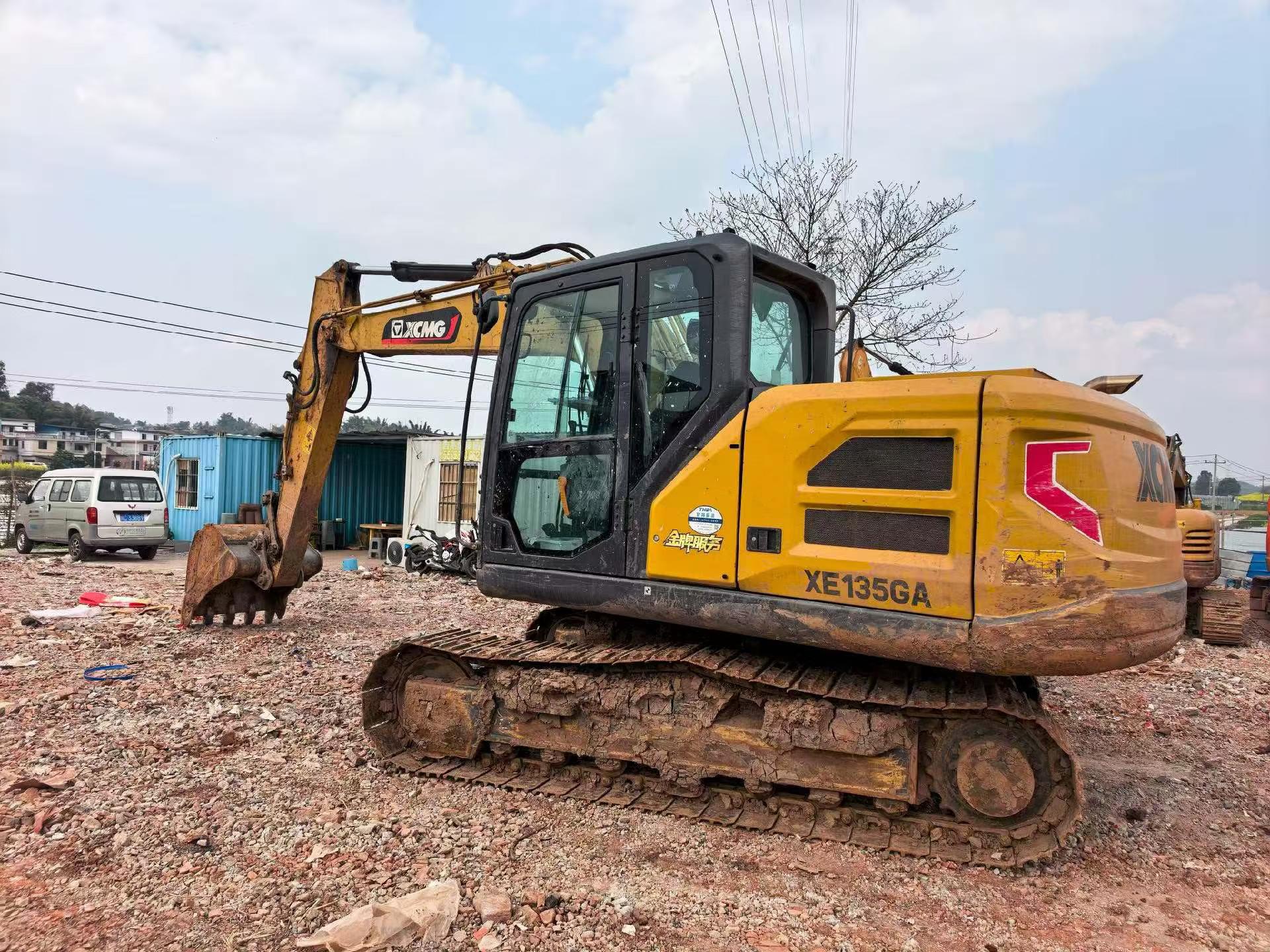

Built for precision and operator confidence, this 2024 XCMG XE135B crawler excavator delivers 13-ton performance with exceptional control characteristics. Powered by an ISUZU BB-4BG1TRP turbocharged engine producing 69.6 kW at 2200 rpm, this machine combines reliable water-cooled power with advanced hydraulic responsiveness. Dual plunger pumps supply 2×123 L/min flow, ensuring smooth simultaneous functions during complex digging operations.
Operators benefit from superior visibility across the 8,296 mm working envelope, with a compact 2,294 mm rear swing radius enabling confident maneuvering in confined spaces. The cabin design prioritizes sightlines to the bucket and surrounding jobsite, while hydraulic pilot controls (3.9 MPa) reduce fatigue during extended shifts. Ground-level stability comes from 42 kPa ground pressure distributed across 2,910 mm track contact length, maintaining balance on slopes up to 35°.
- Working weight: 13,800 kg with 0.4–0.52 m³ bucket capacity
- Digging forces: 85 kN bucket, 65 kN arm for demanding excavation
- Maximum dig depth: 5,538 mm; reach: 8,296 mm
- Compact transport dimensions: 7,770 × 2,512 × 2,880 mm
- Currently located in Sichuan, ready for depl
| Specifications | Value |
|---|---|
| No. | 1025232 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

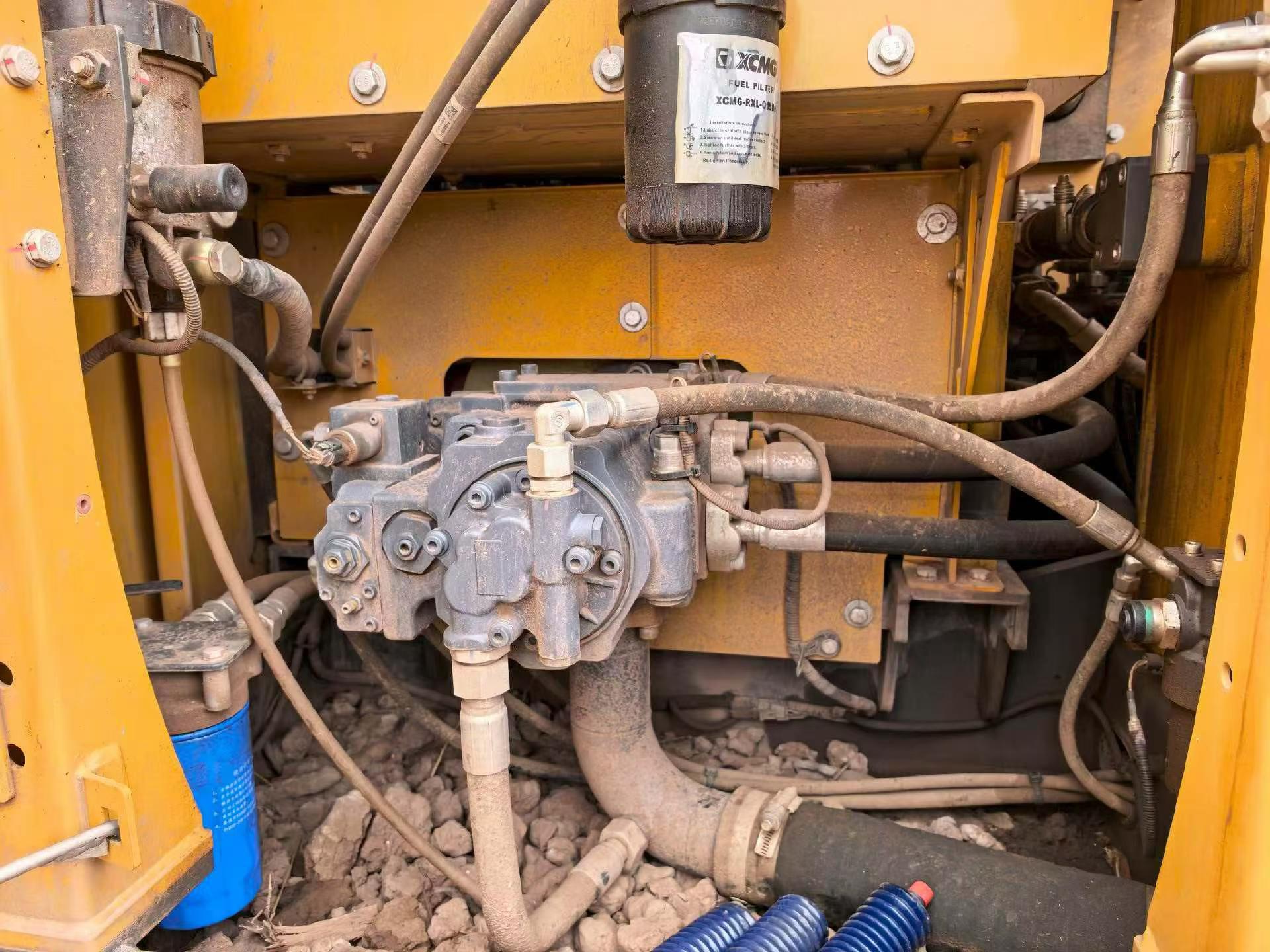

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
