2025 XCMG XE135B

1/9
Buy XCMG XE135B Used Excavator / 1

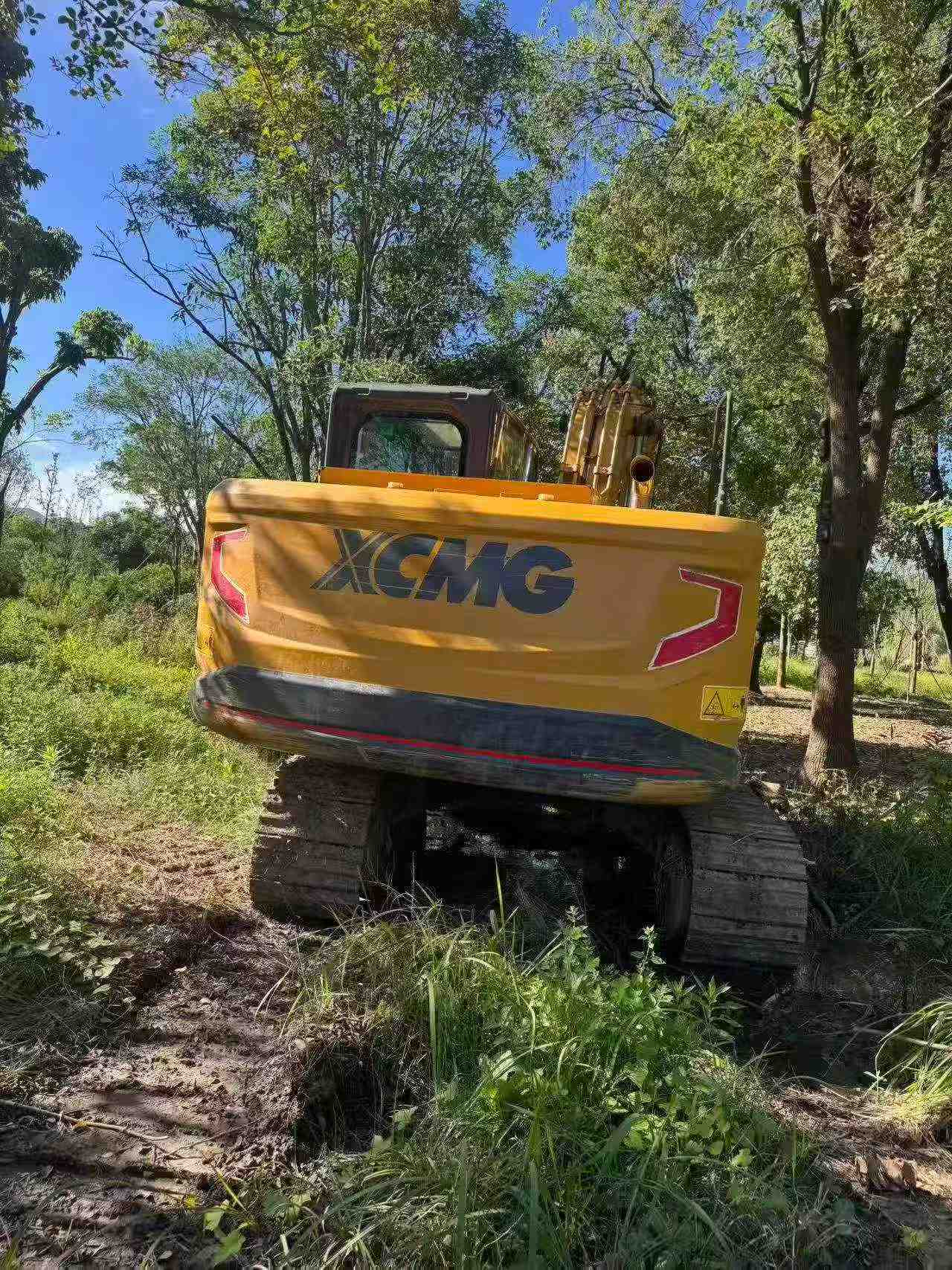

Buy XCMG XE135B Used Excavator / 2

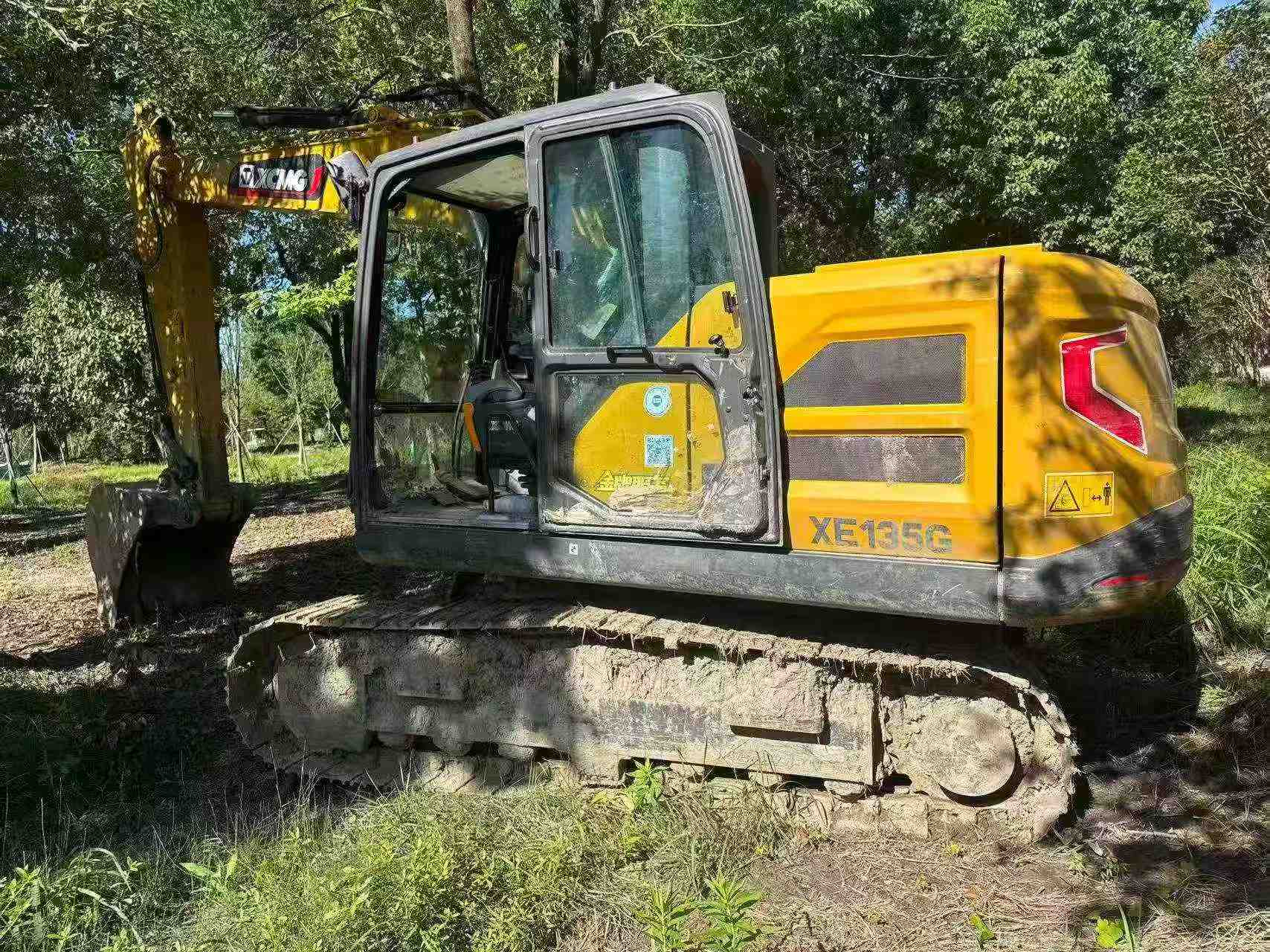

Buy XCMG XE135B Used Excavator / 3

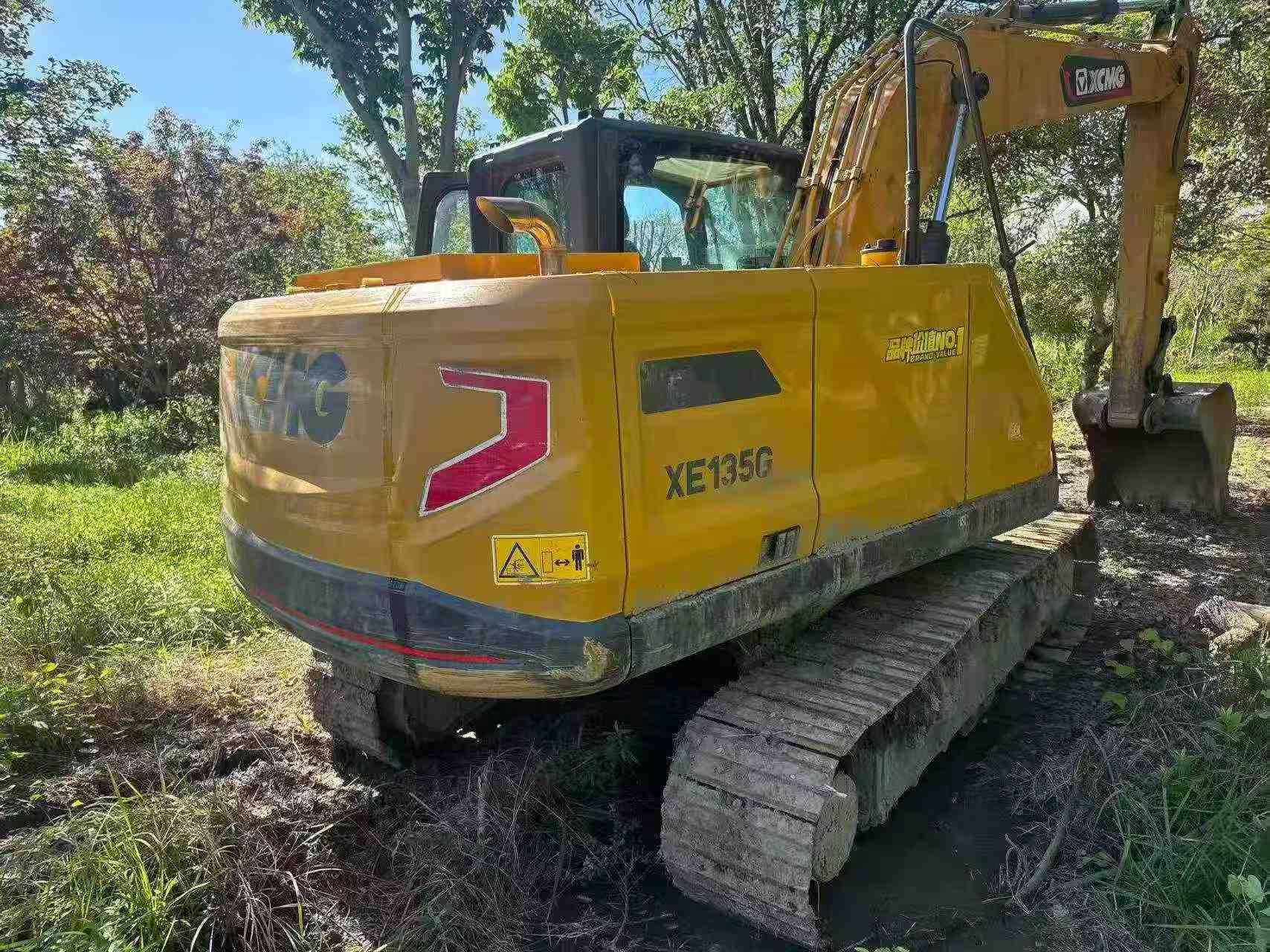

Buy XCMG XE135B Used Excavator / 4

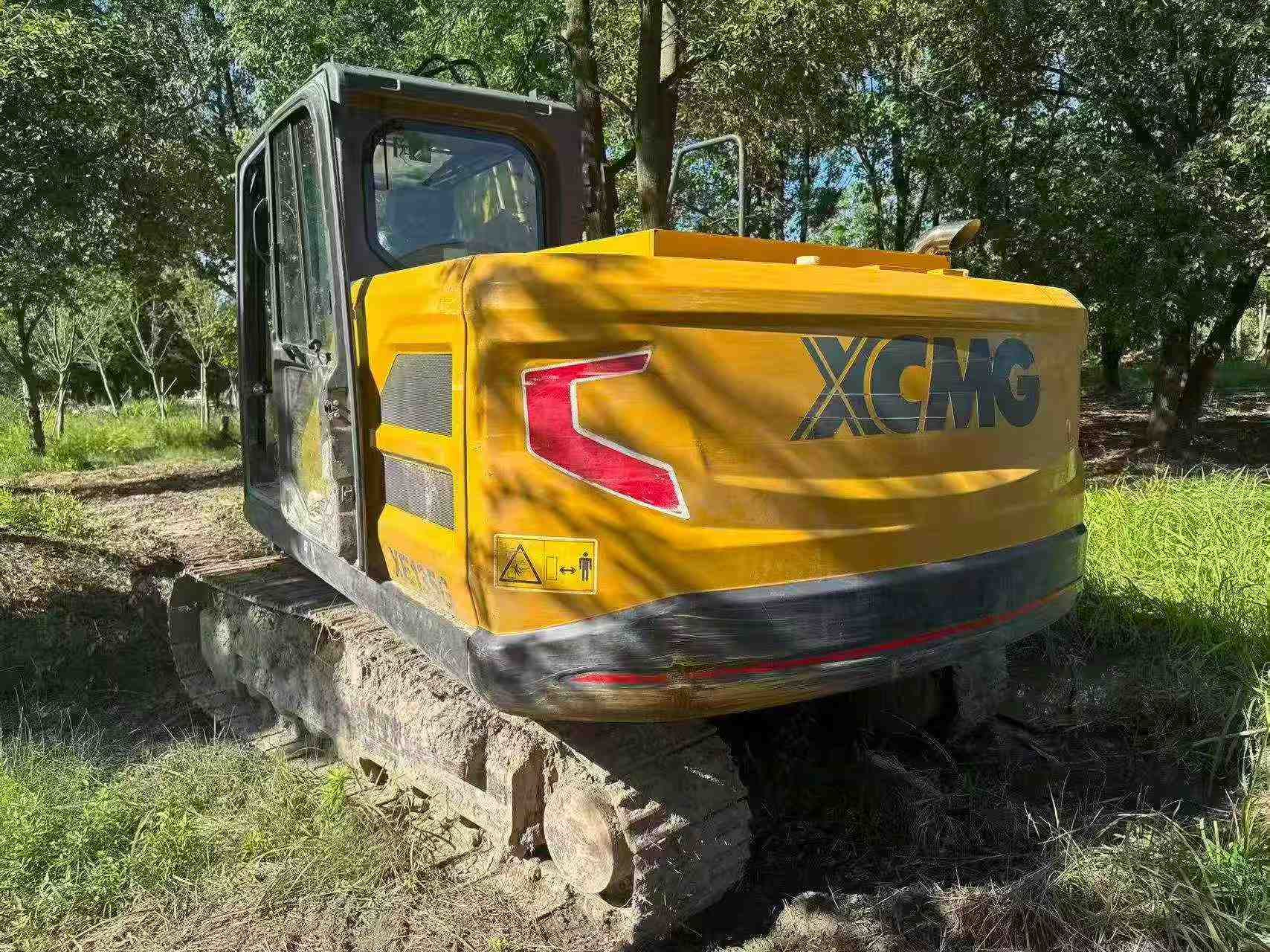

Buy XCMG XE135B Used Excavator / 5

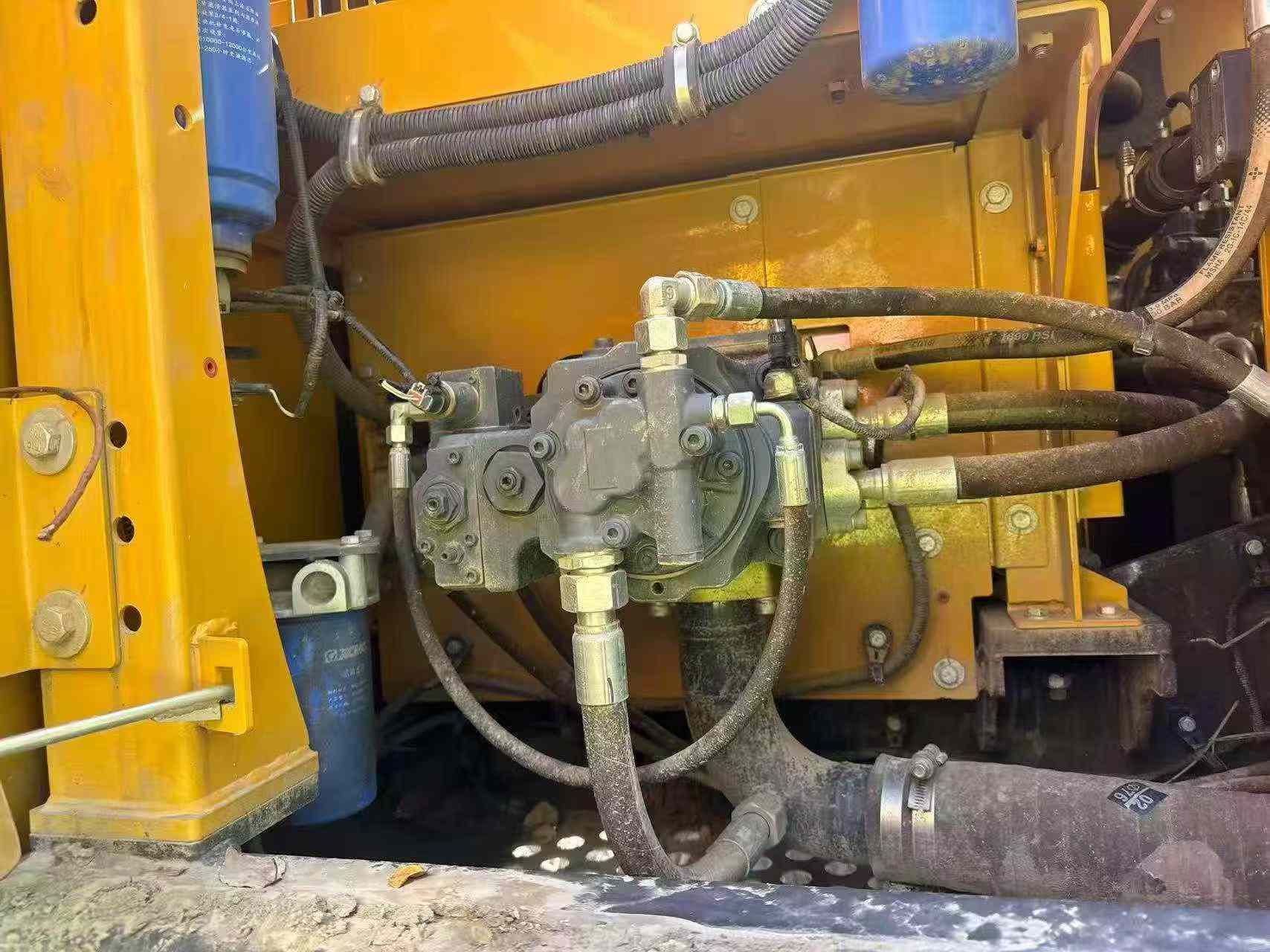

Buy XCMG XE135B Used Excavator / 6

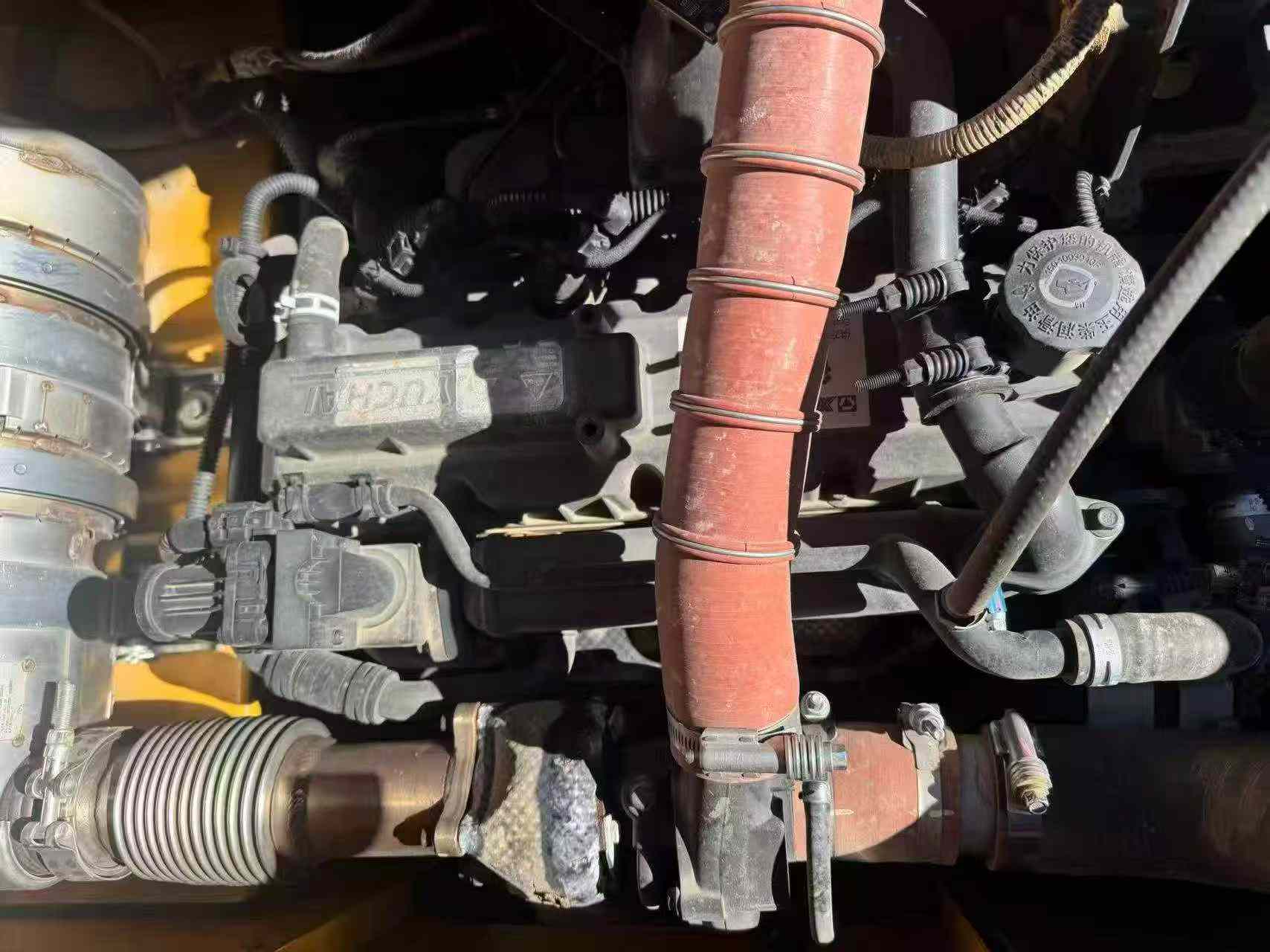

Buy XCMG XE135B Used Excavator / 7

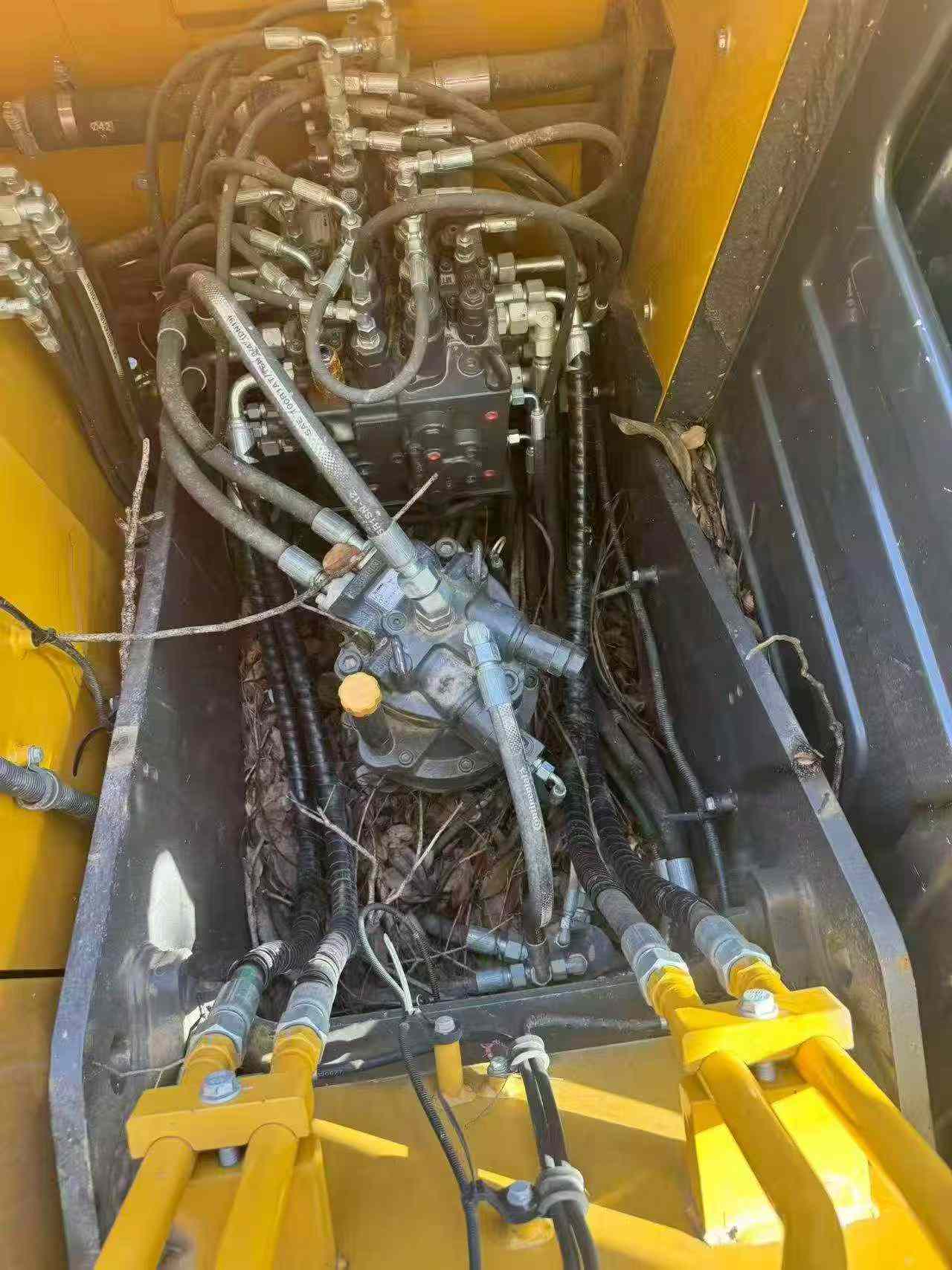

Buy XCMG XE135B Used Excavator / 8

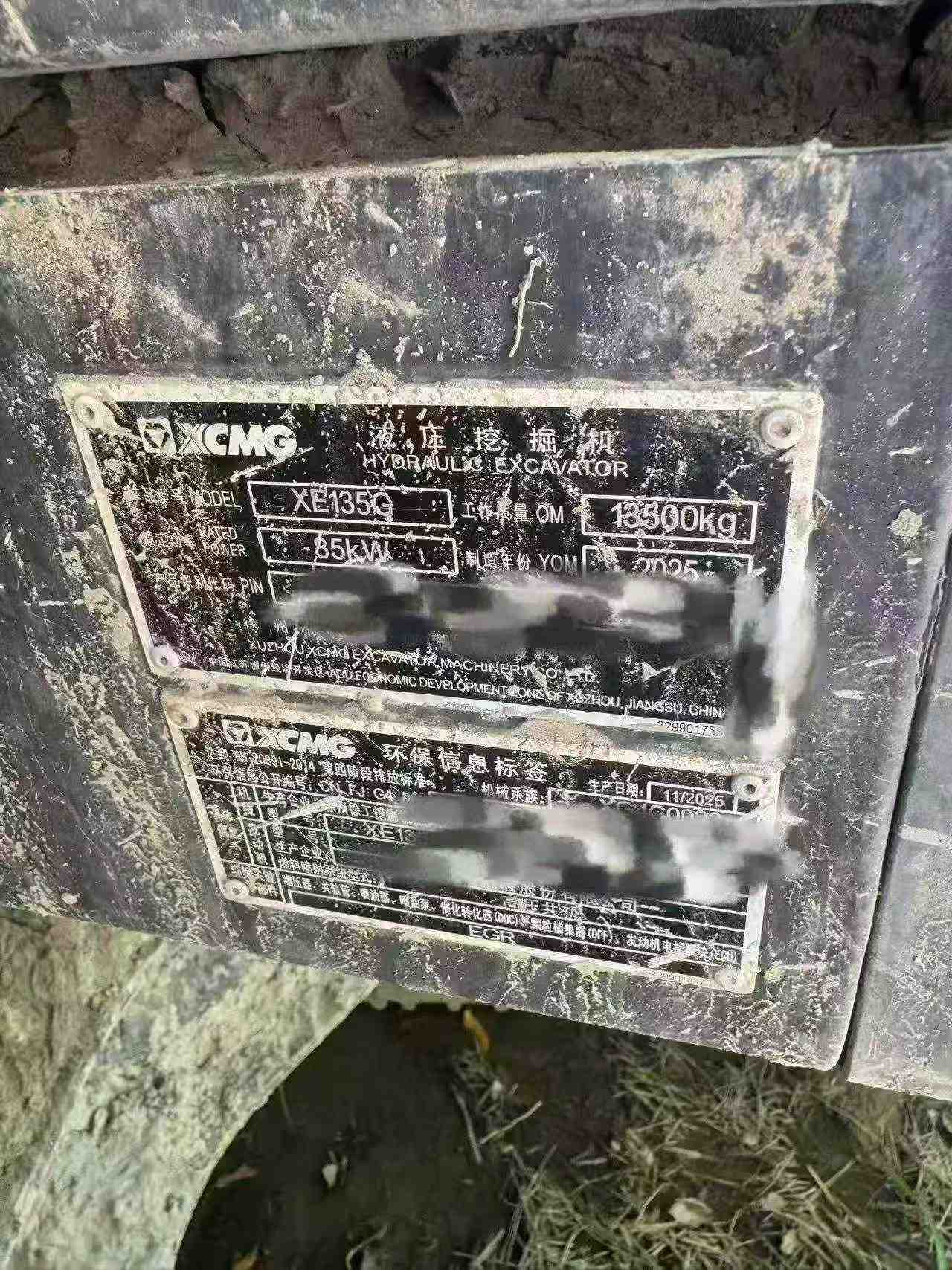

Buy XCMG XE135B Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2025 XCMG XE135B, a used excavator currently available in Zhejiang, China. With only 800 genuine operating hours, this machine has been meticulously maintained, ensuring it is in prime condition for your next project. The XE135B is known for its robust performance and durability, making it an excellent choice for various construction and excavation tasks. This unit is ready for immediate purchase at a competitive price of 219,000 RMB, offering you a cost-effective solution without compromising on quality or capability.

  • Year: 2025
  • Brand: XCMG
  • Model: XE135B
  • Operating Hours: 800
  • Location: Zhejiang, China
  • Price: 219,000 RMB
SpecificationsValue
No.1131504
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1131504

Brand Name:

XCMG

Model Number:

XE135B

Year:

2025

Location:

Zhejiang China

Pub Date
