Product Description
Discover the reliability and performance of the 2022 XCMG XE135D, now available for purchase from Guangdong, China. This robust excavator has accumulated 3,100 operational hours, demonstrating its durability and efficiency in various construction environments. Ideal for medium to large-scale projects, the XE135D is known for its powerful digging capabilities, fuel efficiency, and ease of maintenance. With a price point in the low hundred thousands, this machine offers an excellent value proposition for businesses looking to enhance their fleet with a high-quality, used excavator. Contact us today to learn more about how the XCMG XE135D can meet your project needs.
- Year: 2022
- Brand: XCMG
- Model: XE135D

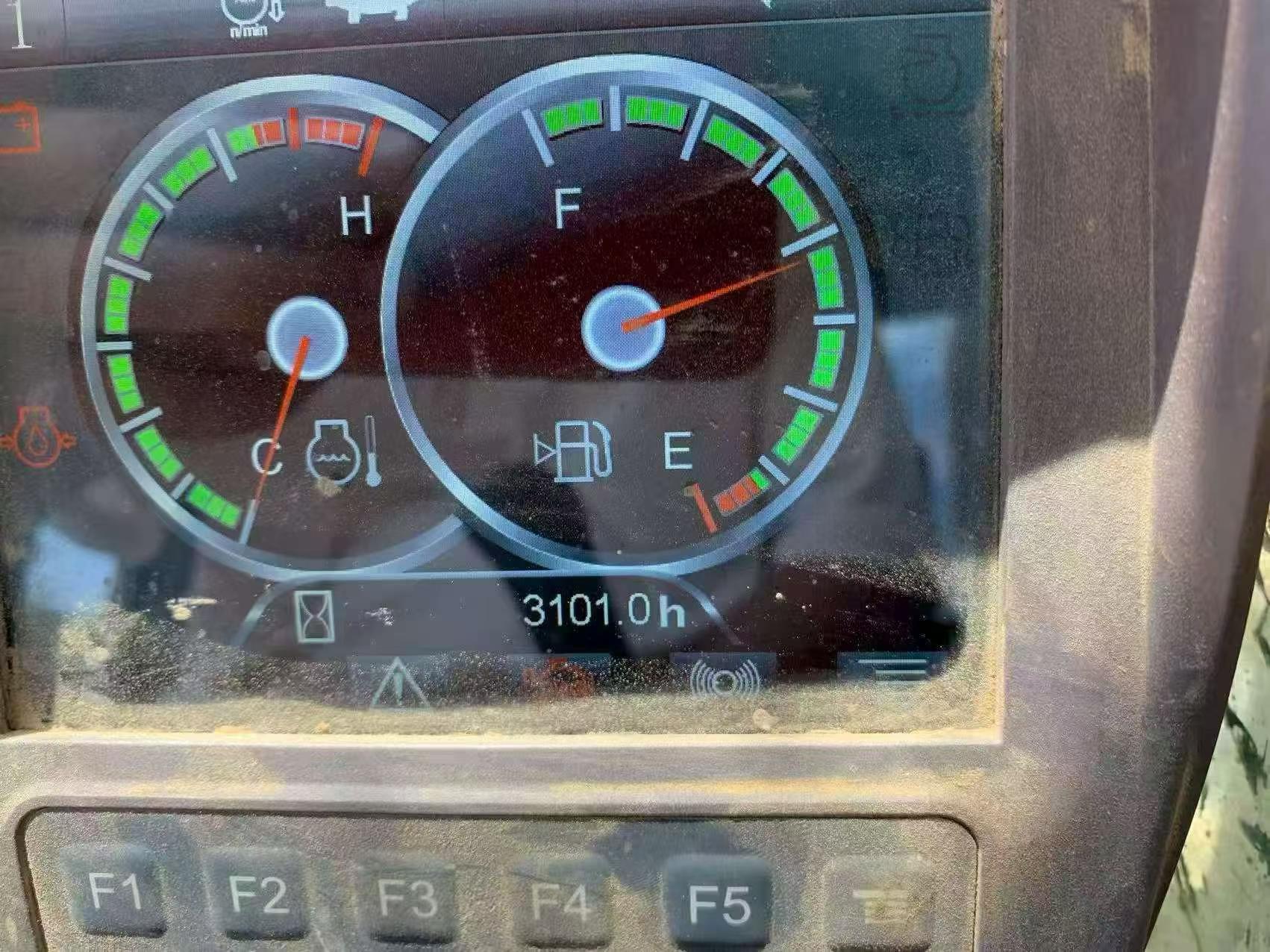

- Operational Hours: 3,100
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1115909 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
