Product Description

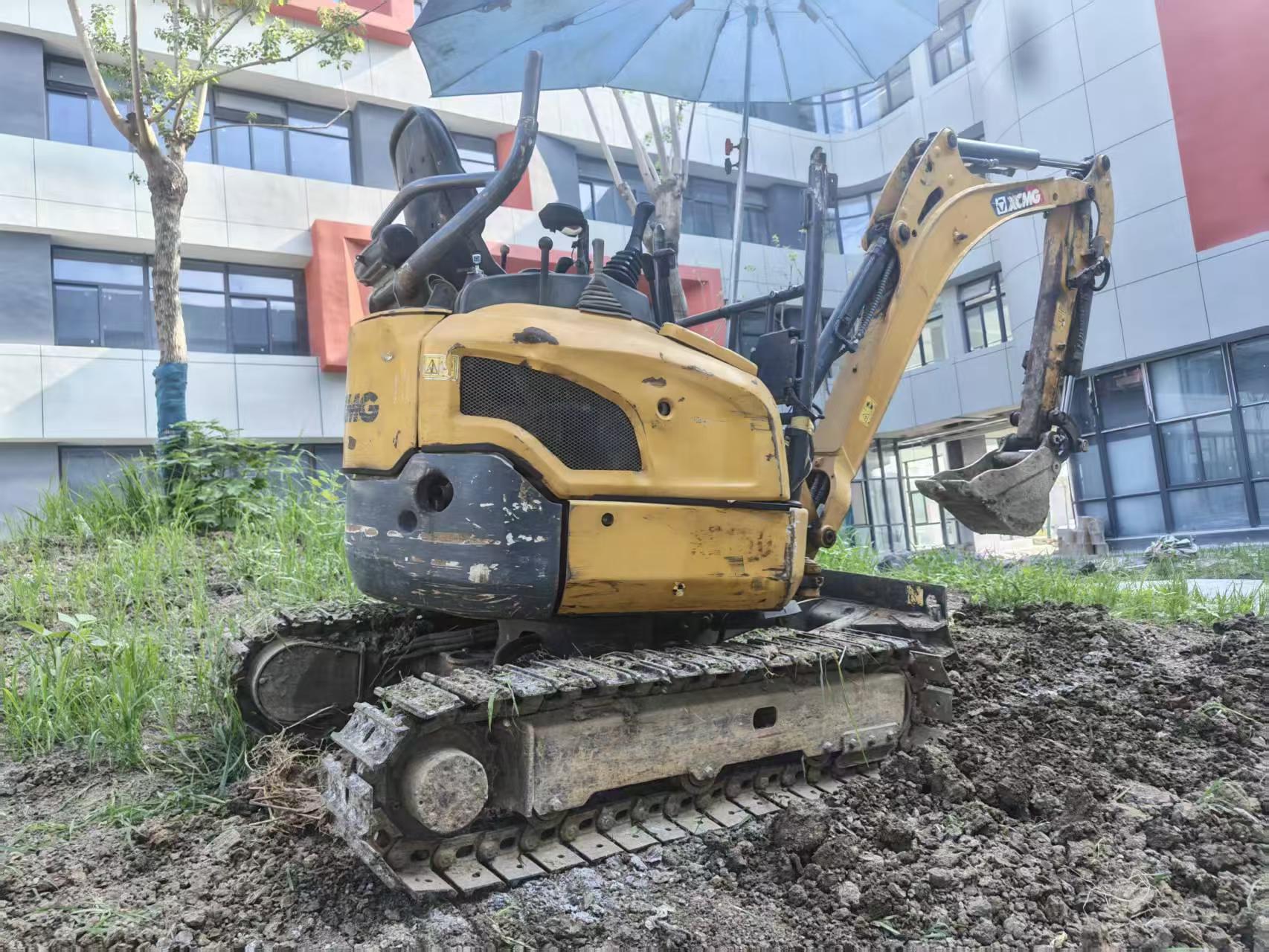

Discover the 2021 XCMG XE15, a robust and reliable choice for your construction needs. This compact excavator, available in Jiangsu, China, has been meticulously maintained with just over 30,000 operational hours, ensuring it remains in excellent condition. Ideal for a variety of applications, the XE15 is designed to deliver high performance and efficiency, making it a valuable addition to any fleet.
- Year: 2021
- Brand: XCMG
- Model: XE15
- Location: Jiangsu, China
- Operational Hours: Over 30,000
| Specifications | Value |
|---|---|
| No. | 1129516 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
