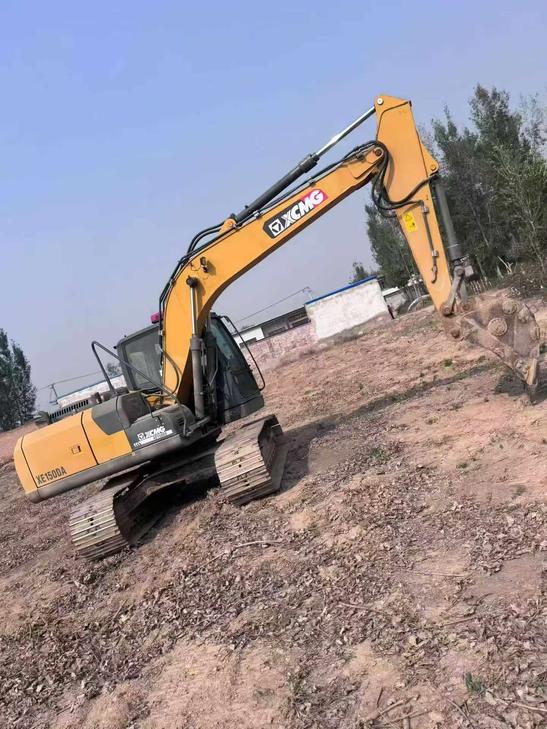

Buy XCMG XE150D Used Excavator / 1
Buy XCMG XE150D Used Excavator / 2
Buy XCMG XE150D Used Excavator / 3
Buy XCMG XE150D Used Excavator / 4
Buy XCMG XE150D Used Excavator / 5
Buy XCMG XE150D Used Excavator / 6
Buy XCMG XE150D Used Excavator / 7
Buy XCMG XE150D Used Excavator / 8
Buy XCMG XE150D Used Excavator / 9

Product Description

This 2020 XCMG XE150D excavator from Hebei, China delivers exceptional performance with premium Kawasaki hydraulic components. The machine demonstrates excellent operational condition with well-maintained major components and responsive, powerful hydraulic systems. Regular servicing has kept all critical systems in peak working order.

  • Year: 2020
  • Model: XCMG XE150D
  • Kawasaki hydraulic configuration
  • Major components in excellent condition
  • Consistent maintenance history
  • Smooth, coordinated hydraulic operation
  • Ready for immediate deployment
  • Located in Hebei, China

This excavator represents a cost-effective solution for contractors seeking reliable 15-ton class performance. All systems have been verified and are operating at optimal capacity. Competitively priced for the current market.

SpecificationsValue
No.1169522
Tonnage (tons)15
Working weight (kg)14600
Bucket capacity (m³)0.32-0.71
Boom length (mm)4600
Rod length (mm)2520
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSF3.8
Rated power (kw/rpm)93/2200
Cooling modewater-cooling
Maximum torque (N.m)500/1300
Number of cylinders (PCS)4
Displacement (L)3.8
Working formTurbocharged/air-to-air cooling
Ground specific pressure (Kpa)37
Rotation speed (rpm)11.7
Climbing ability (%)35
Bucket digging force (kN)106.9
Rod digging force (kN)73.4
Maximum tractive force (kN)134
Travel speed (km/h)5.3/3.2
Main overflow set pressure (Mpa)31.4/34.3
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)2 x 123.5
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)25
Main pump typeVariable piston pump ×2+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)260
Hydraulic Tank (L)105
Engine Oil changes (L)11
Total transport length (mm)7795
Total transport width (mm)2590
Total transport height (mm)2900
Counterweight ground clearance (mm)948
Minimum ground clearance (mm)477
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2325
Total track length (mm)3658
Track gauge (mm)1990
Track plate width (mm)600
Track ground length (mm)2910
Maximum digging radius (mm)8304
Maximum digging depth (mm)5535
Maximum excavation height (mm)8649
Maximum unloading height (mm)6185
Maximum vertical digging depth (mm)4697
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.1169522

Brand Name:

XCMG

Model Number:

XE150D

Year:

2020

Location:

Hebei China

Pub Date:
