Product Description

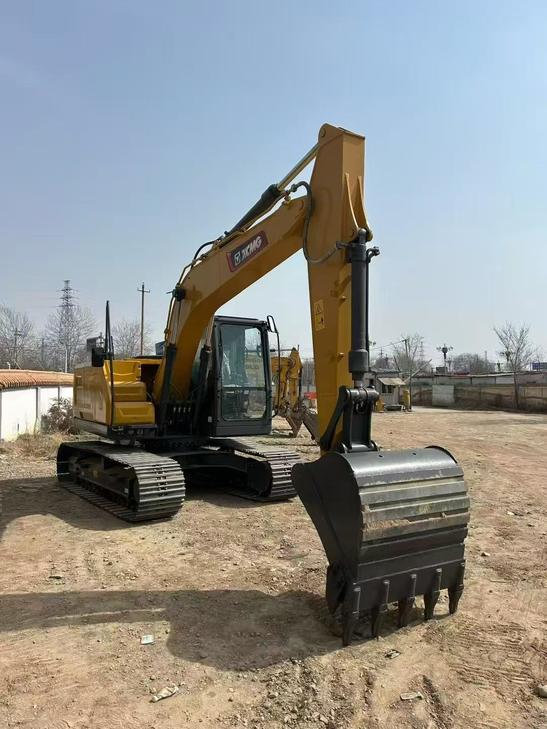

Engineered for precision and control, this 2016 XCMG XE155D delivers reliable performance in demanding excavation environments. Operating at 14,600 kg working weight with a QSF3.8 engine producing 93 kW at 2200 rpm, this 15-ton crawler excavator combines power with operational efficiency. The water-cooled, turbocharged engine generates 500 N.m of maximum torque, ensuring consistent hydraulic performance across extended work cycles.
Operator-focused design enhances productivity through superior machine handling. With a rotation speed of 11 rpm and 35% climbing ability, navigating challenging terrain becomes manageable. The cabin benefits from excellent sightlines across the 8,304 mm maximum digging radius, while 948 mm counterweight ground clearance and 477 mm minimum ground clearance provide stability on uneven surfaces. Bucket digging force reaches 106.9 kN, backed by 73.4 kN rod digging force for effective material penetration.
- Bucket capacity: 0.61 m³ standard configuration
- Maximum digging depth: 5,535 mm
- Fuel capacity: 260 L for extended operation
- Transport dimensions: 7,795 × 2,590 × 2,900 mm
- Currently located in Gansu, China
| Specifications | Value |
|---|---|
| No. | 1022403 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
