Product Description

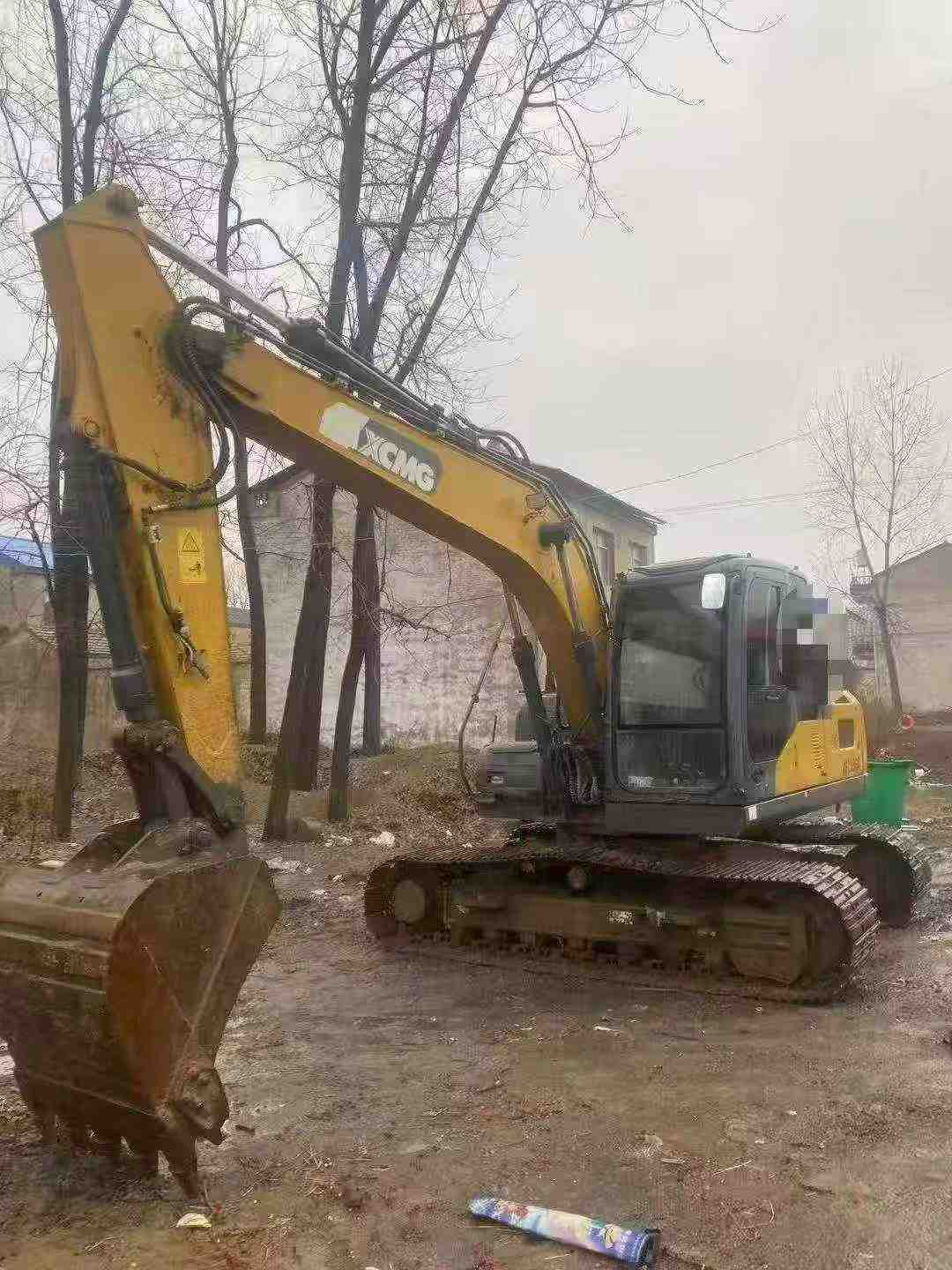

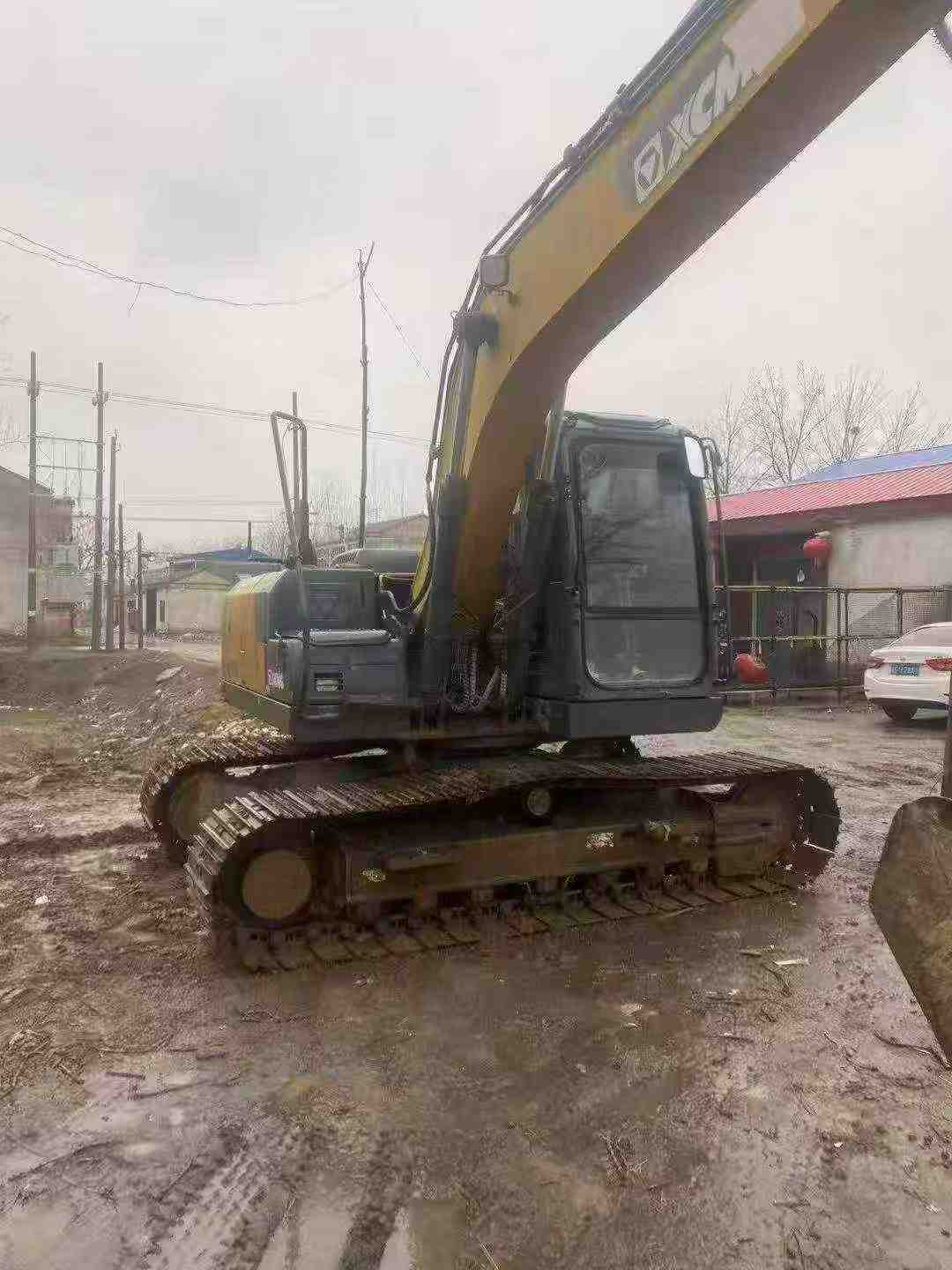

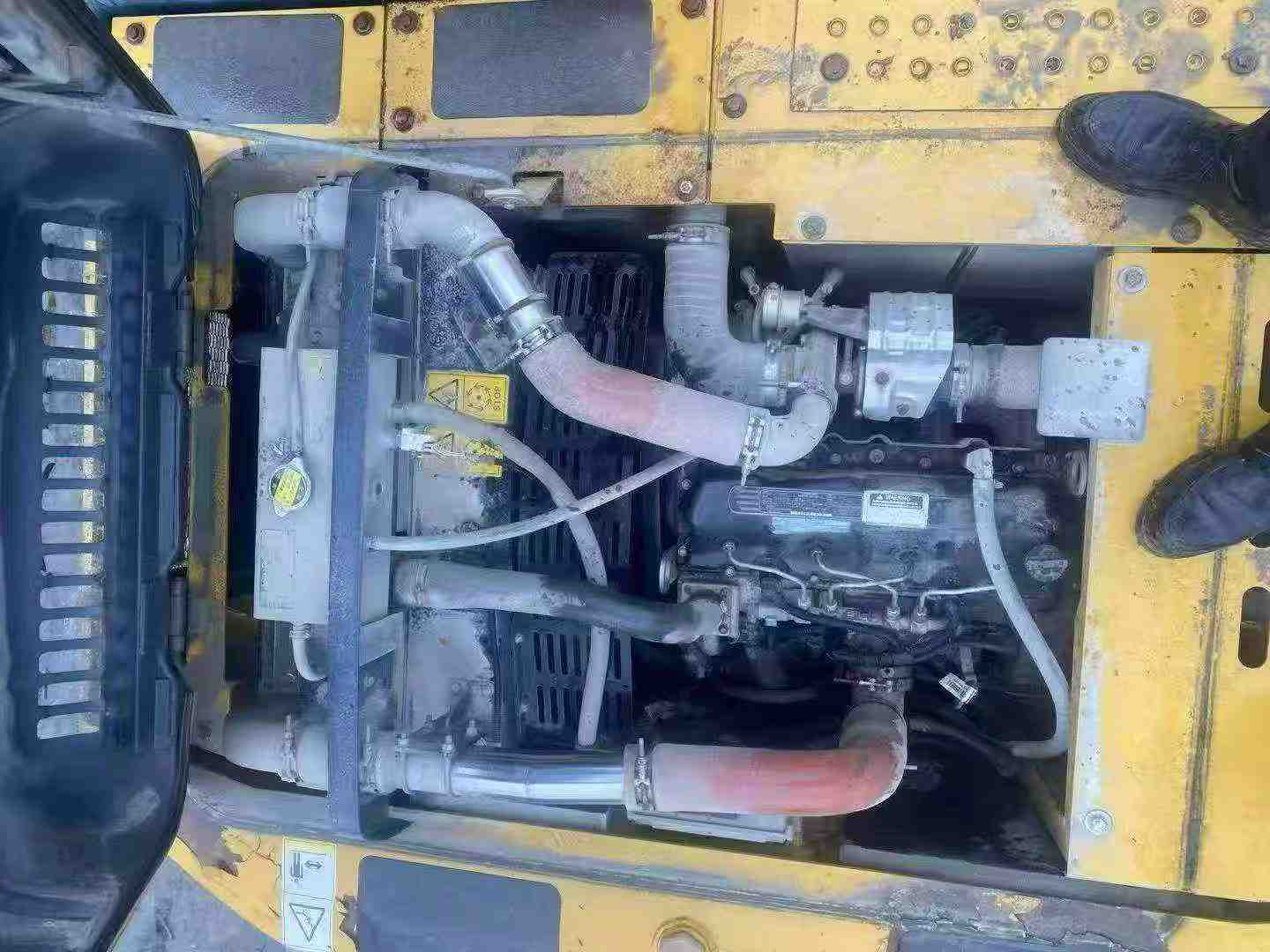

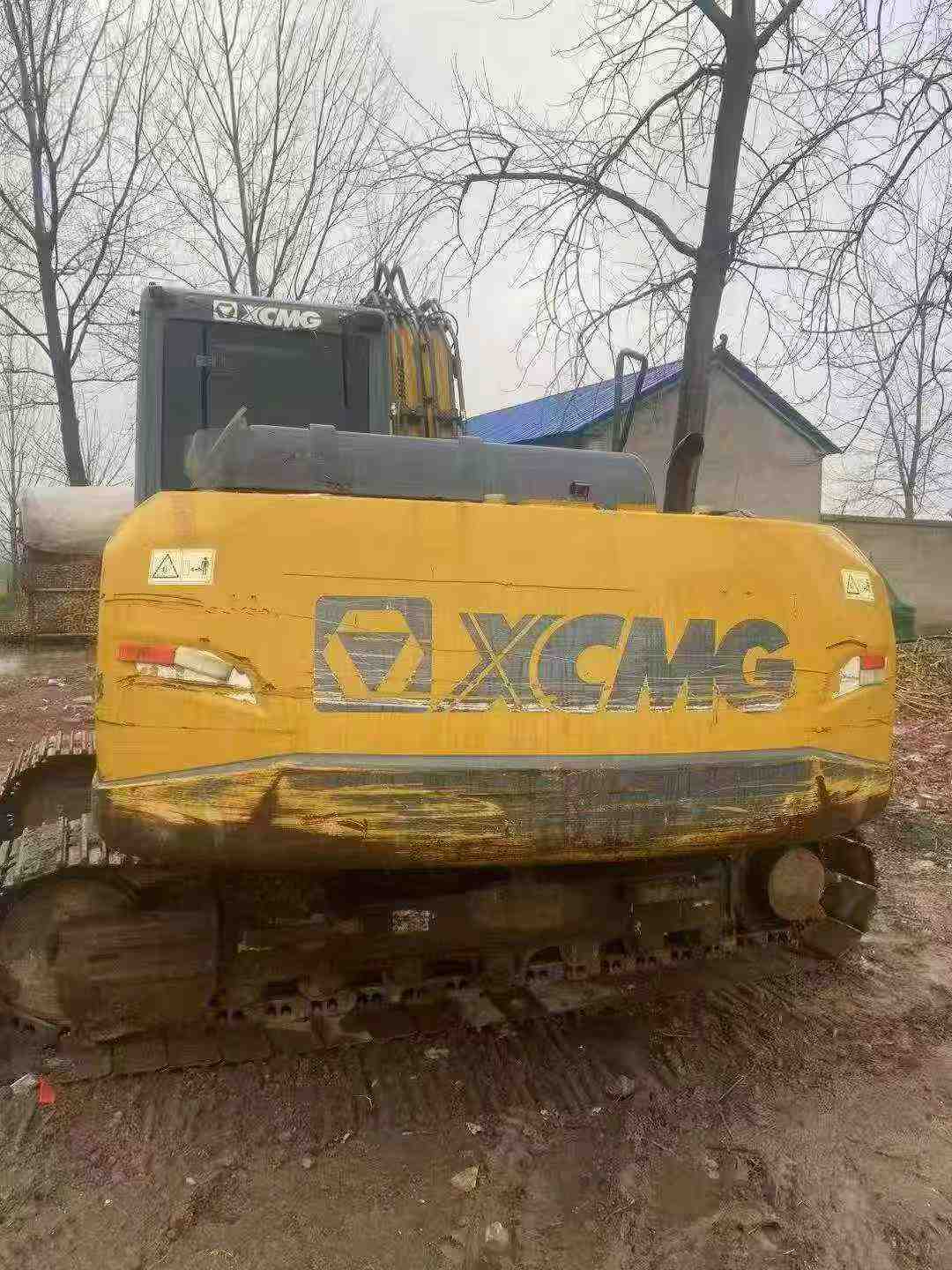

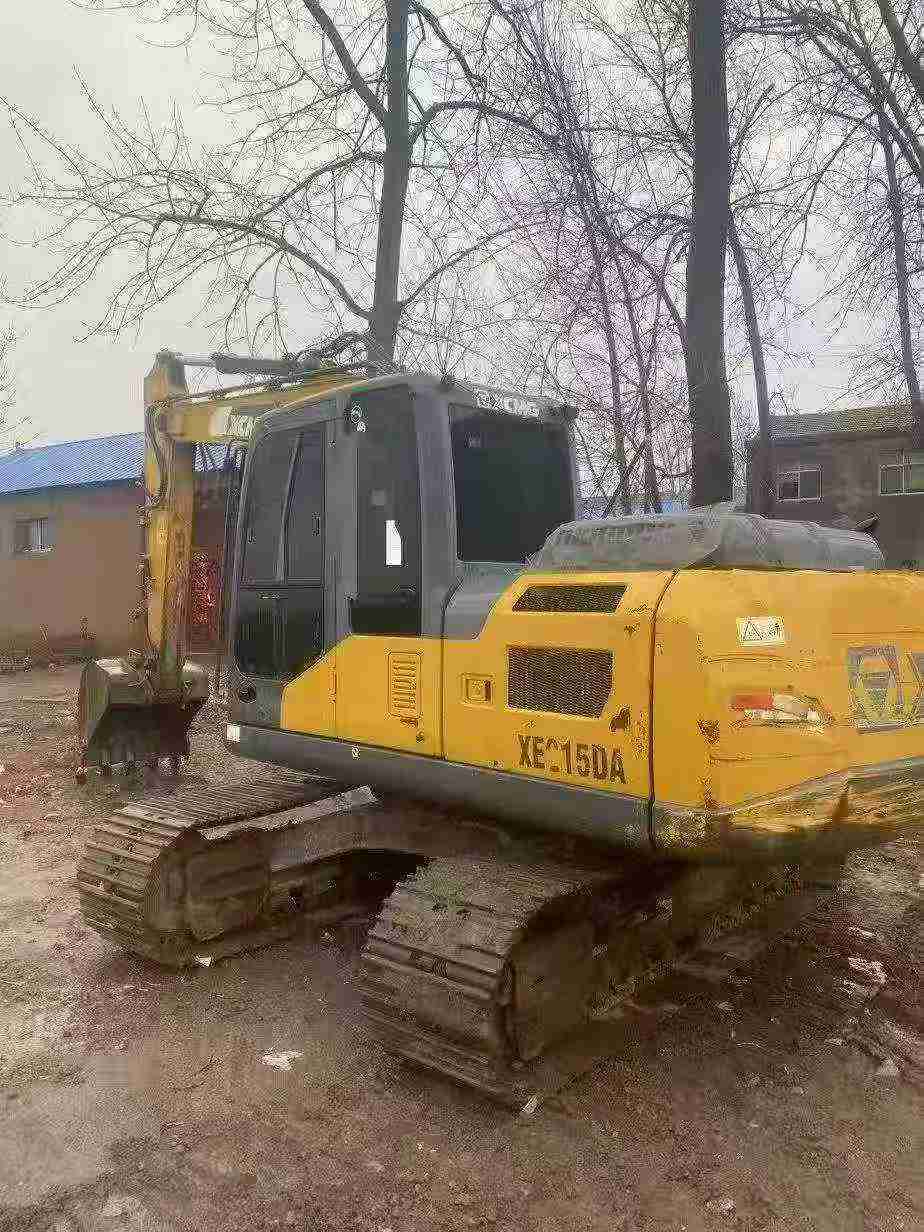

Built for the long haul, this 2020 XCMG XE155D excavator delivers proven performance across demanding jobsites. With 14,600 kg working weight and a robust QSF3.8 engine producing 93 kW at 2,200 rpm, this 15-ton workhorse handles heavy-duty excavation with consistent reliability. Four years of operation demonstrate its durability—engineered to withstand rigorous conditions while maintaining peak efficiency.

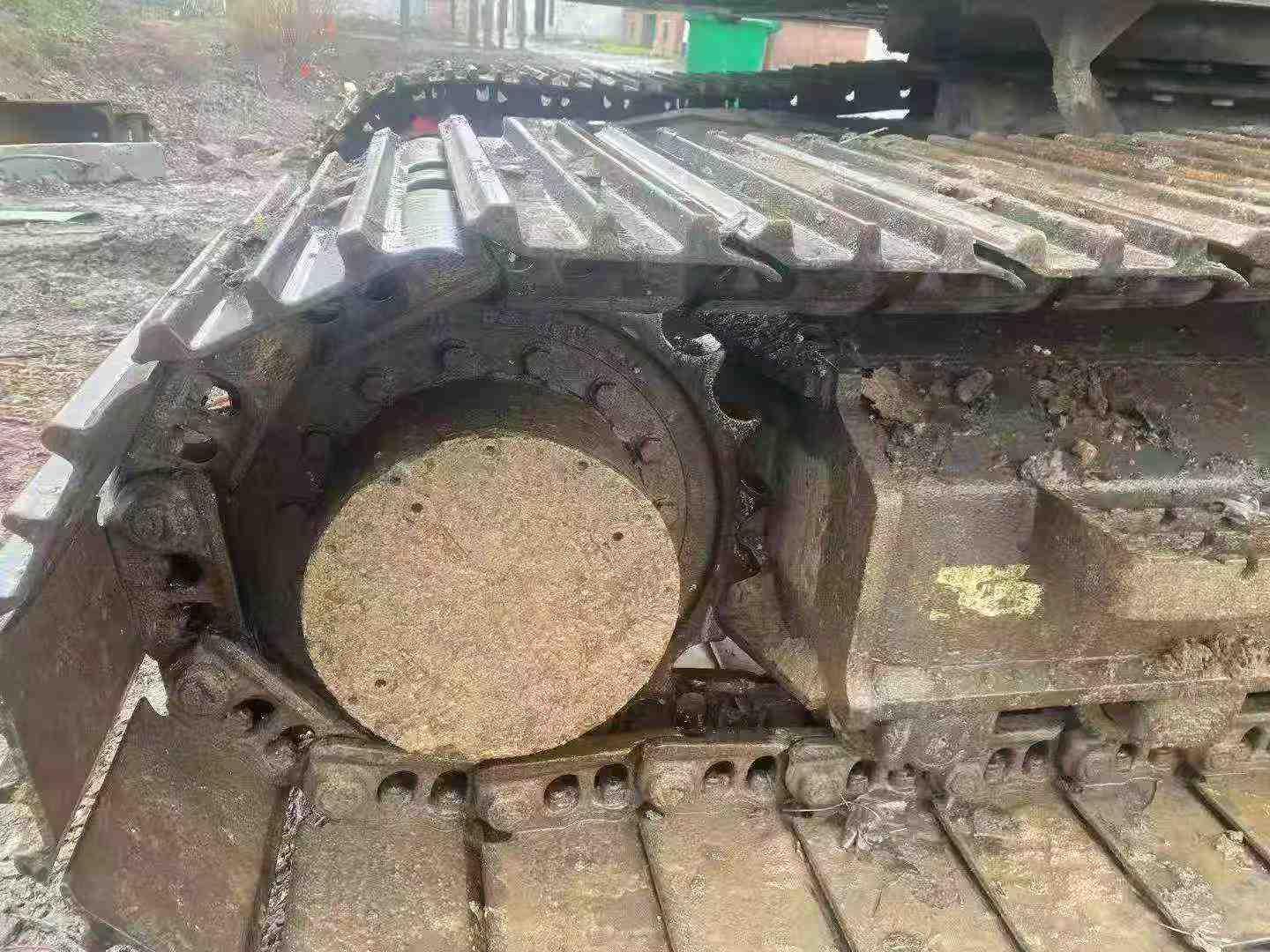

Equipped with a 4,600 mm boom and 2,520 mm arm, this machine achieves an impressive 8,304 mm maximum digging radius and 5,535 mm digging depth. The turbocharged, water-cooled engine delivers 500 N·m maximum torque, while the hydraulic system generates 106.9 kN bucket digging force. Standard 600 mm tracks provide 37 kPa ground pressure for stable operation on varied terrain.
- Proven 2020 model with documented field performance
- 0.61 m³ bucket capacity for productive cycle times
- 260 L fuel tank supports extended work shifts
- 35% climbing ability tackles challenging grades
- Currently located in Shaoxing, Zhejiang, China
Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 1021121 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
