Product Description

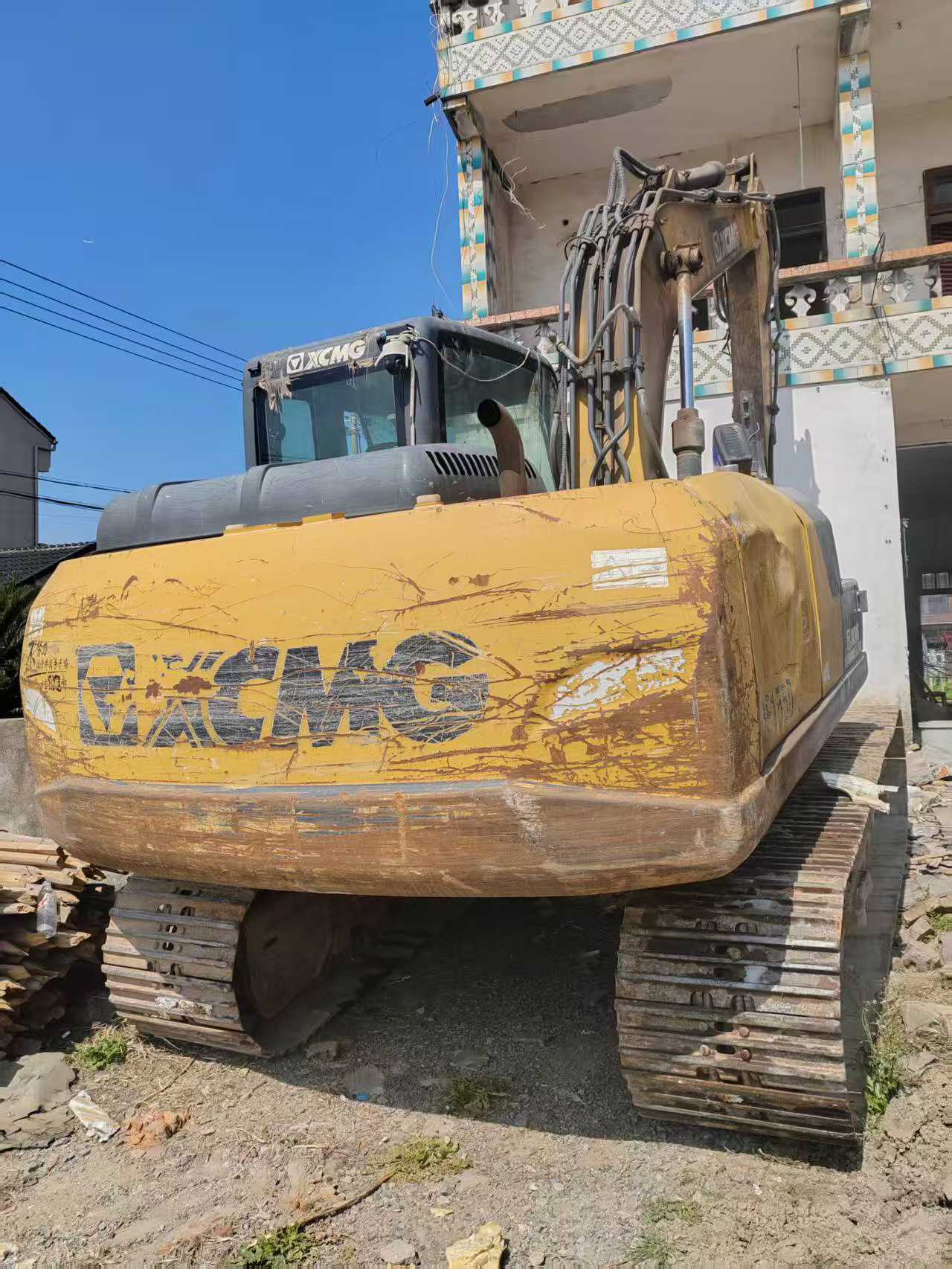

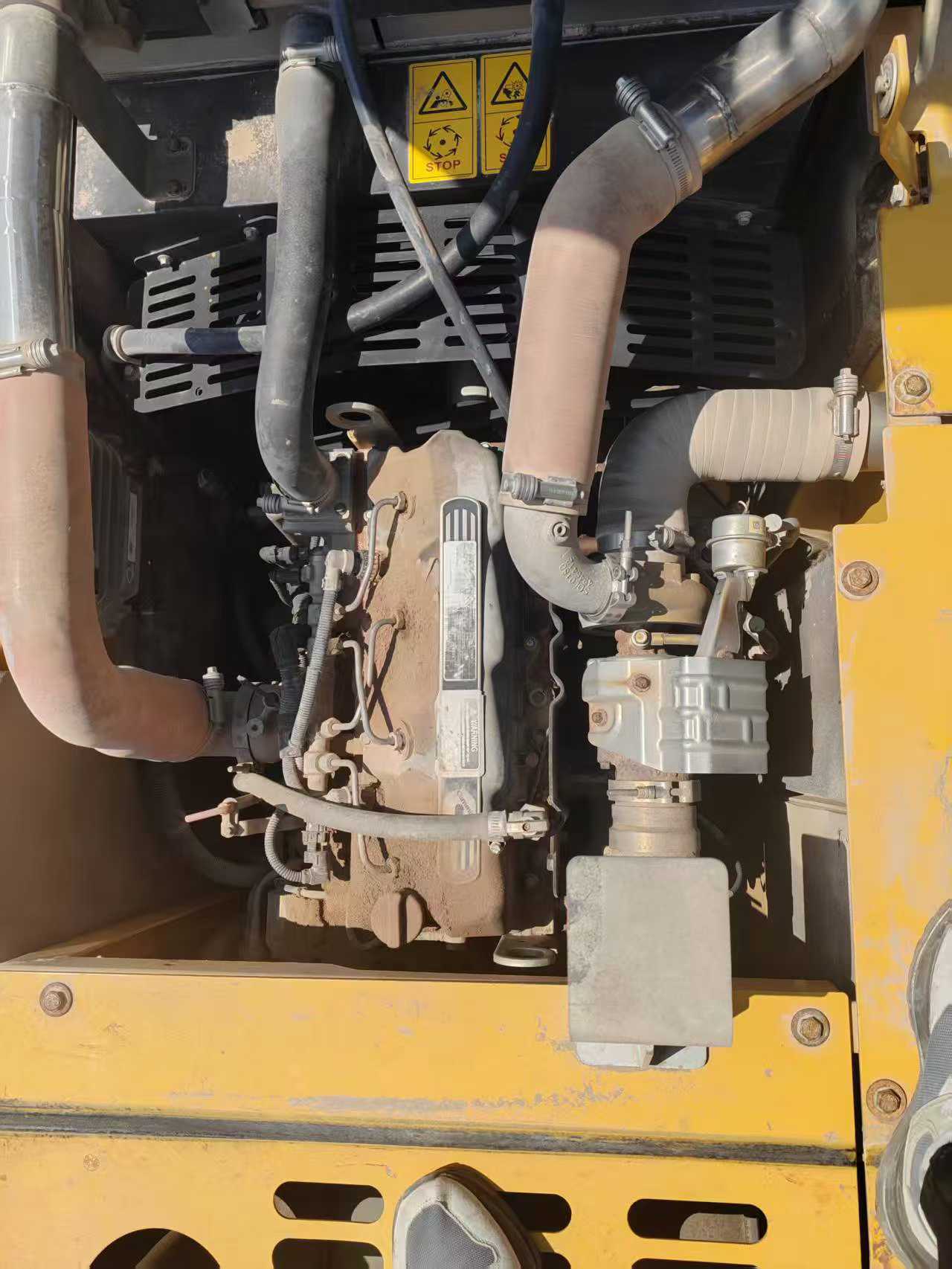

Acquire proven excavation power without the premium price tag. This 2020 XCMG XE155D delivers 15-ton class performance with a 93kW QSF3.8 turbocharged engine, offering 106.9kN bucket digging force and an impressive 8304mm maximum reach. Currently located in Zhejiang Lishui, this machine combines robust Chinese engineering with modern efficiency—featuring electronic fuel injection, water-cooling, and a 0.61m³ standard bucket capacity suited for diverse earthmoving applications.
- Operating Weight: 14,600kg with 134kN maximum tractive force
- Dig Depth: 5535mm maximum; 8649mm maximum excavation height
- Engine Performance: 500N·m torque at 1300rpm, 260L fuel capacity for extended shifts
- Mobility: 35% climbing ability, 5.2km/h travel speed, compact 2590mm transport width
- Smart Investment: 2020 model year means minimal depreciation versus new, with years of productive service remaining
Backed by XCMG's reputation for durability, this XE155D represents exceptional value for contractors seeking reliable mid-size excavation capability. Verified specifications, transparent pricing, immediate availab
| Specifications | Value |
|---|---|
| No. | 1030383 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 (0.61) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
