Product Description

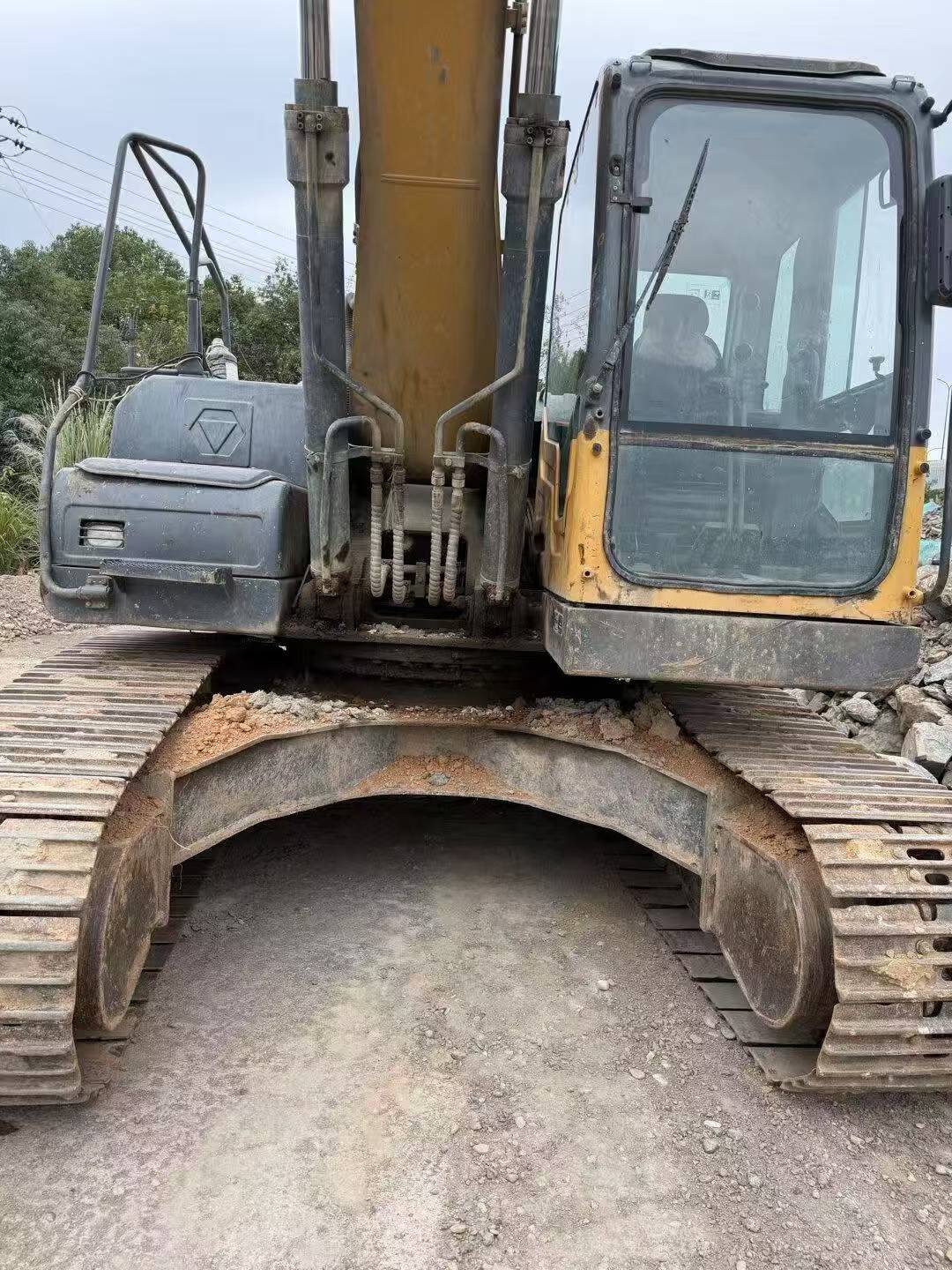

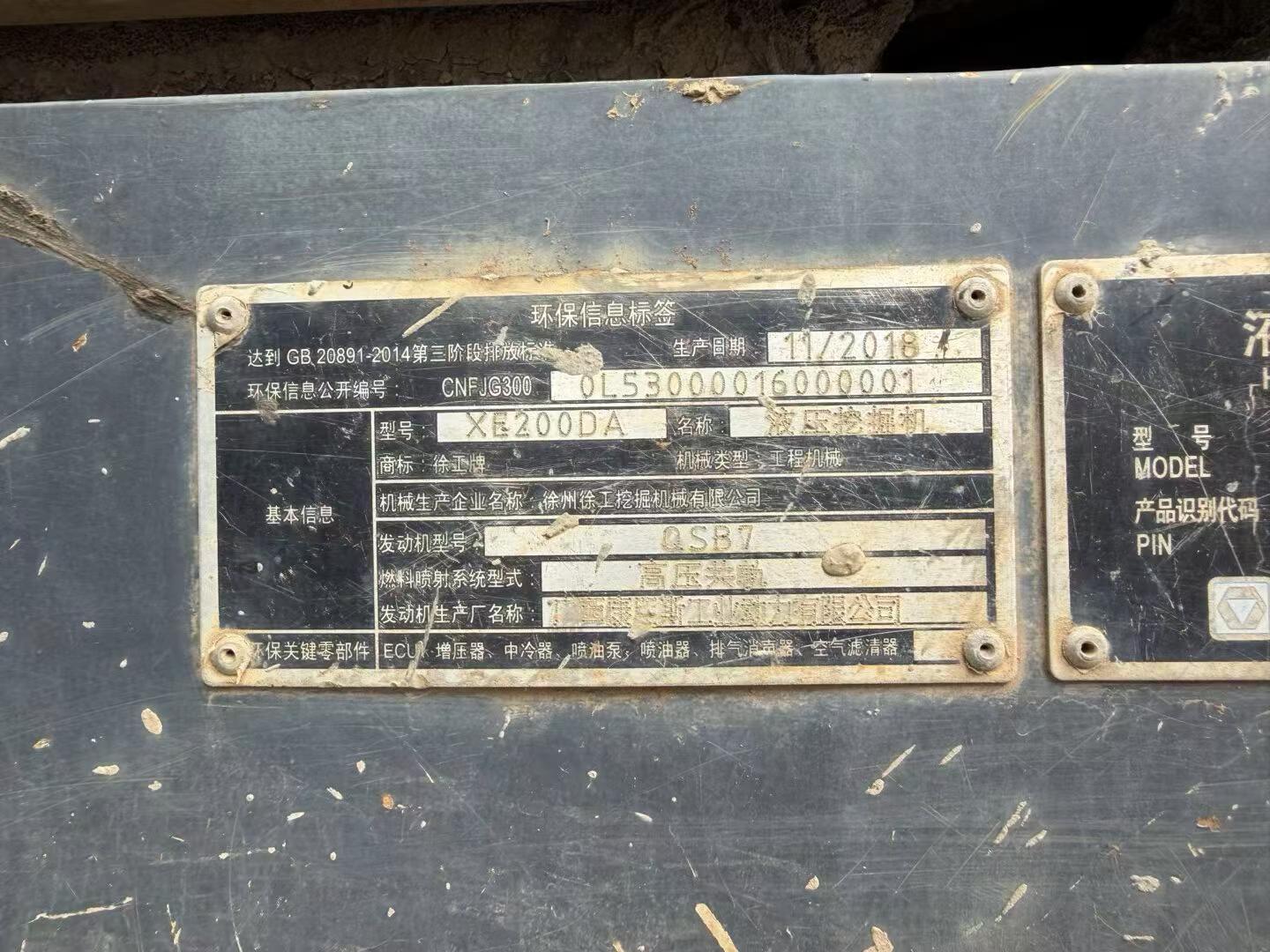

This 2018 XCMG XE200DA hydraulic excavator offers reliable performance for earthmoving and construction applications. Manufactured in November 2018, this 20-ton class machine features XCMG's proven DA series design, known for durability in demanding work environments. The excavator is currently located in Zhejiang Province, China, and is available at a competitive price point.
- Operating weight: Approximately 20 tonnes
- Bucket capacity: Standard configuration for general excavation

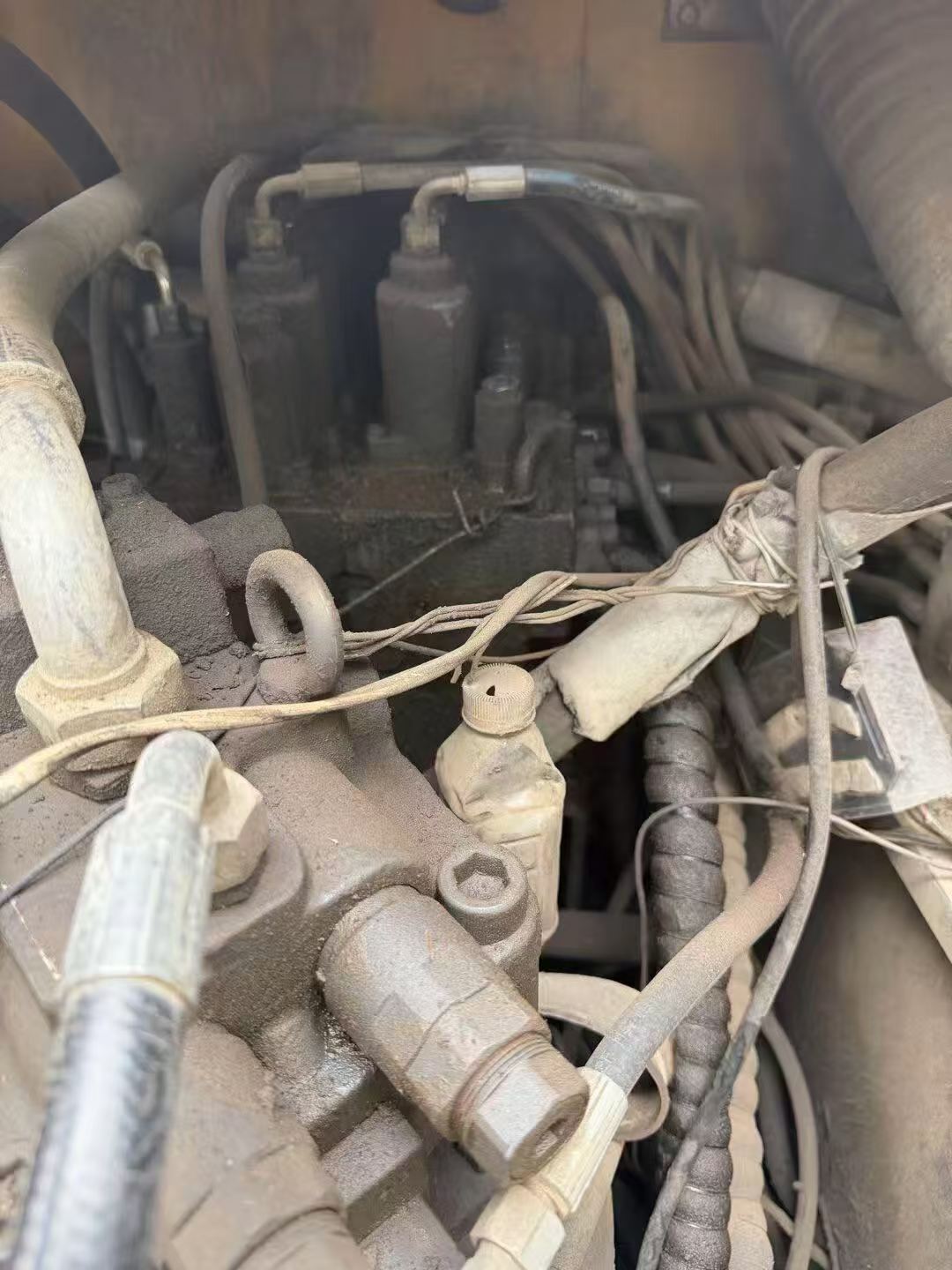

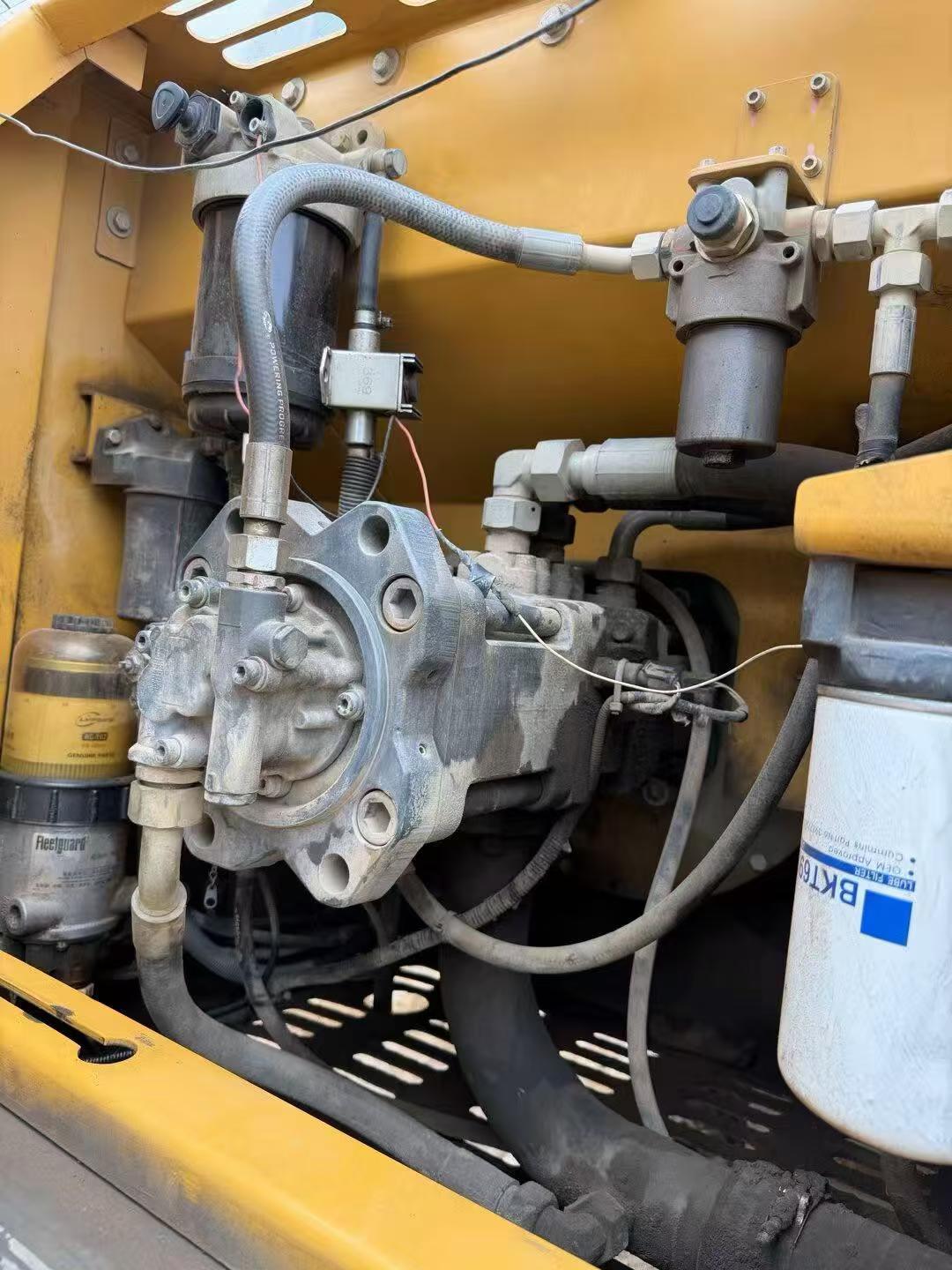

- Hydraulic system: XCMG proprietary technology

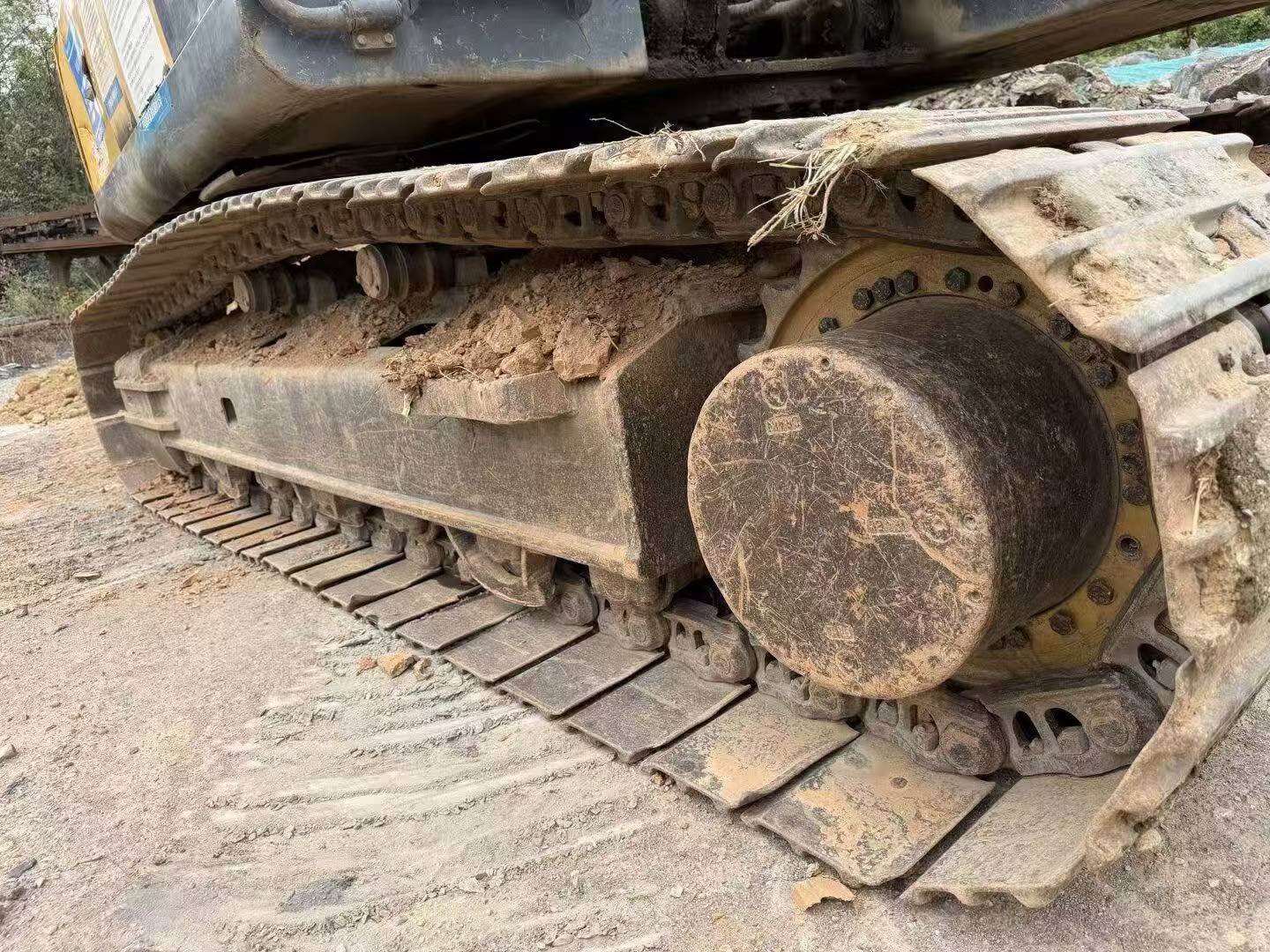

- Undercarriage: Standard track assembly

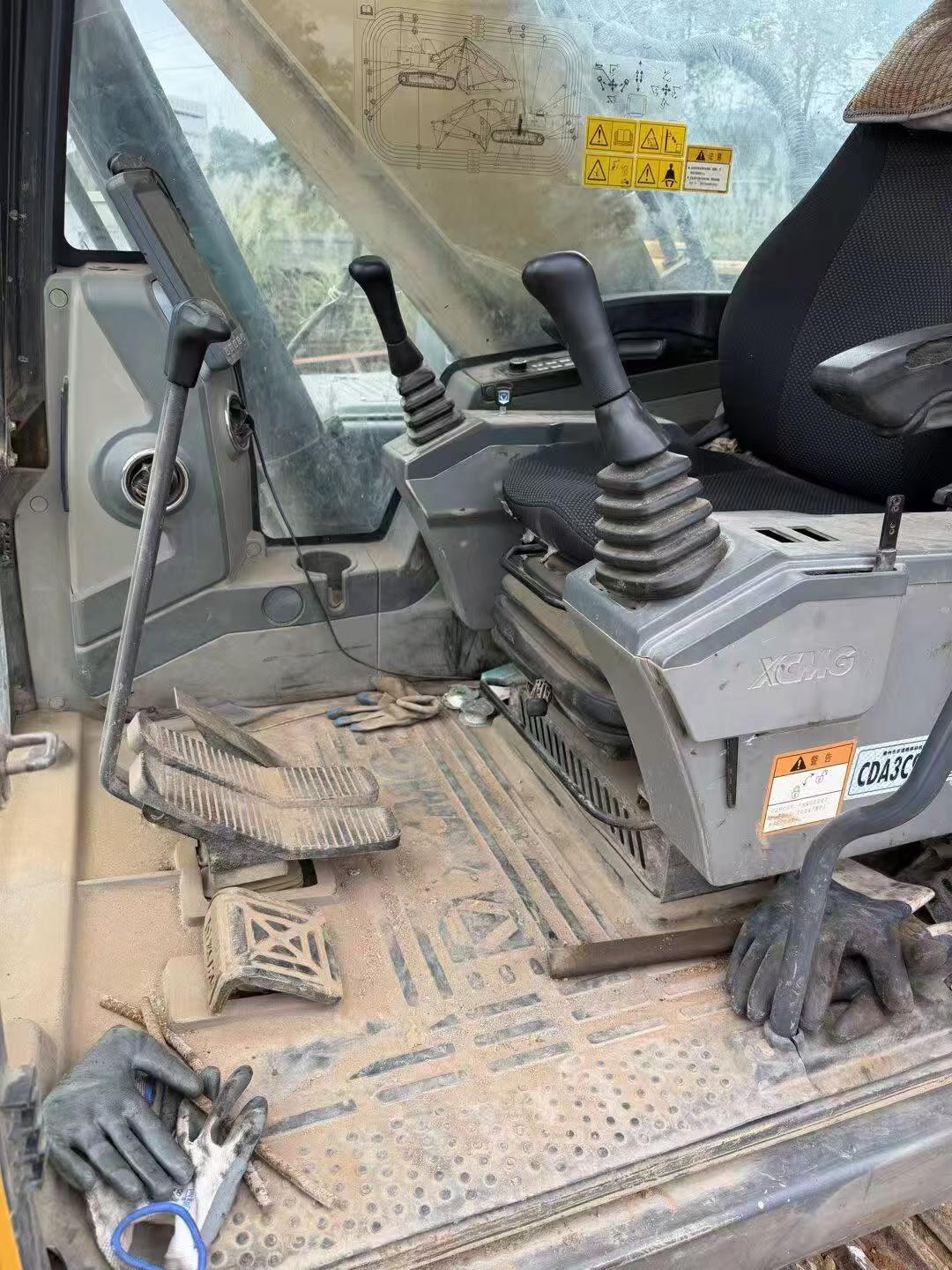

- Cab: Operator station with climate control
- Engine: Diesel power plant meeting emission standards
This used excavator represents an economical option for contractors seeking dependable equipment with moderate operating hours. The XE200DA is suitable for site preparation, trenching, loading, and general excavation tasks. Inspection available upon request.
| Specifications | Value |
|---|---|
| No. | 1169753 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

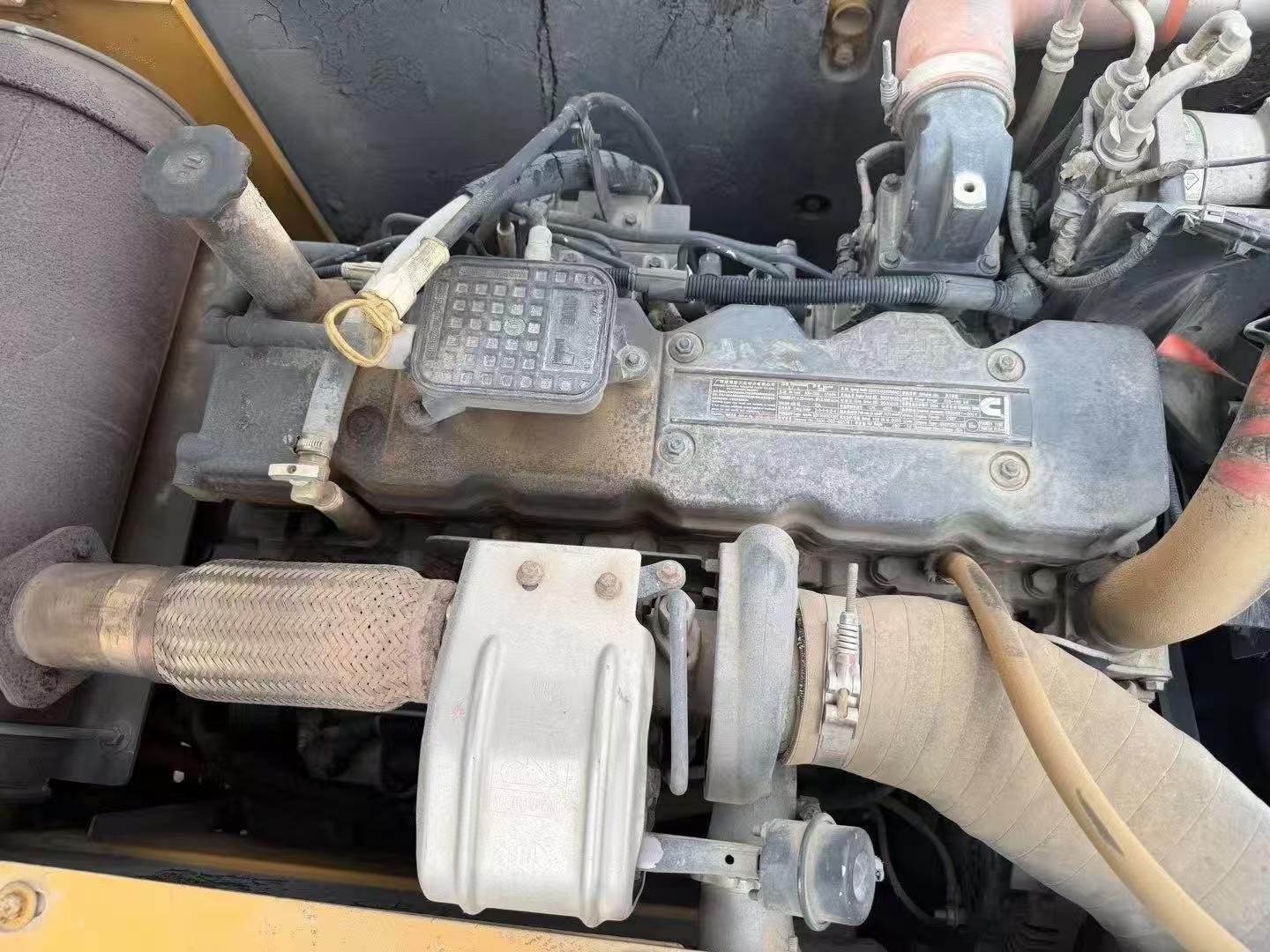

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
