Product Description

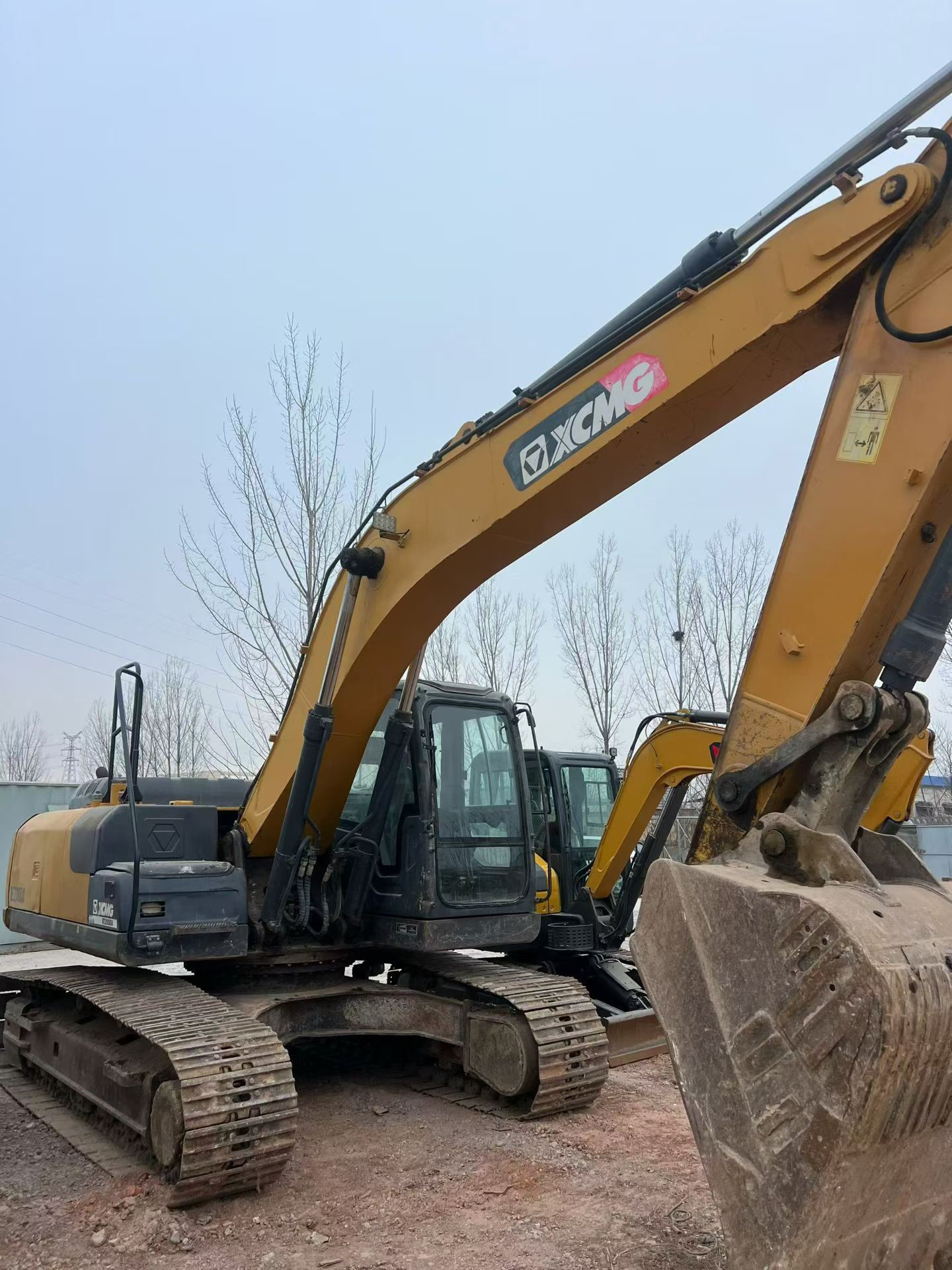

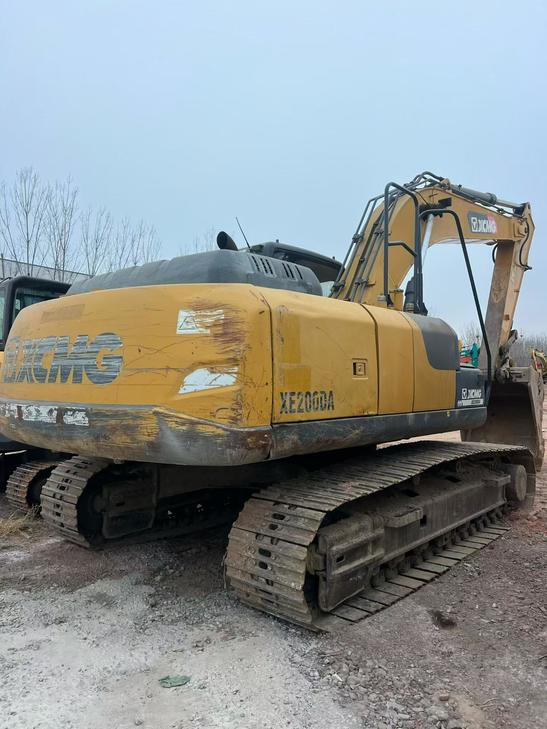

Built to endure the toughest jobsites, this 2019 XCMG XE200DA excavator demonstrates exceptional reliability with proven performance across demanding applications. Operating at 20 tons with a robust 21,200 kg working weight, this machine delivers consistent productivity backed by XCMG's reputation for durability. Power comes from a dependable QSB7 engine generating 135 kW at 2050 rpm, coupled with an impressive maximum torque of 740 N·m—engineered for long-term operational excellence.
- Proven Digging Power: 149 kN bucket force and 121 kN rod force tackle heavy excavation with confidence
- Versatile Reach: 9,790 mm maximum digging radius and 6,460 mm depth for extensive work envelope
- Efficient Performance: 0.93 m³ bucket capacity optimizes cycle times on high-volume projects
- Stable Operation: 35% climbing ability and 46.9 kPa ground pressure ensure reliable performance on varied terrain
- Extended Uptime: 400 L fuel tank and 220 L hydraulic tank minimize downtime between refills
Currently located in Shandong Linyi, this workhorse represents a smart investment for contractors seekin
| Specifications | Value |
|---|---|
| No. | 1030075 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

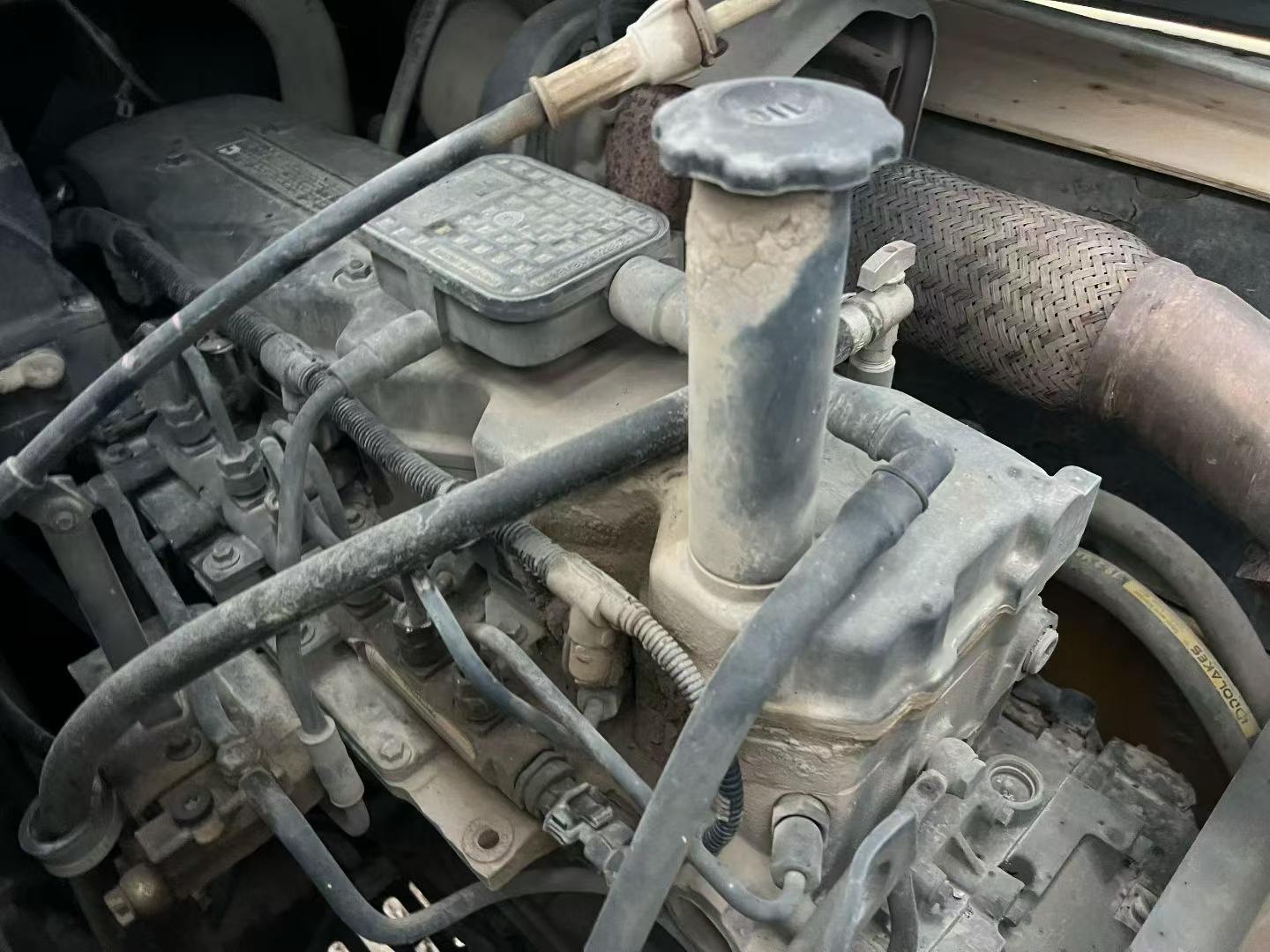

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
