Product Description

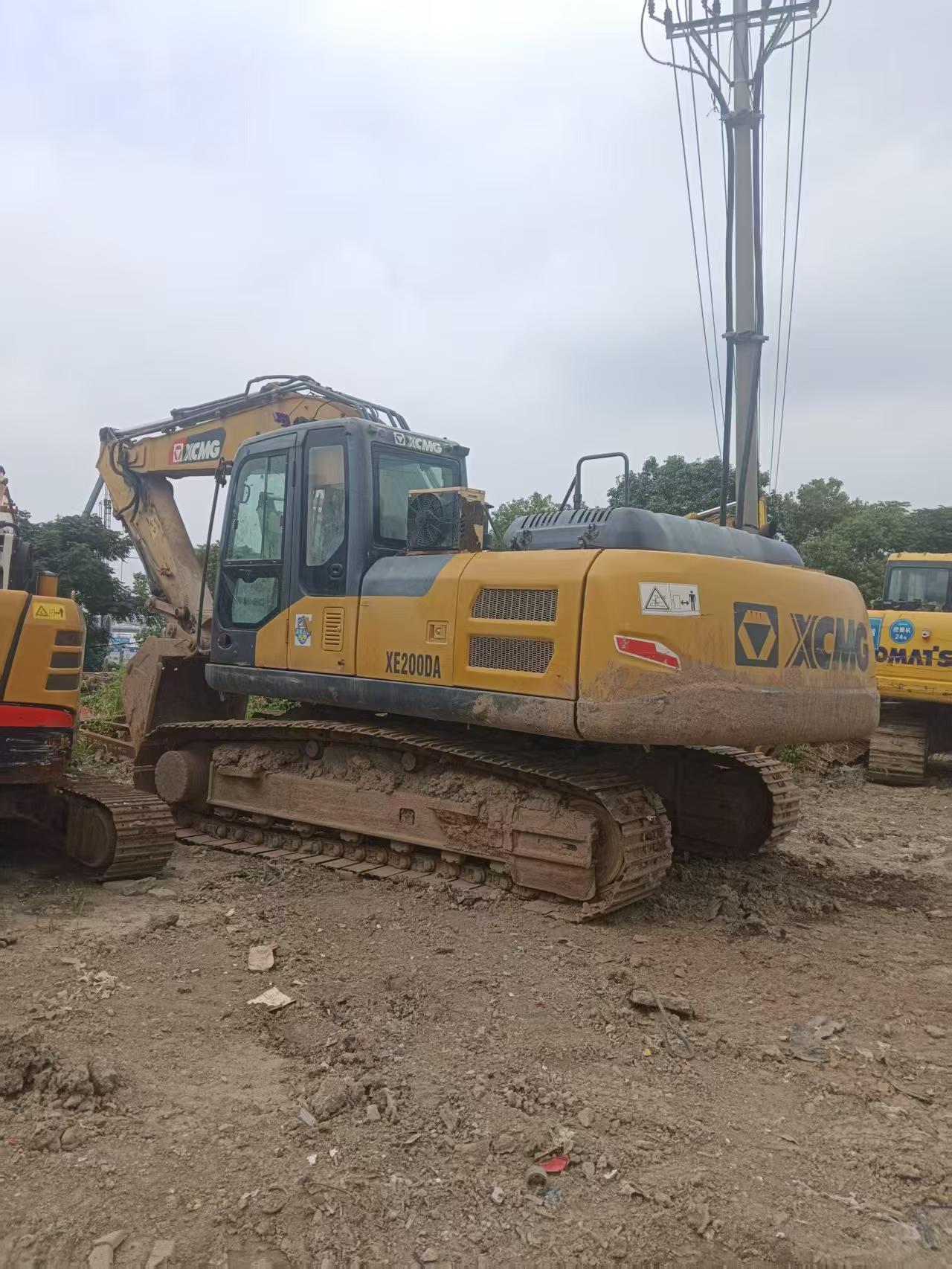

Available now from Zhejiang, China: a 2019 XCMG XE200DA crawler excavator, a 20-ton class machine from XCMG's XE series. Photographs and video of the unit are available on request for remote inspection.
Sourced from the domestic Chinese market, this XE200DA is offered as a working machine for buyers who need dependable output without the cost of new equipment. It is a mainstream model with strong parts availability and a broad service network across Asia, Africa and the Middle East.
- Year: 2019
- Brand: XCMG
- Model: XE200DA
- Class: 20-ton crawler excavator
- Location: Zhejiang, China
- Media: photos and video supplied
Typical applications include earthworks, trenching, foundation work and general civil construction. Condition details, working hours and undercarriage assessment are confirmed against the supplied media before quotation. Inspection in Zhejiang is welcome, and export documentation and loading can be arranged for overseas buyers.
| Specifications | Value |
|---|---|
| No. | 1157000 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
