Product Description

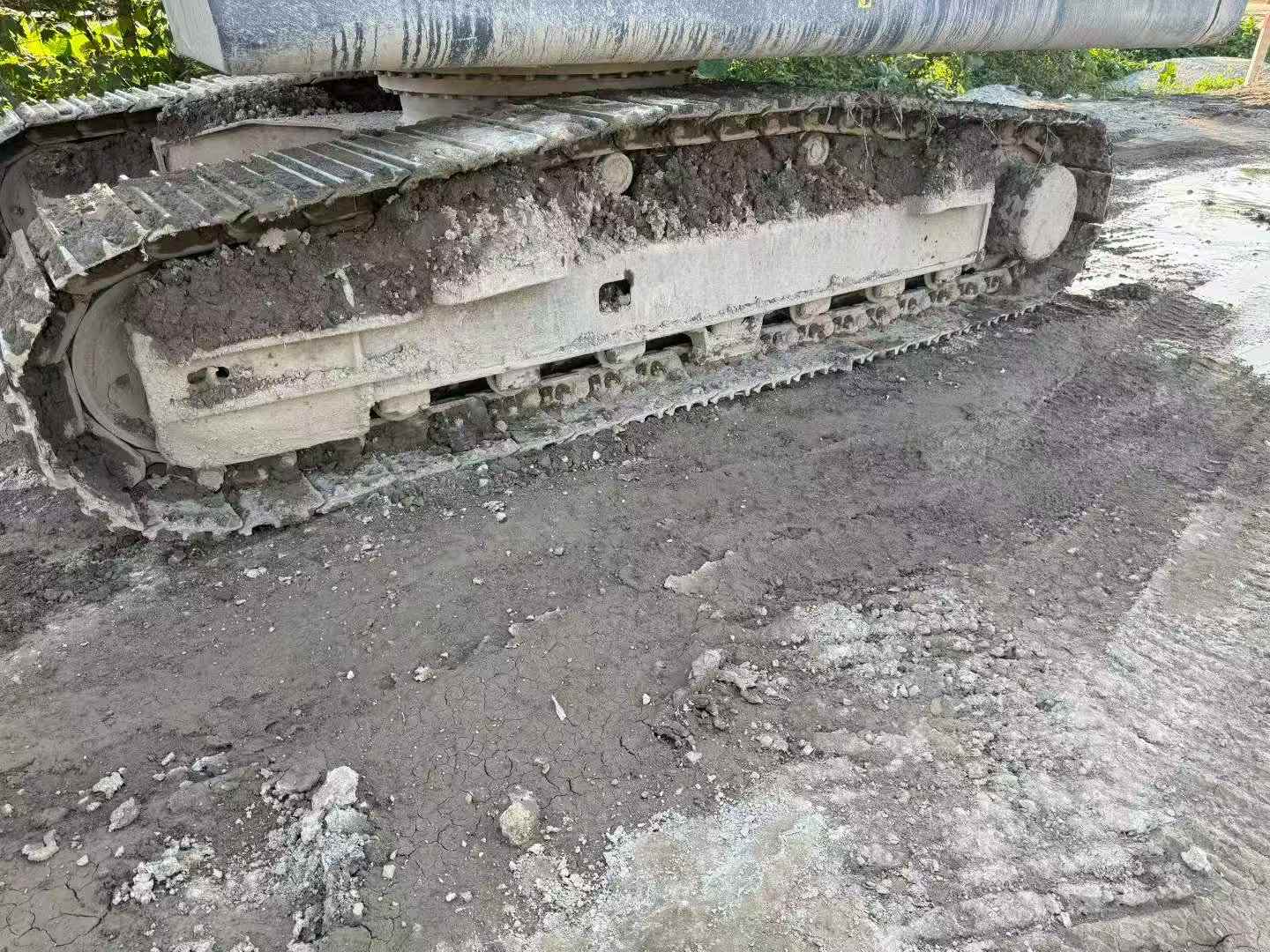

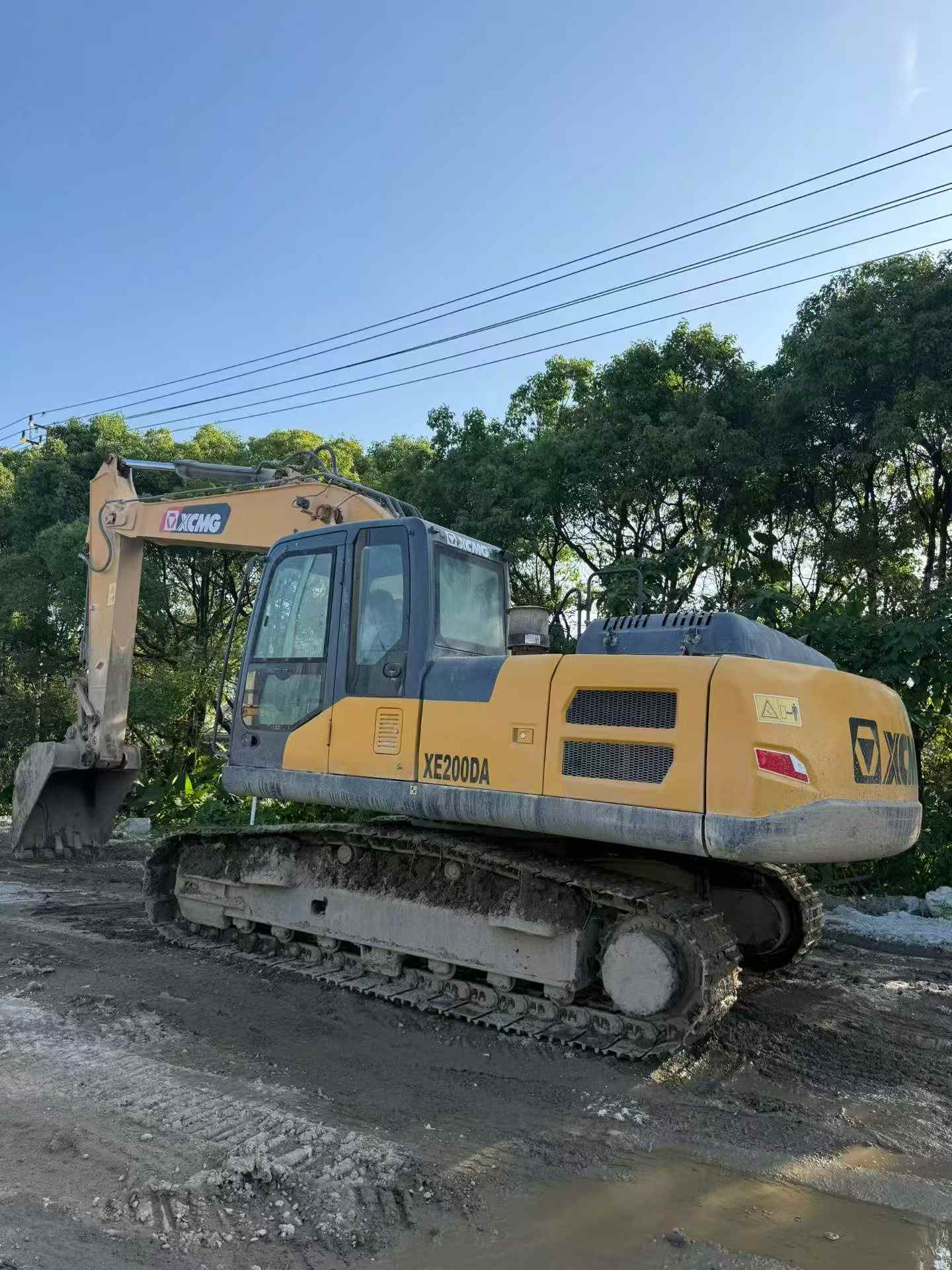

Discover the 2020 XCMG XE200DA, a robust and well-maintained excavator located in Zhejiang, China. This machine boasts a nearly pristine undercarriage, rated at 9.9 out of 10, and all major components are in excellent condition, ensuring no oil leaks. The original air conditioning system remains highly effective, providing a comfortable working environment. Owned and meticulously cared for by a single operator, this excavator has been regularly serviced, reflecting its outstanding condition. Ready for immediate use, it can be easily transferred via mobile app. We invite you to schedule a test drive to experience its reliability and performance firsthand.
- Year: 2020
- Brand: XCMG
- Model: XE200DA
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1103204 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
