Product Description

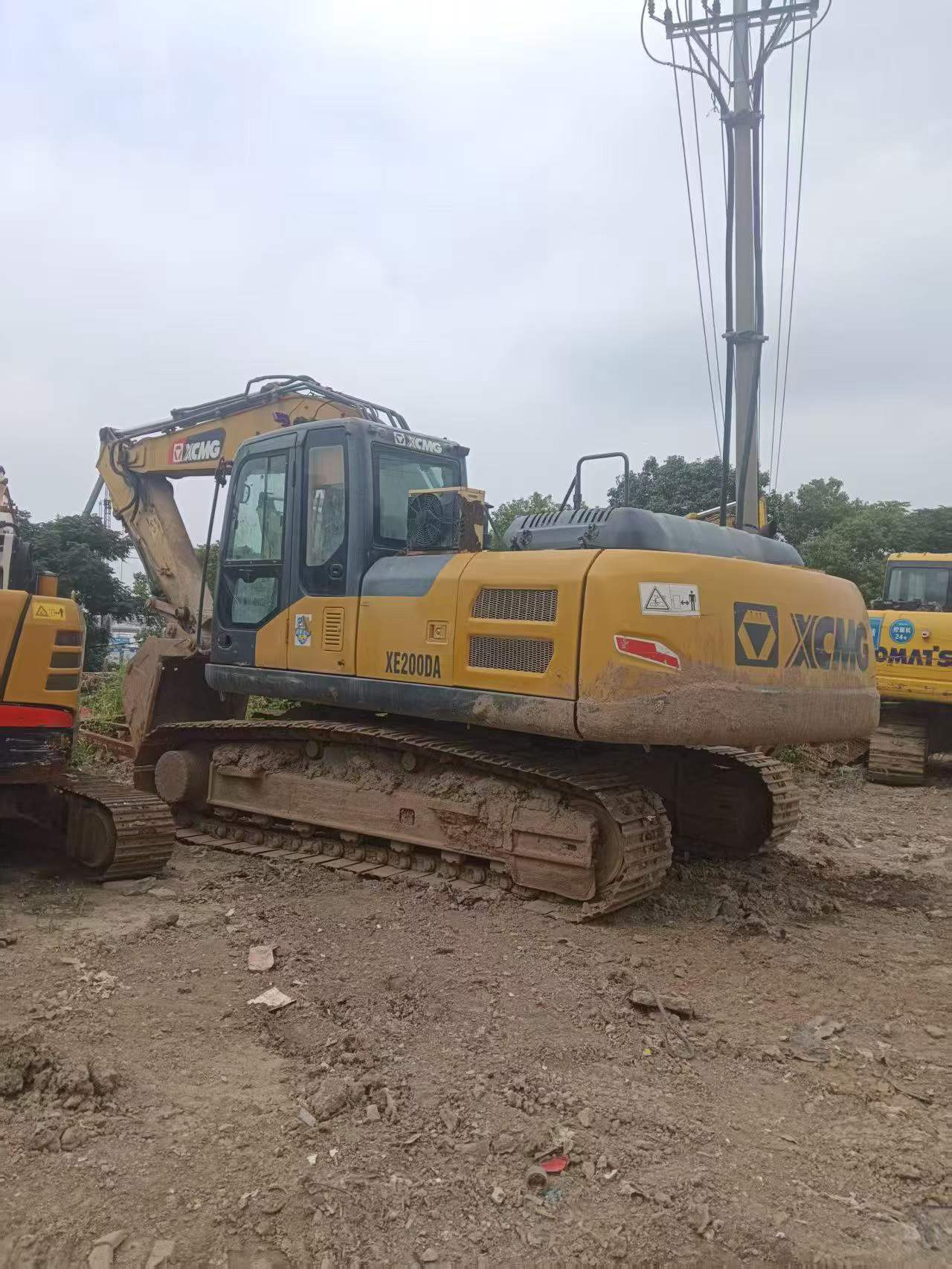

This 2020 XCMG XE200DA hydraulic excavator offers reliable performance for medium to heavy-duty excavation projects. With approximately 130,000 RMB in value, this machine represents solid capability from one of China's leading construction equipment manufacturers. The XE200DA features a 20-ton operating weight class, making it suitable for earthmoving, foundation work, and general construction applications.
Key highlights include:
- 2020 model year with documented operational history
- XCMG brand quality and parts availability
- Currently located in Zhejiang, China for inspection
- Photos and video documentation available
- Ready for immediate deployment
This excavator is positioned for buyers seeking proven Chinese manufacturing at competitive pricing. The XE200DA's conventional design ensures straightforward maintenance and operator familiarity across various jobsite conditions.
| Specifications | Value |
|---|---|
| No. | 1169649 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

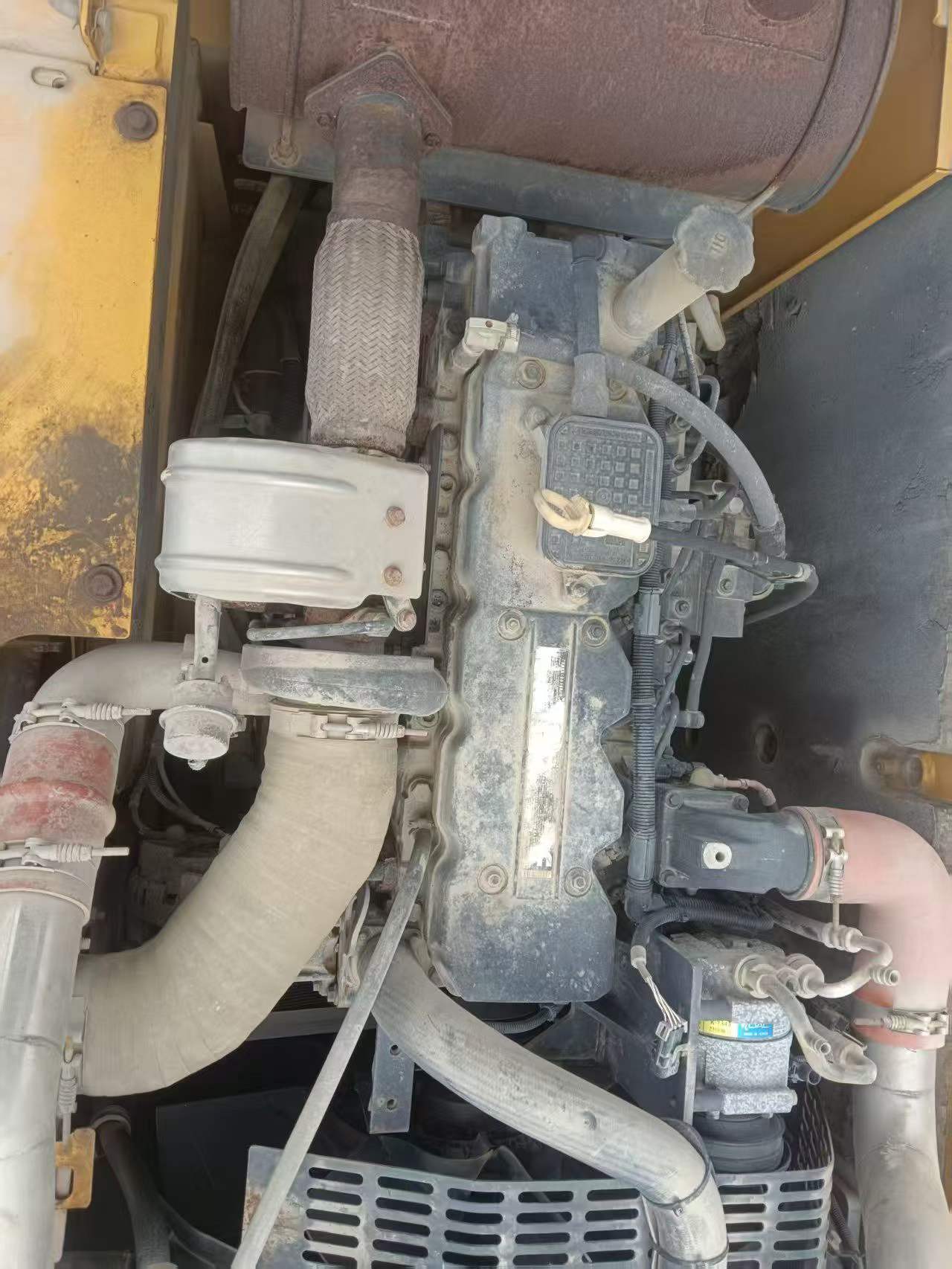

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
