Product Description
This 2022 XCMG XE200DA excavator represents exceptional value in the mid-size excavator segment. Currently located in Chongqing, China, this machine features premium Kawasaki hydraulic components, delivering reliable performance and fuel efficiency for demanding excavation applications.
The XE200DA is engineered for versatility across construction, earthmoving, and infrastructure projects. XCMG's proven design ensures durability and straightforward maintenance, while the Kawasaki hydraulic system provides smooth operation and precise control under various working conditions.
- Year of Manufacture: 2022
- Model: XCMG XE200DA

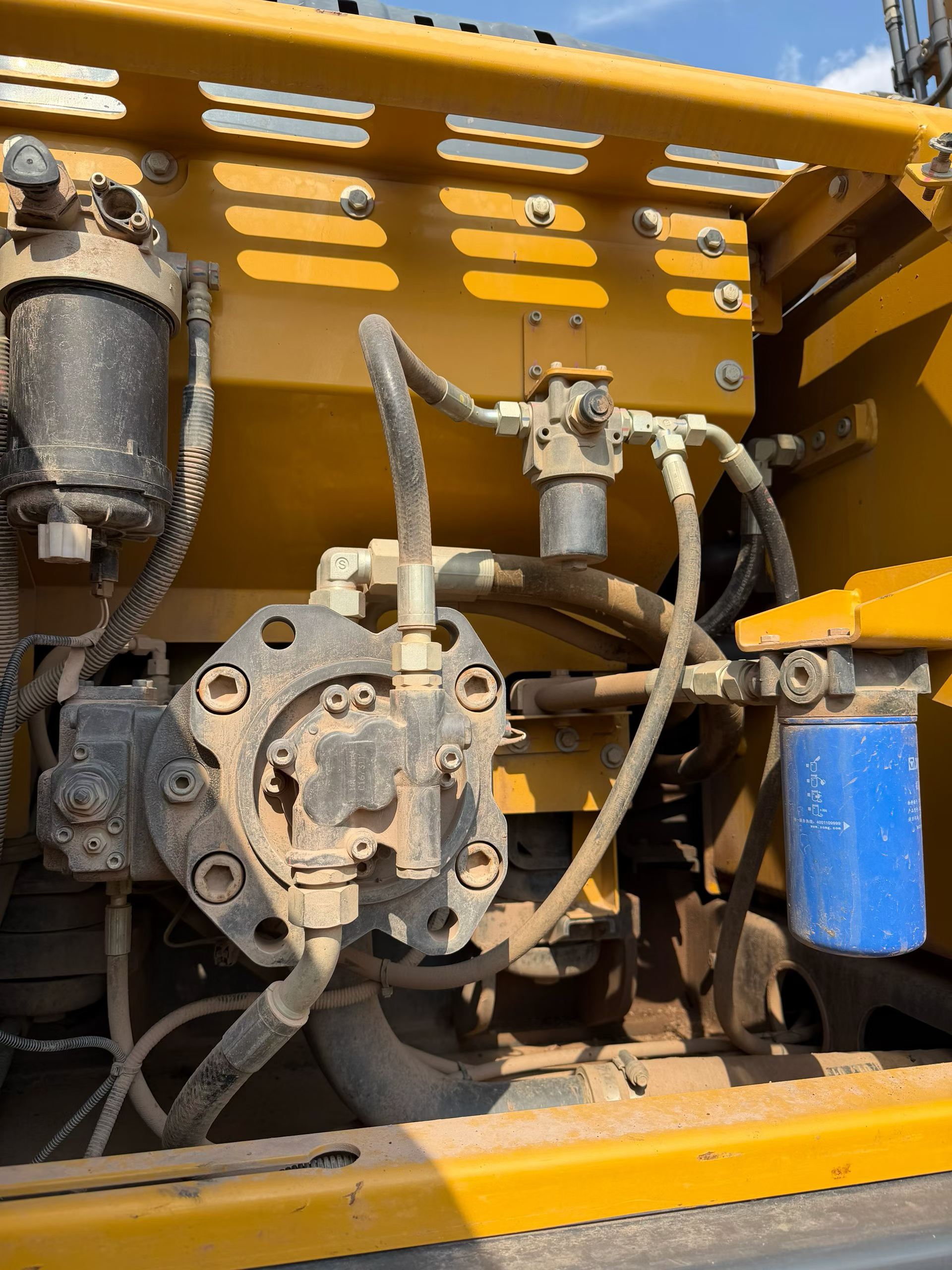

- Hydraulic System: Kawasaki premium components
- Current Location: Chongqing, China
- Condition: Used, competitively priced
This excavator offers an attractive opportunity for contractors seeking quality equipment at competitive pricing. Contact us for detailed specifications, inspection reports, and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1076939 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

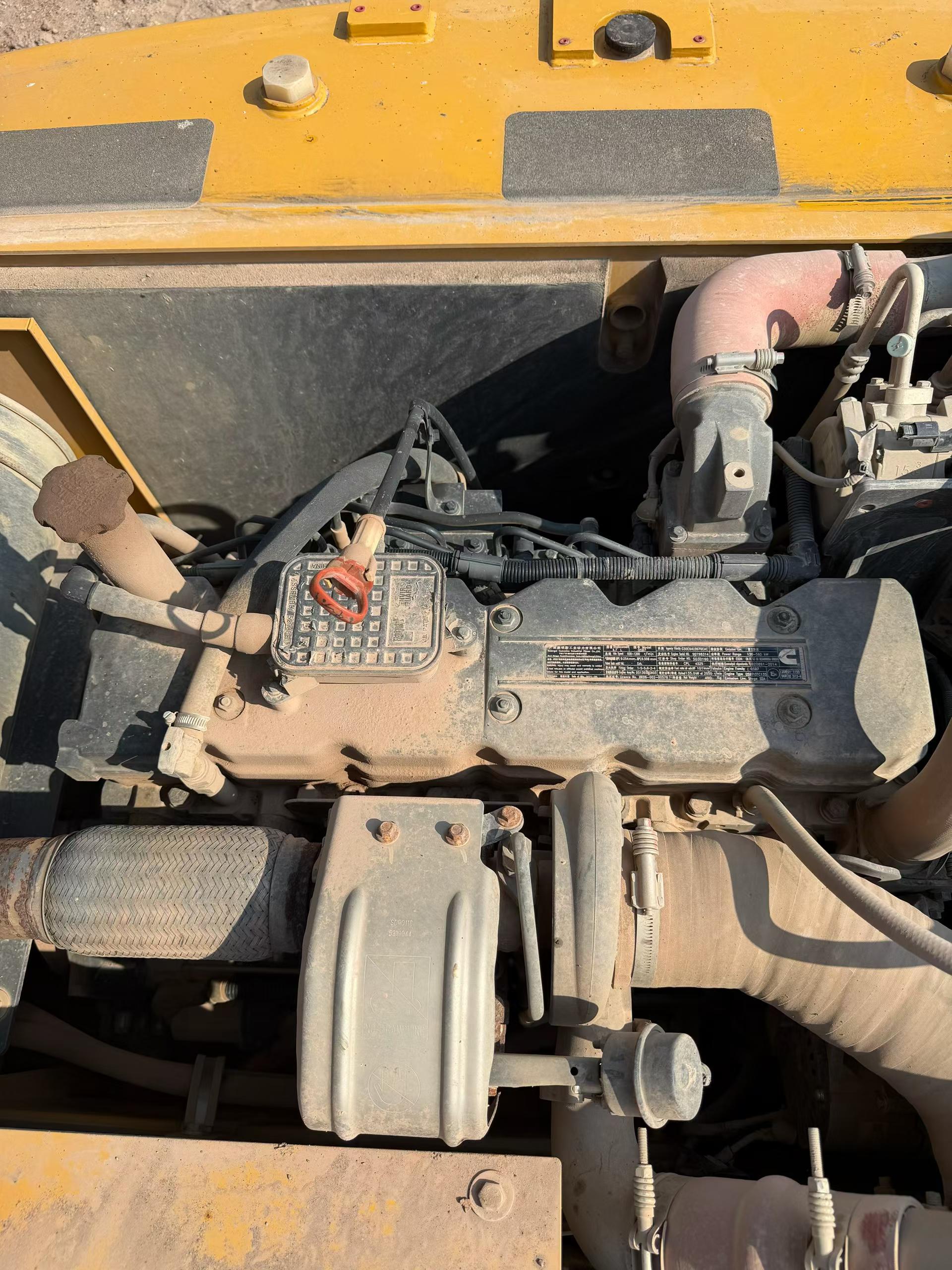

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
