Product Description

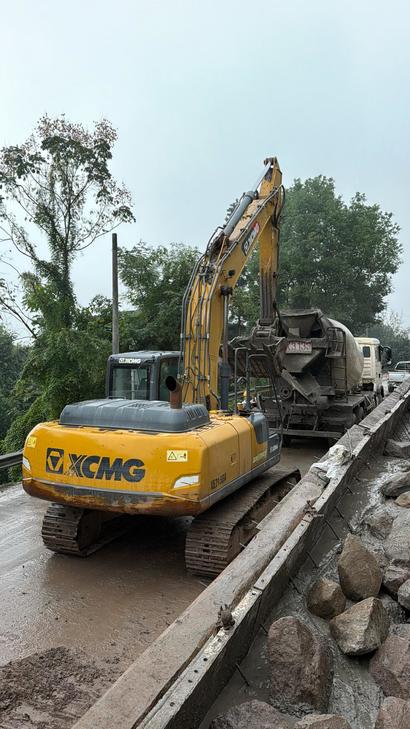

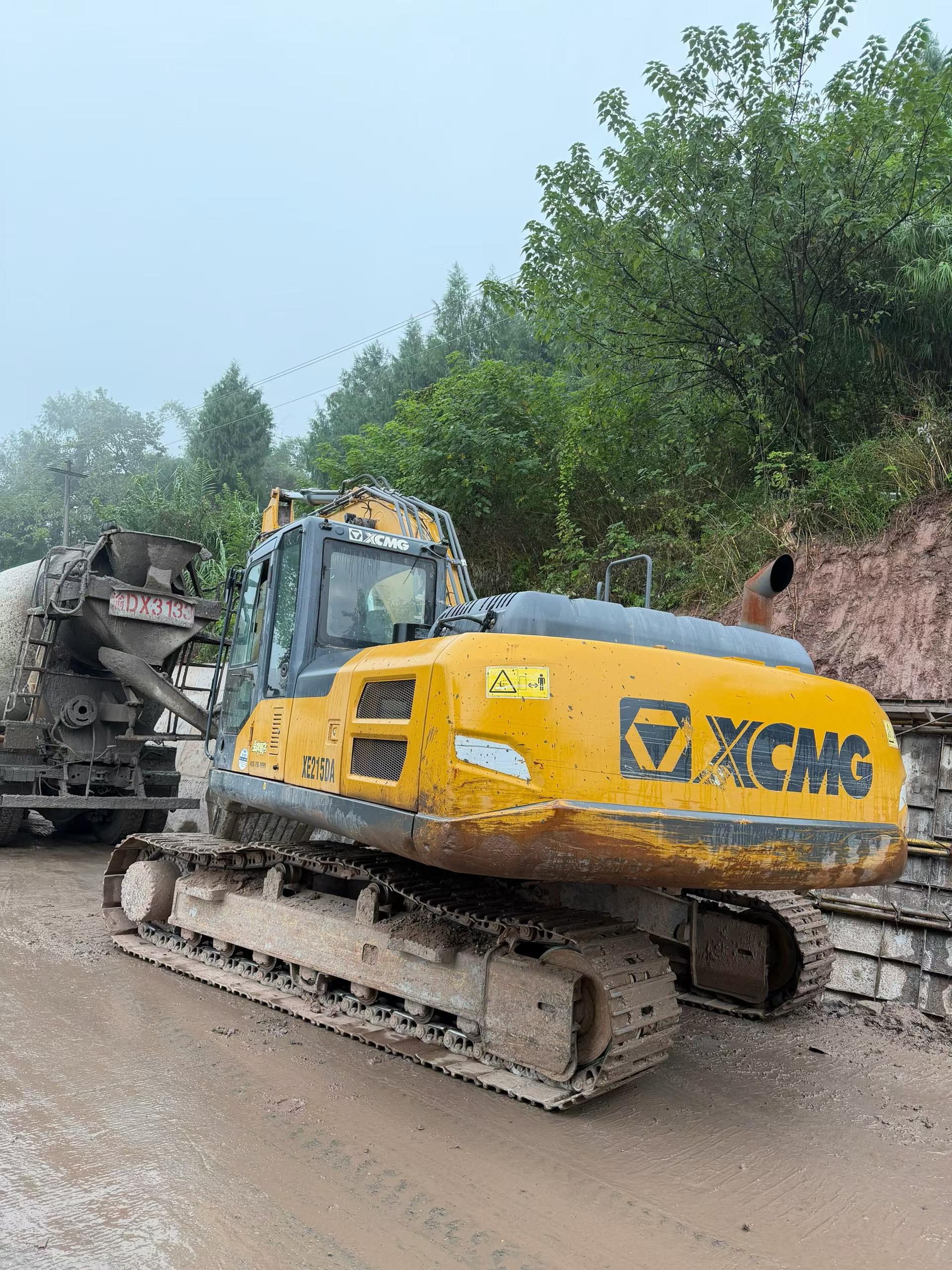

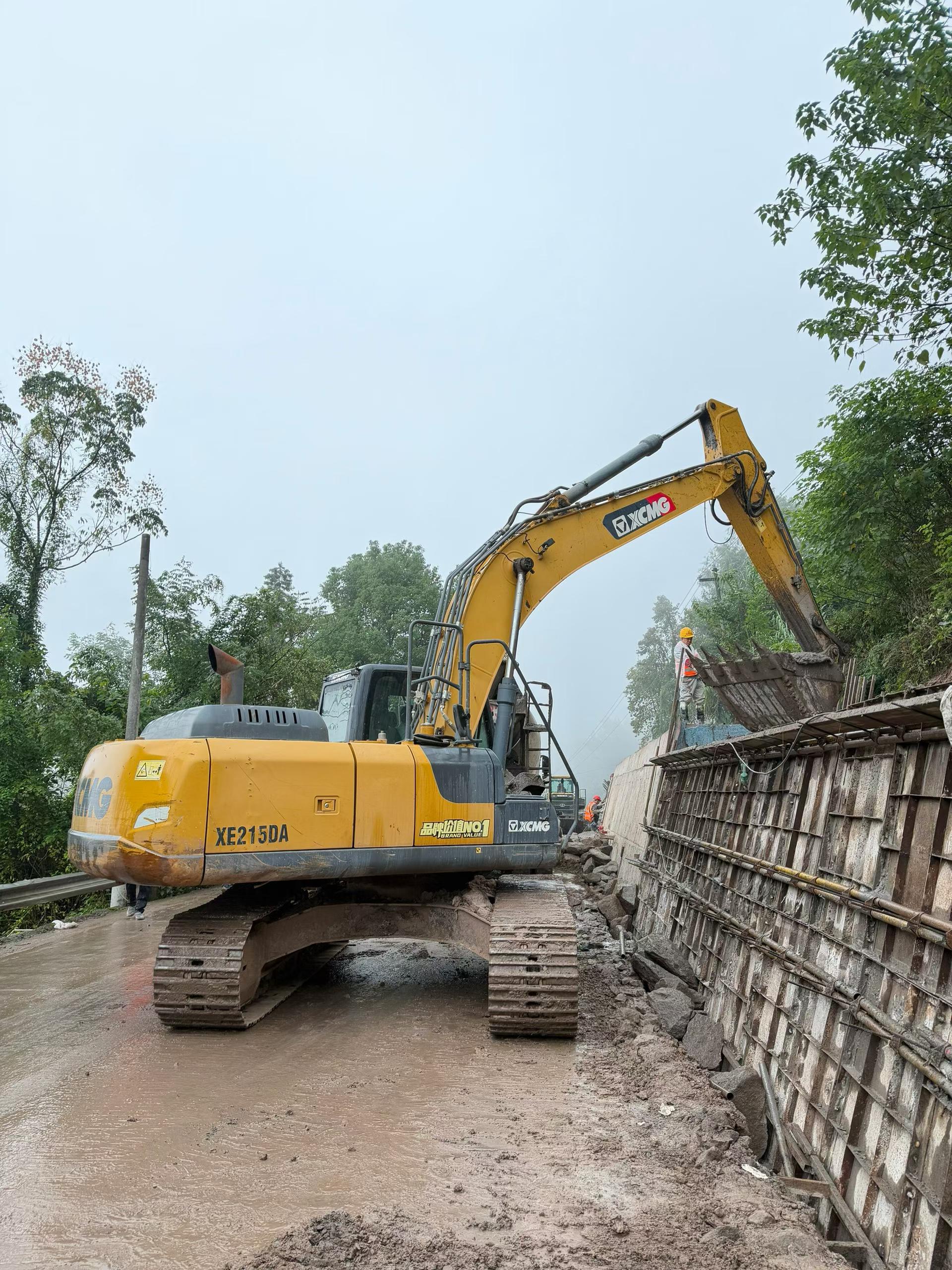

This 2022 XCMG XE200DA excavator is currently available in Chongqing, China. As a recent-model unit from one of China's leading construction equipment manufacturers, this machine represents reliable mid-size excavator capability suitable for various earthmoving and construction applications.
The XE200DA is designed for operational efficiency in demanding work environments. This particular unit is nearing project completion and is being offered at a competitive rate to facilitate quick placement.
- Year of Manufacture: 2022
- Manufacturer: XCMG
- Model: XE200DA
- Current Location: Chongqing, China
- Availability: Sale or lease options
- Financing: Installment plans available
This excavator is suitable for contractors seeking cost-effective equipment solutions with flexible acquisition terms. Contact us for detailed inspection reports, operating hours, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1166859 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
