Product Description

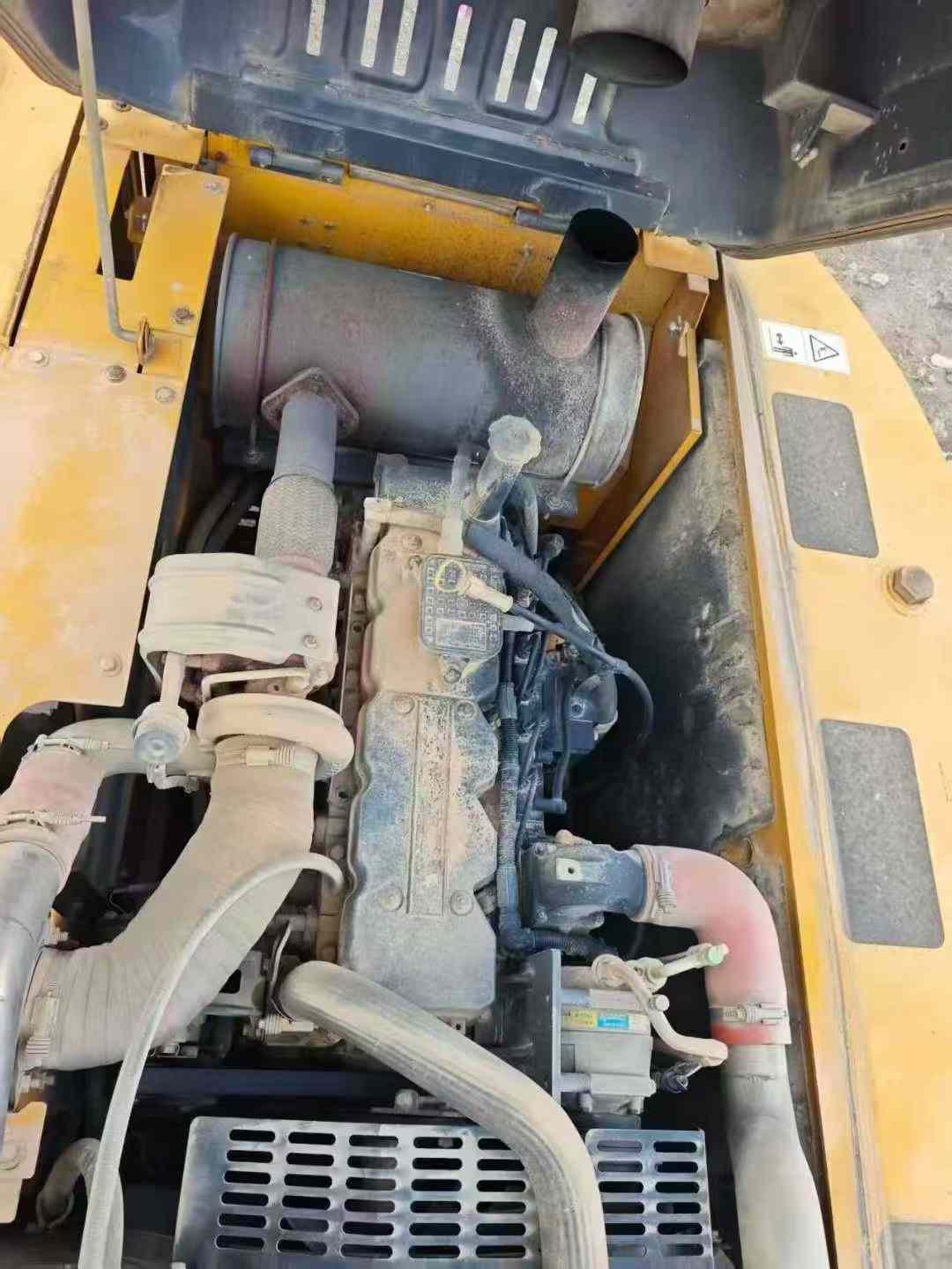

Engineered with a QSB7 turbocharged engine delivering 135 kW at 2050 rpm, this 2020 XCMG XE205DA provides consistent power across demanding excavation tasks. The 6.7L water-cooled, 6-cylinder powerplant combines direct injection technology with air-to-air intercooling for optimal fuel efficiency and thermal management in extended operations.
Hydraulic performance is substantial: bucket digging force reaches 157 kN, while rod digging force achieves 116 kN, supported by a maximum tractive force of 184 kN. Operating at 21,500 kg working weight with 47.5 kPa ground pressure, this machine balances stability with minimal ground disturbance.
Key Specifications:
- Maximum digging reach: 9,760 mm; depth: 6,660 mm
- Boom/arm configuration: 5,680 mm / 2,910 mm
- Bucket capacity: 1.0–1.2 m³
- Fuel capacity: 400L for extended runtime
- 35% gradeability; 12 rpm swing speed
- Transport dimensions: 9,630 × 2,910 × 3,100 mm
Currently located in Lishui, Zhejiang, this XCMG crawler excavator represents proven Chinese manufacturing with robust component design for high-volume earthmoving applications.
| Specifications | Value |
|---|---|
| No. | 1019415 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
