Product Description

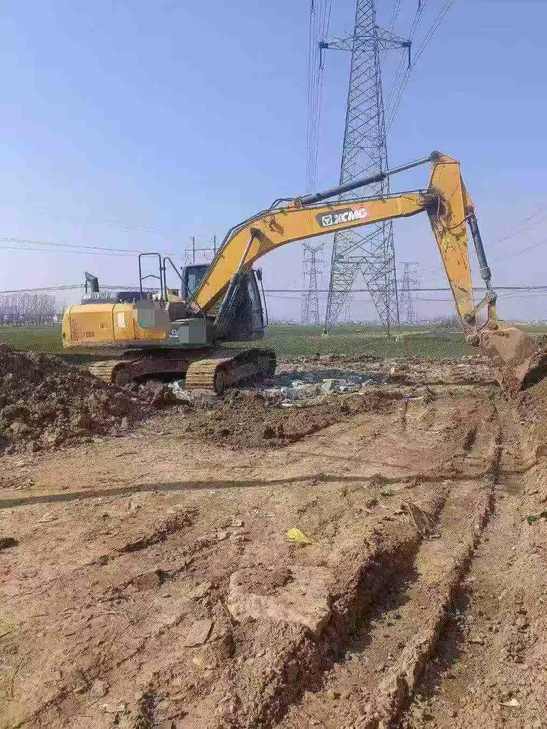

Maximize your equipment budget with this 2020 XCMG XE205DA excavator—delivering flagship performance at a fraction of new machine costs. Powered by a robust 135kW QSB7 engine with 6.7L displacement, this 20-ton workhorse combines exceptional digging force (157kN bucket, 116kN stick) with proven reliability. Currently located in Shaoxing, Zhejiang, this machine offers immediate ROI for contractors seeking premium capability without premium pricing.
- Power & Efficiency: Water-cooled 6-cylinder turbocharged engine, 400L fuel capacity for extended operation
- Superior Reach: 9760mm maximum digging radius, 6660mm digging depth, 5680mm boom with 2910mm stick
- Productivity: 1.0-1.2m³ bucket capacity, 12rpm rotation speed, 35% gradeability for challenging terrain
- Operational Versatility: Dual travel speeds (5.7/3.1 km/h), 184kN maximum tractive force
- Smart Investment: 2020 model year with minimal depreciation, full factory specifications maintained
Secure high-performance excavation capability while preserving capital for fleet expansion. Contact Fair Trade Machinery today for competitive internat
| Specifications | Value |
|---|---|
| No. | 1022350 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
