Product Description

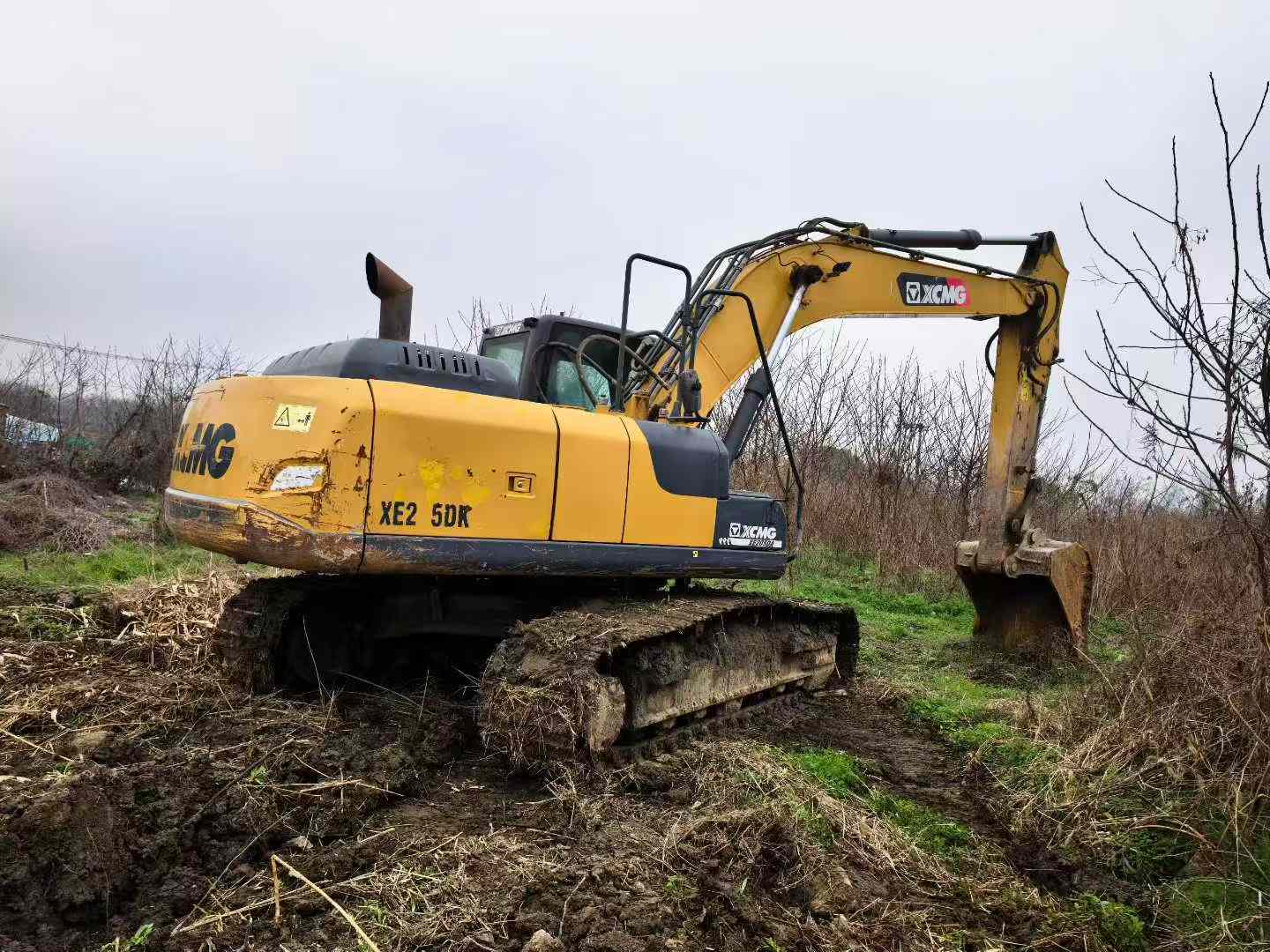

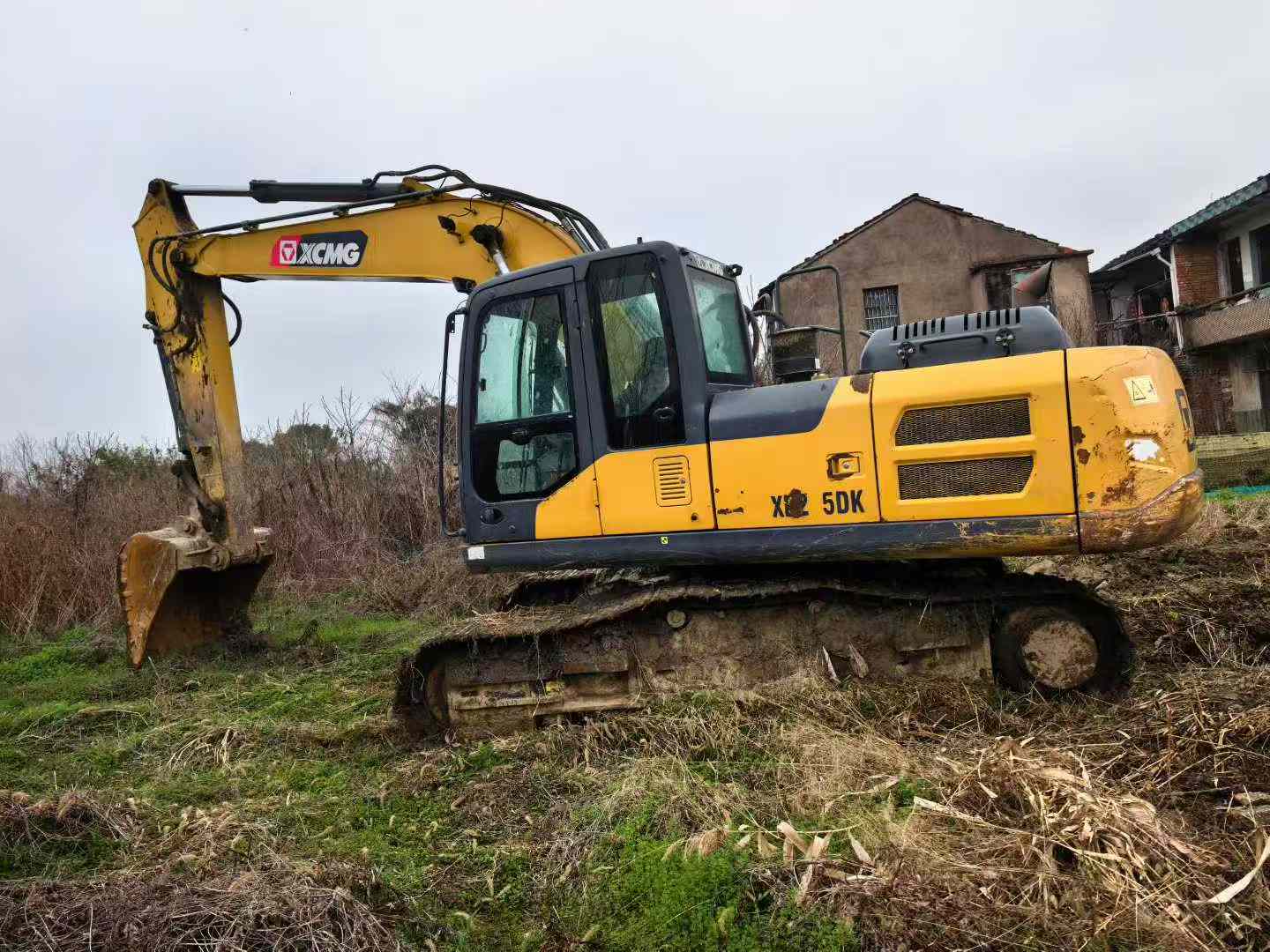

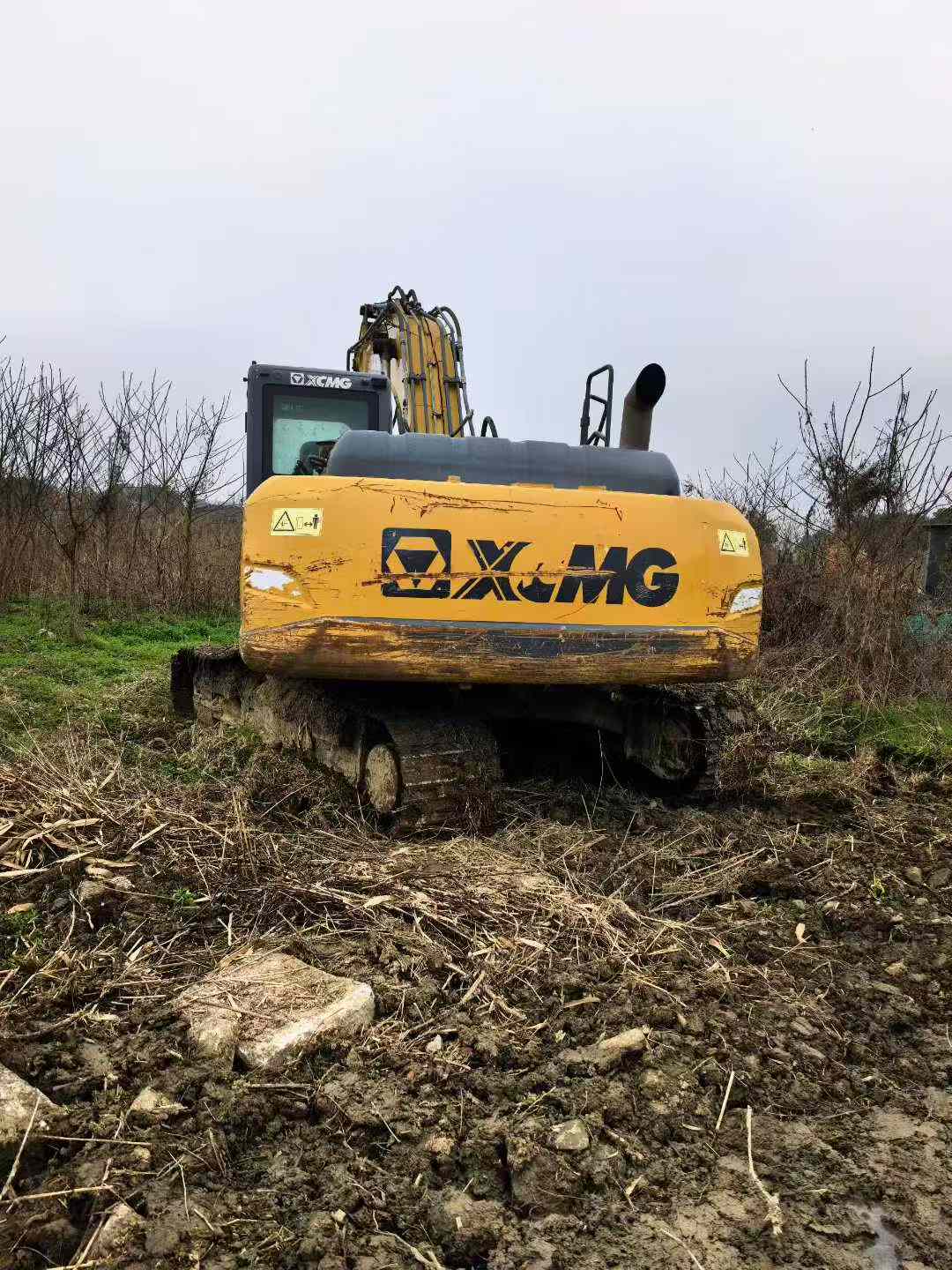

Available now from our Zhejiang facility, this 2020 XCMG XE205DA hydraulic excavator eliminates factory wait times and delivers immediate deployment to your jobsite. Built for the 20-ton class with a 21,500 kg working weight, this machine combines a powerful QSB7 engine (135 kW at 2050 rpm) with proven excavation performance—9,760 mm maximum digging radius and 6,660 mm maximum digging depth.
- 1.0-1.2 m³ bucket capacity with 157 kN digging force
- Water-cooled 6-cylinder turbocharged engine (6.7L displacement)
- 5,680 mm boom and 2,910 mm arm for versatile reach
- 400L fuel tank supports extended work cycles
- 35% grading ability and 5.7 km/h travel speed
- Transport dimensions: 9,630 × 2,910 × 3,100 mm
Skip months of lead time. This ready-to-ship unit from Zhejiang offers fast logistics throughout Asia and beyond, putting reliable Chinese-manufactured performance on your site within days, not quarters. Ideal for contractors requiring immediate equipment solutions without compromising on capability or specifications.
| Specifications | Value |
|---|---|
| No. | 1024224 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
