Product Description

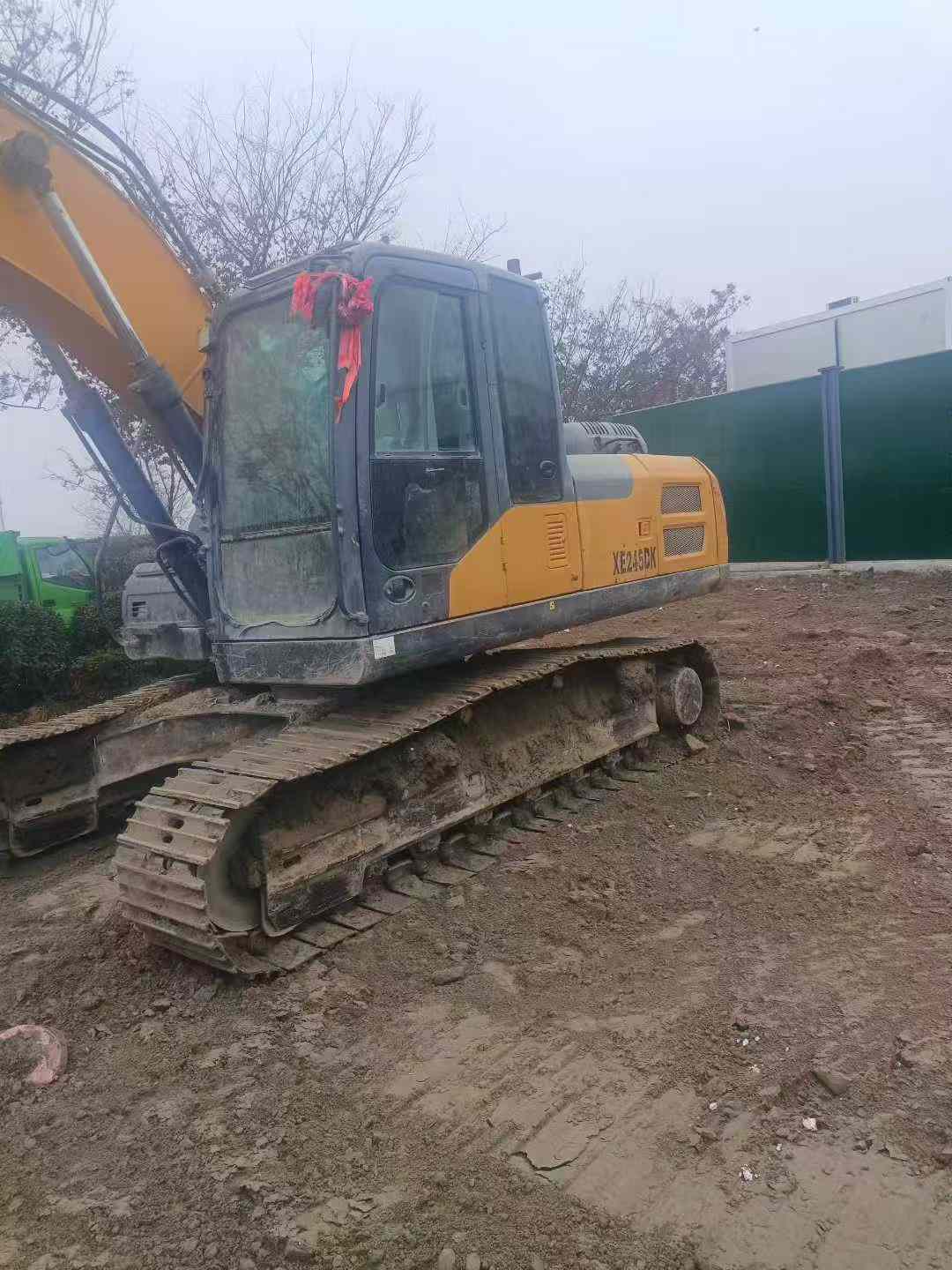

Built for precision and control, this 2020 XCMG XE205DA delivers consistent performance across demanding jobsites. Operating at 21,500 kg working weight with a QSB7 engine producing 135 kW at 2050 rpm, this 20-ton excavator combines proven mechanical reliability with operator-centered design. The cabin provides commanding visibility across a 9,760 mm maximum digging radius, while water-cooled, turbocharged power ensures responsive hydraulics in extended duty cycles.
Handling characteristics reflect careful engineering: 47.5 kPa ground pressure distributes weight effectively across soft terrain, and dual travel speeds (5.7/3.1 km/h) allow operators to match pace to conditions. Stability during swing operations benefits from a 2,890 mm rear turning radius and 2,290 mm track gauge. The 5,680 mm boom and 2,910 mm arm reach 6,660 mm maximum digging depth, supported by 157 kN bucket digging force. Controls respond predictably to 12 rpm rotation speed, reducing fatigue during repetitive cycles.
Currently located in Hangzhou, Zhejiang, this machine features a 1.0-1.2 m³ backhoe bucket configuration. With 400 L fuel capacity and 220 L hydraulic reservoir, operational intervals support full-shift productivity without frequent
| Specifications | Value |
|---|---|
| No. | 1025202 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
