Product Description
Built for serious excavation work, this 2021 XCMG XE205DA delivers 20-ton performance where it counts. Powered by a 135kW QSB7 turbocharged engine with 6.7L displacement, this machine tackles digging, grading, and demolition tasks without hesitation. Maximum digging depth reaches 6,660mm while the 9,760mm digging radius covers substantial ground per cycle. Bucket digging force of 157kN and rod force of 116kN break through compacted soil and fractured rock efficiently.

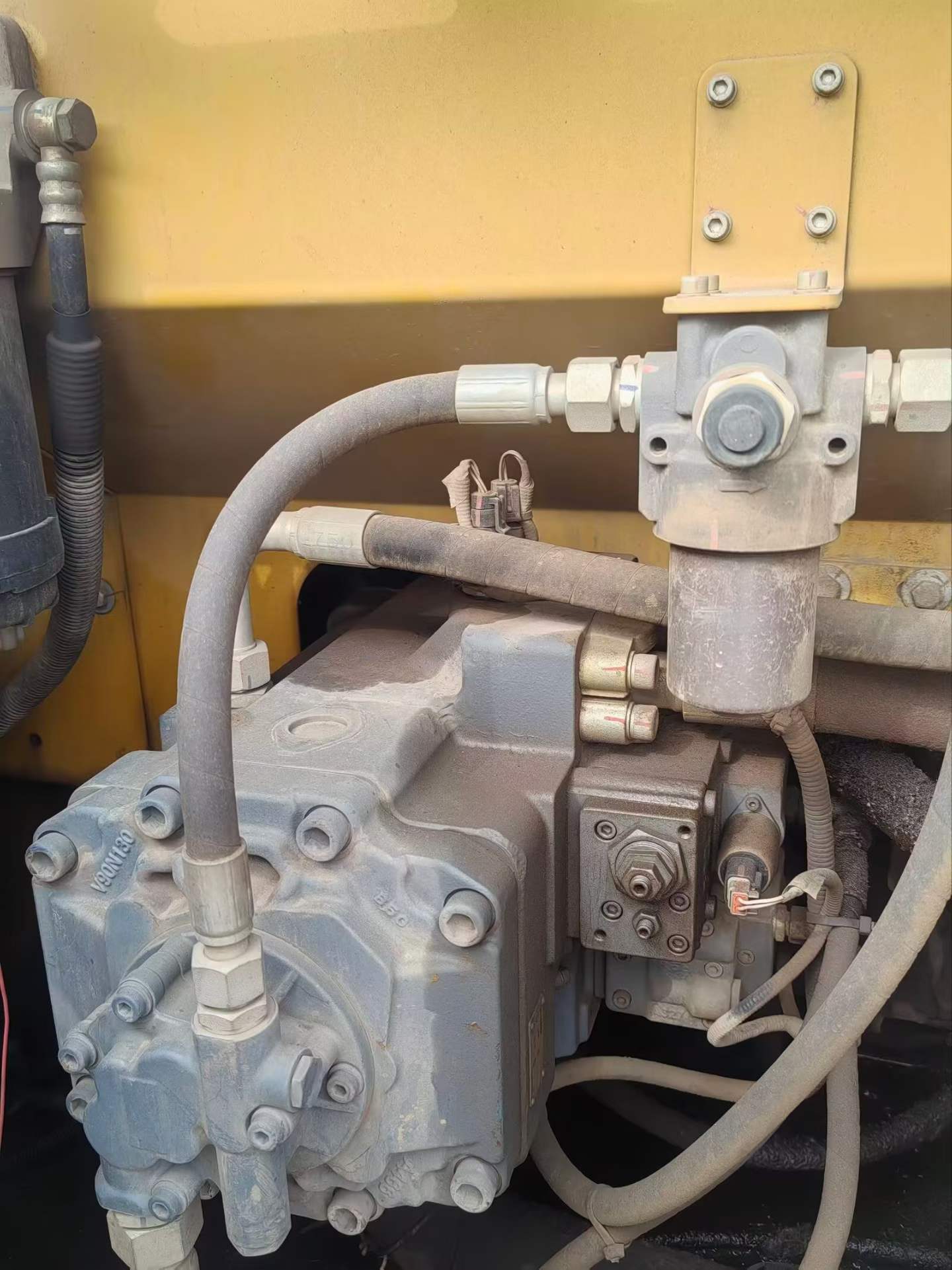

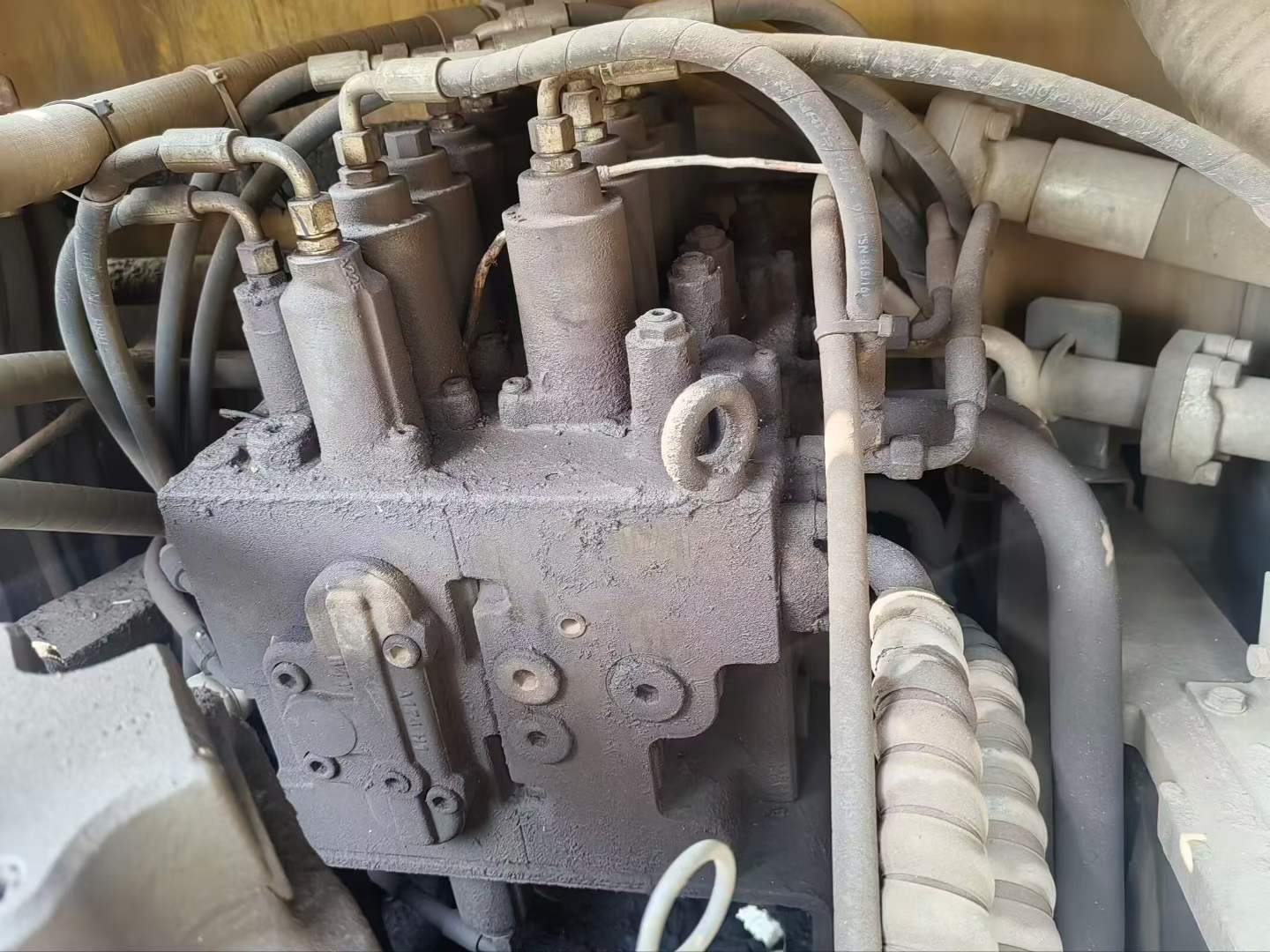

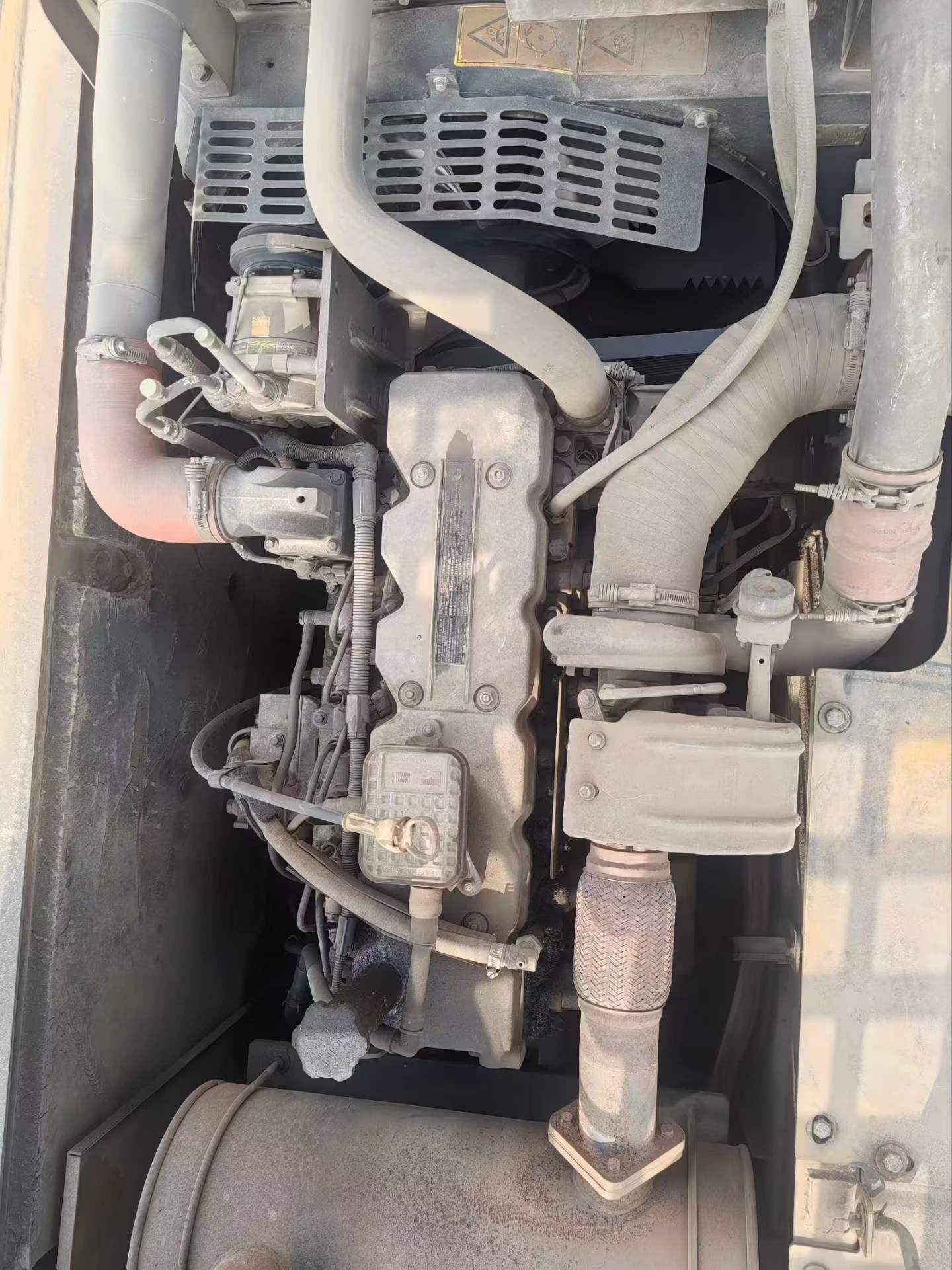

Hydraulic systems respond precisely with 1.0-1.2m³ bucket capacity moving material fast. The 5,680mm boom and 2,910mm arm configuration provide optimal reach for loading trucks, shaping slopes, or clearing foundations. Water-cooled direct injection engine maintains consistent power in extended operations. Currently located in Hefei, Anhui, this excavator arrives ready for immediate deployment with 400L fuel capacity and proven XCMG engineering.

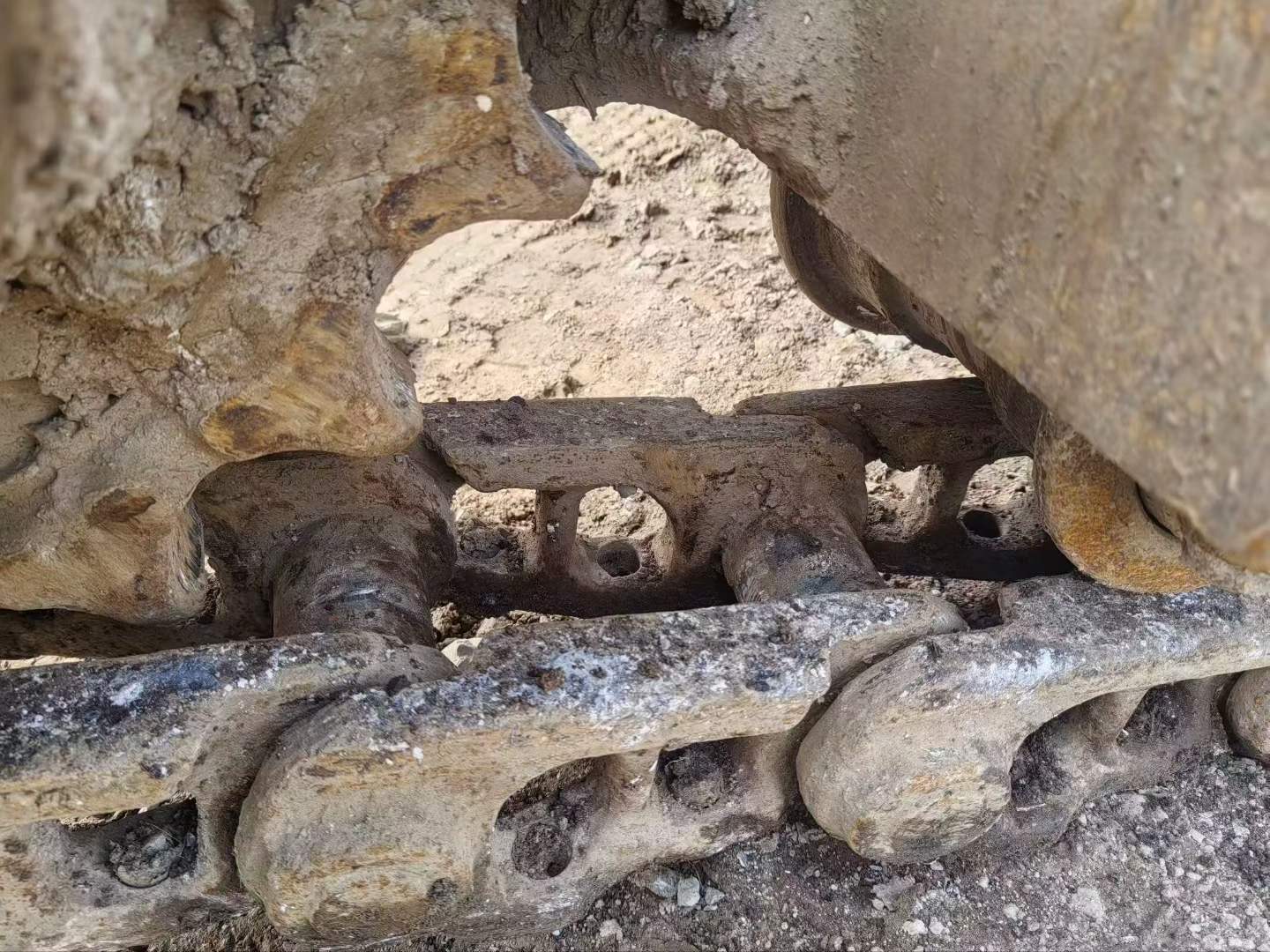

- Operating weight: 21,500kg with 600mm track width for 47.5kPa ground pressure
- Travel speed: 5.7km/h for efficient site repositioning
- 35% climbing ability handles challenging terrain grades
- Maximum digging height: 9,540mm for deep foundation or drainage work
| Specifications | Value |
|---|---|
| No. | 1025433 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
