Product Description
Backed by one of China's largest construction equipment manufacturers, this 2021 XCMG XE205DA represents a proven investment in the 20-ton excavator class. Currently located in Liyshui, Zhejiang, this machine combines a robust 135kW QSB7 engine with hydraulic performance engineered for demanding jobsites—157kN bucket digging force and 9,760mm maximum reach deliver consistent productivity across earthmoving and trenching applications.
XCMG's global dealer network ensures parts availability and technical support remain accessible long after purchase, a critical advantage in the used equipment market. With a 1.0-1.2m³ bucket capacity, 400L fuel tank, and 5,680mm boom paired with a 2,910mm arm, this XE205DA handles full-day operations without compromise. Water-cooled 6-cylinder architecture and proven direct-injection technology provide durability operators expect from tier-one manufacturers.
Key Specifications:
- Operating Weight: 21,500kg | Rated Power: 135kW @ 2,050rpm
- Maximum Digging Depth: 6,660mm | Max Reach: 9,760mm
- Travel Speed: 5.7/3.1 km/h | Fuel Capacity: 400L

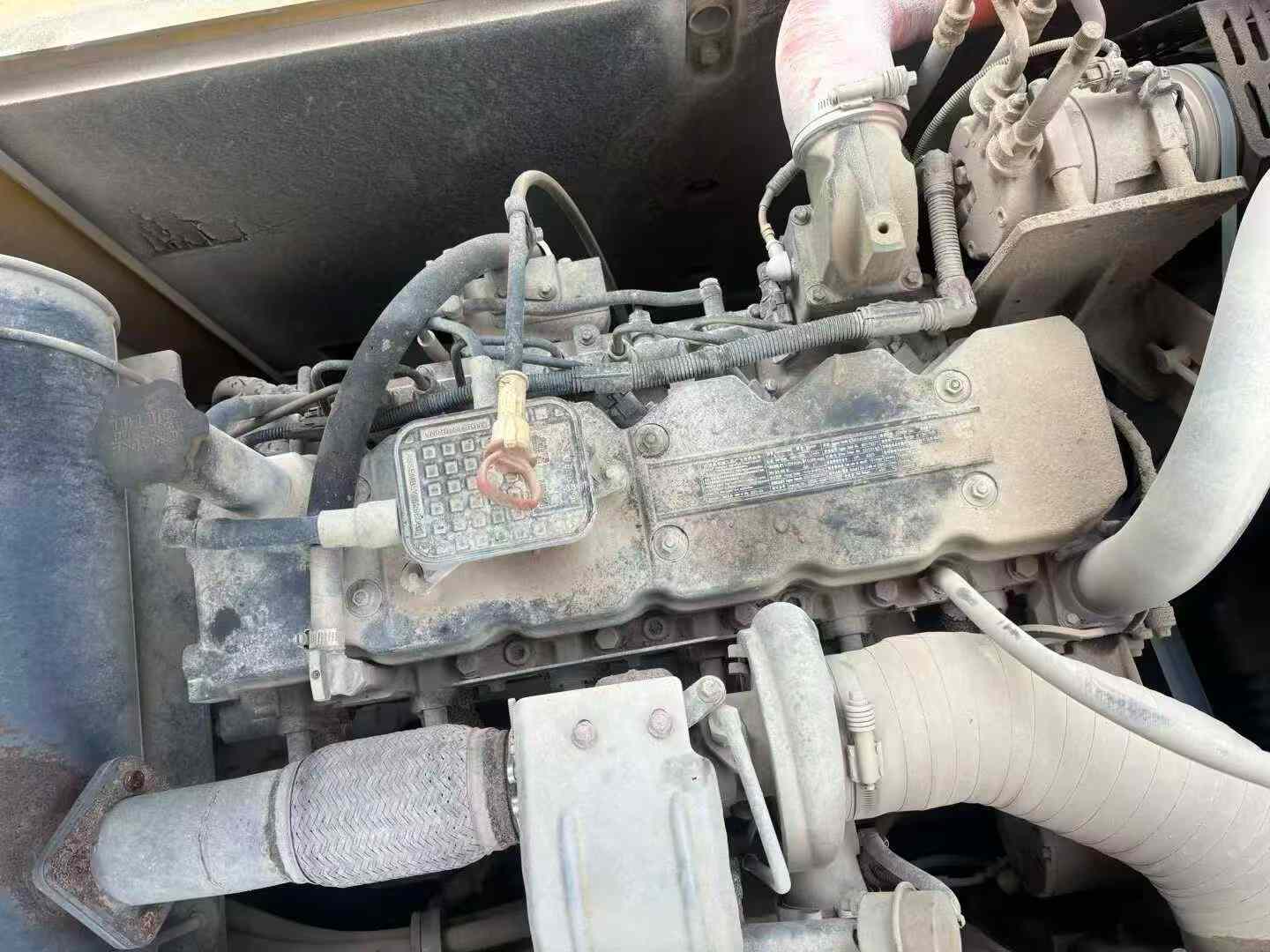

- Engine: QSB7, 6-cylinder, 6.7L displacement, turbocharged
| Specifications | Value |
|---|---|
| No. | 1026219 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
