Product Description

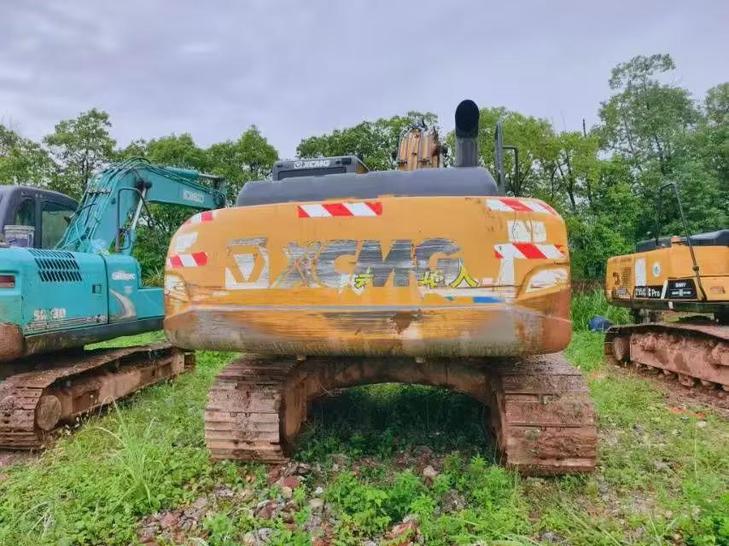

This 2021 XCMG XE205DA hydraulic excavator represents a reliable mid-size solution for construction and earthmoving operations. Currently located in Jiangxi, China, this machine offers approximately three years of service life with the robust engineering XCMG is known for in the Asian heavy equipment market.
The XE205DA is designed for versatility across various applications including trenching, loading, and site preparation. XCMG's 20-ton class excavators are built with fuel efficiency and operator comfort in mind, making them suitable for extended work cycles in demanding environments.
- Year of Manufacture: 2021
- Manufacturer: XCMG
- Model: XE205DA
- Current Location: Jiangxi Province, China
- Category: Medium hydraulic excavator
This unit is available for inspection and represents an opportunity to acquire proven XCMG technology at used equipment value. Contact us for current pricing, detailed specifications, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1164367 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
