Product Description

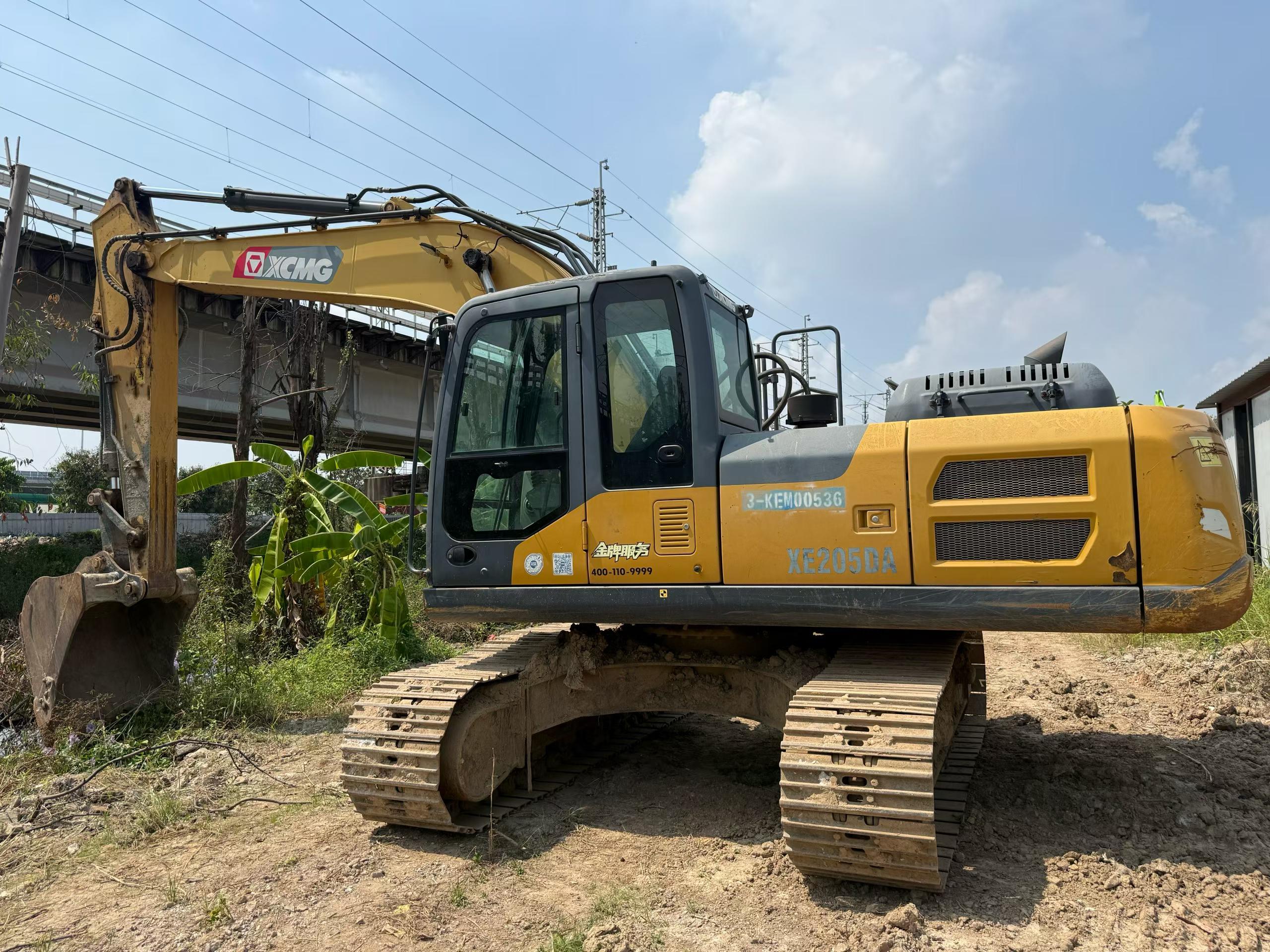

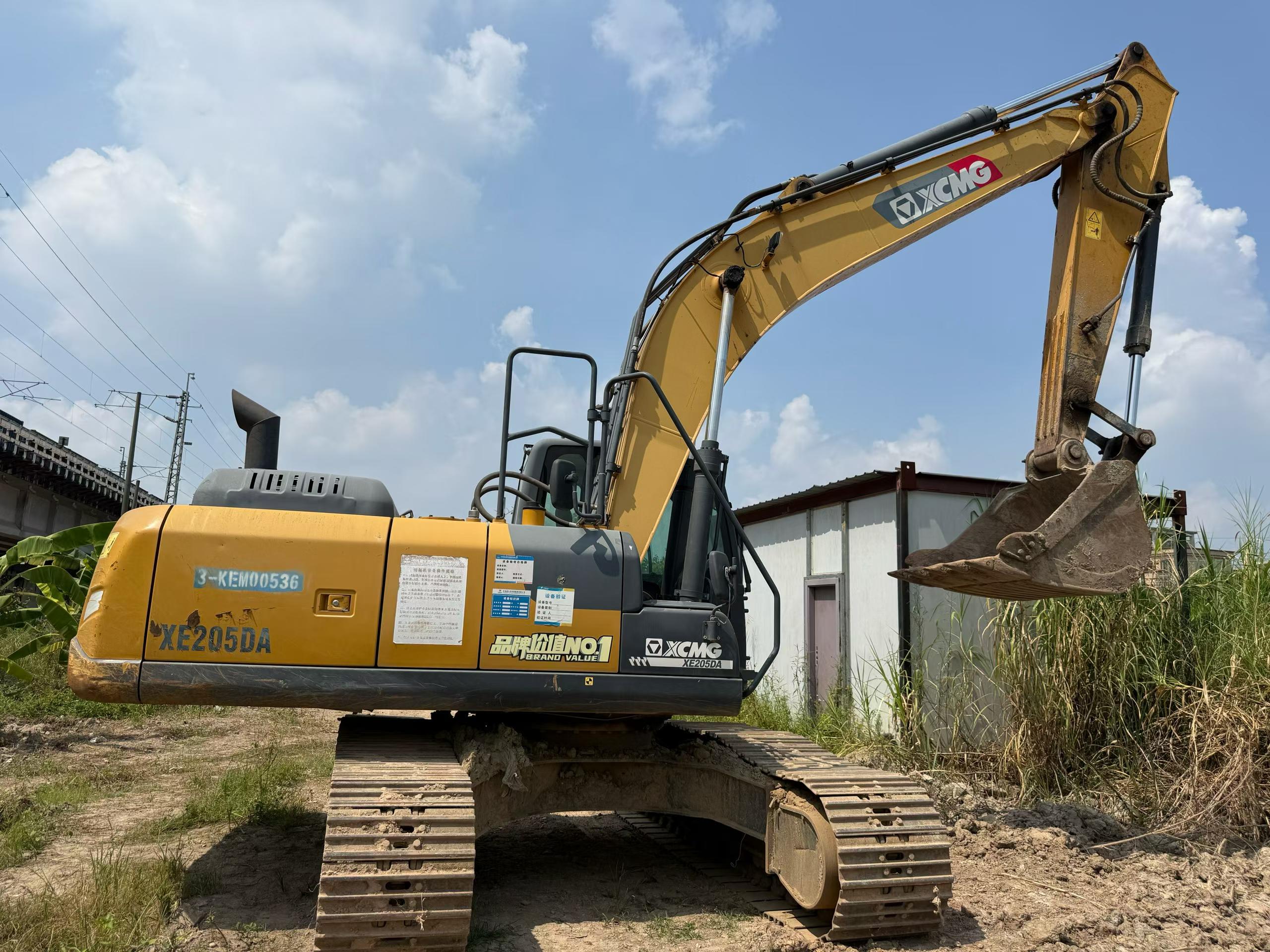

This 2022 XCMG XE205DA hydraulic excavator represents a capable mid-size solution for construction and earthmoving operations. With approximately two years of service, this 20-ton class machine delivers reliable performance for contractors seeking proven Chinese engineering at competitive value.
Key attributes include:

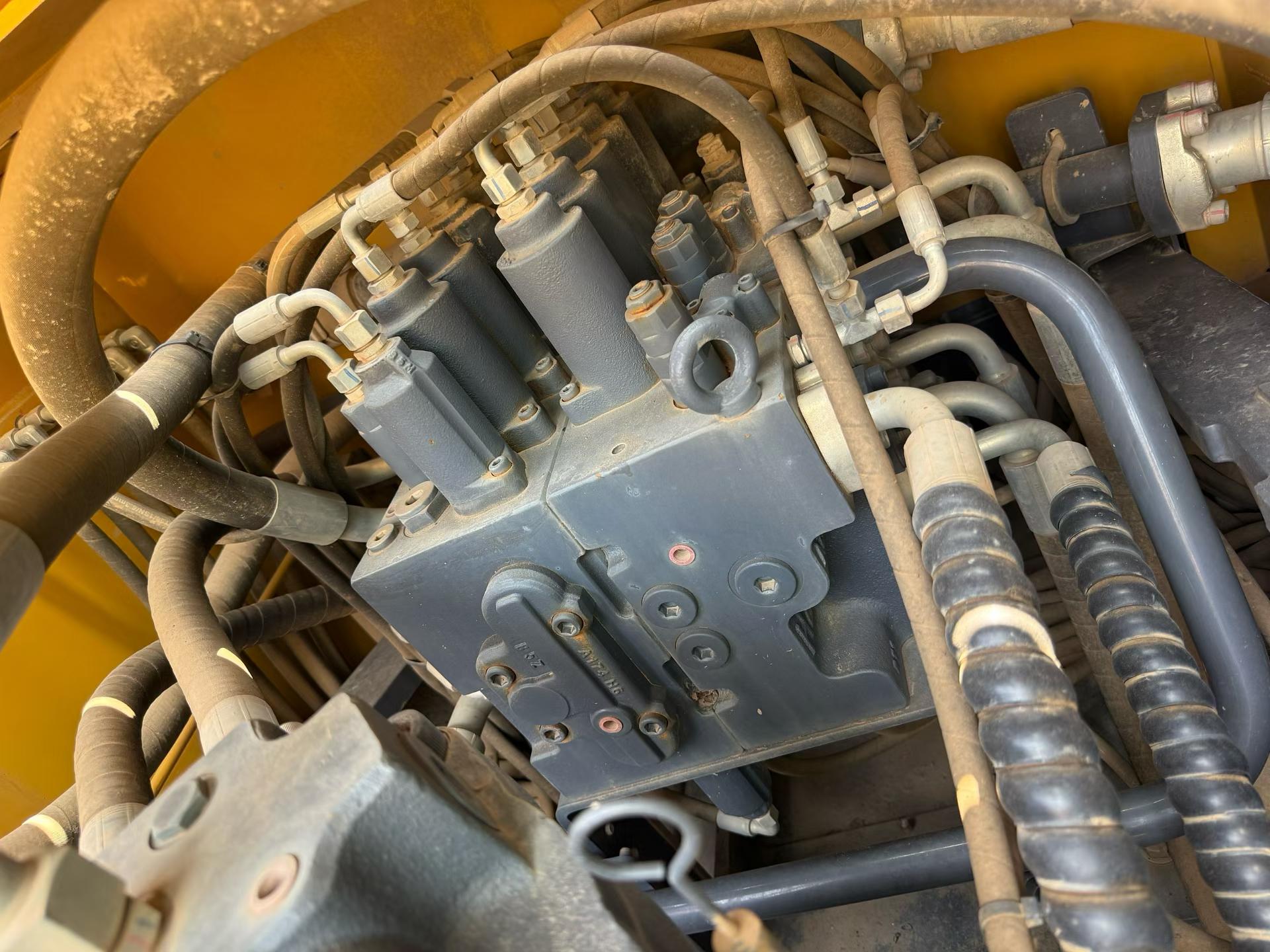

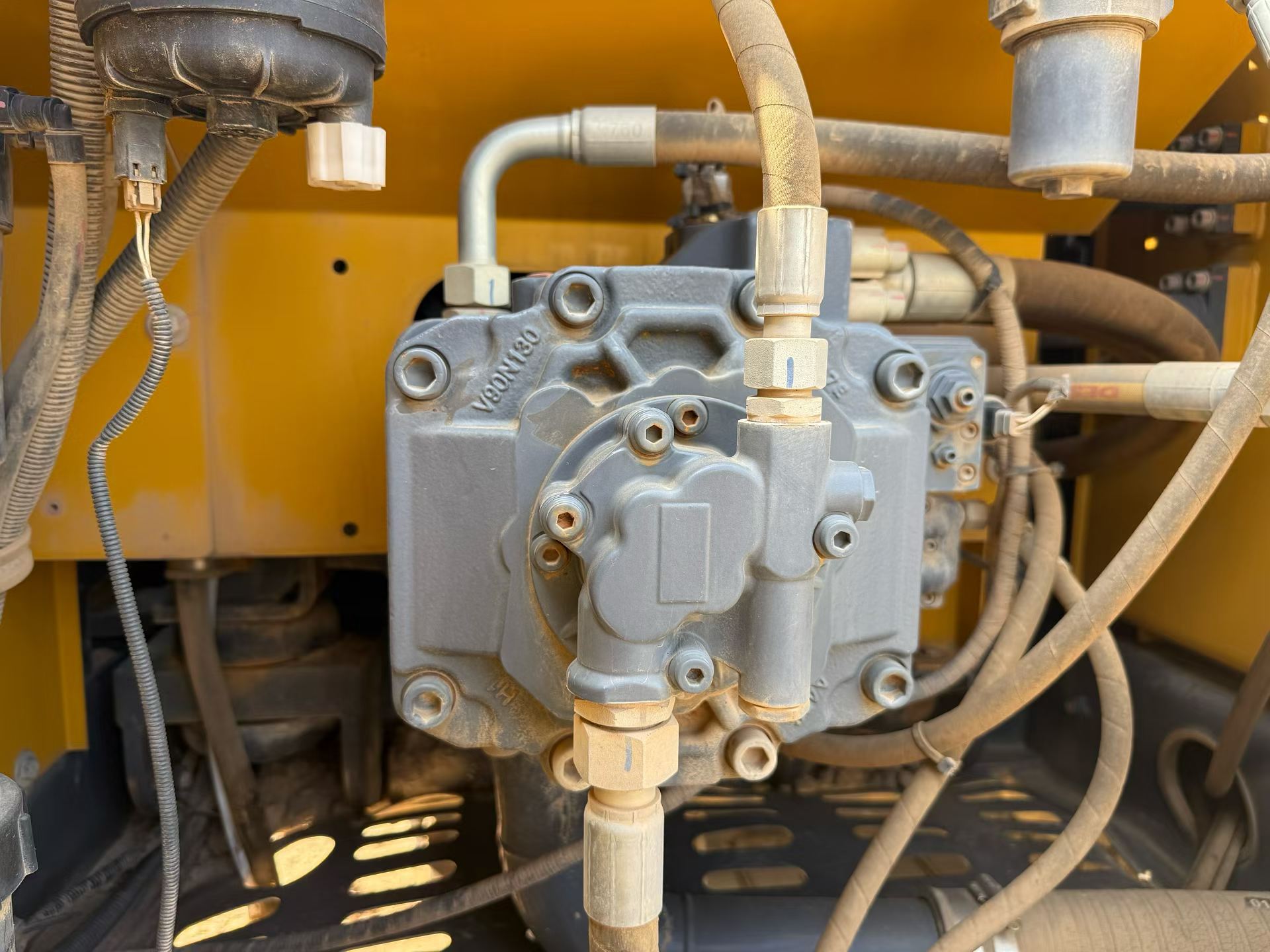

- XCMG's established hydraulic system for consistent digging force

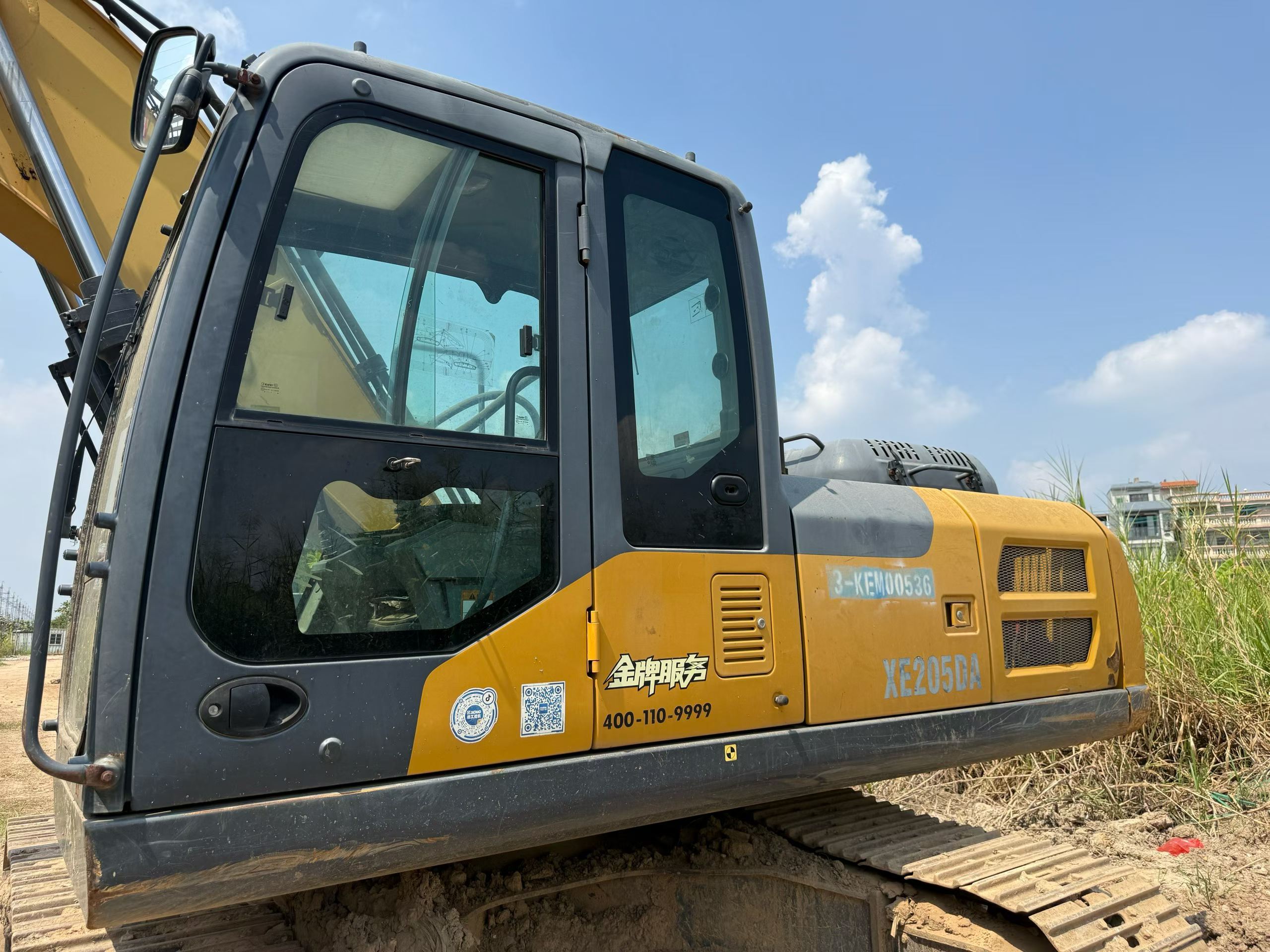

- Operator cab designed for extended shift comfort
- Fuel-efficient engine meeting emission standards
- Versatile bucket and attachment compatibility
- Standard undercarriage for varied terrain conditions
Currently located in Guangdong, China, this XE205DA offers accessible logistics for regional deployment. The machine suits general excavation, trenching, and material handling across infrastructure and commercial projects. Inspection and export coordination available upon request.
| Specifications | Value |
|---|---|
| No. | 1163265 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

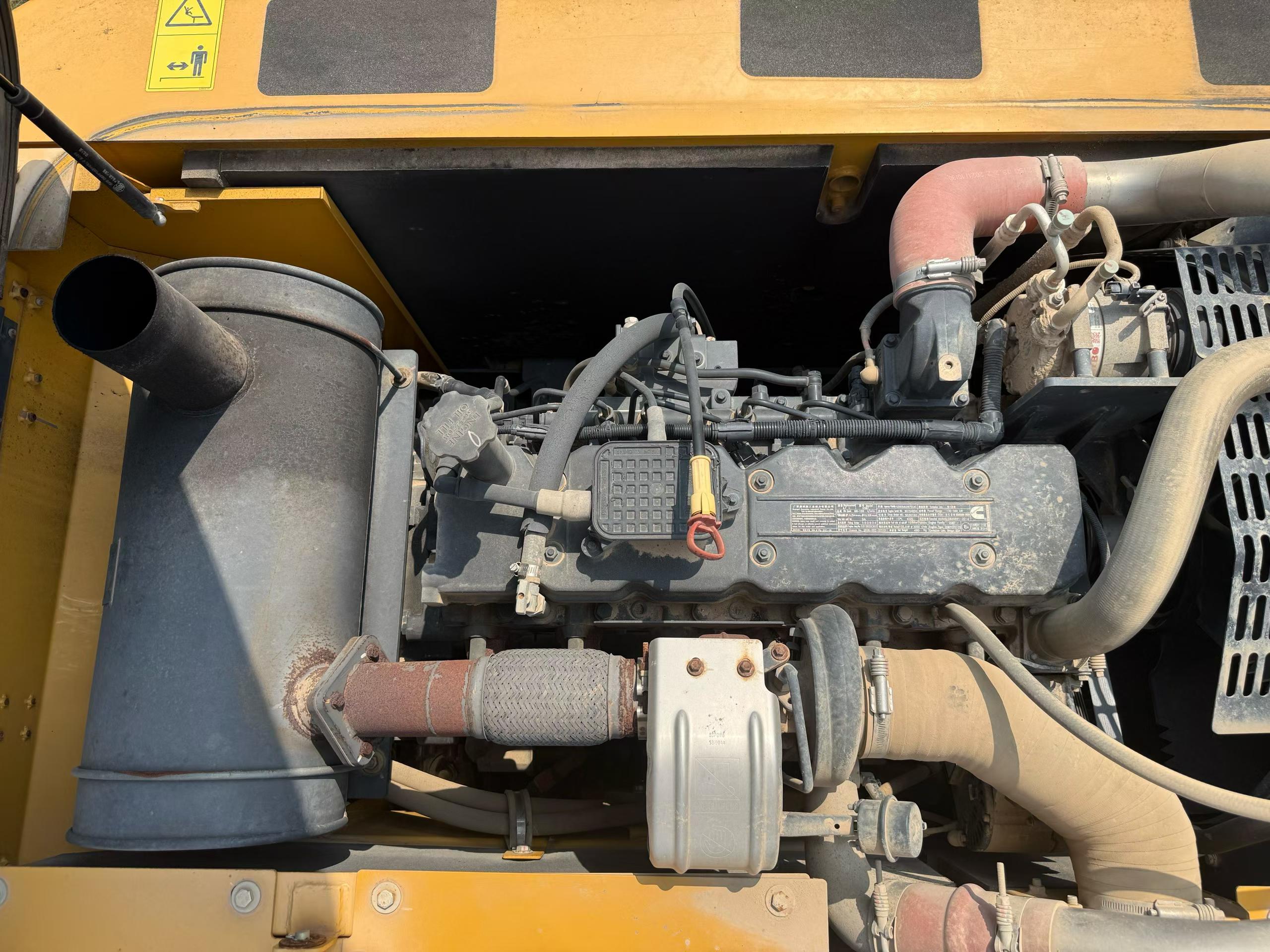

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
