Product Description
This 2022 XCMG XE205DA hydraulic excavator represents a late-production unit from one of China's leading heavy equipment manufacturers. Located in Jiangxi Province, this 20-ton class machine features XCMG's proven DA-series technology with minimal operational hours since manufacturing. The XE205DA is engineered for mid-range earthmoving, foundation work, and general construction applications.
- Manufacturing Year: 2022 (late production)
- Operating Weight: Approximately 20,500 kg
- Engine: XCMG-specification diesel power unit
- Hydraulic System: Advanced load-sensing technology
- Current Location: Jiangxi, China
- Documentation: Comprehensive photo and video package available
This unit is priced competitively for immediate dispatch. The seller provides extensive visual documentation including detailed photographs and operational videos. Suitable for contractors seeking reliable mid-size excavation capacity with recent manufacture date and established OEM support network across Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1172732 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |

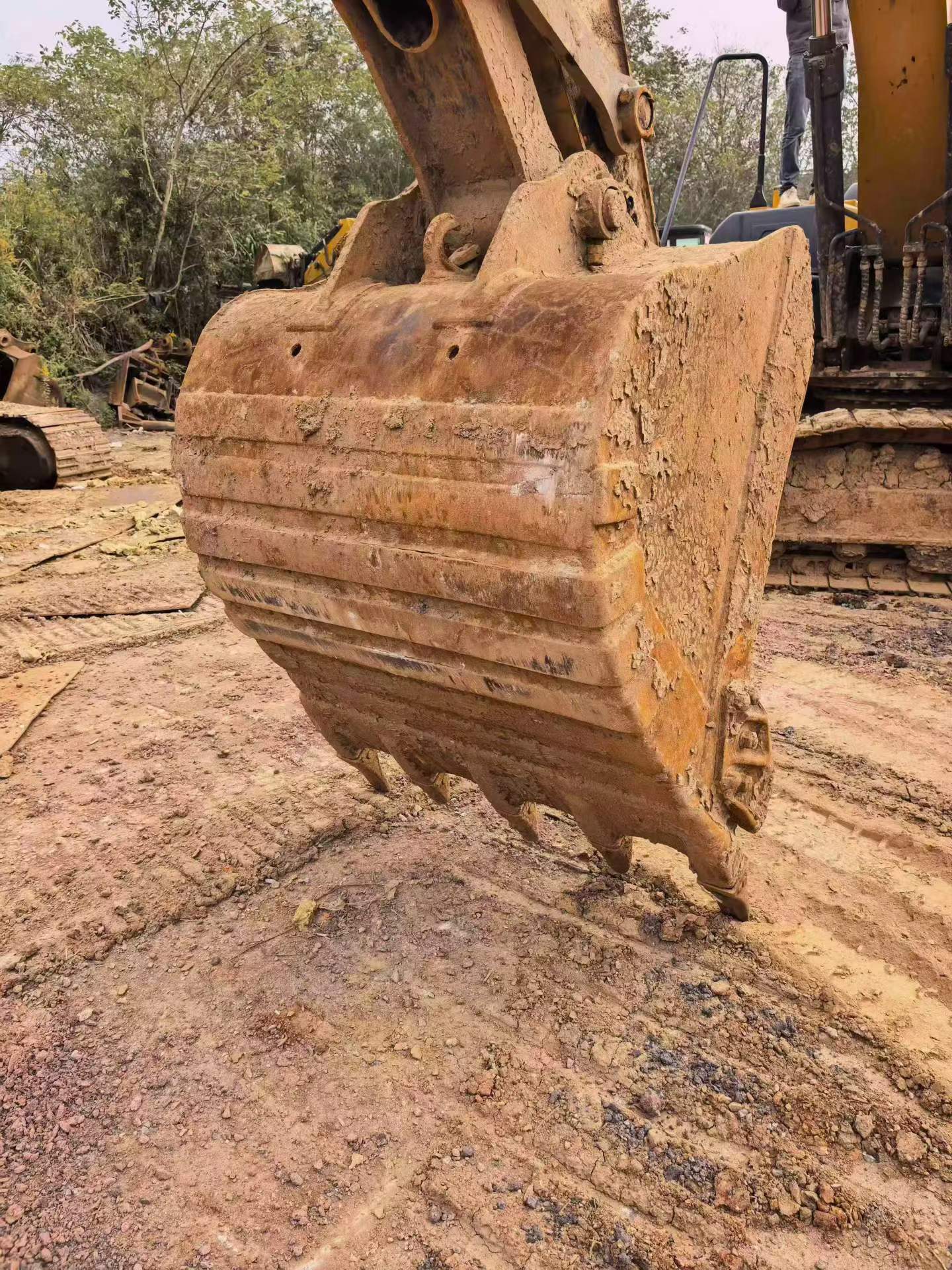

| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

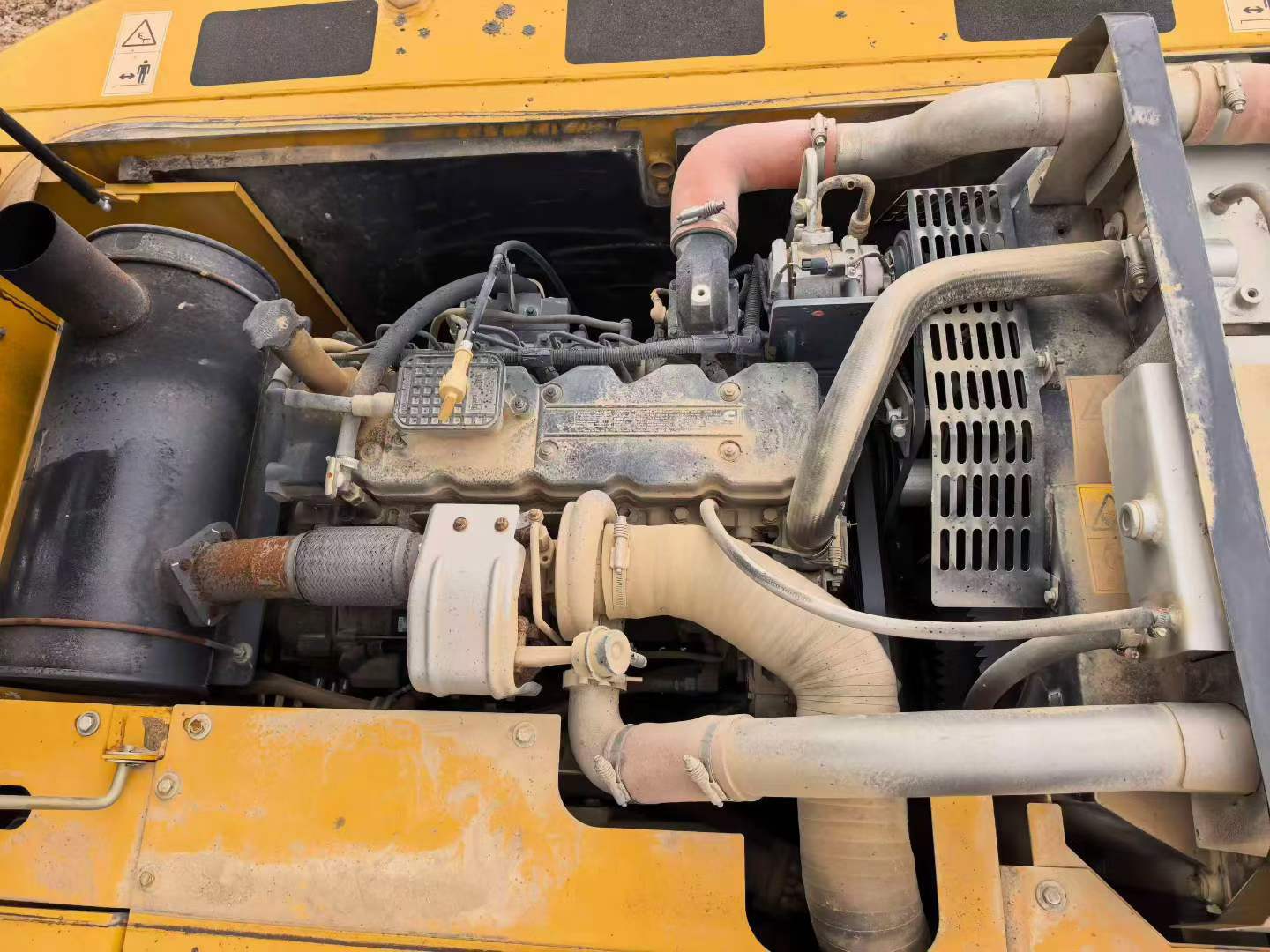

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
